Trojan SPRE 06 255 6V Flooded Lead Acid Battery

Trojan's SPRE 06 255 6V flooded lead acid battery features Maxguard™ XL Separator, a multi-rib geometry which keeps acid channels open longer, enhancing electrochemical processing while reducing the risk of stratification. The SPRE 06 255 6V battery provides rugged durability, outstanding performance and long life to meet the needs of your renewable energy applications.

Features:

• Maxguard® XL Separator and Alpha Plus® paste formulation for long life, industry-leading performance, and lower overall maintenance costs.

• The Polyon™ case for exceptional durability in heavy service applications

• Flame arrestors

• Shock and vibration resistant

• Horizontal and vertical installations

• Less than 3% self-discharge per month

• 99% recyclable


Battery Quick Facts:

Capacity AMP-Hours:

• 10-Hr Rate / 211 Ah
• 20-Hr Rate / 229 Ah
• 48-Hr Rate / 244 Ah
• 72-Hr Rate / 249 Ah
• 100-Hr Rate/ 255 Ah

Energy (KWH):

• 1.53

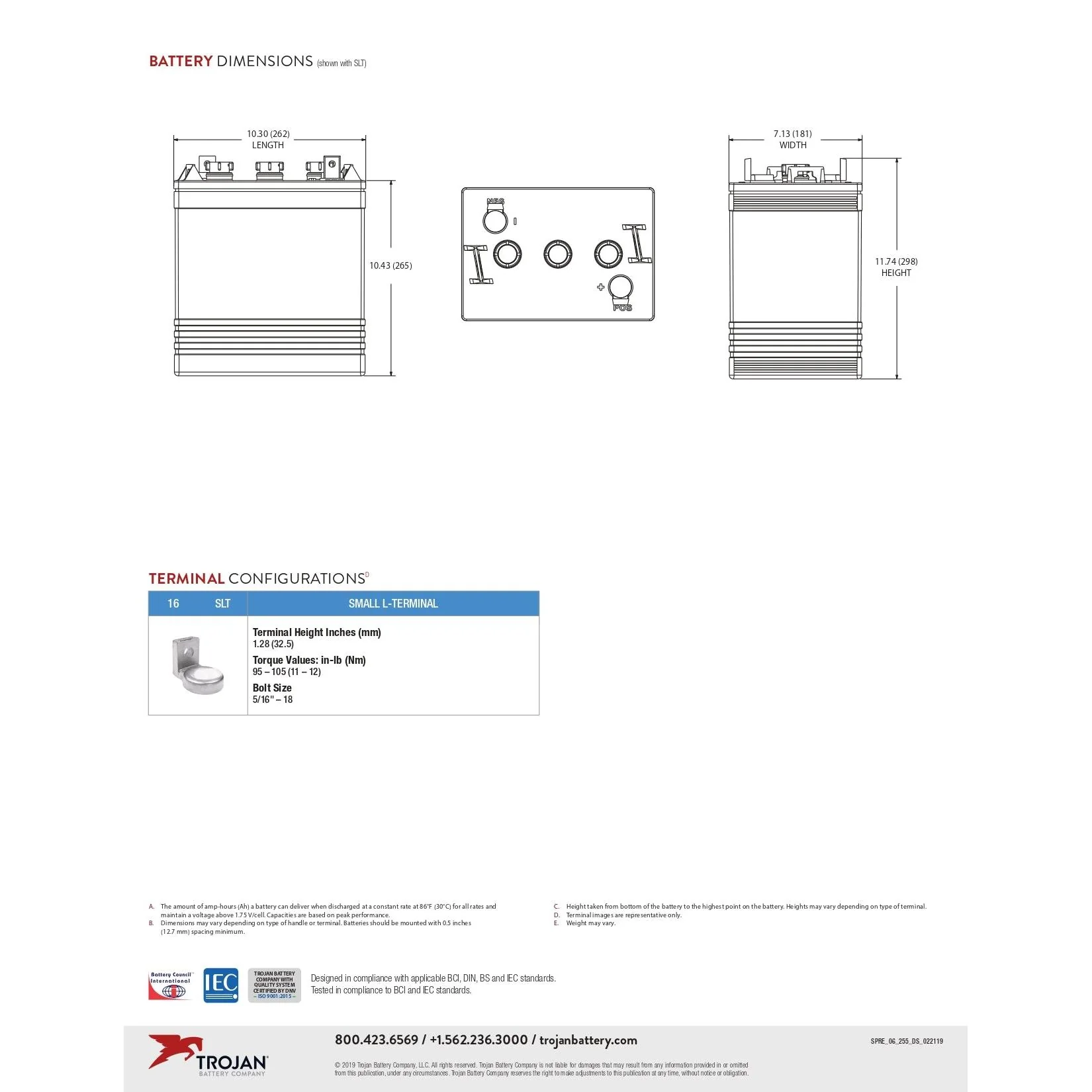

Dimensions Inches (mm)

• Length / 10.30 (262)
• Width / 7.13 (181)
• Height / 11.74 (298)

Weight lbs. (kg)

• 67 (30)

Operating Temperature:

• -4°F to 113°F (-20°C to +45°C)

Terminal Confirguartions:

Terminal Height Inches (mm)

• 1.28 (32.5)

Torque Values: in-lb (Nm)

• 95 – 105 (11 – 12)

Bolt Size

• 5/16" – 18

Resources:

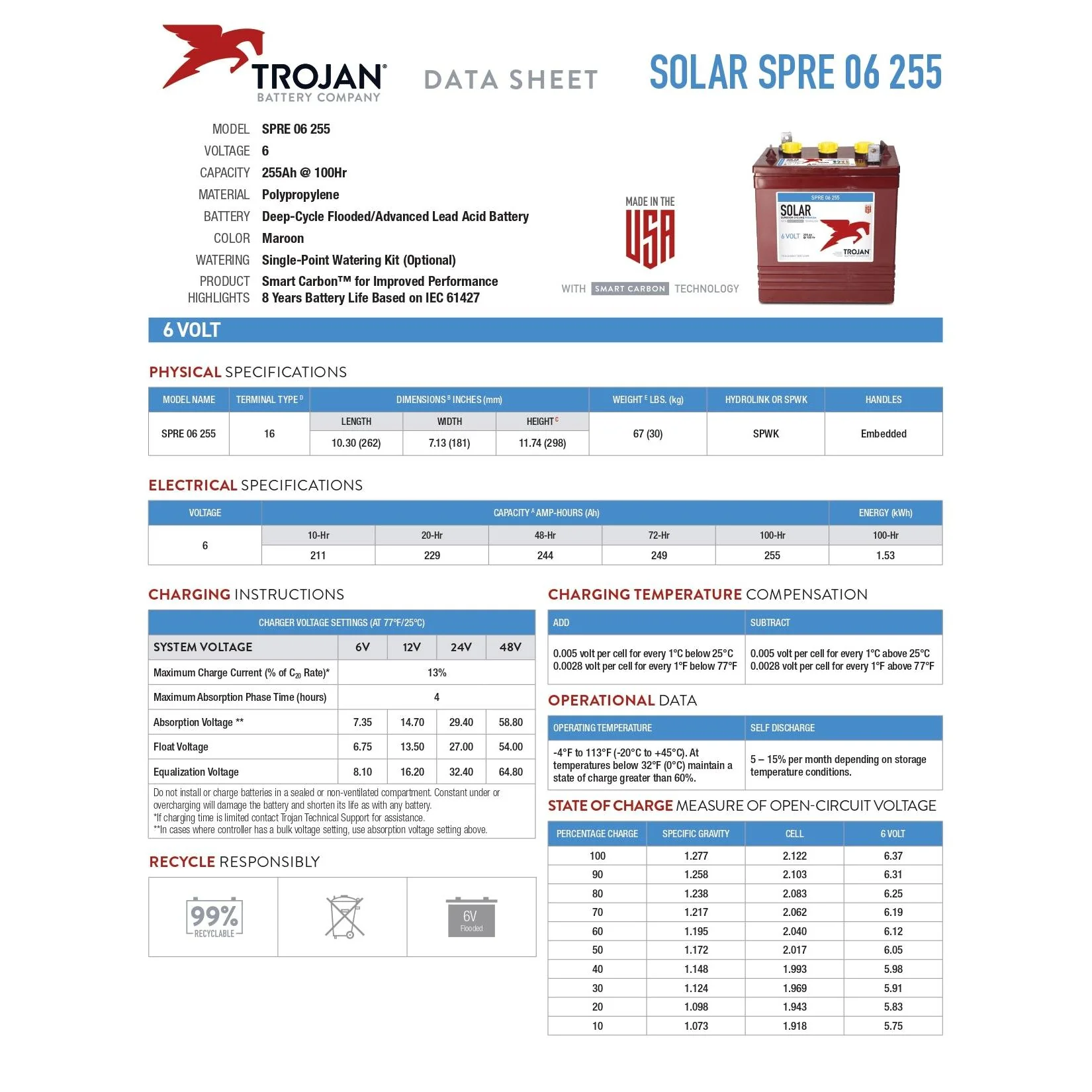

• Data Sheet
