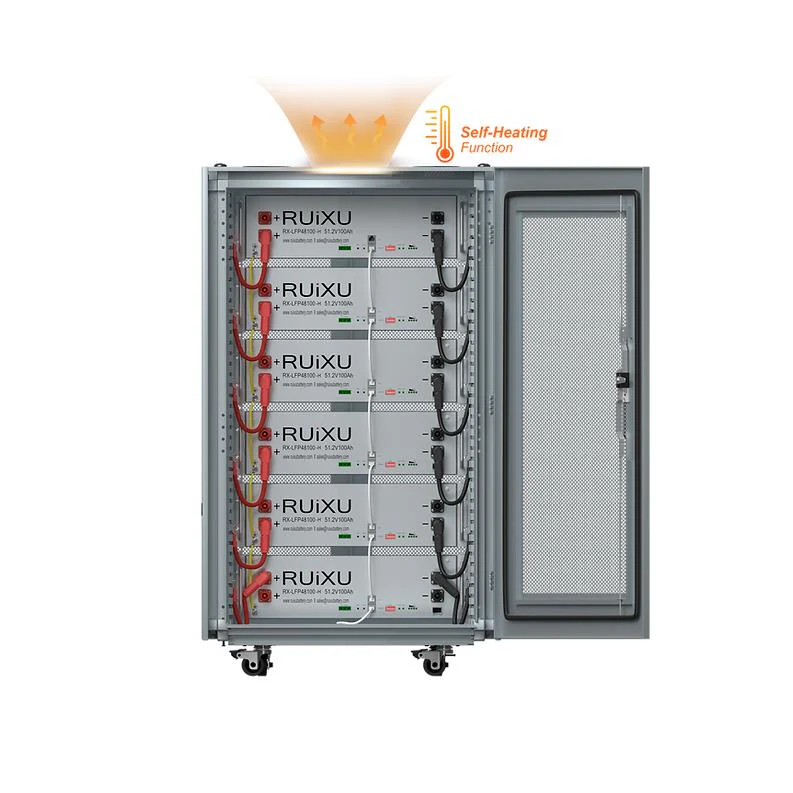

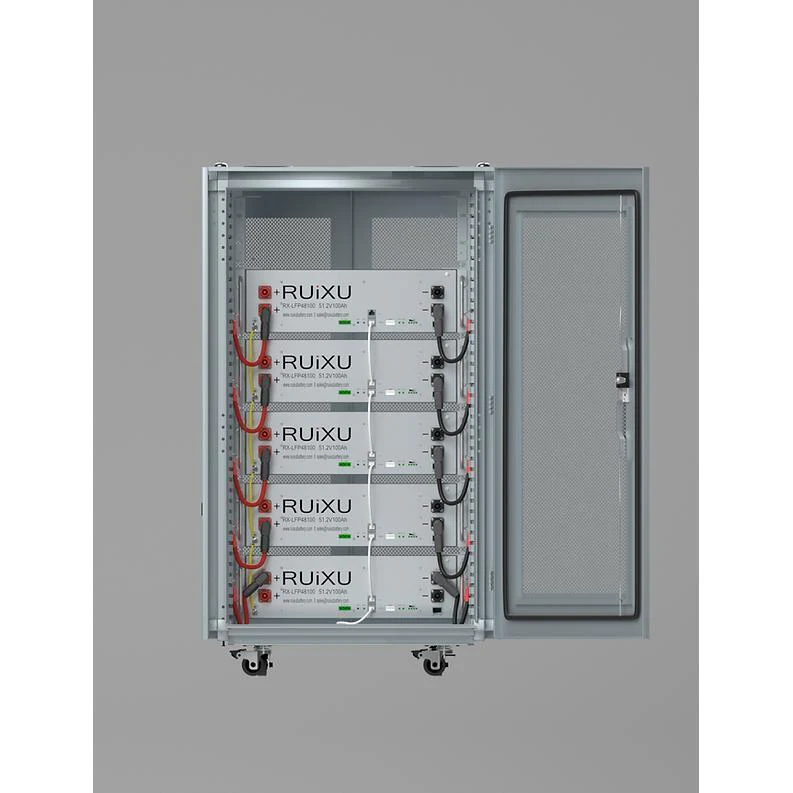

RUiXU Lithium Batteries Kits | 15kWH, 20kWH, 25kWH, 30kWH | Self-Heating

RS485 cable connect with PC

Self-heating 48V server rack battery  is designed for cold weather using! Can safely charge at temperatures down to -20°C (-4°F) by a standard charger or solar charger. The heater pads which draws power from the charger itself.

RX-LFP48100-H

• Nominal voltage ：51.2V
• Nominal [email protected] ：100 Ah
• Min. [email protected]：100 Ah
• ​Nominal energy :5120Wh
• Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
• Weight: ~47kg (103.6lb)

Modular

• Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.

Inverter Protocol Choosing

• Use DIP address to set the RS485 baud rate and inverter protocol choosing

Communications

• Canbus: Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
• RS485: MPP, Voltronic, RCT, Alpha outback

15kWh Lithium Batteries Kits Standard Included:

• (3) RUiXU self-heating 48V Server Rack battery (RX-LFP48100-H)
• (3) RJ45/CAT5e Patch Cable
• (3) Ground Cable
• (3) Sets 30cm Parallel 4AWG Cables  per battery
• (1)  Pre-assembled 6 Slot Battery Cabinet

20kWh Lithium Batteries Kits Standard Included:

• (4) RUiXU self-heating 48V Server Rack battery (RX-LFP48100-H)
• (4)  RJ45/CAT5e Patch Cable
• (4) Ground Cable
• (4) Sets 30cm Parallel 4AWG Cables  per battery
• (1)  Pre-assembled 6 Slot Battery Cabinet

25kWh Lithium Batteries Kits Standard Included:

• (5) RUiXU Self-heating 48V Server Rack battery (RX-LFP48100-H)
• (5) RJ45/CAT5e Patch Cable
• (5) Ground Cable
• (5) Sets 30cm Parallel 4AWG Cables  per battery
• (1)  Pre-assembled 6 Slot Battery Cabinet

30kWh Lithium Batteries Kits Standard Included:

• (6) RUiXU self-heating  48V Server Rack battery (RX-LFP48100-H)
• (6) RJ45/CAT5e Patch Cable
• (6) Ground Cable
• (6) Sets 30cm Parallel 4AWG Cables  per battery
• (1) Pre-assembled 6 Slot Battery Cabinet

Warranty

• 10 years covering product replacement or repair (Click here for more details)

Resources:

• Spec Sheet
• User Manual

• UL1973 Certified

• Warranty

Compatible with all leading inverters:

• Voltronic or MPP Inverter
• Sol-ark Inverter
• Deye Inverter
• Victron Inverter
• Growatt Inverter
• Schneider Inverter

Why Choose RUiXU Server Rack Battery?

Why RUiXU? CHECK DETAILS HERE

	RUiXU	Other Brand
Size (Ultra-thin)	3U Size(482x460x133.5mm),133mm height will save more space,compact & flexible	4U(482x420x161mm) or 4.5U
Installation	Rack Mounted,Floor Mounted,Wall Mounted,Stack Mounted	Rack mounted
Inverter Protocol Choosing	Use DIP address to set the RS485 baud rate and inverter protocol choosing	need to connect with computer to choose protocol
Modular	Support up to 32units in parallel,extend to 160KWh system without additional controller	only support 16units in parallel
Certification	UL1973 &IEC62619 for whole battery pack ,UN38.3,MSDS	/
Pre-charge ability(single battery)	1000000uF,capable of precharging higher power inverters	20000uF
Working Temperature	Charge:-5°C-59°C              Discharge:-10°C-59°C,built-in heater is optional	Charge:-5°C -59°C Discharge:-10°C -59°C
