MRCOOL® DIY Mini Split 42,000 BTU 21.5 SEER 3 Zone Ductless Air Conditioner and Heat Pump 12K + 12K + 18K

The MRCOOL® DIY Mini Split 42,000 BTU 21.5 SEER 3 Zone Ductless Air Conditioner and Heat Pump 12K + 12K + 18K offers a complete solution to your home’s heating and cooling needs. This system can heat & cool two areas up to 600 square feet with the 12K air handlers, and one area up to 900 square feet with the 18k air handler, all while capable of an Energy Star-certified, 21.5 SEER high-efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged line sets, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MCOOL® system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MCOOL® stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.

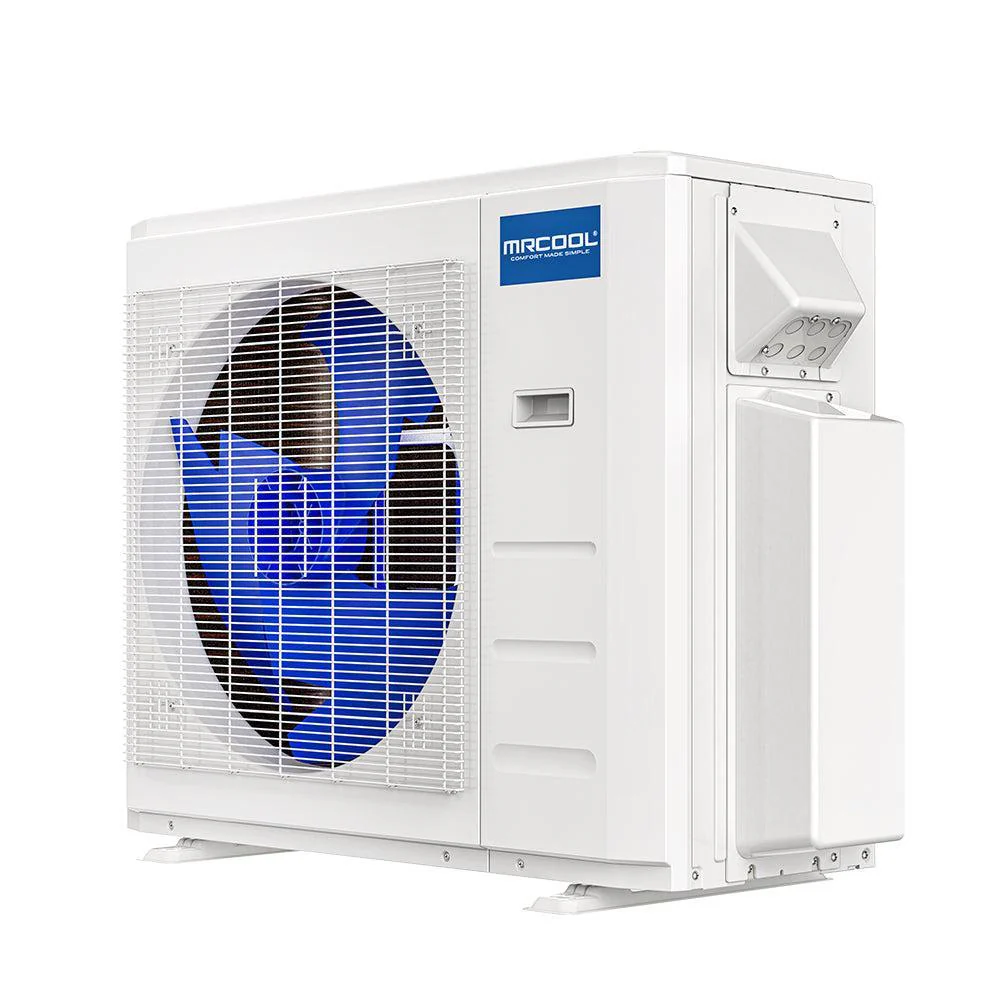

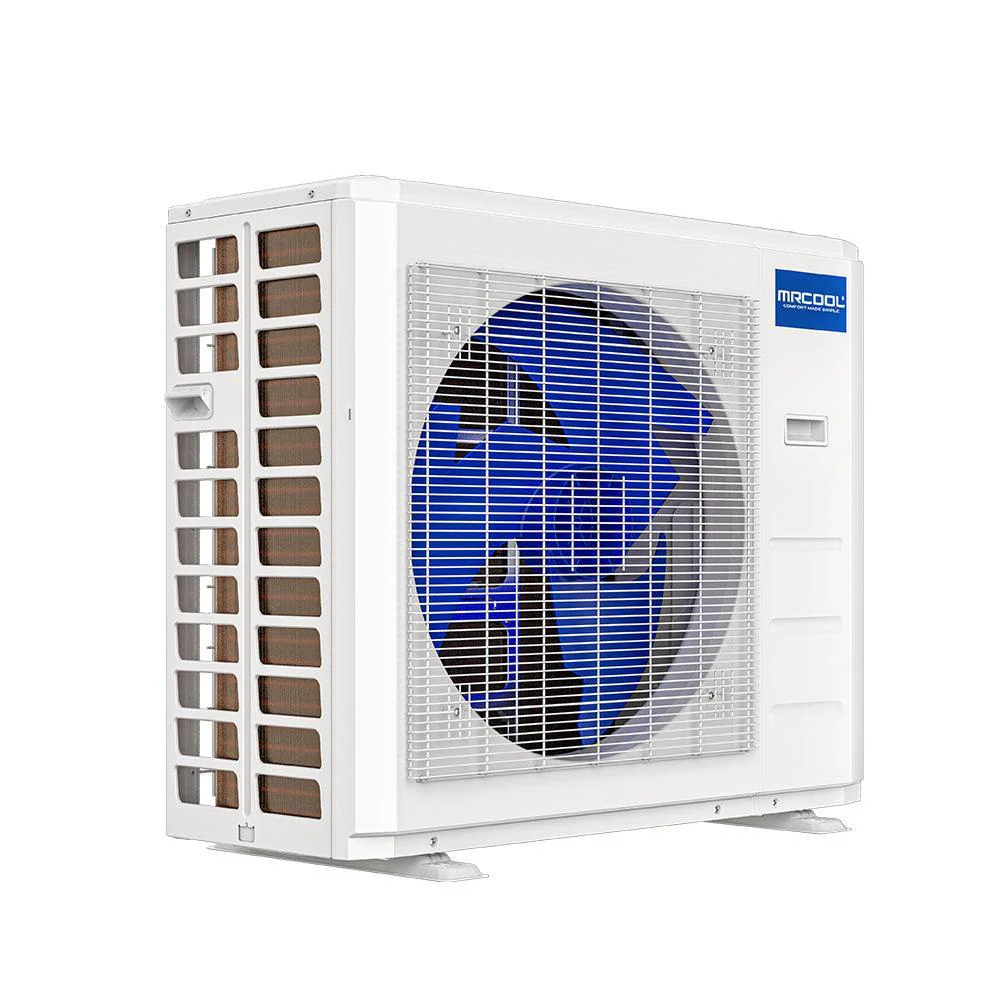

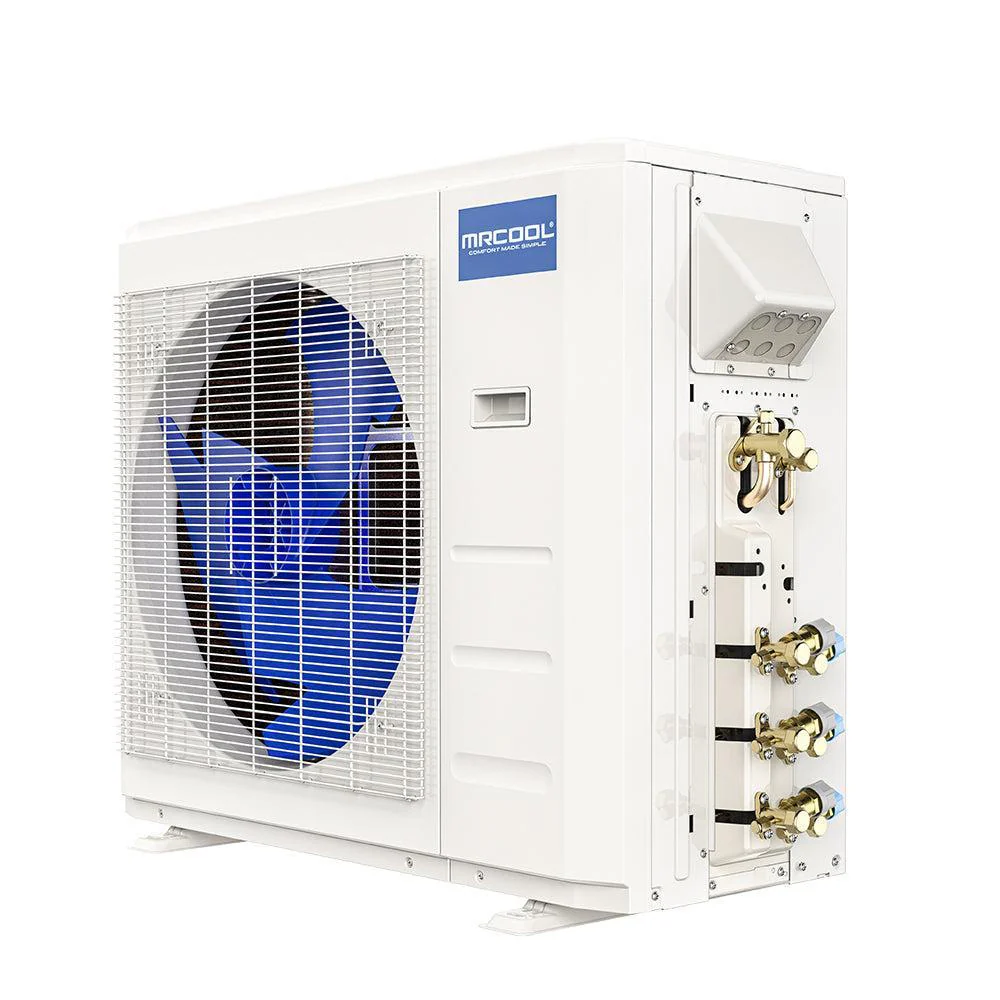

MRCOOL® DIY 4th Gen 36K BTU Multi-Zone 4-Zone Condenser 230V - DIY-MULTI4-36HP230C

The 4th Generation MRCOOL® DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.This condenser has the ability to support up to 4 zones and, when paired with select MrCool air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion. MrCool stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.

Features:

• Up to 21.5 SEER

• Delivers maximum performance even when temperatures reach -13°F

• Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long-term corrosion

• Energy-Efficient DC Inverter

• R-410A environmentally friendly refrigerant

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

MRCOOL® DIY 4th Gen 12K BTU Wall Mount Air Handler - DIY-12-HP-WMAH-230C25

The MRCOOL® 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler is an essential component of a MRCOOL® DIY system. When paired with a MrCool Condenser, it is capable of achieving a 22 SEER efficiency rating and has the ability to heat and cool an area of up to 600 sq ft. It features multiple modes of operation such as COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP so it is sure to suit your needs. It can also be conveniently operated from anywhere using your Apple or Android smartphone with the Smart HVAC app. This air handler can be easily mounted with the included and easy-to-use wall mounting plate. It is also very compact, especially when compared to the components of a traditional ducted system, so it can be easily maneuvered into place. It was also designed to be used with MrCool’s patented Pre-Charged Quick Connect Line Set. So, installing the refrigerant piping is as simple as turning a few wrenches. Since the line set comes pre-charged with the precise amount of R-410A refrigerant, no vacuuming or charging is required once connected. Select the MrCool 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler to be your home comfort solution.

Features:

• Ideal for spaces up to 600 square feet

• SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

• Compatible with Amazon Alexa and Google Assistant

• Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

MRCOOL® DIY 4th Gen 18K BTU Wall Mount Air Handler - DIY-18-HP-WMAH-230C25

The MRCOOL® 4th Generation DIY 18K BTU Ductless Wall Mounted Air Handler is one of the most capable on the market. When part of a MRCOOL® DIY system, it can reach an effective 22 SEER efficiency rating and deliver that performance to an area up to 900 sq. ft. This air handler is also very versatile because of its many different operating modes, these include, COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. It also has the ability to be controlled from anywhere using an Apple or Android smartphone with our convenient Smart HVAC app. This air handler is very compact and relatively light, so it can easily be mounted to most interior walls using the included mounting plate. The ease of installation does not stop there, as it is designed to be used along with the MrCool Pre-Charged Quick Connect Line Set. This allows the installer to easily connect the refrigerant piping, which is precharged with the correct amount of R-410A refrigerant, with the use of simple hand tools. This also means the system will not require any vacuuming once the line set is connected. The MrCool DIY 18K BTU Ductless Wall Mounted Air Handler has the performance to handle your home comfort needs.

Features:

• Ideal for spaces up to 900 square feet

• SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

• Compatible with Amazon Alexa and Google Assistant

• Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

This bundle includes:

• 1x MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser 230V - DIY-MULTI4-36HP230C


• 2x MRCOOL® DIY 4th Gen 12K BTU Wall Mount Air Handlers - DIY-12-HP-WMAH-230C25


• 1x MRCOOL® DIY 4th Gen 18K BTU Wall Mount Air Handler - DIY-18-HP-WMAH-230C25


• All accessories needed for a full installation

Condenser Specifications:

MODEL	DIY-MULTI4-36HP230C
SEER	21.5
EER	10.5
HSPF	hspf4/hspf5 : 11/8.5
CFM	2147.06
COOLING CAPACITY	36000 BTU
HEATING CAPACITY	36000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	45 A
MIN CIRCUIT AMPACITY	27 A
COLOR	White
COLOR FAMILY	White
ZONE CAPACITY	Up to 4
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME	134.04 oz
DECIBEL RATING	65 dBA
INVERTER	Yes
MIN AMBIENT COOL	5F ~ 122F
MIN AMBIENT HEAT	-13F ~ 75.2F
MAX LINESET LENGTH	221 ft TOTAL
LIQUID LINE SIZE	1/4in (3/8in w/ adapter)
SUCTION LINE SIZE	1/2in (5/8in w/ adapter)
COMPRESSOR MOTOR TYPE	Rotary
CONDENSER FAN MOTOR RPM	1000/900/750
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH	16.14 in
NET HEIGHT	31.89 in
NET WIDTH	37.24 in
NET WEIGHT	170.42 lbs
GROSS DEPTH	19.88 in
GROSS HEIGHT	35.04 in
GROSS WIDTH	42.91 in
GROSS WEIGHT	187.83 lbs

12K BTU Air Handler Specifications:

MODEL	DIY-12-HP-WMAH-230C25
COOLING CAPACITY	12000 BTU
HEATING CAPACITY	12000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	15 A
MIN CIRCUIT AMPACITY	3 A
MOUNT TYPE	Wall
COLOR	White
COLOR FAMILY	White
MAX COVERAGE AREA	Up to 600 sqft
REFRIGERANT TYPE	R-410A
DECIBEL RATING	35 dBA
DECIBEL RATING LOW	25 dBA
DECIBEL RATING HIGH	40 dBA
INVERTER	Yes
LIQUID LINE SIZE	1/4 in
SUCTION LINE SIZE	1/2 in
BLOWER MOTOR RPM	1050/850/650
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH	7.44 in
NET HEIGHT	11.69 in
NET WIDTH	31.57 in
NET WEIGHT	23.81 lbs
GROSS DEPTH	16.34 in
GROSS HEIGHT	13.98 in
GROSS WIDTH	36.02 in
GROSS WEIGHT	34.39 lbs

18K BTU Air Handler Specifications:

MODEL	DIY-18-HP-WMAH-230C25
COOLING CAPACITY	18000 BTU
HEATING CAPACITY	18000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MOUNT TYPE	Wall
COLOR	White
COLOR FAMILY	White
MAX COVERAGE AREA	Up to 900 sqft
REFRIGERANT TYPE	R-410A
DECIBEL RATING	44.5/37/31
DECIBEL RATING LOW	31 dBA
DECIBEL RATING HIGH	44.5 dBA
INVERTER	Yes
MAX LINESET LENGTH	98.42 ft
LIQUID LINE SIZE	1/4 in
SUCTION LINE SIZE	1/2 in
BLOWER MOTOR RPM	1120/950/700
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH	8.90 in
NET HEIGHT	13.19 in
NET WIDTH	42.52 in
NET WEIGHT	34.61 lbs
GROSS DEPTH	19.57 in
GROSS HEIGHT	17.32 in
GROSS WIDTH	49.09 in
GROSS WEIGHT	56 lbs
