MRCOOL® DIY Mini Split 27,000 BTU 22 SEER 3 Zone Ductless Air Conditioner and Heat Pump 9K + 9K + 9K

The MRCOOL® DIY Mini Split 27,000 BTU 22 SEER 3 Zone Ductless Air Conditioner and Heat Pump 9K + 9K + 9K offers a complete solution to your home’s heating and cooling needs. This system can heat & cool three areas up to 450 square feet with the 9K air handlers, all while capable of an Energy Star-certified, 22 SEER high-efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged line sets, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MCOOL® system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MCOOL® stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.

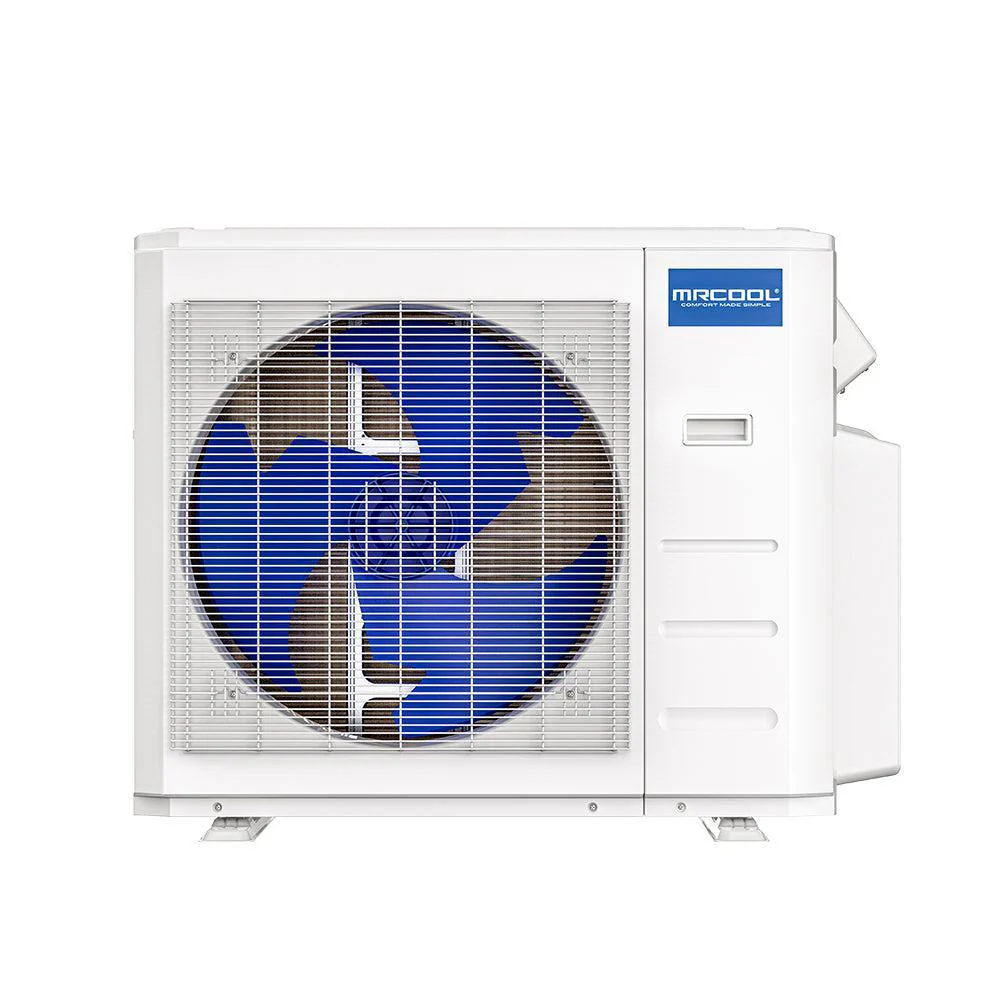

MRCOOL® DIY 4th Gen 27K BTU Multi-Zone 3-Zone Condenser 230V - DIY-MULTI3-27HP230C

Introducing the 4th Generation MRCOOL® DIY 27K BTU 3-Zone Ductless Heat Pump Condenser which is one of the most capable heat pumps on the market. When this 3-zone condenser is matched with select MrCool air handlers, it can produce a highly effective 22 SEER efficiency rating. It can also provide heating performance all the way down to -13°F. With its Gold Fin condenser coating, it is sure to withstand the seasons. To drive home the quality of this condenser, MrCool is the only manufacturer to offer a limited lifetime compressor warranty. The cornerstone of this heat pump is its ability to be a Do-It-Yourself project for a homeowner. When used with MrCool’s patented Pre-Charged Quick Connect Line Set, the refrigerant piping can be connected with simple hand tools and does not require the services of a certified technician. It comes pre-charged with the correct amount of R-410A refrigerant so, once installed, it does not require vacuuming. Allow the capability, performance, and simplicity of a DIY installation of the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser to be your only choice for your home’s heating and cooling.

Features:

• Up to 22 SEER

• Delivers maximum performance even when temperatures reach -13°F

• Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long-term corrosion

• Energy-Efficient DC Inverter

• R-410A environmentally friendly refrigerant

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

MRCOOL® DIY 4th Gen 9K BTU Wall Mount Air Handler - DIY-09-HP-WMAH-230C25

As part of a MRCOOL® DIY system, the MRCOOL® DIY 9K BTU Ductless Wall Mounted Air Handler is one of the most efficient air handlers available. Not only can it produce a 22 SEER efficiency rating it can also cover an area up to 450 sq. ft. It is also incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate. To take the simplicity of the installation even further, this air handler is designed to be used with MrCool’s patented Pre-Charged Quick Connect Line Set. The line set is equipped with quick connectors which give a DIY installer the ability to connect the refrigerant piping with wrenches. The line set comes from the factory pre-charged with the correct amount of R-410A refrigerant, so no vacuuming is necessary. Let the MrCool 4th Generation 9K BTU Ductless Wall Mounted Air Handler all of the heating and cooling necessities of your home.

Features:

• Ideal for spaces up to 450 square feet

• SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

• Compatible with Amazon Alexa and Google Assistant

• Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

This bundle includes:

• 1x MRCOOL® DIY 4th Gen Multi-Zone 3-Zone Condenser 230V - DIY-MULTI3-27HP230C


• 3x MRCOOL® DIY 4th Gen 9K BTU Wall Mount Air Handler - DIY-09-HP-WMAH-230C25

• All accessories needed for a full installation

Condenser Specifications:

MODEL	DIY-MULTI3-27HP230C
SEER	22
EER	12
HSPF	hspf4/hspf5 : 10.3/8.2
CFM	2129.41
COOLING CAPACITY	27000 BTU
HEATING CAPACITY	27000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	40 A
MIN CIRCUIT AMPACITY	26 A
COLOR	White
COLOR FAMILY	White
ZONE CAPACITY	Up to 3
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME	91.71 oz
DECIBEL RATING	61 dBA
INVERTER	Yes
MIN AMBIENT COOL	5F ~ 122F
MIN AMBIENT HEAT	-13F ~ 75.2F
MAX LINESET LENGTH	172 ft TOTAL
LIQUID LINE SIZE	1/4in
SUCTION LINE SIZE	1/2in
COMPRESSOR MOTOR TYPE	Twin - Rotary
CONDENSER FAN MOTOR RPM	1050/900/850
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH	16.14 in
NET HEIGHT	31.89 in
NET WIDTH	37.24 in
NET WEIGHT	139.99 lbs
GROSS DEPTH	19.88 in
GROSS HEIGHT	35.04 in
GROSS WIDTH	42.91 in
GROSS WEIGHT	157.19 lbs

9K Air Handler Specifications:

MODEL	DIY-09-HP-WMAH-230C25
COOLING CAPACITY	9000 BTU
HEATING CAPACITY	9000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	15 A
MIN CIRCUIT AMPACITY	3 A
MOUNT TYPE	Wall
COLOR	White
COLOR FAMILY	White
MAX COVERAGE AREA	Up to 450 sqft
REFRIGERANT TYPE	R-410A
DECIBEL RATING	35 dBA
DECIBEL RATING LOW	25 dBA
DECIBEL RATING HIGH	40 dBA
INVERTER	Yes
LIQUID LINE SIZE	1/4 in
SUCTION LINE SIZE	1/2 in
BLOWER MOTOR RPM	1050/850/650
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH	7.44 in
NET HEIGHT	11.69 in
NET WIDTH	31.57 in
NET WEIGHT	23.81 lbs
GROSS DEPTH	16.34 in
GROSS HEIGHT	13.98 in
GROSS WIDTH	36.02 in
GROSS WEIGHT	34.39 lbs



Product Information & Guides:

Condenser

• BROCHURE

• INSTALL MANUAL
• SPECS
• OWNERS MANUAL
• REMOTE MANUAL
• TECHNICAL MANUAL
• SERVICE MANUAL
• WARRANTY DOC
• AHRI CERTS
• ENERGY GUIDE CERTS
• MULTI-ZONE MATCHUP GUIDE

Air Handlers

• BROCHURE

• INSTALL MANUAL
• SPECS
• REMOTE MANUAL
• SERVICE MANUAL
• WARRANTY DOC
