MRCOOL® DIY Mini Split 33,000 BTU 22 SEER 3 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump - 9K + 12K + 12K

The MRCOOL® DIY Mini Split 33,000 BTU 22 SEER 3 Zone Ceiling Cassette Ductless Air Conditioner and Heat Pump - 9K + 12K + 12K offers a complete solution to your home’s heating and cooling needs. This system can heat & cool two distinct areas up to 600 square feet with the 12K air handlers, and one area up to 450 square feet with the 9k air handler, all while capable of an Energy Star-certified, 22 SEER high-efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged line sets, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MCOOL® system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MCOOL® stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.

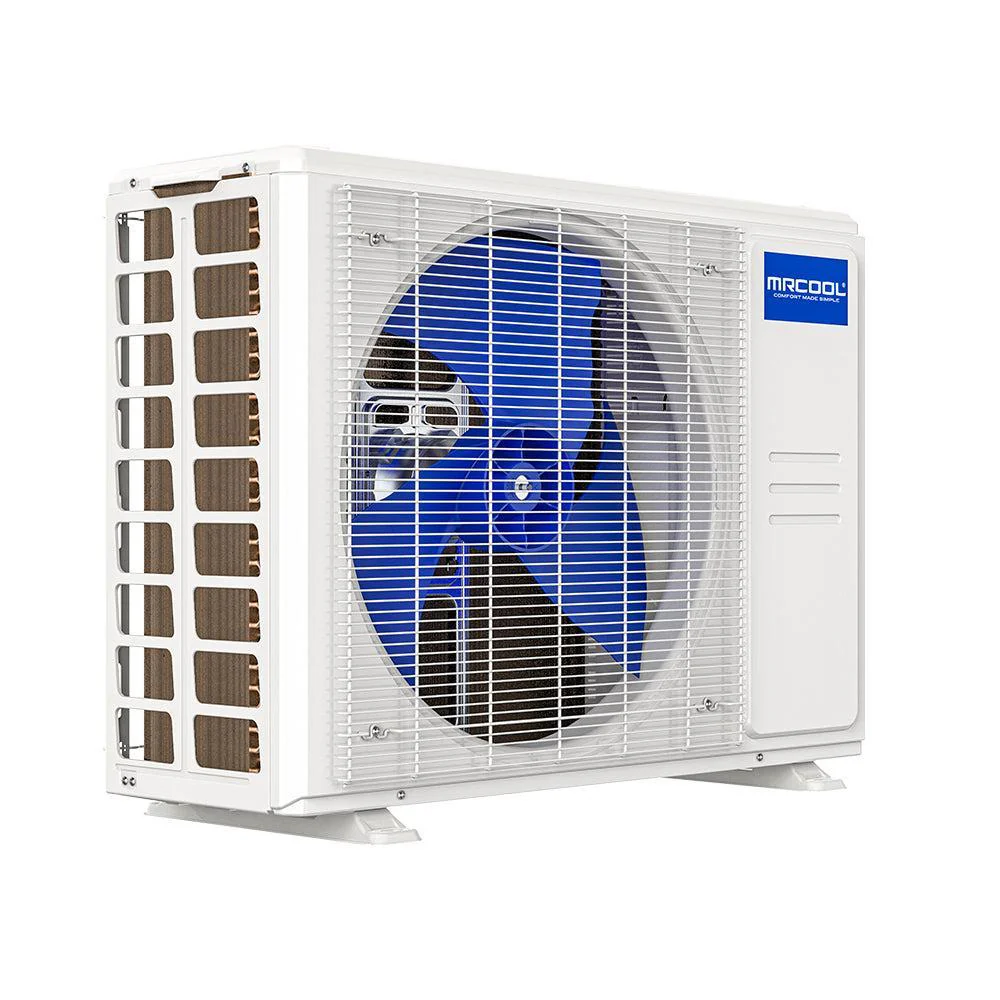

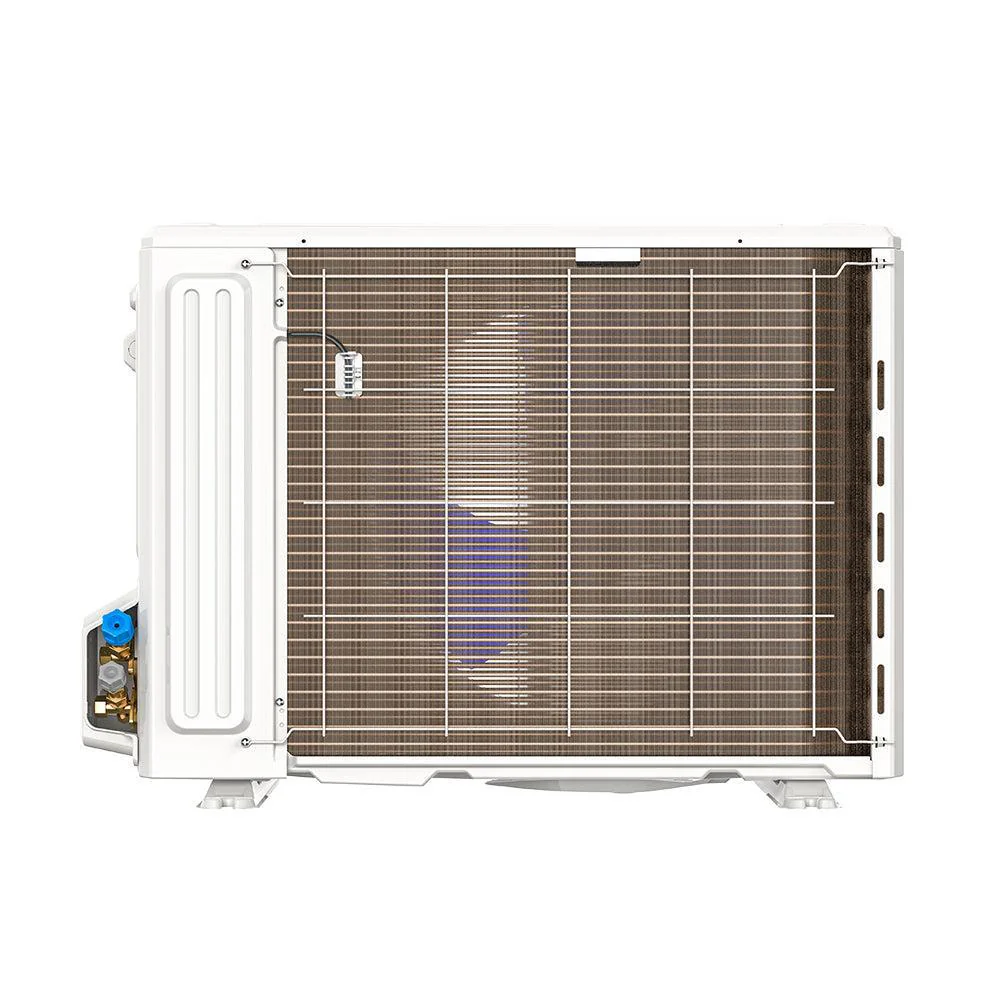

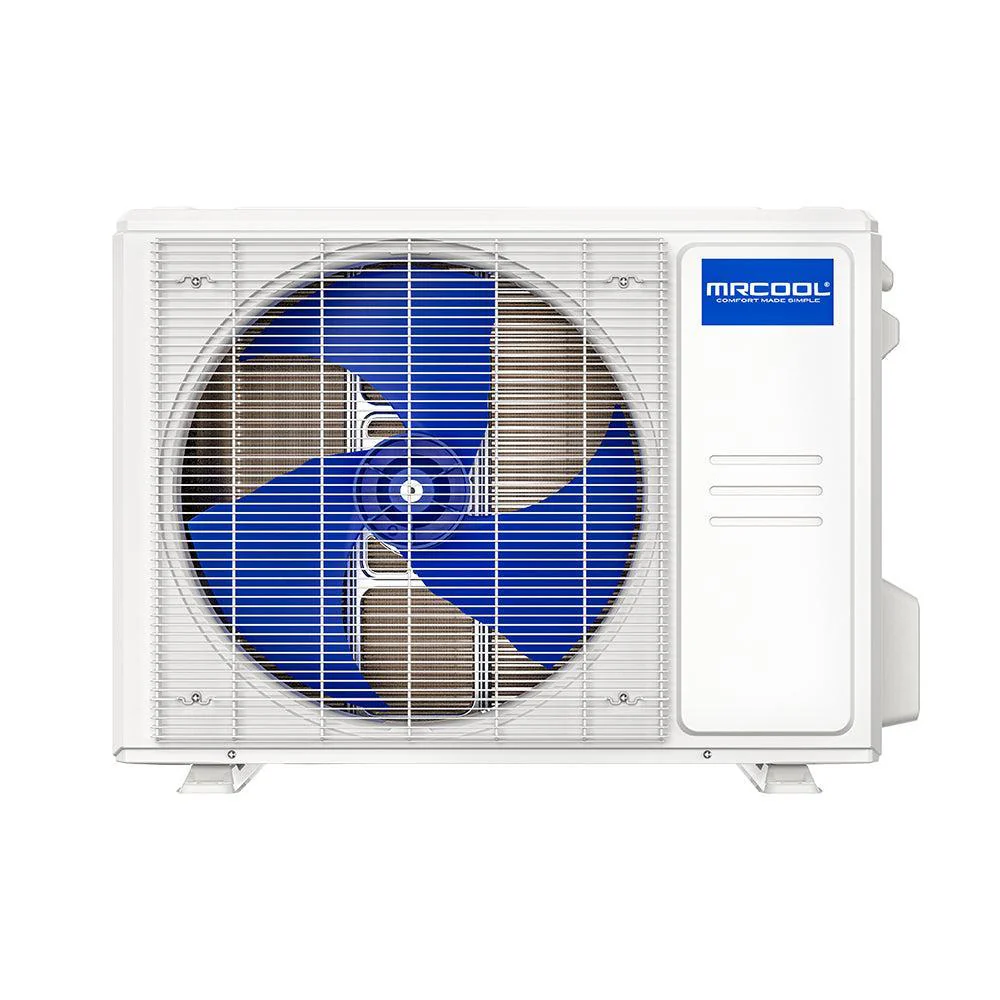

MRCOOL® DIY 4th Gen Multi-Zone 3-Zone Condenser 230V - DIY-MULTI3-27HP230C

Introducing the 4th Generation MRCOOL® DIY 27K BTU 3-Zone Ductless Heat Pump Condenser which is one of the most capable heat pumps on the market. When this 3-zone condenser is matched with select MrCool air handlers, it can produce a highly effective 22 SEER efficiency rating. It can also provide heating performance all the way down to -13°F. With its Gold Fin condenser coating, it is sure to withstand the seasons. To drive home the quality of this condenser, MrCool is the only manufacturer to offer a limited lifetime compressor warranty. The cornerstone of this heat pump is its ability to be a Do-It-Yourself project for a homeowner. When used with MrCool’s patented Pre-Charged Quick Connect Line Set, the refrigerant piping can be connected with simple hand tools and does not require the services of a certified technician. It comes pre-charged with the correct amount of R-410A refrigerant so, once installed, it does not require vacuuming. Allow the capability, performance, and simplicity of a DIY installation of the 4th Generation MrCool DIY 27K BTU 3-Zone Ductless Heat Pump Condenser to be your only choice for your home’s heating and cooling.

Features:

• Up to 22 SEER

• Delivers maximum performance even when temperatures reach -13°F

• Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long-term corrosion

• Energy-Efficient DC Inverter

• R-410A environmentally friendly refrigerant

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty



MRCOOL® DIY Series OuttaSight™ 9k BTU Ceiling Cassette - DIYCASSETTE09HP-230C25

The MRCOOL® DIY® Series 9k BTU Ceiling Cassette is perfect for any space and provides discreet and out-of-sight heating and cooling. It is available in multi-zone options and is easy to install, fitting between 16” ceiling joists. The cassette is designed to work with both current and future joist standards and can be recessed between all types of joists on a 16-inch center, including pre-manufactured I-joists. Other ceiling cassettes have strict installation requirements in less ideal locations, but the MrCool® cassette doesn't require ductwork or wall space and is perfect for new constructions or retrofits. The cassette works with the MrCool® DIY Quick Connect line set which makes installation even easier since it is precharged with refrigerant, eliminating the need for vacuuming. The No-Vac® Coupler can be used to increase length. With advanced filtration, each cassette offers an Elevation function that lowers the filter panel for easy filter maintenance. Not only does this cassette feature quiet operation and multiple operating modes, but also provides a limited lifetime warranty in addition to a 7-year compressor warranty and 5-year parts warranty, so you can feel confident in your investment.

Features:

• Ideal for spaces up to 450 square feet

• Fits between 16" Ceiling Joists

• Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.

• Low Profile Installation

• Designed to work with current and future joist standards, it can be recessed between all types of joists on 16-inch center - including pre-manufactured I-joists.



MRCOOL® DIY Series OuttaSight™ 12k BTU Ceiling Cassette - DIYCASSETTE12HP-230C25

With an easy, low profile installation, the MRCOOL® DIY® Series 12k BTU Ceiling Cassette provides efficient heating and cooling that is perfect for any space, making it one of the most versatile ceiling units ever. The cassette is offered in multi-zone options. Unlike other ceiling cassettes, the MrCool® DIY® Series 12k BTU Ceiling Cassette doesn’t have strict installation requirements in less than ideal locations and can be recessed between all types of joists on 16 inch center, including pre-manufactured I-joists. Since it doesn’t require ductwork or wall space, it is perfect for both new construction or retrofits. The cassette works with the MrCool® DIY® Quick Connect® line set which comes precharged with R-410A refrigerant. The No-Vac® Coupler can be used to increase the length of the line set if needed. In addition to the many operational modes and quiet operation, the cassette features swing technology and an Elevation function that lowers the filter panel for easy maintenance of the air filter. All of these features can be controlled with the included remote. For peace of mind, the cassette offers a limited lifetime warranty along with a 7-year compressor warranty and 5-year parts warranty.

Features:

• Ideal for spaces up to 600 square feet

• Fits between 16" Ceiling Joists

• Featuring our easy access, elevating filter that can be lowered to a maximum of 4.9ft from the cassette.

• Low Profile Installation

• Designed to work with current and future joist standards, it can be recessed between all types of joists on 16-inch center - including pre-manufactured I-joists.

This bundle includes:

• 1x MRCOOL® DIY 4th Gen Multi-Zone 3-Zone Condenser 230V - DIY-MULTI3-27HP230C


• 1x MRCOOL® DIY Series OuttaSight™ 9k BTU Ceiling Cassette - DIYCASSETTE09HP-230C25

• 2x MRCOOL® DIY Series OuttaSight™ 12k BTU Ceiling Cassette - DIYCASSETTE12HP-230C25


• All accessories needed for a full installation

Condenser Specifications

MODEL	DIY-MULTI3-27HP230C
SEER	22
EER	12
HSPF	hspf4/hspf5 : 10.3/8.2
CFM	2129.41
COOLING CAPACITY	27000 BTU
HEATING CAPACITY	27000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	40 A
MIN CIRCUIT AMPACITY	26 A
COLOR	White
COLOR FAMILY	White
ZONE CAPACITY	Up to 3
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME	91.71 oz
DECIBEL RATING	61 dBA
INVERTER	Yes
MIN AMBIENT COOL	5F ~ 122F
MIN AMBIENT HEAT	-13F ~ 75.2F
MAX LINESET LENGTH	172 ft TOTAL
LIQUID LINE SIZE	1/4in
SUCTION LINE SIZE	1/2in
COMPRESSOR MOTOR TYPE	Twin - Rotary
CONDENSER FAN MOTOR RPM	1050/900/850
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH	16.14 in
NET HEIGHT	31.89 in
NET WIDTH	37.24 in
NET WEIGHT	139.99 lbs
GROSS DEPTH	19.88 in
GROSS HEIGHT	35.04 in
GROSS WIDTH	42.91 in
GROSS WEIGHT	157.19 lbs

9K Air Handler Specifications

MODEL	DIYCASSETTE09HP-230C25
SEER	Up to 20.75
EER	Up to 12.5
HSPF	hsph4/hspf5: 11/8.6
COOLING CAPACITY	9000
HEATING CAPACITY	9000
VOLTAGE	208/230
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	15 A
MIN CIRCUIT AMPACITY	3 A
RATED LOAD	1.5 A
DECIBEL RATING	40/35.5
DECIBEL RATING LOW	24.5 dBA
DECIBEL RATING HIGH	42 dBA
BLOWER MOTOR HP	570/537/488/350
BLOWER MOTOR SPEEDS	4
BLOWER MOTOR RPM	1024/944/864
FILTER TYPE	Reusable
FAN ONLY OPTION	Yes
QUIET MODE	Yes
SLEEP MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH	13.19 in
NET HEIGHT	8.98 in
NET WIDTH	50.31 in
NET WEIGHT	44.31 lbs
GROSS DEPTH	22.48 in
GROSS HEIGHT	22.64 in
GROSS WIDTH	57.60 in
GROSS WEIGHT	87.96 lbs



12K Air Handler Specifications

MODEL	DIYCASSETTE12HP-230C25
SEER	Up to 20.75
EER	Up to 12.5
HSPF	hsph4/hspf5: 11/8.6
COOLING CAPACITY	12000
HEATING CAPACITY	12000
VOLTAGE	208/230
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	15 A
MIN CIRCUIT AMPACITY	3 A
RATED LOAD	1.5 A
DECIBEL RATING	41/35
DECIBEL RATING LOW	26 dBA
DECIBEL RATING HIGH	43 dBA
BLOWER MOTOR HP	620/560/450/350
BLOWER MOTOR SPEEDS	4
BLOWER MOTOR RPM	1064/974/884
FILTER TYPE	Reusable
FAN ONLY OPTION	Yes
QUIET MODE	Yes
SLEEP MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH	13.19 in
NET HEIGHT	8.98 in
NET WIDTH	50.31 in
NET WEIGHT	45.42 lbs
GROSS DEPTH	22.48 in
GROSS HEIGHT	22.64 in
GROSS WIDTH	57.60 in
GROSS WEIGHT	88.85 lbs
