Pioneer® 2 Zone Mini Split System - Design Your Own - R454B

Pioneer® 2 Zone Mini Split System - Design Your Own - R454B, complete set. System components include: one multi zone outdoor unit, two indoor air handling units of your choice, optional piping and accessory kits, and remote controllers (remote controllers are included). Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.



Optional Multi Zone Outdoor Sections:





Pioneer® Multi (2) Circuit Quantum Ultra Series 24 SEER2 Dual Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V

Ultra-high efficiency inverter++ ductless multi split dual (2) zone heat pump system.

Important

The outdoor unit is pre-charged withR454b Refrigerant, allowing refrigerant line lengths of up to25 ft. per circuit.

Notes

• Different models of all available matching indoor units can be combined in any order to create a multi-zone split system, up to a quantity of the number of available circuits.
• Not all available circuits need to be utilized with an attached indoor unit. 66% or higher of the total capacity utilization is recommended.
• Every indoor unit attached to a multi-zone system will operate at a random, self-regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity) or turn OFF as needed.
• Outdoor unit will also self-regulate its total output capacity, based on the total demand it reads from all the simultaneously running indoor units at any given moment, up to its maximum rating capacity.
• With multi-split systems, the total demand from the outdoor unit, will seldomly exceed 75% of the total available capacity of the combined indoor unit group due to load fluctuations of each indoor unit.
• Therefore, total attached indoor unit capacity can be selected up to 133% of the supporting outdoor unit's rated capacity.
• Although very seldom, if the total demand from the combined group of indoor units exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.
• For high demand applications, max loading limits may need to be reduced up to 20% to avoid underperformance risks during some extreme conditions.

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

• Up to 5 years Warranty for Parts
• Up to5 years Warranty for Compressor

Manuals & Documents

• Installation Manual
• Service Manual
• AHRI Certificate (Ductless Indoor Units/Ducted Indoor Units)
• Energy Guide
• Addendum to Standard Manual
• Disassembly Manual
• Exploded Parts Diagram

Summary

• Ultra High EfficiencyDual Zone (2 Circuit) Outdoor Condensing System
• Cooling Capacity: 18,000 BTUwith24 SEER2 / 13.0 EER2efficiency
• Heating Capacity:20,000 BTUwith10.0 HSP2 / 3.5 C.O.P.efficiency
• Energy-StarandEnergy-Star Cold-ClimateDesignated Performance
• WideAmbient Operation Range (As low as -13°F in Heating / As high as 131°F in Cooling)
• Factory Prechargedto Cover Up to50 Ft.of Total Combined Attached Lineset Length

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Communication Protocol:Current Loop
• Min-Max Load Attached:12,000~27,000 BTU/h
• Cooling Rated Capacity:18,000 BTU/h
• Cooling SEER2 (Ductless):24.0 BTU/W.h
• Cooling EER2 (Ductless): 13.0 BTU/W.h
• Heating Rated Capacity:20,000 BTU/h
• Heating HSPF2 (Ductless): 10.0 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.5 / 2.0 W/W
• Refrigerant Type: R454B

• Suitable Area: 300~750 Sq.F
• Sound Level:58.0 dB(A)
• Circuit Breaker Utilized: 20A (double-pole)
• Net Dimensions (WDH):36-1/2 x 15 x 27-1/2 Inches
• Carton Dimensions (WDH):37-3/4 x 16-7/8 x 28-3/4 Inches
• Net / Gross Weight: 93/ 99 Lbs

Min. / Max. Loading

12,000 / 27,000 BTU/h.

Pioneer® Multi (3) Circuit Quantum Ultra Series 24 SEER2 Triple Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V

Ultra-high efficiency inverter++ ductless multi split triple (3) zone heat pump system (paired with 2x indoor units to function effectively as a stronger 2-zone system).

Important

The outdoor unit is pre-charged withR454b Refrigerant, allowing refrigerant line lengths of up to25 ft. per circuit.

Notes

• Different models of all available matching indoor units can be combined in any order to create a multi-zone split system, up to a quantity of the number of available circuits.
• Not all available circuits need to be utilized with an attached indoor unit. 66% or higher of the total capacity utilization is recommended.
• Every indoor unit attached to a multi-zone system will operate at a random, self-regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity) or turn OFF as needed.
• Outdoor unit will also self-regulate its total output capacity, based on the total demand it reads from all the simultaneously running indoor units at any given moment, up to its maximum rating capacity.
• With multi-split systems, the total demand from the outdoor unit, will seldomly exceed 75% of the total available capacity of the combined indoor unit group due to load fluctuations of each indoor unit.
• Therefore, total attached indoor unit capacity can be selected up to 133% of the supporting outdoor unit's rated capacity.
• Although very seldom, if the total demand from the combined group of indoor units exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.
• For high demand applications, max loading limits may need to be reduced up to 20% to avoid underperformance risks during some extreme conditions.

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

• Up to 5 years Warranty for Parts
• Up to5 years Warranty for Compressor

Manuals & Documents

• Installation Manual (Multi-Split Addendum)
• Service Manual
• AHRI Certificate (Ductless Indoor Units/Ducted Indoor Units)
• Energy Guide
• Addendum to Standard Manual
• Disassembly Manual
• Exploded Parts Diagram

Summary

• Ultra High Efficiency Triple Zone (3 Circuit) Outdoor Condensing System
• Cooling Capacity: 27,000 BTU with 24 SEER2 / 12.0 EER2 efficiency
• Heating Capacity: 28,000 BTU with 10.0 HSP2 / 3.5 C.O.P. efficiency
• Energy-Star and Energy-Star Cold-Climate Designated Performance
• Wide Ambient Operation Range (As low as -13°F in Heating / As high as 131°F in Cooling)
• Factory Precharged to Cover Up to 75 Ft. of Total Combined Attached Lineset Length
• Can be Utilized as a Stronger Dual-Zone System by Leaving 3rd Zone Closed

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Communication Protocol:Current Loop
• Min-Max Load Attached:18,000~39,000 BTU/h
• Cooling Rated Capacity:27,000 BTU/h
• Cooling SEER2 (Ductless):24.0 BTU/W.h
• Cooling EER2 (Ductless): 12.0 BTU/W.h
• Heating Rated Capacity:28,000 BTU/h
• Heating HSPF2 (Ductless): 10.0 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.5 / 2.0 W/W
• Refrigerant Type: R454B

• Suitable Area: 400~1050 Sq.F
• Sound Level:62.0 dB(A)
• Circuit Breaker Utilized: 25A (double-pole)
• Net Dimensions (WDH):38-1/2 x 16-1/2 x 31-5/8 Inches
• Carton Dimensions (WDH):40-1/2 x 18-7/8 x 32-7/8 Inches
• Net / Gross Weight: 119/ 128 Lbs

Min. / Max. Loading

18,000 / 39,000 BTU/h.

Pioneer® Multi (4) Circuit Quantum Ultra Series 22.5 SEER2 Quad Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V

Ultra-high efficiency inverter++ ductless multi split quad (4) circuit heat pump system (paired with 2x indoor units to function effectively as a stronger 2-zone system).

Important

The outdoor unit is pre-charged withR454b Refrigerant, allowing refrigerant line lengths of up to25 ft. per circuit.

Notes

• Different models of all available matching indoor units can be combined in any order to create a multi-zone split system, up to a quantity of the number of available circuits.
• Not all available circuits need to be utilized with an attached indoor unit. 66% or higher of the total capacity utilization is recommended.
• Every indoor unit attached to a multi-zone system will operate at a random, self-regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity) or turn OFF as needed.
• Outdoor unit will also self-regulate its total output capacity, based on the total demand it reads from all the simultaneously running indoor units at any given moment, up to its maximum rating capacity.
• With multi-split systems, the total demand from the outdoor unit, will seldomly exceed 75% of the total available capacity of the combined indoor unit group due to load fluctuations of each indoor unit.
• Therefore, total attached indoor unit capacity can be selected up to 133% of the supporting outdoor unit's rated capacity.
• Although very seldom, if the total demand from the combined group of indoor units exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.
• For high demand applications, max loading limits may need to be reduced up to 20% to avoid underperformance risks during some extreme conditions.

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

• Up to 5 years Warranty for Parts
• Up to5 years Warranty for Compressor

Manuals & Documents

• Installation Manual (Multi-Split Addendum)
• Service Manual
• AHRI Certificate (All Ductless/All Ducted)
• Energy Guide
• Addendum to Standard Manual
• Disassembly Manual
• Exploded Parts Diagram

Summary

• Ultra High EfficiencyQuad Zone (4 Circuit) Outdoor Condensing System
• Cooling Capacity:35,000 BTUwith22.5 SEER2 / 12.0 EER2efficiency
• Heating Capacity:36,000 BTUwith9.5 HSP2 / 3.5 C.O.P.efficiency
• Energy-Star Cold-ClimateDesignated Performance
• WideAmbient Operation Range (As low as -13°F in Heating / As high as 131°F in Cooling)
• Factory Prechargedto Cover Up to100 Ft.of Total Combined Attached Lineset Length

• Can be Utilized as aStronger Triple or Dual-Zone Systemby Leaving 3rd and/or 4th Zone Closed

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Communication Protocol:Current Loop
• Min-Max Load Attached:18,000~48,000 BTU/h
• Cooling Rated Capacity:35,000 BTU/h
• Cooling SEER2 (Ductless):22.5 BTU/W.h
• Cooling EER2 (Ductless): 12.0 BTU/W.h
• Heating Rated Capacity:36,000 BTU/h
• Heating HSPF2 (Ductless): 9.5 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.5 / 2.0 W/W
• Refrigerant Type: R454B

• Suitable Area: 700~1350 Sq.F
• Sound Level:65.0 dB(A)
• Circuit Breaker Utilized: 30A (double-pole)
• Net Dimensions (WDH):42-1/4 x 18-3/8 x 33-1/2 Inches
• Carton Dimensions (WDH):44-5/8 x 20-7/8 x 38-1/8 Inches
• Net / Gross Weight: 145/ 170 Lbs

Min. / Max. Loading

18,000 / 48,000 BTU/h.



Pioneer® Multi (5) Circuit Quantum Ultra Series 22 SEER2 Quint Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V

Ultra-high efficiency inverter++ ductless multi split quint (5) circuit heat pump system (paired with 2x indoor units to function effectively as a stronger 2-zone system)

Important

The outdoor unit is pre-charged withR454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit

Notes

• Different models of all available matching indoor units can be combined in any order to create a multi-zone split system, up to a quantity of the number of available circuits.
• Not all available circuits need to be utilized with an attached indoor unit. 66% or higher of the total capacity utilization is recommended.
• Every indoor unit attached to a multi-zone system will operate at a random, self-regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity) or turn OFF as needed.
• Outdoor unit will also self-regulate its total output capacity, based on the total demand it reads from all the simultaneously running indoor units at any given moment, up to its maximum rating capacity.
• With multi-split systems, the total demand from the outdoor unit, will seldomly exceed 75% of the total available capacity of the combined indoor unit group due to load fluctuations of each indoor unit.
• Therefore, total attached indoor unit capacity can be selected up to 133% of the supporting outdoor unit's rated capacity.
• Although very seldom, if the total demand from the combined group of indoor units exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.
• For high demand applications, max loading limits may need to be reduced up to 20% to avoid underperformance risks during some extreme conditions.

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

• Up to 5 years Warranty for Parts
• Up to 5 years Warranty for Compressor

Summary

• Ultra High Efficiency Quint Zone (5 Circuit) Outdoor Condensing System
• Cooling Capacity: 42,000 BTU with 22.0 SEER2 / 12.0 EER2 efficiency
• Heating Capacity: 42,000 BTU with 9.5 HSP2 / 3.5 C.O.P. efficiency
• Energy-Star Cold-Climate Designated Performance
• Wide Ambient Operation Range (As low as -13°F in Heating / As high as 131°F in Cooling)
• Factory Precharged to Cover Up to 125 Ft. of Total Combined Attached Lineset Length

• Can be Utilized as a Stronger Quad or Triple or Dual-Zone System by Leaving 3rd and/or 4th and/or 5th Zones Closed

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Communication Protocol:Current Loop
• Min-Max Load Attached:18,000~63,000 BTU/h
• Cooling Rated Capacity:42,000 BTU/h
• Cooling SEER2 (Ductless):22.0 BTU/W.h
• Cooling EER2 (Ductless): 12.0 BTU/W.h
• Heating Rated Capacity:42,000 BTU/h
• Heating HSPF2 (Ductless): 9.5 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.5 / 2.0 W/W
• Refrigerant Type: R454B

• Suitable Area: 1000~1600 Sq.F
• Sound Level: 65.0 dB(A)
• Circuit Breaker Utilized: 40A (double-pole)
• Net Dimensions (WDH):42-1/4 x 18-3/8 x 33-1/2 Inches
• Carton Dimensions (WDH): 44-5/8 x 20-7/8 x 38-1/8 Inches
• Net / Gross Weight: 145 / 170 Lbs

Manuals & Documents

• Service Manual
• Addendum to Standard Manual
• Disassembly Manual
• Exploded Parts Diagram

Min. / Max. Loading

18,000 / 63,000 BTU/h.



Optional Indoor Sections:



Wall-Mounted Indoor Sections

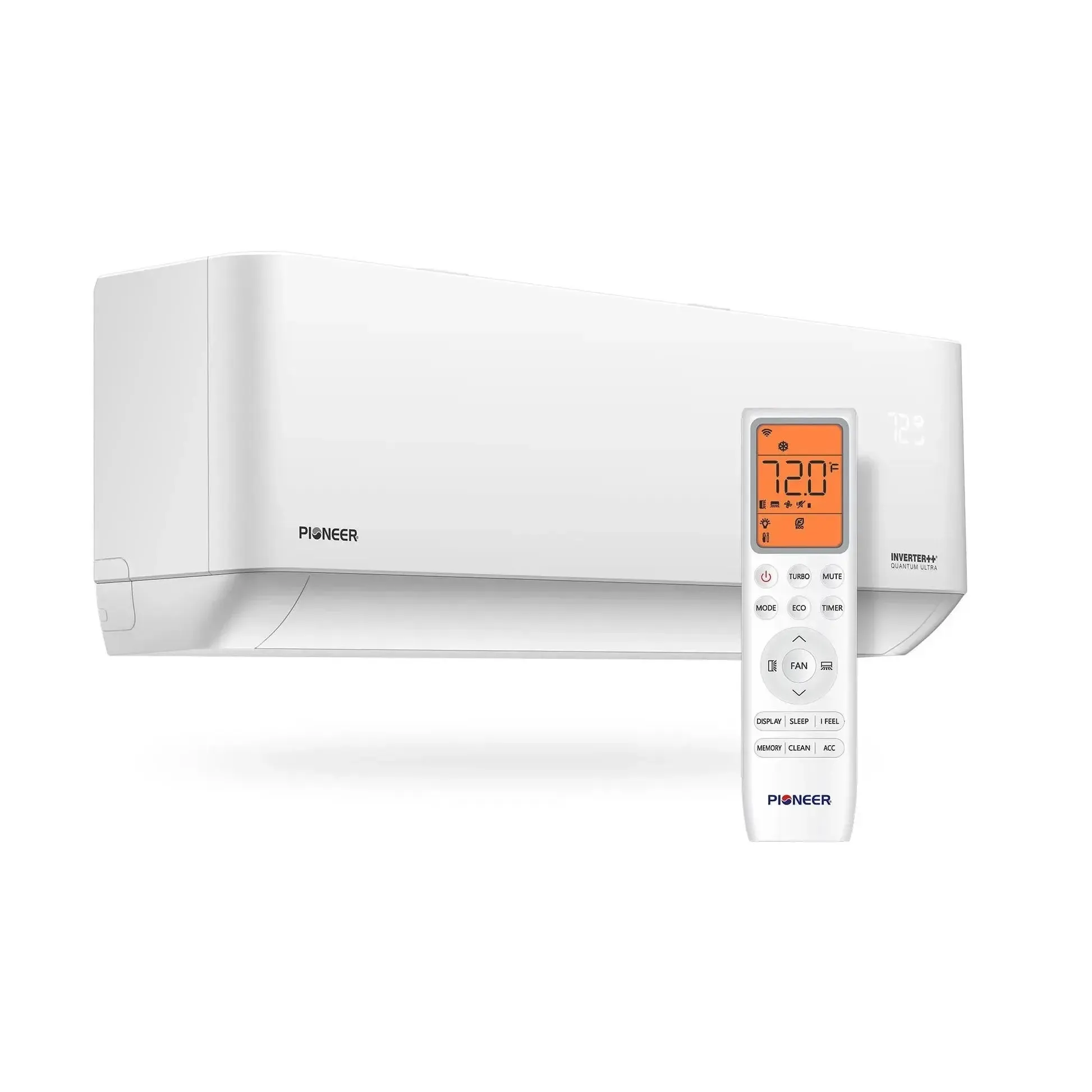

Pioneer® Multi Zone 9,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Cooling Capacity:9,000 BTU/h
• Heating Capacity: 10,000 BTU/h
• Suitable Area:200~350 Sq.F
• Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282.5/235/188/153 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
• Product Dimensions (WDH): 32"-1/4 x 7-5/8" x 12" Inches
• Carton Dimensions (WDH): 35" x 10-1/2" x 15" Inches
• Net / Gross Weight: 20.7 / 25.1 lbs
• Piping Diameter: 1/4-3/8"

Manuals & Documents

• Technical Brochure

• User & Installation Manual


What's Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Pioneer® Multi Zone 12,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Cooling Capacity:12,000 BTU/h
• Heating Capacity: 12,600 BTU/h
• Suitable Area:200~450 Sq.F
• Air Flow(Turbo/Hi/Med/Lo/Mute): 500/470/411/323/205 CFM
• Sound Level(Turbo/Hi/Med/Lo/Mute): 46/44/36/32/30 dB(A)
• Product Dimensions (WDH): 36"-1/4 x 7-5/8" x 12" Inches
• Carton Dimensions (WDH): 39" x 10-1/2" x 15" Inches
• Net / Gross Weight: 23.1 / 30.9 lbs
• Piping Diameter: 1/4-3/8"

Manuals & Documents

• Technical Brochure

• User & Installation Manual


What's Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Pioneer® Multi Zone 18,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Cooling Capacity:18,000 BTU/h
• Heating Capacity: 19,000 BTU/h
• Suitable Area:400~650 Sq.F
• Air Flow(Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
• Sound Level(Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
• Product Dimensions (WDH): 43-1/8" x 8-3/4" x 13" Inches
• Carton Dimensions (WDH): 45-7/8" x 11-5/8" x 16" Inches
• Net / Gross Weight: 30.9 / 35.3 lbs
• Piping Diameter: 1/4-1/2"

Manuals & Documents

• Technical Brochure

• User & Installation Manual


What's Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Pioneer® Multi Zone 24,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Cooling Capacity:24,000 BTU/h
• Heating Capacity: 25,000 BTU/h
• Suitable Area:600~950 Sq.F
• Air Flow(Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
• Sound Level(Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
• Product Dimensions (WDH): 43-1/8" x 8-3/4" x 13" Inches
• Carton Dimensions (WDH): 45-7/8" x 11-5/8" x 16" Inches
• Net / Gross Weight: 30.9 / 35.3 lbs
• Piping Diameter: 1/4-5/8"


Manuals & Documents

• Technical Brochure
• User & Installation Manual


What's Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Ceiling Cassette Indoor Sections:



Pioneer® Multi Zone 9,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Features:

• Control from the Couch, or Halfway Across the World - Wi-Fi Controlled  Out of the Box: Control your new Pioneer CYT cassette system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world, all conveniently from the free Pioneer Airlink app.
• Uniform Cooling Experience All Throughout the Room - 8-Way 360° Airflow: Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the installed area, thanks to an innovative design featuring 4 sides and 4 corners of airflow.
• Eliminate Stale Air and Feel the Freshness - Fresh Air Intake: The Pioneer CYT series cassette offers a provision of fresh-air intake via an optional reserved port. New outdoor air can be easily brought inside to replace stale room air.
• Adaptive Directional Distribution Based on Operation Mode - Intelligent Air Throw: With the wide operating angle of the airflow louver, the Pioneer CYT series cassette is able to drape the room with a satisfying breeze in cooling mode, and wrap the area with cozy warmth in heating mode.
• Keep Your Room Air Healthy and Dust-Free - Easy-Clean Air Filter: Not only are the air filters washable and re-usable, they are super easy to access. Simply detach the center grille and slide out the filter when it's time to wash. Re-insert the same way when done, so that your cassette can continue removing pollen, dust, and other allergens from the air in the room.
• Versatile and Easy Disposal of Condensate Water - Built-In Drain Pump:

  Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 40 inches, which can be disabled if desiring to drain via gravity instead. And if the drain pan stays full due to a clog, the system will shut itself off to prevent overflow and flash an alert code.

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Cooling Capacity:9,000 BTU/h
• Heating Capacity: 9,000 BTU/h
• Suitable Area:200~350 Sq.F
• Piping Diameter: 1/4'' - 3/8"

Indoor Unit

• Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282.5/235/188/153 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
• Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
• Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
• Net / Gross Weight: 32.0 / 38.6 lbs

Decorative Panel

• Part Number: CT0918DPNL
• Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
• Carton Dimensions (WDH):28"-7/8 x 28"-7/8 x 4"-3/8
• Net / Gross Weight: 6.0 / 9.5 lbs

Manuals & Documents

• Technical Brochure

• User & Installation Manual

What's Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Pioneer® Multi Zone 12,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Features:

• Control from the Couch, or Halfway Across the World - Wi-Fi Controlled  Out of the Box: Control your new Pioneer CYT cassette system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world, all conveniently from the free Pioneer Airlink app.
• Uniform Cooling Experience All Throughout the Room - 8-Way 360° Airflow: Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the installed area, thanks to an innovative design featuring 4 sides and 4 corners of airflow.
• Eliminate Stale Air and Feel the Freshness - Fresh Air Intake: The Pioneer CYT series cassette offers a provision of fresh-air intake via an optional reserved port. New outdoor air can be easily brought inside to replace stale room air.
• Adaptive Directional Distribution Based on Operation Mode - Intelligent Air Throw: With the wide operating angle of the airflow louver, the Pioneer CYT series cassette is able to drape the room with a satisfying breeze in cooling mode, and wrap the area with cozy warmth in heating mode.
• Keep Your Room Air Healthy and Dust-Free - Easy-Clean Air Filter: Not only are the air filters washable and re-usable, they are super easy to access. Simply detach the center grille and slide out the filter when it's time to wash. Re-insert the same way when done, so that your cassette can continue removing pollen, dust, and other allergens from the air in the room.
• Versatile and Easy Disposal of Condensate Water - Built-In Drain Pump:

  Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 40 inches, which can be disabled if desiring to drain via gravity instead. And if the drain pan stays full due to a clog, the system will shut itself off to prevent overflow and flash an alert code.

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Cooling Capacity:12,000 BTU/h
• Heating Capacity: 12,000 BTU/h
• Suitable Area:350~500 Sq.F
• Piping Diameter: 1/4'' - 3/8"

Indoor Unit

• Air Flow (Turbo/Hi/Med/Lo/Mute): 500/470/411/323/205 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 46/44/36/32/30 dB(A)
• Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
• Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
• Net / Gross Weight: 32.0 / 38.6 lbs

Decorative Panel

• Part Number: CT0918DPNL
• Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
• Carton Dimensions (WDH):28"-7/8 x 28"-7/8 x 4"-3/8
• Net / Gross Weight: 6.0 / 9.5 lbs

Manuals & Document

• Technical Brochure

• User & Installation Manual


What's Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty



Pioneer® Multi Zone 18,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Features:

• Control from the Couch, or Halfway Across the World - Wi-Fi Controlled  Out of the Box: Control your new Pioneer CYT cassette system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world, all conveniently from the free Pioneer Airlink app.
• Uniform Cooling Experience All Throughout the Room - 8-Way 360° Airflow: Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the installed area, thanks to an innovative design featuring 4 sides and 4 corners of airflow.
• Eliminate Stale Air and Feel the Freshness - Fresh Air Intake: The Pioneer CYT series cassette offers a provision of fresh-air intake via an optional reserved port. New outdoor air can be easily brought inside to replace stale room air.
• Adaptive Directional Distribution Based on Operation Mode - Intelligent Air Throw: With the wide operating angle of the airflow louver, the Pioneer CYT series cassette is able to drape the room with a satisfying breeze in cooling mode, and wrap the area with cozy warmth in heating mode.
• Keep Your Room Air Healthy and Dust-Free - Easy-Clean Air Filter: Not only are the air filters washable and re-usable, they are super easy to access. Simply detach the center grille and slide out the filter when it's time to wash. Re-insert the same way when done, so that your cassette can continue removing pollen, dust, and other allergens from the air in the room.
• Versatile and Easy Disposal of Condensate Water - Built-In Drain Pump:

  Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 40 inches, which can be disabled if desiring to drain via gravity instead. And if the drain pan stays full due to a clog, the system will shut itself off to prevent overflow and flash an alert code.

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Cooling Capacity:18,000 BTU/h
• Heating Capacity: 18,000 BTU/h
• Suitable Area: 500~750 Sq.F
• Piping Diameter: 1/4'' - 1/2"

Indoor Unit

• Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
• Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
• Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
• Net / Gross Weight: 32.0 / 38.6 lbs

Decorative Panel

• Part Number: CT0918DPNL
• Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
• Carton Dimensions (WDH):28"-7/8 x 28"-7/8 x 4"-3/8
• Net / Gross Weight: 6.0 / 9.5 lbs

Manuals & Document

• Technical Brochure

• User & Installation Manual


What's Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty



Pioneer® Multi Zone 24,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Features:

• Control from the Couch, or Halfway Across the World - Wi-Fi Controlled  Out of the Box: Control your new Pioneer CYT cassette system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world, all conveniently from the free Pioneer Airlink app.
• Uniform Cooling Experience All Throughout the Room - 8-Way 360° Airflow: Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the installed area, thanks to an innovative design featuring 4 sides and 4 corners of airflow.
• Eliminate Stale Air and Feel the Freshness - Fresh Air Intake: The Pioneer CYT series cassette offers a provision of fresh-air intake via an optional reserved port. New outdoor air can be easily brought inside to replace stale room air.
• Adaptive Directional Distribution Based on Operation Mode - Intelligent Air Throw: With the wide operating angle of the airflow louver, the Pioneer CYT series cassette is able to drape the room with a satisfying breeze in cooling mode, and wrap the area with cozy warmth in heating mode.
• Keep Your Room Air Healthy and Dust-Free - Easy-Clean Air Filter: Not only are the air filters washable and re-usable, they are super easy to access. Simply detach the center grille and slide out the filter when it's time to wash. Re-insert the same way when done, so that your cassette can continue removing pollen, dust, and other allergens from the air in the room.
• Versatile and Easy Disposal of Condensate Water - Built-In Drain Pump:

  Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 40 inches, which can be disabled if desiring to drain via gravity instead. And if the drain pan stays full due to a clog, the system will shut itself off to prevent overflow and flash an alert code.

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Cooling Capacity:24,000 BTU/h
• Heating Capacity: 24,000 BTU/h
• Suitable Area: 750~1,000 Sq.F
• Piping Diameter: 1/4'' - 5/8"

Indoor Unit

• Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
• Product Dimensions (WDH): 33"-1/8 x 33"-3/4 x 10"-3/4 Inches
• Carton Dimensions (WDH): 36"-7/8 x 36"-7/8 x 11"-1/2 Inches
• Net / Gross Weight: 51.8 / 59.5 lbs

Decorative Panel

• Part Number: CT2460DPNL
• Product Dimensions (WDH): 37-3/8" x 37-3/8" x 2-7/8"
• Carton Dimensions (WDH): 41-1/2" x 41-1/2" x 3"-1/2
• Net / Gross Weight: 13.2 / 19.8 lbs

Manuals & Document

• Technical Brochure

• User & Installation Manual

What's Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty



Floor-Ceiling Flex Mount Indoor Sections:



Pioneer® Multi Zone 18,000 BTU Quantum Ultra Floor-Ceiling Flex Mount Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Cooling Capacity:18,000 BTU/h
• Heating Capacity: 18,000 BTU/h
• Suitable Area: 500~750 Sq.F
• Piping Diameter: 1/4'' - 1/2"

Indoor Unit

• Air Flow (Turbo/Hi/Med/Lo/Mute): 588/512/453/353/265 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 50/46/44/40/36 dB(A)
• Product Dimensions (WDH): 41"-1/2 x 9"-1/4 x 26"-1/2 Inches
• Carton Dimensions (WDH): 44"-3/4 x 11"-1/8 x 30"-1/8 Inches
• Net / Gross Weight: 52.9 / 68.3 lbs

Manuals & Document

• Technical Brochure

• User & Installation Manual


What's Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty



Pioneer® Multi Zone 24,000 BTU Quantum Ultra Floor-Ceiling Flex Mount Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Cooling Capacity:24,000 BTU/h
• Heating Capacity: 24,000 BTU/h
• Suitable Area: 750~1000 Sq.F
• Piping Diameter: 1/4'' - 5/8"

Indoor Unit

• Air Flow (Turbo/Hi/Med/Lo/Mute): 647/588/517/470/412 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 53/52/48/44/40 dB(A)
• Product Dimensions (WDH): 41"-1/2 x 9"-1/4 x 26"-1/2 Inches
• Carton Dimensions (WDH): 44"-3/4 x 11"-1/8 x 30"-1/8 Inches
• Net / Gross Weight: 57.3 / 70.5 lbs

Manuals & Document

• Technical Brochure

• User & Installation Manual


What's Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty



Ceiling Concealed Indoor Sections:



Pioneer® Multi Zone 9,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Performance

• Power Supply:208~230V, 60Hz, 1Ph
• Cooling Capacity:9,000 BTU/h
• Heating Capacity: 9,000 BTU/h
• Suitable Area: 150~350 Sq.F
• Air Flow (Turbo/Hi/Med/Lo/Mute): 335/305/276/182/160 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 42/39/34/28/27 dB(A)
• Product Dimensions (WDH): 27"-1/2 x 19-1/4" x 7-7/8" Inches
• Carton Dimensions (WDH): 35-1/2" x 21-7/8" x 9-7/8" Inches
• Net / Gross Weight: 33.1 / 40.8 lbs
• Piping Diameter: 1/4'' - 3/8"

Manuals & Document

• Technical Brochure

• User & Installation Manual


What's Included
