24,000 BTU 22 SEER2 ACiQ 2-Zone Floor Mounted Mini Split System w/ Extreme Heat - 12+12

ACiQ's multi zone mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. With the ACiQ Extreme Heat multi zone series 24,000 BTU 22 SEER2 2-Zone Floor Mounted Mini Split System, you get higher SEER and better low ambient (hyper heat) performance than the competition.

Benefits & Features

• Intelligent comfort at an affordable cost


• Ideal for two spaces up to 600 square feet (depending on climate)

• Efficient cooling from -5°F to 122°F outdoor temperatures


• Efficient heating from -22°F to 75°F outdoor temperatures


• Integrated Extreme Heat technology with base pan heater


• Gold Fin full-protection coating

• Quiet operation at even the highest workloads

• Included Smart Remote


• WiFi compatibility through free app, Amazon Alexa or Google Assistant

• Enhanced Dry mode, intelligent sleep mode, power save mode.

Condenser Specifications:

Brand	ACIQ
SKU	ACIQ-18Z-HH-M2B
Refrigerant Charge	50'
Weight (in lbs)	160.940000
AHRI Certificate Number	207825576
HSPF	9.8
Cooling BTU	19000 BTU
Heating BTU	20000 BTU
Decibel Level (dBA)	63.4
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R410A
SEER1 (Efficiency)	21-22
SEER2 (Efficiency)	22
EER	12.5
Compressor Type	Rotary

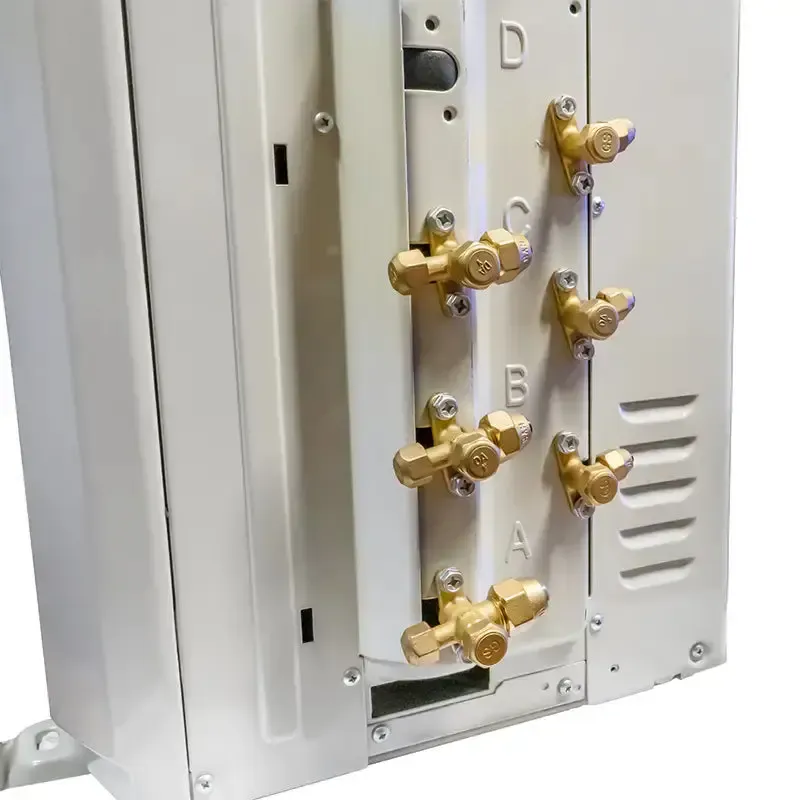

Liquid Line	1/4" (2)
Suction Line	3/8" (2)
Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	25 Amps
Min. Breaker Size	20 Amps
Tonnage	1.5 Ton
BTU/Tonnage	18,000 BTU/1.5 Ton
Mini-Split Type	Wall Mounted
Zone Compatibility	Multi Zone
Ambient Temperature Range	-22 ~ 122
Height	31-9/10"
Width	37-1/4"
Depth	16-1/5"
Warranty	12 year compressor, 7 year parts with online registration
Safety Information	PROPOSITION 65 WARNING

12K BTU Air Handler Specifications:

Brand	ACIQ
SKU	ACIQ-12FM-HH-MB
Weight (in lbs)	41.450000
Controller	Wireless Included
Cooling BTU	12,000 BTU
Heating BTU	12,000 BTU
Maximum CFM	441
Decibel Level (dBA)	As low as 25
Electric Heat	Heat Pump
Energy Star	Yes
Refrigerant	R410A
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
Max Breaker Size	15
Min. Breaker Size	15
BTU/Tonnage	12,000 BTU/1 Ton
Mini-Split Type	Floor Mounted
Zone Compatibility	Multi Zone
Height	24.45"
Width	31.26
Depth	7.87
Warranty	12 year compressor, 7 year parts with online registration
Safety Information	PROPOSITION 65 WARNING

Product Information and Guides:

Condenser

• Submittal
• Brochure
• Owner's and Install Manual
• Condenser Amperage Chart
• AHRI Certificate
• Energy Guide
• Warranty

12K BTU Air Handler

• Submittal
• Brochure
• Owner's and Install Manual
• Remote Control Manual
• Warranty
