MRCOOL® DIY Mini Split 54,000 BTU 20.5 SEER 2 Zone Ductless Air Conditioner and Heat Pump 18K + 36K

The MRCOOL® DIY Mini Split 54,000 BTU 20.5 SEER 2 Zone Ductless Air Conditioner and Heat Pump 18K + 36K offers a complete solution to your home’s heating and cooling needs. This system can heat & cool one area up to 900 square feet with the 18K air handler, and another area up to 1,500 square feet with the 36k air handler, all while capable of an Energy Star-certified, 20.5 SEER high-efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged line sets, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MCOOL® system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MCOOL® stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.

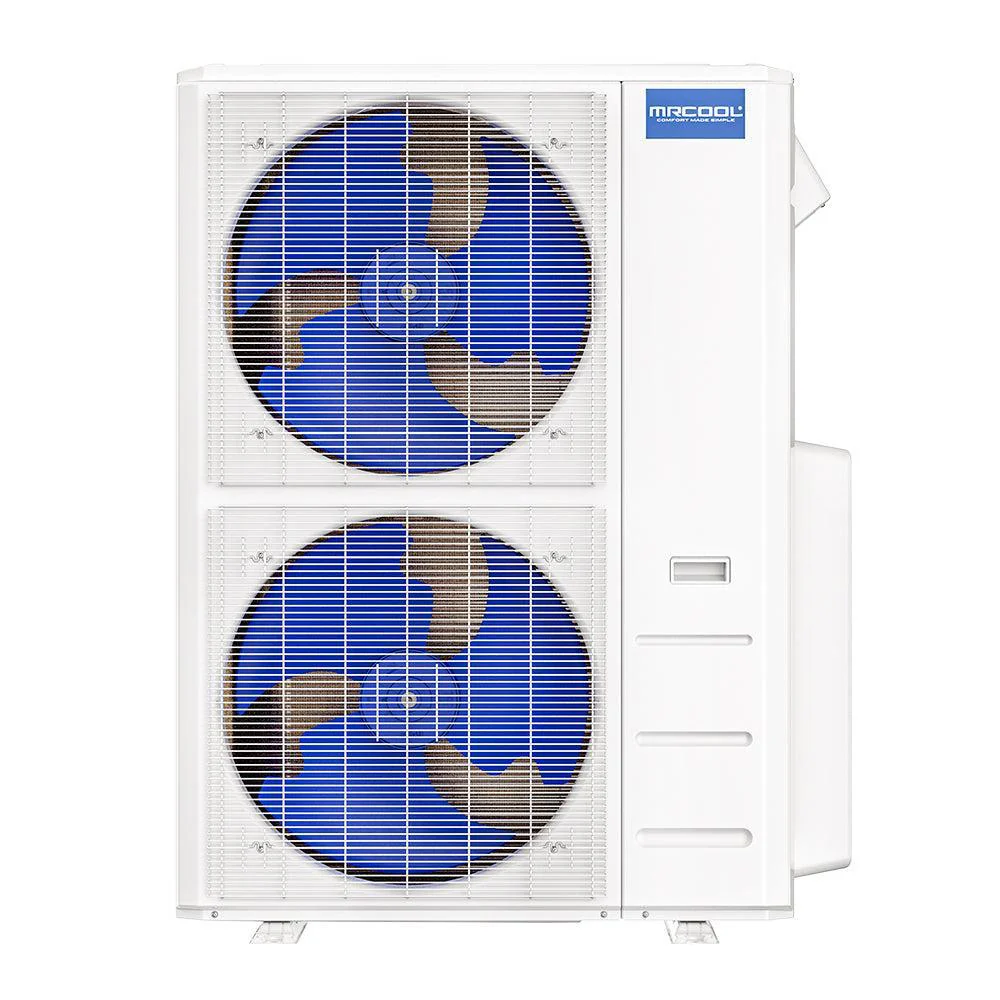

MRCOOL® DIY 4th Gen 48K BTU Multi-Zone 5-Zone Condenser 230V - DIY-MULTI5-48HP230C

Introducing the latest in home comfort solutions with the new 4th Generation MRCOOL® DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach -5°F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. MrCool also offers this condenser with a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools. So, no vacuuming of the system is required once installed. Let the MrCool 4th Generation DIY 48K BTU 5 Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.

Features:

• Up to 20.5 SEER

• Delivers maximum performance even when temperatures reach -5°F

• Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long-term corrosion

• Energy-Efficient DC Inverter

• R-410A environmentally friendly refrigerant

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

MRCOOL® DIY 4th Gen 18K BTU Wall Mount Air Handler - DIY-18-HP-WMAH-230C25

The MRCOOL® 4th Generation DIY 18K BTU Ductless Wall Mounted Air Handler is one of the most capable on the market. When part of a MRCOOL® DIY system, it can reach an effective 22 SEER efficiency rating and deliver that performance to an area up to 900 sq. ft. This air handler is also very versatile because of its many different operating modes, these include, COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. It also has the ability to be controlled from anywhere using an Apple or Android smartphone with our convenient Smart HVAC app. This air handler is very compact and relatively light, so it can easily be mounted to most interior walls using the included mounting plate. The ease of installation does not stop there, as it is designed to be used along with the MrCool Pre-Charged Quick Connect Line Set. This allows the installer to easily connect the refrigerant piping, which is precharged with the correct amount of R-410A refrigerant, with the use of simple hand tools. This also means the system will not require any vacuuming once the line set is connected. The MrCool DIY 18K BTU Ductless Wall Mounted Air Handler has the performance to handle your home comfort needs.

Features:

• Ideal for spaces up to 900 square feet

• SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

• Compatible with Amazon Alexa and Google Assistant

• Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

MRCOOL® DIY 4th Gen 36K BTU Wall Mount Air Handler - DIY-36-HP-WMAH-230C25

The MRCOOL® 4th Generation DIY 36K BTU Ductless Wall Mounted Air Handler is the highest capacity air handler in the DIY series and has the ability to cover an area up to 1,500 sq. ft. Even with that level of performance, it can still deliver an impressive 18 SEER efficiency rating when connected to a MRCOOL® Condenser. It also features multiple operating modes which include HEAT, COOL, AUTO, DRY (dehumidify), and SLEEP. To take the functionality even further, this unit can also be operated by your Apple or Android smartphone with use of our convenient Smart HVAC app. This air handler has a compact design which makes it easier to mount to most interior walls when using the included mounting plate. This air handler is also designed to be installed using MRCOOL's patented Pre-Charged Quick Connect Line Set. The quick connectors allow the line set to be installed in a few simple steps with two wrenches. It comes precharged with R-410A refrigerant, so no vacuuming or charging of the system is required once installed. Let the MrCool 4th Generation DIY 36K BTU Ductless Wall Mounted Air Handler take care of the heating and cooling of your home.

Features:

• Ideal for spaces up to 1,500 square feet

• SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

• Compatible with Amazon Alexa and Google Assistant

• Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

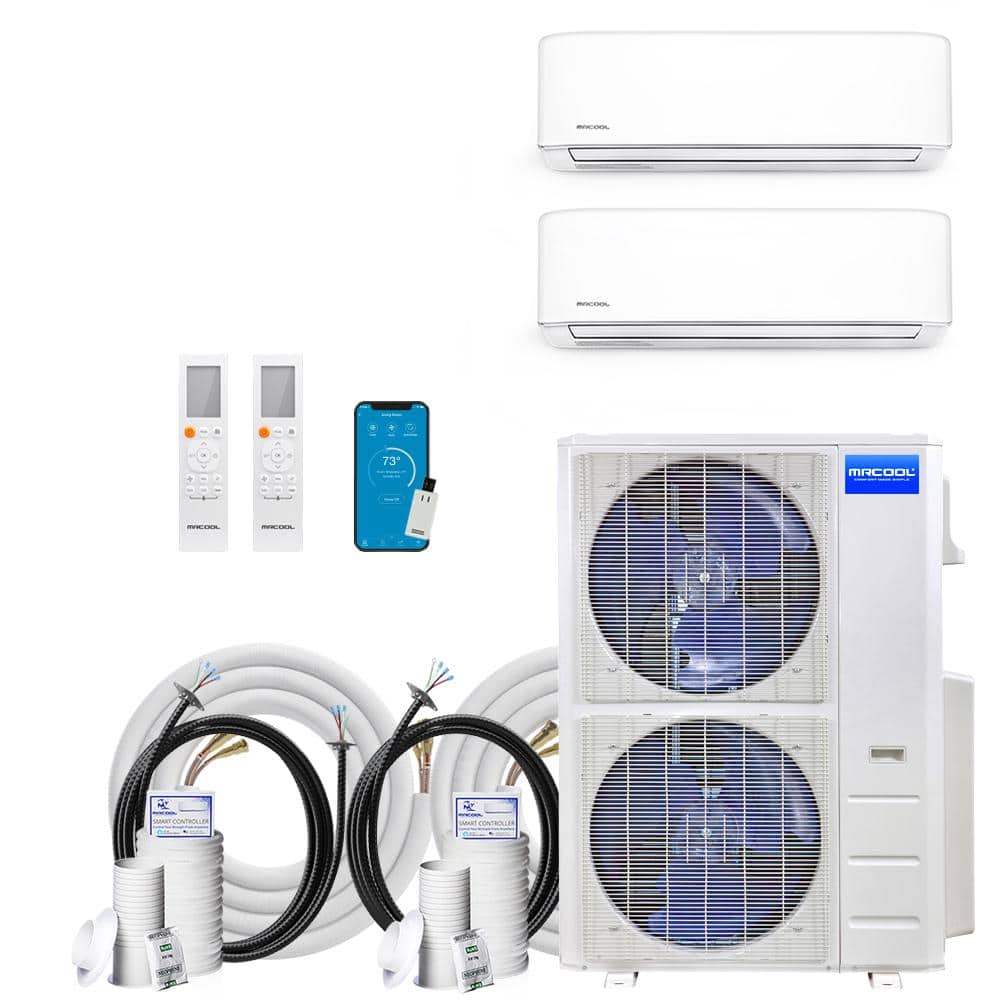

This bundle includes:

• 1x MRCOOL® DIY 4th Gen 48K BTU Multi-Zone 5-Zone Condenser 230V - DIY-MULTI5-48HP230C


• 1x MRCOOL® DIY 4th Gen 18K BTU Wall Mount Air Handler - DIY-18-HP-WMAH-230C25


• 1x MRCOOL® DIY 4th Gen 36K BTU Wall Mount Air Handler - DIY-36-HP-WMAH-230C25


• All accessories needed for a full installation

Condenser Specifications:

MODEL	DIY-MULTI5-48HP230C
SEER	20.5
EER	11
HSPF	hspf4/hspf5 : 11/8.5
CFM	4500
COOLING CAPACITY	48000 BTU
HEATING CAPACITY	48000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	60A
MIN CIRCUIT AMPACITY	40 A
COLOR	White
COLOR FAMILY	White
ZONE CAPACITY	Up to 5
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME	162 oz
DECIBEL RATING	61.5 dBA
INVERTER	Yes
MIN AMBIENT COOL	5F ~ 122F
MIN AMBIENT HEAT	-5F ~ 75.2F
MAX LINESET LENGTH	221 ft TOTAL
LIQUID LINE SIZE	1/4in (3/8in w/ adapter)
SUCTION LINE SIZE	1/2in (5/8in w/ adapter)
COMPRESSOR MOTOR TYPE	Rotary
CONDENSER FAN MOTOR RPM	900/850/800/750
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH	16.34 in
NET HEIGHT	52.48 in
NET WIDTH	37.48 in
NET WEIGHT	222.89 lbs
GROSS DEPTH	19.49 in
GROSS HEIGHT	54.33 in
GROSS WIDTH	43.11 in
GROSS WEIGHT	254.41 lbs

18K BTU Air Handler Specifications:

MODEL	DIY-18-HP-WMAH-230C25
COOLING CAPACITY	18000 BTU
HEATING CAPACITY	18000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MOUNT TYPE	Wall
COLOR	White
COLOR FAMILY	White
MAX COVERAGE AREA	Up to 900 sqft
REFRIGERANT TYPE	R-410A
DECIBEL RATING	44.5/37/31
DECIBEL RATING LOW	31 dBA
DECIBEL RATING HIGH	44.5 dBA
INVERTER	Yes
MAX LINESET LENGTH	98.42 ft
LIQUID LINE SIZE	1/4 in
SUCTION LINE SIZE	1/2 in
BLOWER MOTOR RPM	1120/950/700
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH	8.90 in
NET HEIGHT	13.19 in
NET WIDTH	42.52 in
NET WEIGHT	34.61 lbs
GROSS DEPTH	19.57 in
GROSS HEIGHT	17.32 in
GROSS WIDTH	49.09 in
GROSS WEIGHT	56 lbs

36K BTU Air Handler Specifications:

MODEL	DIY-36-HP-WMAH-230C25
COOLING CAPACITY	36000 BTU
HEATING CAPACITY	36000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MOUNT TYPE	Wall
COLOR	White
COLOR FAMILY	White
MAX COVERAGE AREA	Up to 1,500 sqft
REFRIGERANT TYPE	R-410A
DECIBEL RATING	52/45/34
DECIBEL RATING LOW	34 dBA
DECIBEL RATING HIGH	52 dBA
INVERTER	Yes
MAX LINESET LENGTH	213.25 ft
LIQUID LINE SIZE	3/8 in
SUCTION LINE SIZE	5/8 in
BLOWER MOTOR RPM	1200/950/750
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
ENERGY STAR CERTIFIED	No
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH	11.10 in
NET HEIGHT	14.25 in
NET WIDTH	49.57 in
NET WEIGHT	47.84 lbs
GROSS DEPTH	21.26 in
GROSS HEIGHT	19.69 in
GROSS WIDTH	56.69 in
GROSS WEIGHT	78.26 lbs
