18,000 BTU 25.1 SEER2 ACiQ Standard 2-Zone Ceiling Cassette Mini Split System | R454B | 230v - 9+9
18,000 BTU 25.1 SEER2 ACiQ Standard 2-Zone Ceiling Cassette Mini Split System | R454B | 230v - 9+9
This ACiQ 2-Zone Standard Series System combines high efficiency with advanced climate control. ES-18Z-M3C / ACIQ-09CC-HH-MC-2 is the perfect solution for year-round heating and cooling in up to 2 spaces.
ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser | Inverter - R454B
Overview
ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ES-18Z-M3C, you can have up to 3 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
Quick Facts:
- 18,000 BTU, 25.1 SEER2 multi zone heat pump condenser
- Designed to function with up to 3 attached air handlers
- Efficient cooling from -13°F to 122°F outdoor temperatures
- Efficient heating from -13°F to 75°F outdoor temperatures
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
18,000 BTU, 25.1 SEER
The 18,000 BTU, ES-18Z-M3C is designed to easily support up to 3 air handlers at up to 1.25 times the condenser BTU rating, or 22,500 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 25.1 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section above on this page. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.

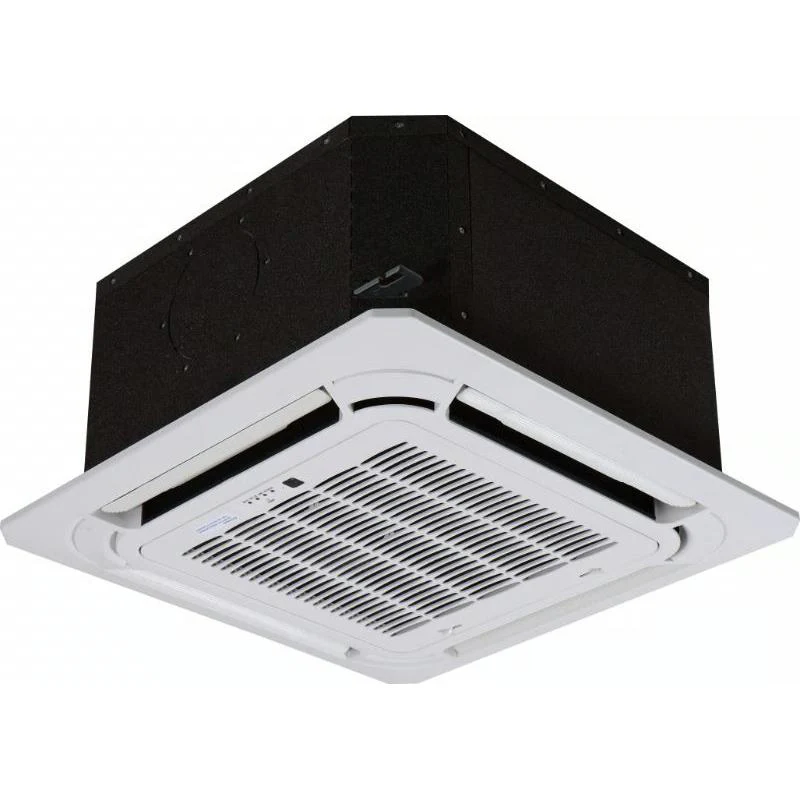

9,000 BTU Ceiling Cassette ACiQ Mini Split Air Handler
Mini Split systems are great, but what if you don't want the air handler on your wall? ACiQ offers the ACIQ-09CC-HH-MB ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.
Installation Considerations
Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. These units will fit between 24 on-center joists, but are too large to fit between 16 on-center joists without modifying the structure of your framing. Additionally, Ceiling Cassettes have factory-installed, onboard pumps to lift the condensation produced by the unit during cooling. The pump can lift the condensation up to 14. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.
Features:
- 9,000 btu of Heating or Cooling
- Dry and Fan modes also available
- Good for a small room in most climates
- 4 Way Air Supply for consistent room coverage
- Handheld remote included
- Decorative Grille included
Ceiling Cassette
Flush-mounted Ceiling Cassettes offer the most understated appearance of any ductless air handler type. They can be centrally located in the room, and deliver conditioned air in all four directions, with return air being brought in through the center. Ceiling Cassettes include a factory installed condensation pump.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
What's Included:
- 1x ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser | Inverter - R454B
- 2x 9,000 BTU Ceiling Cassette ACiQ Mini Split Air Handler
ACiQ 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser | Inverter - R454B Specifications:
| SKU | ES-18Z-M3C |
| Refrigerant Charge | 73.8' |
| Weight | 109.350000 |
| AHRI Certificate Number | 216032376 |
| Manufacturer | ACiQ |
| Replaces | ES-18Z-M2B |
| HSPF2 | 9.8 |
| Cooling BTU | 18000 BTU |
| Heating BTU | 19000 BTU |
| Maximum CFM | 1766 |
| Decibel Level (dBA) | 59.5 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| SEER2 | 25 |
| Compressor Type | Twin Rotary |
| Liquid Line | 1/4" (3) |
| Suction Line | 3/8" (3) |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 20 A |
| Min. Breaker Size | 16 A |
| Tonnage | 1.5 Ton |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Zone Compatibility | Multi Zone |
| Ambient Temperature Range | -13 ~ 122 |
| Height | 26.50" |
| Width | 35.04" |
| Depth | 13.46" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
9,000 BTU Ceiling Cassette ACiQ Mini Split Air Handler Specifications:
| SKU | ACIQ-09CC-HH-MC |
| Weight | 38.140000 |
| Manufacturer | ACiQ |
| Controller | Wireless Included |
| Product Features | Low Ambient Heating |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,800 BTU |
| Maximum CFM | 352.94 CFM |
| Decibel Level (dBA) | As low as 32.5 |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| Capacity | Dehumidification Rate: 0.272 gal/hr |
| SEER2 | 20.5 |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V 1 Phase 60Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | 15 |
| Min. Breaker Size | 15 |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Length | 22.44" |
| Height | 10.24" |
| Depth | 22.44" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
