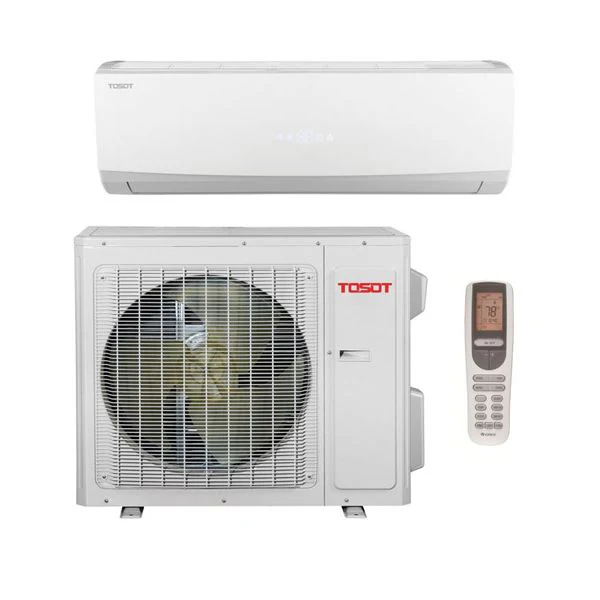

Tosot Independence Series 9,000 Btu 23 Seer Single Zone Ductless Mini Split System 115V
Tosot Independence Series 9,000 Btu 23 Seer Single Zone Ductless Mini Split System 115V
The Tosot Independence Series Mini Split Heat Pump System provides individual comfort control. The ideal solution for residential and light commercial applications, to balance comfort, efficiency and ease of installation.
These 16-SEER heat pump systems are built around Gree’s G10 Inverter and variable compressor technology, using environmentally friendly R410A refrigerant. Each mini split indoor unit is designed to heat and cool a single room, and will blend seamlessly into any decor. The unobtrusive front panel features a virtually hidden digital LED display, and the unit operates quietly, day after day.
Product Features:
- Smart 1 Hertz Inverter Tech
- Low Ambient Cooling to 5 °F
- Low Voltage Start-up
- Intelligent Defrost
- Intelligent Pre-heating
- Comfortable Sleep Mode
- Auto Swing (Vertical)
- Multiple Fan Speeds
- Dehumidify
- Soft Start
- LED display
- Automatic Operation
- Self-diagnosis
- Memory Function
- Timer
- Control lock
- Fan Delay Function
Product Specifications:
| Brand | Tosot |
| Model | TWH09ATCXB-A3DNA3A |
| Type | Heat Pump |
| Zones | 1-Zone |
| SEER |
23 |
| EER | 13 |
| HSPF | 10.5 |
| COP | 3.1 |
| Voltage | 115V - 60Hz |
| Rated Current Cooling | 11.3 |
| Rated Current Heating | 10.7 |
| MCA | 12 |
| MOCP | 20 |
| Interconnecting Wire | AWG 14/4 |
| Compressor Stage | Inverter |
| Dehumidification (Pts/hr) | 1.7 |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 53 |
| Style | Ductless Wall |
| Cooling BTU | 10,900 |
| Heating BTU | 9,900 |
| Suction Valve Size (Inches) | 3/8 |
| Liquid Valve Size (Inches) | 1/4 |
| Min. Operating Temp. (Degrees) | -4 |
| Total Shipping Weight (lbs.) | 101 |
| Outdoor Unit Height (Inches) | 21 3/10 |
| Outdoor Unit Width (Inches) | 34 7/10 |
| Outdoor Unit Depth (Inches) | 12 3/5 |
| Indoor Unit Height (Inches) | 11 2/5 |
| Indoor Unit Width (Inches) | 33 1/5 |
| Indoor Unit Depth (Inches) | 8 1/5 |
| Energy Star Certified | Yes |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 7 |
| UPC # | 703158696292 |
Related Documents and Technical Specification
Spec Sheet - Tosot Independence Series Ductless Mini Split Heat Pump System
Consumer Brochure - Tosot Ductless Mini Split Heat Pump Systems
Owners Manual - Tosot Independence Series Ductless Mini Split Heat Pump System
Submittals - Tosot Independence Series Ductless Mini Split Heat Pump System
Tosot Independence Series 9,000 Btu 23 Seer Single Zone Ductless Mini Split System 115V
The Tosot Independence Series Mini Split Heat Pump System provides individual comfort control. The ideal solution for residential and light commercial applications, to balance comfort, efficiency and ease of installation.
These 16-SEER heat pump systems are built around Gree’s G10 Inverter and variable compressor technology, using environmentally friendly R410A refrigerant. Each mini split indoor unit is designed to heat and cool a single room, and will blend seamlessly into any decor. The unobtrusive front panel features a virtually hidden digital LED display, and the unit operates quietly, day after day.
Product Features:
- Smart 1 Hertz Inverter Tech
- Low Ambient Cooling to 5 °F
- Low Voltage Start-up
- Intelligent Defrost
- Intelligent Pre-heating
- Comfortable Sleep Mode
- Auto Swing (Vertical)
- Multiple Fan Speeds
- Dehumidify
- Soft Start
- LED display
- Automatic Operation
- Self-diagnosis
- Memory Function
- Timer
- Control lock
- Fan Delay Function
Product Specifications:
| Brand | Tosot |
| Model | TWH09ATCXB-A3DNA3A |
| Type | Heat Pump |
| Zones | 1-Zone |
| SEER |
23 |
| EER | 13 |
| HSPF | 10.5 |
| COP | 3.1 |
| Voltage | 115V - 60Hz |
| Rated Current Cooling | 11.3 |
| Rated Current Heating | 10.7 |
| MCA | 12 |
| MOCP | 20 |
| Interconnecting Wire | AWG 14/4 |
| Compressor Stage | Inverter |
| Dehumidification (Pts/hr) | 1.7 |
| Electrical Phase(s) | 1-Phase |
| Decibel Level (dB) | 53 |
| Style | Ductless Wall |
| Cooling BTU | 10,900 |
| Heating BTU | 9,900 |
| Suction Valve Size (Inches) | 3/8 |
| Liquid Valve Size (Inches) | 1/4 |
| Min. Operating Temp. (Degrees) | -4 |
| Total Shipping Weight (lbs.) | 101 |
| Outdoor Unit Height (Inches) | 21 3/10 |
| Outdoor Unit Width (Inches) | 34 7/10 |
| Outdoor Unit Depth (Inches) | 12 3/5 |
| Indoor Unit Height (Inches) | 11 2/5 |
| Indoor Unit Width (Inches) | 33 1/5 |
| Indoor Unit Depth (Inches) | 8 1/5 |
| Energy Star Certified | Yes |
| Parts Warranty (Years) | 5 |
| Compressor Warranty (Years) | 7 |
| UPC # | 703158696292 |
Related Documents and Technical Specification
Spec Sheet - Tosot Independence Series Ductless Mini Split Heat Pump System
Consumer Brochure - Tosot Ductless Mini Split Heat Pump Systems
Owners Manual - Tosot Independence Series Ductless Mini Split Heat Pump System
Submittals - Tosot Independence Series Ductless Mini Split Heat Pump System
Original: $950.00
-70%$950.00
$285.00Description
