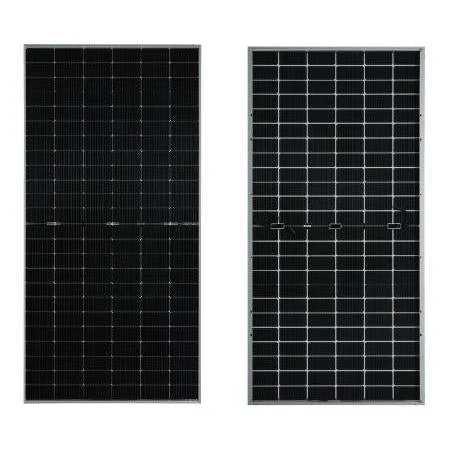

Runergy 595W (Pallet of 36) Mono N-Type Bifacial Dual Glass HY-DH144N8-595
Runergy 595W Mono N-Type Bifacial Dual Glass HY-DH144N8-595
Pallet Only: 36 panels/pallet
Tier 1 PV Manufacturer – BloombergNEF Certified
The HY-DH144N8-595 is a 595 W, n-type mono bifacial module using 144 half-cells and dual 2.0 mm glass construction. With 23.0% module efficiency, 1,500 V DC system rating, and robust front/back load ratings (5400/2400 Pa), it’s engineered for high energy yield and long-term reliability on C&I rooftops and ground mounts.
Key Benefits
High Power Density: 595 W nameplate at 23.0% efficiency for tight arrays.
Bifacial Gain: 80% ± 10% bifaciality enables meaningful rear-side contribution.
Durable Dual-Glass: 2.0 mm AR-coated front glass + 2.0 mm rear glass for improved weathering and PID resistance. :
Long Warranties: 12-year product & 30-year linear power (≤1% first year, ≤0.4%/yr thereafter; 87.4% at year 30).
Special Technology
n-Type Half-Cell Design: 182 mm mono cells (144, 6×24) offer low LID/LeTID and strong low-light performance.
High-Voltage Platform: 1,500 V DC system rating supports longer strings and BOS savings.
Warranty
12-Year Product Warranty · 30-Year Linear Power Warranty (first-year <1%, annual <0.4%).
Best Uses
Commercial & Industrial Rooftops: High power and dual-glass durability for low LCOE.
Ground Mounts & Carports: Harness rear-side irradiance for extra yield on reflective surfaces.
Bifacial Design, N-Type Half-Cells, and Dual Glass Structure Explained
These advanced features define the high-efficiency performance and extended durability of the Runergy HY-DH144N8-595 solar panel:
Bifacial Technology
This bifacial module is engineered to capture solar energy from both the front and rear sides. While the front absorbs direct sunlight, the rear side collects reflected light from surrounding surfaces such as concrete, snow, or sand. This dual-sided exposure increases overall energy harvest, significantly boosting total output and system efficiency—especially in high-albedo environments.
N-Type Half-Cell Architecture
The panel utilizes N-Type monocrystalline cells with a half-cut layout, offering superior efficiency and thermal performance compared to traditional P-Type cells. N-Type cells are inherently more resistant to light-induced degradation (LID) and offer improved electron mobility, resulting in higher efficiency and longer operational stability. The half-cell configuration minimizes resistive losses and enhances energy yield even under partial shading.
Dual-Glass Structure
Encased between two layers of tempered glass, this panel provides exceptional mechanical strength and environmental protection. The dual-glass architecture enhances resistance to moisture, UV exposure, and extreme weather conditions like high winds and heavy snow. This design minimizes degradation and extends module lifespan, making it ideal for demanding installations requiring long-term reliability.
Specifications Table
| Specification | Data |
|---|---|
| Model | HY-DH144N8-595 |
| Resources | Data Sheet |
| Technology | n-Type monocrystalline, bifacial, dual-glass; 144 half-cells (6×24) |
| Module Efficiency | 23.0% |
| Electrical (STC) | |
| Rated Power (Pmax) | 595 W |
| Vmp / Imp | 44.64 V / 13.33 A |
| Voc / Isc | 52.58 V / 13.93 A |
| Power Tolerance | 0 to +5 W |
| Ratings & Limits | |
| Max System Voltage | 1,500 V DC (IEC/UL) |
| Max Series Fuse | 30 A |
| Front / Rear Static Load | 5400 Pa (112 lb/ft²) / 2400 Pa (50 lb/ft²) |
| Bifaciality | 80% ± 10% |
| Fire Rating | IEC Class A / UL Type 29 |
| Temperature | |
| NMOT | 42 ± 2 °C |
| NOCT | 45 ± 2 °C |
| Temp. Coeff. (Pmax / Voc / Isc) | −0.29%/°C · −0.25%/°C · +0.045%/°C |
| Mechanical | |
| Dimensions (L × W × H) | 89.69 × 44.65 × 1.18 in. |
| Weight | 70.55 lb |
| Front / Back Glass | 2.0 mm AR-coated heat-strengthened / 2.0 mm heat-strengthened glass |
| Frame | Aluminum, silver anodized |
| Junction Box | IP68, 3 bypass diodes |
| Connector | RY01 or similar |
| Output Cables | 4 mm² (IEC) / 12 AWG (UL); +400 mm / −200 mm (customizable) |
| Packing | |
| Pallet / Container | 36 pcs per pallet; 720 pcs per 40′ HQ |
| Certifications | IEC 61215, IEC 61730, UL 61730, IEC 61701, IEC 62716, IEC 60068; ISO 9001/14001/45001 |
| Warranty | 12-Year Product · 30-Year Linear Power |
About Runergy:
Runergy (founded 2013) is a leading vertically integrated solar tech firm specializing in high-efficiency PERC and N‑Type cells and modules. With global facilities spanning China, Thailand, and the U.S., and 63 GW cell capacity plus 23 GW planned module capacity, it ranked top‑3 worldwide for cell shipments from 2020–2022. Runergy is also building a 5 GW module plant in Alabama to serve the U.S. market.
FAQs
Q: What is the power output of the HY-DH144N8-595 panel?
The HY-DH144N8-595 panel delivers up to 595 W of rated power under Standard Test Conditions (STC).
Q: Are HY-DH144N8-595 panels suitable for areas with low sunlight?
Yes — this module uses N-Type mono half-cells and a bifacial dual-glass design, providing excellent performance even in low-light conditions such as cloudy skies or early mornings.
Q: What kind of warranty does Runergy offer for the HY-DH144N8-595 panel?
Runergy provides a 12-year product warranty and a 30-year linear power output warranty, ensuring long-term reliability with at least 87.4% of initial output retained after 30 years.
Q: Are these panels compatible with different mounting systems?
Yes — the HY-DH144N8-595 panel is compatible with standard roof-mounted and ground-mounted systems and designed for 1500 V system voltage applications.
Q: How durable are HY-DH144N8-595 panels in harsh weather conditions?
These panels feature dual-glass construction and are engineered to withstand extreme temperatures from -40 °C to +85 °C, as well as heavy snow and strong winds.
Q: Can HY-DH144N8-595 panels help me save on energy costs?
Absolutely. With high efficiency of up to 23.0 % and a bifacial design that captures additional rear-side energy, these panels generate more power per square meter—helping reduce energy bills and improving your system’s ROI.
Q: How many panels do I need for my home?
For a home using approximately 10,000 kWh per year, you would need around 17 – 19 panels of this model, depending on your site conditions and energy goals. A certified installer can provide a precise system design.
Q: How many panels are in each pallet?
Each pallet includes 36 panels, offering efficient packaging and easier logistics for residential and commercial installations.
