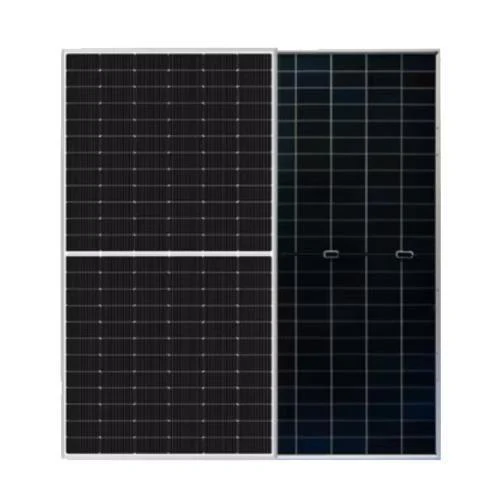

Runergy 595W (Pallet of 31) Bifacial N-Type Dual Glass Solar Panel HY-DH144N8-595 Made in USA
Runergy 595W Bifacial N-Type Dual Glass Solar Panel HY-DH144N8-595 Made in USA
Pallet only: 31 panels/pallet
The Runergy HY-DH144N8-595 is a high-output solar module designed for premium performance in commercial and utility-scale installations. With advanced N-Type half-cell architecture, bifacial glass-on-glass durability, and up to 595W front-side power output, this module maximizes long-term energy production and ROI in high-reflectivity or high-load environments.
Key Benefits
High Power Output: Rated at 595W with up to 23.0% module efficiency.
Superior Rear-Side Gain: Up to 80% additional yield through bifacial architecture depending on albedo.
Low Annual Degradation: Less than 1% in year one and only 0.4% annually thereafter.
Durable Dual Glass: Enhanced resistance against moisture, UV, and mechanical stress using 3.2 mm and 2.0 mm glass.
High Snow and Wind Load Ratings: 7200 Pa front, 3600 Pa rear – ideal for harsh climates.
Special Technology
N-Type Mono Half-Cell: Reduces light-induced degradation (LID/LeTID) and improves low-light performance.
1500V System Compatibility: Supports longer string lengths and lower BOS costs.
Global Standards Compliant: UL61730, IEC61215, IEC61730, IEC61701, IEC62716 certified.
Precision Engineering: 144 half-cut cells (6×24) for enhanced efficiency and thermal behavior.
Warranty
12-Year Product Warranty and 30-Year Linear Performance Warranty with at least 87.4% retained power output by year 30.
Best Uses
Utility-Scale Solar Farms: Maximum wattage per module means more yield and fewer panels.
Commercial Rooftop & Ground Systems: High-efficiency and bifacial design improve energy density.
Canopies & Agrivoltaics: Dual-glass, bifacial design captures reflective light from below for higher yield.
High-Wind & Snow Regions: Mechanical load tolerance supports tough weather conditions.
Bifacial Design, N-Type Half-Cells, and Dual Glass Structure Explained
These advanced features define the high-efficiency performance and extended durability of the Runergy HY-DH144N8-595 solar panel:
Bifacial Technology
This bifacial module is engineered to capture solar energy from both the front and rear sides. While the front absorbs direct sunlight, the rear side collects reflected light from surrounding surfaces such as concrete, snow, or sand. This dual-sided exposure increases overall energy harvest, significantly boosting total output and system efficiency—especially in high-albedo environments.
N-Type Half-Cell Architecture
The panel utilizes N-Type monocrystalline cells with a half-cut layout, offering superior efficiency and thermal performance compared to traditional P-Type cells. N-Type cells are inherently more resistant to light-induced degradation (LID) and offer improved electron mobility, resulting in higher efficiency and longer operational stability. The half-cell configuration minimizes resistive losses and enhances energy yield even under partial shading.
Dual-Glass Structure
Encased between two layers of tempered glass, this panel provides exceptional mechanical strength and environmental protection. The dual-glass architecture enhances resistance to moisture, UV exposure, and extreme weather conditions like high winds and heavy snow. This design minimizes degradation and extends module lifespan, making it ideal for demanding installations requiring long-term reliability.
Specifications Table
| Specification | Data |
|---|---|
| Model | HY-DH144N8-595 (USA) |
| Rated Power Output (Pmax) | 595 W |
| Module Efficiency | 23.0% |
| Cell Type | N-Type Mono 182 mm Half-Cell |
| Number of Cells | 144 (6 × 24) |
| Bifaciality | Up to 80% ±10% |
| Max System Voltage | 1500 V DC |
| Max Fuse Rating | 30 A |
| Front Glass | 3.2 mm AR-coated tempered glass |
| Back Glass | 2.0 mm heat-strengthened glass |
| Dimensions (L × W × H) | 89.69 × 44.65 × 1.38 in |
| Weight | 89.28 lbs |
| Output Cable | 4 mm² (+400/-200 mm), 12 AWG |
| Connector Type | RY01 or similar |
| Junction Box | IP68, 3 bypass diodes |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Snow Load | 7200 Pa (150.4 lb/ft²) |
| Wind Load | 3600 Pa (75.2 lb/ft²) |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | +0.045% / °C |
| Resources | Data Sheet |
| Product Warranty | 12 Years |
| Performance Warranty | 30 Years (≥87.4%) |
About Runergy:
Runergy (founded 2013) is a leading vertically integrated solar tech firm specializing in high-efficiency PERC and N‑Type cells and modules. With global facilities spanning China, Thailand, and the U.S., and 63 GW cell capacity plus 23 GW planned module capacity, it ranked top‑3 worldwide for cell shipments from 2020–2022. Runergy is also building a 5 GW module plant in Alabama to serve the U.S. market.
FAQs
Q: What is the power output of the HY-DH144N8-595 (USA) panel?
The HY-DH144N8-595 (USA) panel delivers a maximum power output of 595 watts, making it an excellent choice for high-performance solar arrays in both residential and commercial settings.
Q: Are HY-DH144N8-595 (USA) panels suitable for areas with low sunlight?
Yes, these panels utilize advanced N-Type TOPCon cell technology, which maintains strong energy generation even under low-light conditions such as cloudy skies, haze, and partial shading.
Q: What kind of warranty does Runergy offer for the HY-DH144N8-595 (USA) panel?
Runergy provides a 12-year product warranty and a 30-year linear power output warranty, ensuring long-term performance with minimal degradation over time.
Q: Are these panels compatible with different mounting systems?
Absolutely. The HY-DH144N8-595 (USA) panel supports a range of standard racking and mounting systems, making it suitable for both roof and ground installations.
Q: How durable are HY-DH144N8-595 (USA) panels in harsh weather conditions?
Built with a dual-glass structure and IP68-rated junction box, these panels are designed to endure harsh environmental conditions, including snow loads up to 5400 Pa and wind pressures up to 2400 Pa.
Q: Can HY-DH144N8-595 (USA) panels help me save on energy costs?
Yes. With up to 22.8% module efficiency and bifacial technology, these panels generate more power per square foot, leading to greater energy savings and faster ROI.
Q: How many panels do I need for my home?
This varies based on your energy consumption and roof size. For a home using about 10,000 kWh/year, you would typically need 17 to 19 HY-DH144N8-595 (USA) panels. A certified installer can provide a more accurate assessment.
Q: How many panels are in each pallet?
Each pallet contains 31 HY-DH144N8-595 (USA) solar panels, ideal for bulk installations and maximizing logistics efficiency.
