RUiXU RX9MP Busbar for Lithi2-16  | 800A

IMPORTANT :RUiXU quick-connect busbar design features with quick-connect terminals, making it more convenient for some customers to install. It’s just one of the options we offer to customers; customers don’t necessarily have to use our busbar.

If use RUiXU 600A busbar,pls choose this cable

If use RUiXU quick-connect terminal busbar,pls choose this cable

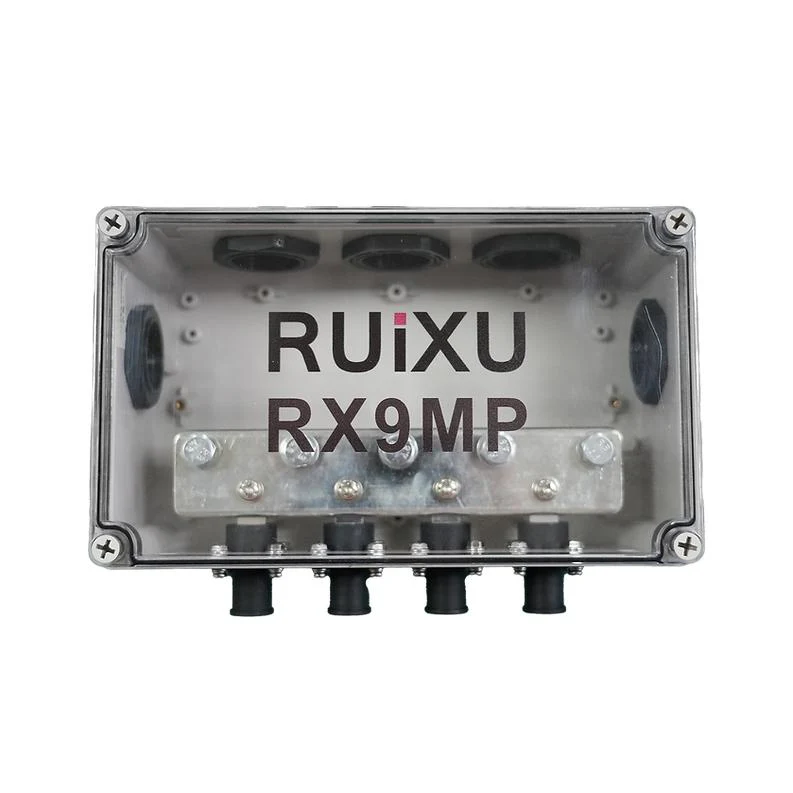

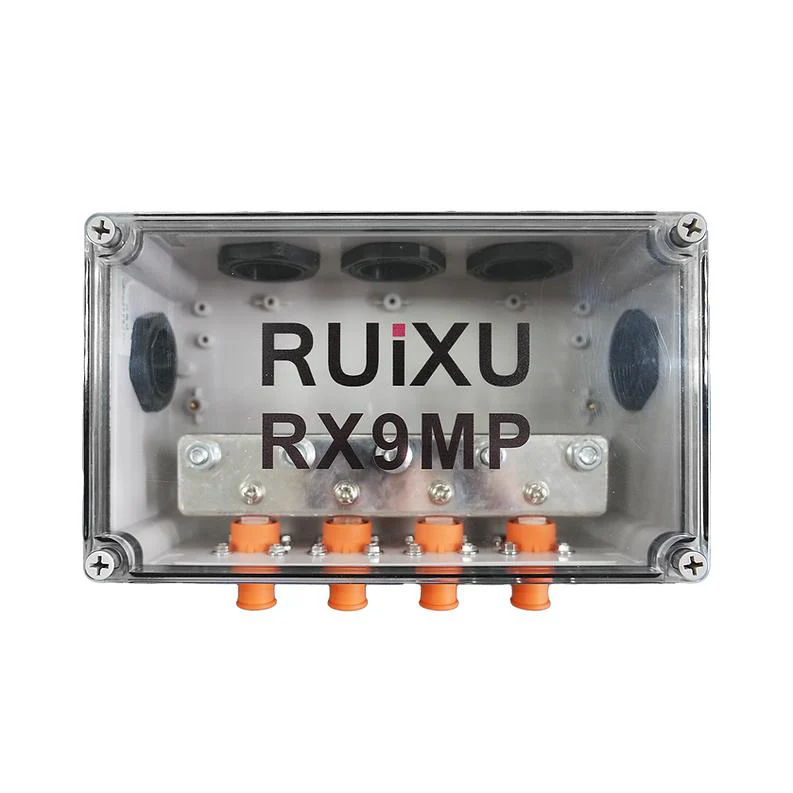

RUiXU quick-connect busbar for Lithi2-16

1) 800A Heavy Duty - Ratad at 800A.

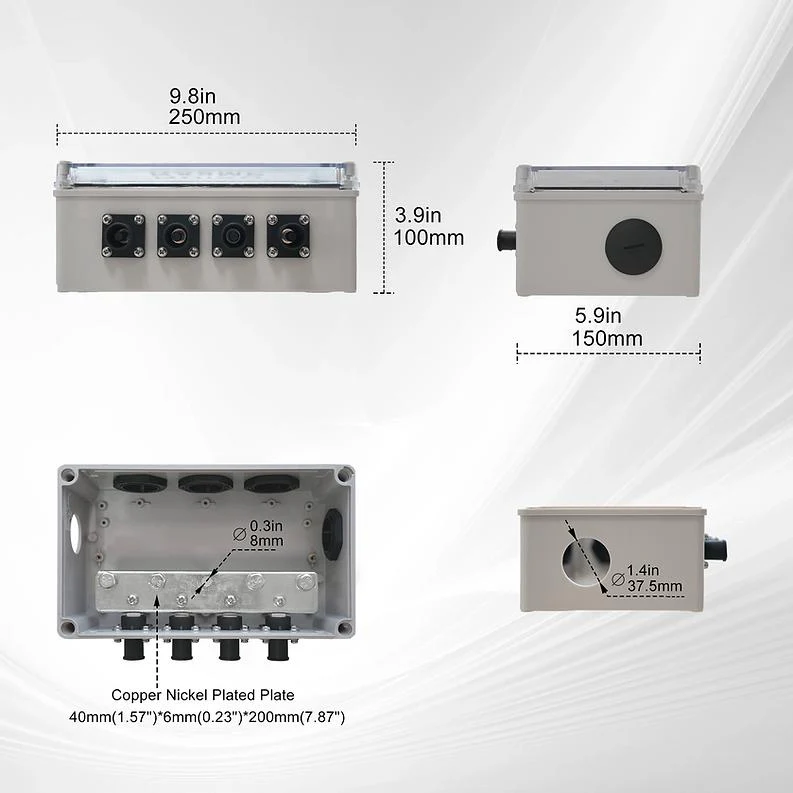

2) Material - The Bus Bar Terminal Block with 250mm(9.84") x 150mm(5.9") x 100mm(3.93") Outer Size, Copper Nickel Plated Plate  40mm(1.57")*6mm(0.23")*200mm(7.87")  with Stainless Steel Studs and Nuts.

3) 5/16" Studs & Pluggable connector- The Power Distribution Block Bus Bar with  5 x 5/16"(M8) stud posts and 4 x Pluggable Battery Pole Connector ,which is more convenient to  connect RUiXU Lithi2-16.

4) Waterproof - The 800Amp junction block box comes with waterproof rings, which can act as a sealing function, so it makes your wiring more secure and reliable.

5) Equipped with screws to secure the busbar to the wall.
