Remii BAY SLIM 3 Sided Smart Electric Fireplace

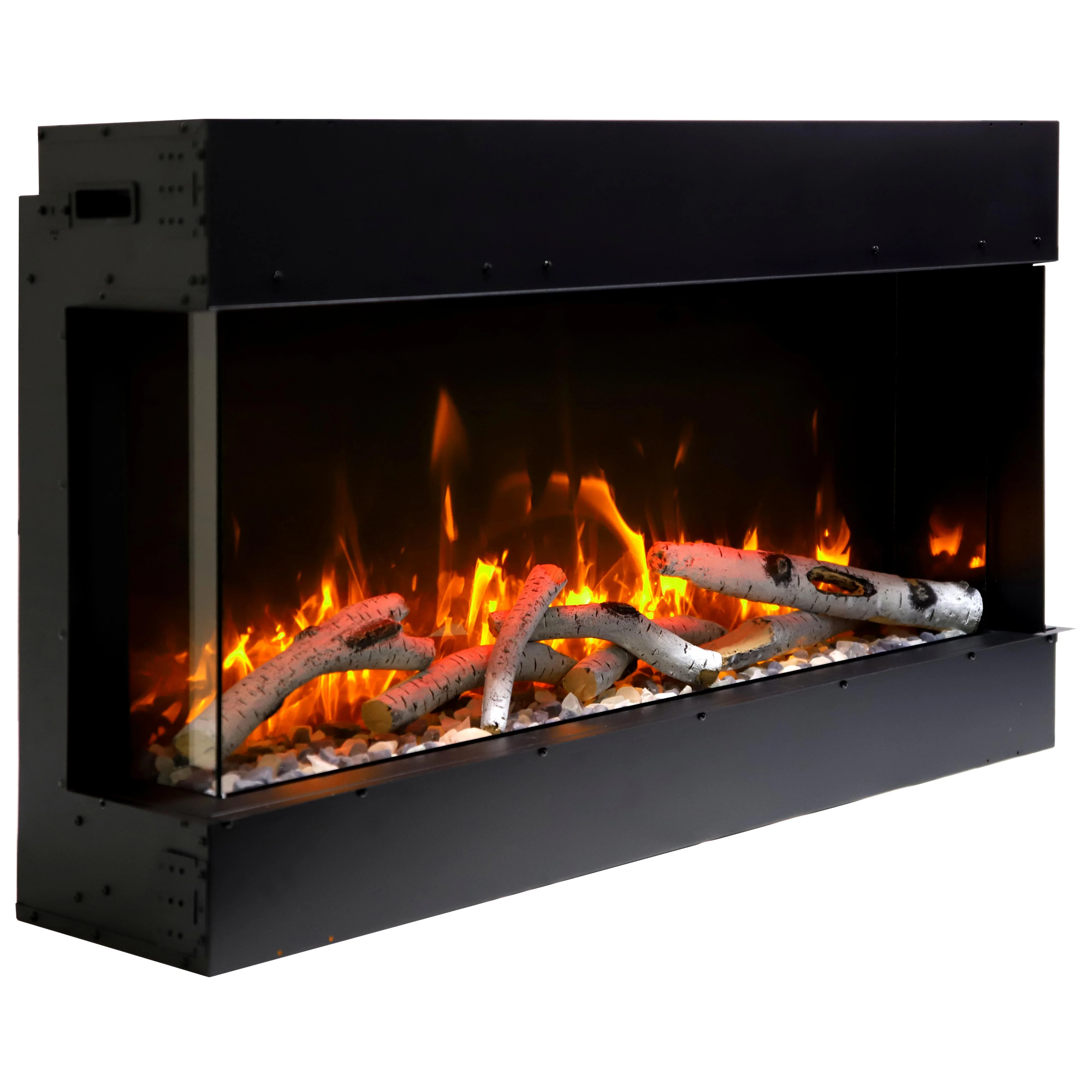

The Bay-SLIM fireplace fits beautifully as a corner fireplace!

Remii Bay Smart comes with an incredible depth of 10.16cm and is available in five sizes, you’ll find an electric fireplace that is perfect for any space in your home, business, or commercial space. Perfectly suited to installations in areas where wall depth is at a premium. The Remii Bay Smart Fireplaces are designed to be installed in 5.08cm x 10.16cm walls and fit beautifully as a corner fireplace.

Make the Remii Bay Smart fireplace your own by using the included media kit. This kit includes a 10-piece birch style log set, vermiculite, black fire glass, and a thermostatic remote control.

Included Accessories

The Bay-SLIM electric fireplace comes with a 10 piece log set and Charcoal grey fire glass, vermiculite, black fire glass plus a remote.

Key Features:

• Can be installed into a 5.08cm x 10.16cm Wall.

• Very thin – only 10.16cm depth and multiple length options.

• All models are rated for indoor or outdoor applications.

• Flame Presentation: State of the art flame presentation: Vibrant, multi color state of the art flame presentation – change to yellow, orange or red flames with just a click of the remote.

• 3 Speed motor sets the flame speed option.

• WiFi controls come standard.

• Perfect for zone heating. Approximately 500 sq. ft., 5000 BTUs


4 Installation Options:

• All 3 sides of the glass are visible

• Left side visible

• Right visible

• front only for an extra deep (14 1/4″) fireplace


This corner fireplace can open left or open right or can have 3 sides open.

Flame Presentation

Vibrant, multi-colored state-of-the-art flame presentation – change from Yellow to Orange to Red with just a click of the remote. Can all be done separately and mixed to make lots of combinations.

Ambient Canopy Lighting

Ambient canopy lighting illuminates media like never before. Cast a colorful glow over the supplied decorative media in the tray below. Cycle through a rainbow of 13 different colors. Blend flame colors with contrasting canopy lighting for a unique presentation – the combinations are limitless.

30" Specifications:

Brand	Remii
Model	30-BAY-SLIM
Warranty	2-Year Parts
Certifications	CSA Certified
BTU Min / Max	Min: 5,000 Max: 5,000
Volts	120 / 60 Hz
Amps	12.5
Heater Watts	High: 1500 max Low: 750
No Heater	25 watts
Lamps	LED 19 watts
Rotor Motor	1 at 5 watts
Height, Width, Depth	26 5/8 x 33 1/4 x 11 1/8“
Glass View Opening	15 5/8” X 29 5/8’”
Glass Size	15 5/8” X 29 5/8”
Shipping Size	29 1/8” x 37 4/8” x 12 5/8” 85.3 lbs – glass included
Shipping Weight	70.9 – unit
Plug Location	Left Side
Cord Length	70-7/8"
Approx. Heating Area	500 sq. ft.
Resources	Brochure User Manual Glass Tray Measurements Outdoor Installation Instructions 30 Bay Slim Spec Sheet Warranty Information Warranty Form

40" Specifications:

Brand	Remii
Model	40-BAY-SLIM
Warranty	2-Years Parts
Certifications	CSA Certified
BTU Min / Max	Min: 5,000 Max: 5,000
Volts	120V / 60 Hz
Amps	12.5
Heater Watts	High: 1500 max Low: 750
No Heater	25 watts
Lamps	LED 41 watts
Rotor Motor	2 at 5 watts
Height, Width, Depth	26 5/8 x 43 1/4 x 10 5/8“
Glass View Opening	15 5/8” X 39 5/8’”
Glass Size	15 5/8” X 39 5/8”
Shipping Size	29 1/8” x 47 4/8” x 12 5/8”
Shipping Weight	103.6 lbs – glass included 86.4 lbs – unit
Plug Location	Left Side
Cord Length	70-7/8"
Approx. Heating Area	500 sq. ft.
Resources	Brochure User Manual Glass Tray Measurements Outdoor Installation Instructions 40 Bay Slim Spec Sheet Warranty Information Warranty Form

50" Specifications:

Brand	Remii
Model	50-BAY-SLIM
Warranty	2-Years Parts
Certifications	CSA Certified
BTU Min / Max	Min: 5,000 Max: 5,000
Volts	120V / 60 Hz
Amps	12.5
Heater Watts	High: 1500 max Low: 750
No Heater	25 watts
Lamps	LED 48 watts
Rotor Motor	2 at 5 watts
Height, Width, Depth	26 5/8 x 53 1/4 x 11 1/8“
Glass View Opening	15 5/8” X 49 5/8"
Glass Size	15 5/8” X 49 5/8”
Shipping Size	29 1/8” x 57 4/8” x 12 5/8” 121.5 lbs – glass included
Shipping Weight	102.3 lbs – unit
Plug Location	Left Side
Cord Length	70-7/8"
Approx. Heating Area	500 sq. ft.
Resources	Brochure User Manual Glass Tray Measurements Outdoor Installation Instructions 50 Bay Slim Spec Sheet Warranty Information Warranty Form

60" Specifications:

Brand	Remii
Model	60-BAY-SLIM
Warranty	2-Years Parts
Certifications	CSA Certified
BTU Min / Max	Min: 5,000 Max: 5,000
Volts	120V / 60 Hz
Amps	12.5
Heater Watts	High: 1500 max Low: 750
No Heater	25 watts
Lamps	LED 54 watts
Rotor Motor	2 at 5 watts
Height, Width, Depth	26 5/8 x 63 1/4 x 10 5/8“
Glass View Opening	15 5/8” X 59 5/8"
Glass Size	15 5/8” X 59 5/8”
Shipping Size	29 1/8” x 67 4/8” x 12 5/8” 140.2 lbs – glass included
Shipping Weight	119.3 lbs – unit
Plug Location	Left Side
Cord Length	70-7/8"
Approx. Heating Area	500 sq. ft.
Resources	Brochure User Manual Glass Tray Measurements Outdoor Installation Instructions 60 Bay Slim Spec Sheet Warranty Information Warranty Form

72" Specifications:

Brand	Remii
Model	72-BAY-SLIM
Warranty	2-Years Parts
Certifications	CSA Certified
BTU Min / Max	Min: 5,000 Max: 5,000
Volts	120V / 60 Hz
Amps	12.5
Heater Watts	High: 1500 max Low: 750
No Heater	25 watts
Lamps	LED 60 watts
Rotor Motor	2 at 5 watts
Height, Width, Depth	26 5/8 x 75 1/4 x 10 1/8“
Glass View Opening	15 5/8” X 71 5/8"
Glass Size	15 5/8” X 71 5/8”
Shipping Size	29 1/8” x 79 4/8” x 12 5/8” 167.1 lbs – glass included
Shipping Weight	139.1 lbs – unit
Plug Location	Left Side
Cord Length	70-7/8"
Approx. Heating Area	500 sq. ft.
Resources	Brochure User Manual Glass Tray Measurements Outdoor Installation Instructions 72 Bay Slim Spec Sheet Warranty Information Warranty Form
