Pioneer® Vertex™ 36,000 BTU 18.6 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump - Multi-position

Pioneer® Product Series - Vertex™ Ducted Central Split

Ducted air conditioning units provide climate control for multiple rooms using a single system and a network of air ducts. Pioneer’s ducted split systems offer whole-house heating and cooling with consistent comfort. Available in various configurations, our units range from 24,000–60,000 BTU with a SEER of 18. Built from quality materials with smart design, they deliver lasting performance.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. For longer refrigerant line sets, additional refrigerant is required. System is pre-configured to be used with the included digital controller system thermostat for fully automated variable capacity operations flawlessly using RS485 communications mode. It also provides an option to be controlled by any generic 24 Volt analog thermostat. See instructions to switch control modes between RS485 and 24 V analog modes, if using an alternate thermostats is desired. Variety of optional Electric Strip Heater options possible. They are available with multiple KW ratings as well as with or without breakers. Line sets require braze type connections for both sections and other complex installation tasks are involved, requiring installation by trained professionals.

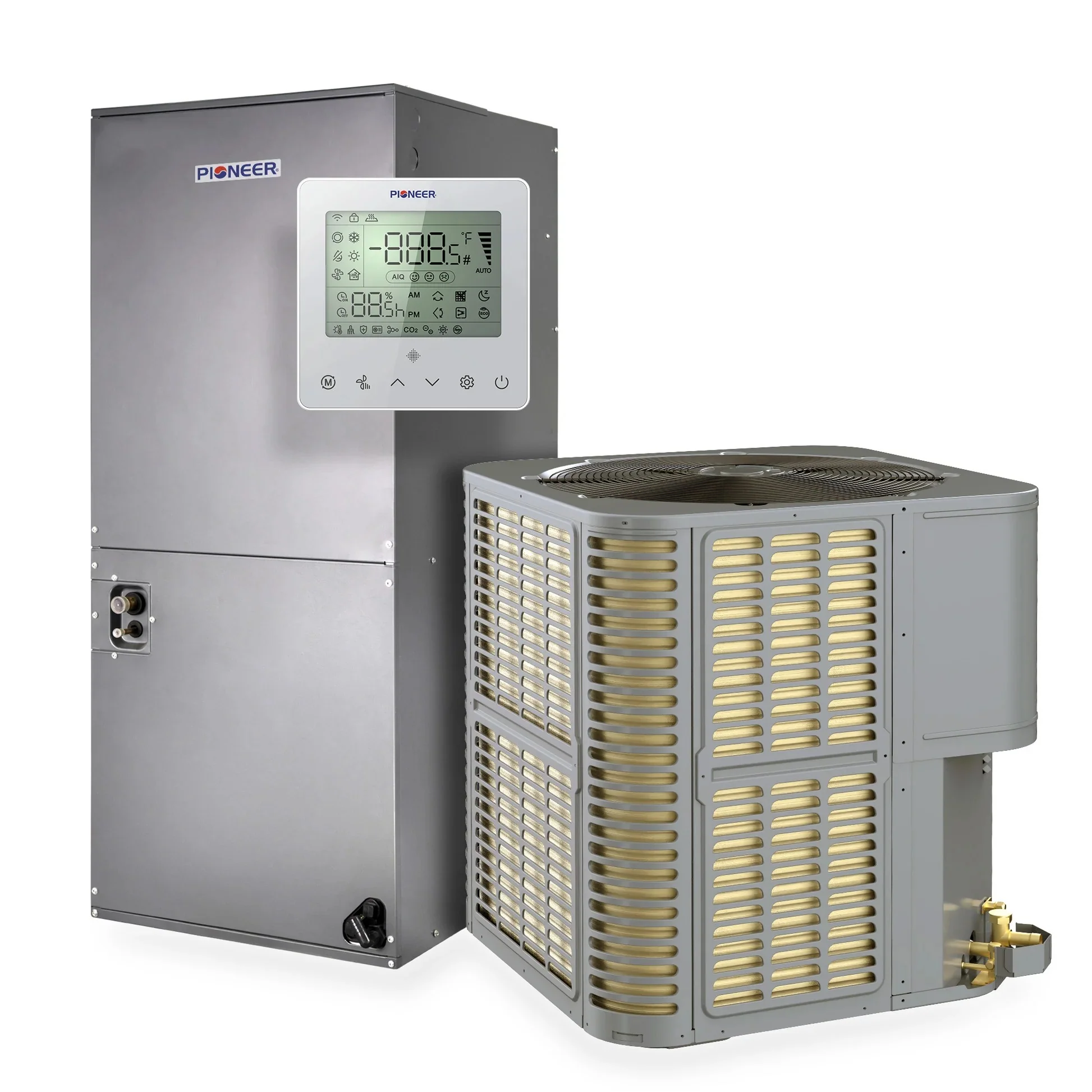

What's Included in Your Purchase

• Air Handling Unit (Multi Position, Convertible)
• Outdoor Unit (Vertical Discharge, Heat Pump)

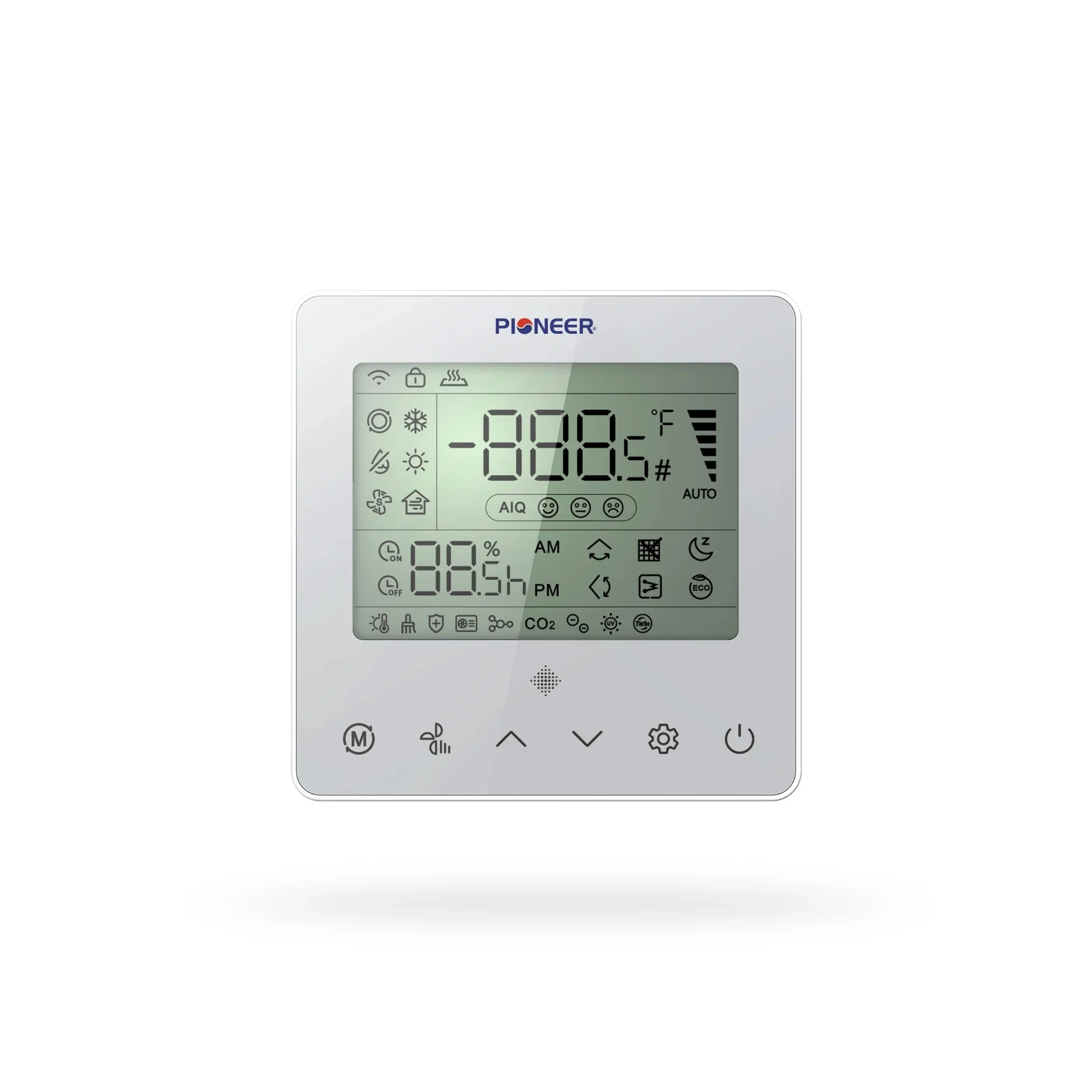

• Digital Fully Communicating RS485 Thermostat
• Wireless remote access and programming function
• Thermostat and Digital Communication Cables
• Condensate Float Switch
• High-Capacity Bi-Directional Filter Dryer
• Installation and User Manuals

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

• Up to 5 years Warranty for Parts
• Up to 5 years Warranty for Compressor

Summary

• High Efficiency Vertex Ducted Central Split Heat Pump System
• Cooling capacity: 34,000 BTU/H with 18.6 SEER2 / 11.7 EER2 efficiency
• Heating capacity: 34,200 BTU/H with 9.0 HSPF2 / 2.1 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Communicating system with dedicated signal transmission
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Low Ambient Range Operation (As low as -4°F in Heating / As high as 131°F in Cooling)

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Technical Brochure
• User & Installation Manual - Outdoor Unit
• User & Installation Manual - Indoor Unit
• Service Manual
• Technical Manual
• DC Product Specifications
• YD Product Specifications
• Exploded Parts Diagram

System Kit

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 34,000 BTU/h
• Cooling Capacity Range: 22,300~41,900 BTU/h
• Cooling SEER2: 18.6 BTU/W.h
• Cooling EER2: 11.7 BTU/W.h
• Heating Rated Capacity: 34,200 BTU/h
• Heating Capacity Range: 12,600~48,900 BTU/h
• Heating HSPF2 (Region IV): 9.0 BTU/W.h
• Heating C.O.P.2 (5°F): 2.1 W/W
• Refrigerant Type: R454b
• AHRI Reference: 217048498

Air Handler

• Part Number: DC036GCSICDHRT
• Air Flow (Hi/Lo): 920 / 730 CFM
• Sound Level (Hi/Lo): 52 / 49 dB(A)
• Product Dimensions (WDH): 19"-5/8 x 22" x 45"-3/4 Inches
• Carton Dimensions (WDH): 22"-7/8 x 25"-5/8 x 47"-5/8 Inches
• Net / Gross Weight: 130 / 143 lbs

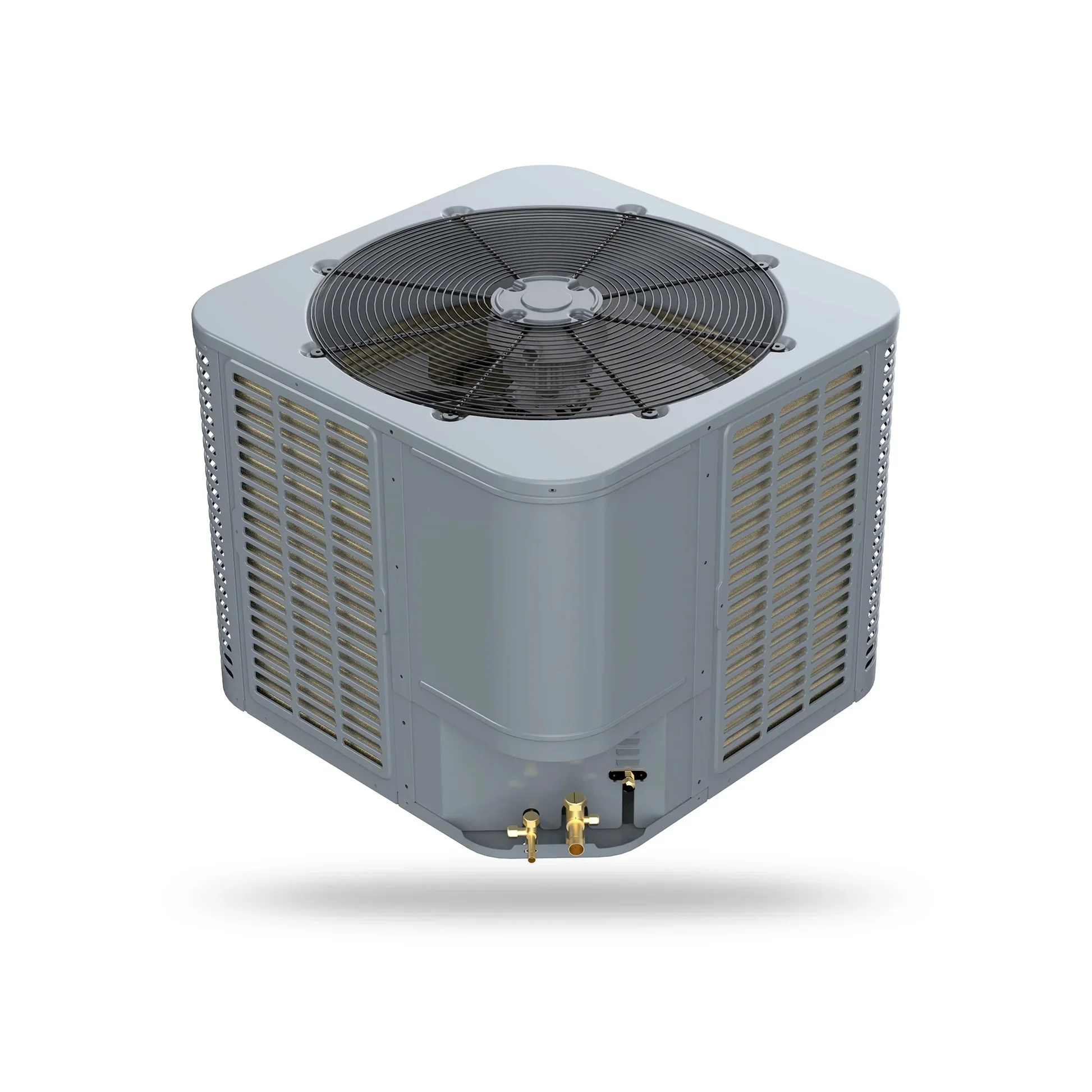

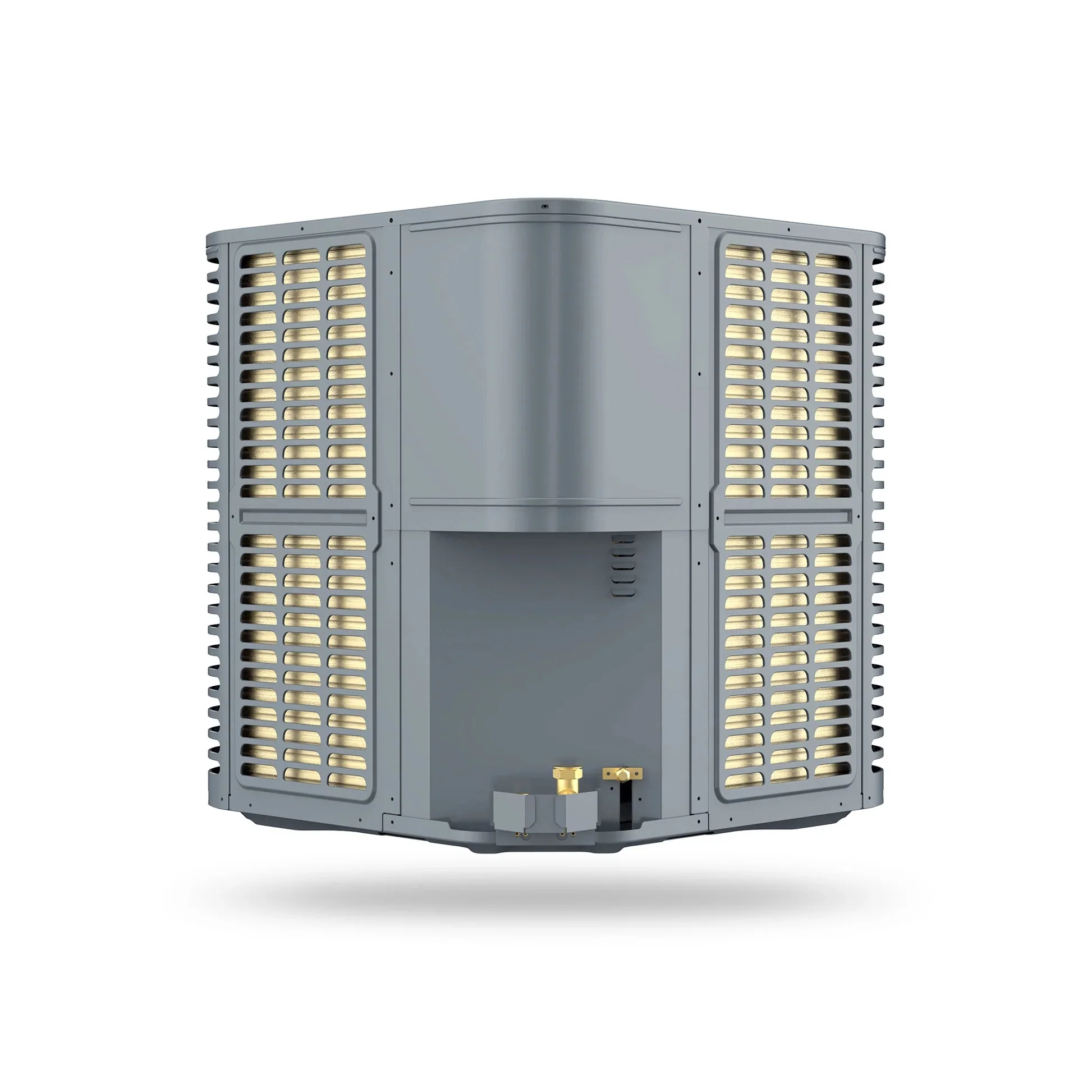

Outdoor Unit

• Part Number: YD2436GCSI18RD
• Breaker Needed: 20A (double-pole)
• Sound Level: 79 dB(A)
• Net Dimensions (WDH): 29"-1/8 x 25" x 29"-1/8 Inches
• Carton Dimensions (WDH): 30" x 26" x 30" Inches
• Net / Gross Weight: 137 / 146 lbs
