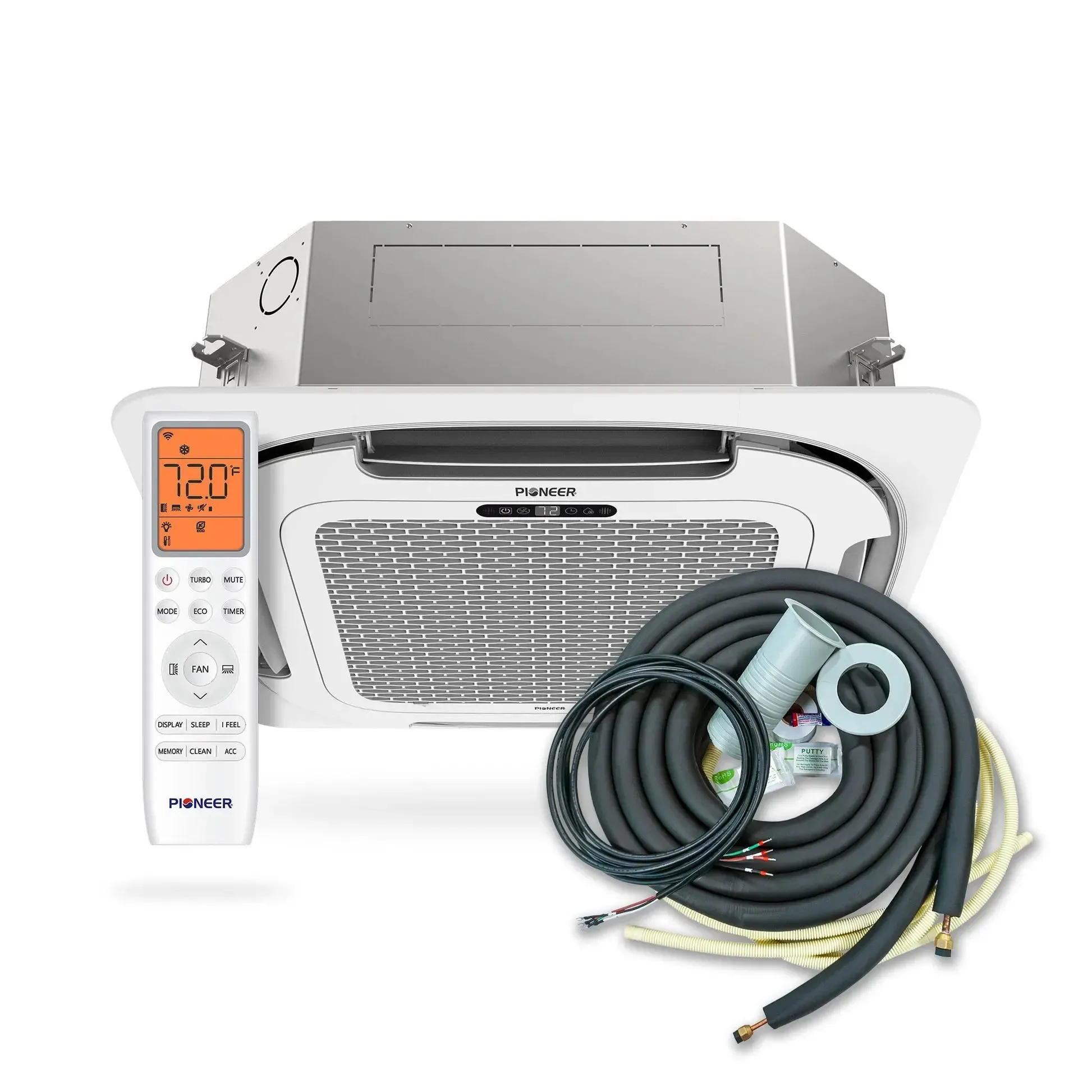

Pioneer® Multi Zone 9,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Performance

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: 9,000 BTU/h
• Suitable Area: 200~350 Sq.F

Indoor Unit

• Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282.5/235/188/153 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
• Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
• Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
• Net / Gross Weight: 32.0 / 38.6 lbs

Decorative Panel

• Part Number: CT0918DPNL
• Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
• Carton Dimensions (WDH):28"-7/8 x 28"-7/8 x 4"-3/8
• Net / Gross Weight: 6.0 / 9.5 lbs

Manuals & Documents

• Technical Brochure

• Installation and User's Manual

What's Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty
