Pioneer® Multi Zone 24,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Performance

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Capacity: 24,000 BTU/h
• Heating Capacity: 24,000 BTU/h
• Suitable Area: 750~1,000 Sq.F

Indoor Unit

• Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
• Product Dimensions (WDH): 33"-1/8 x 33"-3/4 x 10"-3/4 Inches
• Carton Dimensions (WDH): 36"-7/8 x 36"-7/8 x 11"-1/2 Inches
• Net / Gross Weight: 51.8 / 59.5 lbs

Decorative Panel

• Part Number: CT2460DPNL
• Product Dimensions (WDH): 37-3/8" x 37-3/8" x 2-7/8"
• Carton Dimensions (WDH): 41-1/2" x 41-1/2" x 3"-1/2
• Net / Gross Weight: 13.2 / 19.8 lbs

Compatibility

• Triple (3) Zone Condenser: YN030GLSI24M3G
• Quad (4) Zone Condenser: YN040GLSI24M4G
• Quint (5) Zone Condenser: YN050GLSI24M5G

Manuals & Document

• Technical Brochure

• Installation and User's Manual

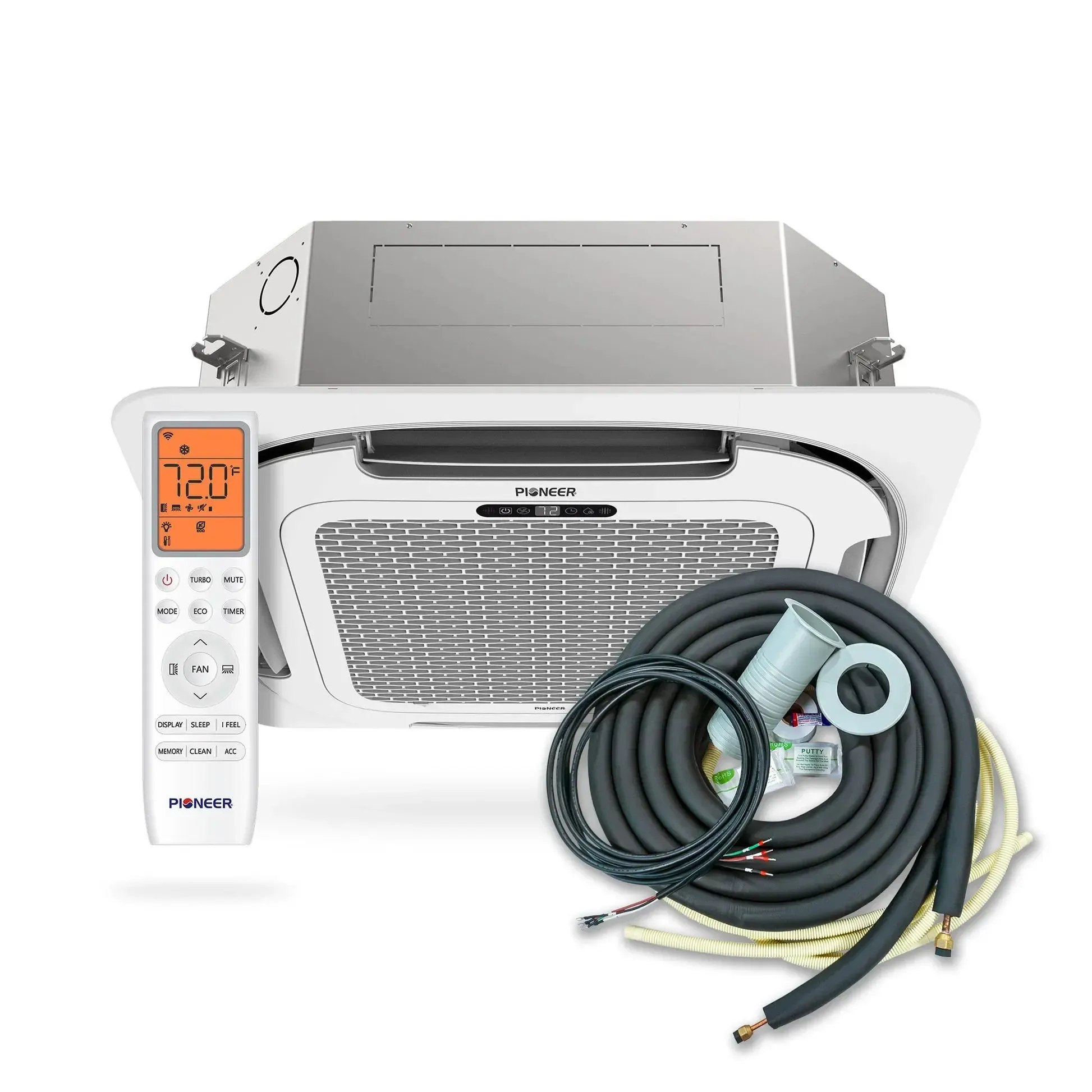

What's Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty
