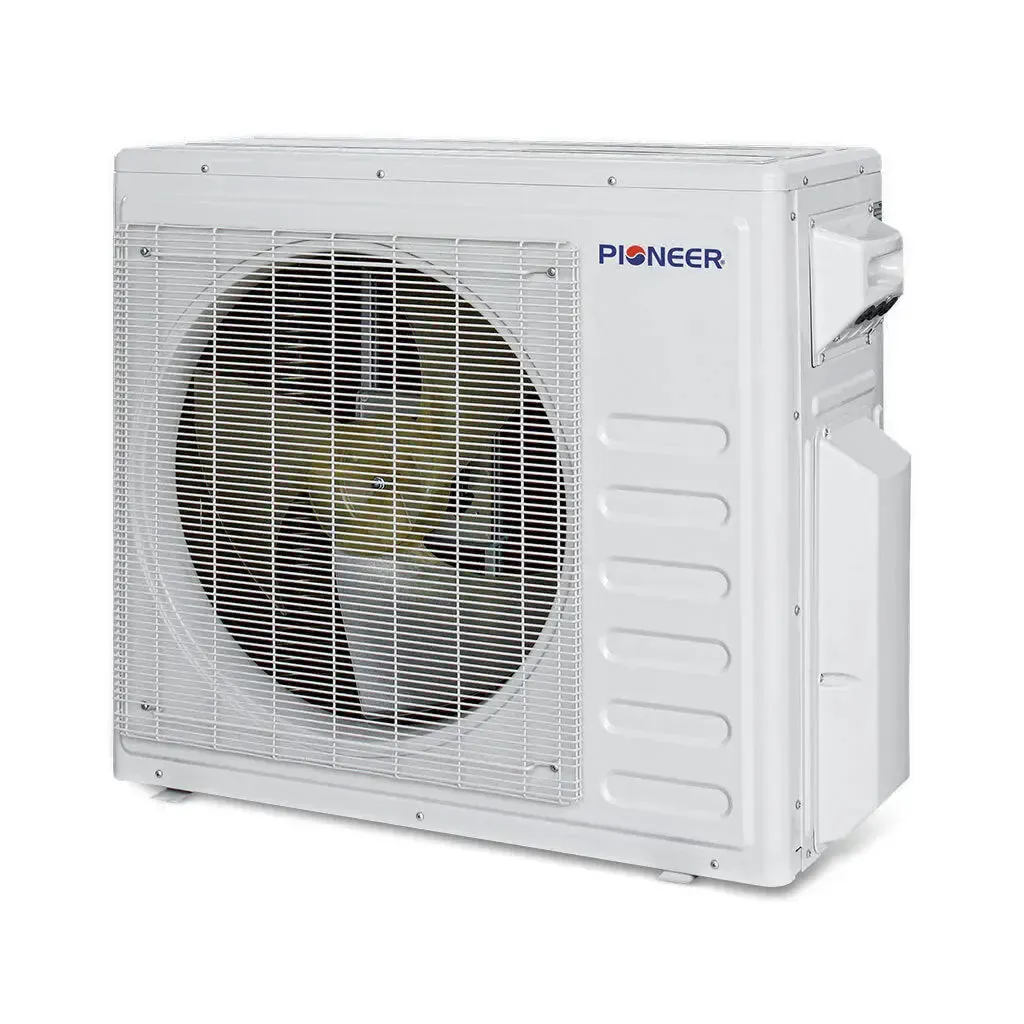

Pioneer® Multi (4) Circuit Diamante Ultra Series 21.5 SEER2 Quad Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V
Pioneer® Multi (4) Circuit Diamante Ultra Series 21.5 SEER2 Quad Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Communication Protocol: Current Loop
- Min-Max Load Attached: 24,000~48,000 BTU/h
- Cooling Rated Capacity: 33,000 BTU/h
- Cooling SEER2 (Ductless): 21.5 BTU/W.h
- Cooling EER2 (Ductless): 12.0 BTU/W.h
- Heating Rated Capacity: 35,600 BTU/h
- Heating HSPF2 (Ductless): 9.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.6 / 2.12 W/W
- Refrigerant Type: R410a
- Suitable Area: 750~1,500 Sq.F
- Sound Level: 63.0 dB(A)
- Circuit Breaker Utilized: 25A (double-pole)
- Net Dimensions (WDH): 39"-1/4 x 15"-5/8 x 35"-1/2
- Carton Dimensions (WDH): 41" x 17"-3/8 x 39"-3/8
- Net / Gross Weight: 166.1 / 186 Lbs
Pioneer® Multi (4) Circuit Diamante Ultra Series 21.5 SEER2 Quad Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Communication Protocol: Current Loop
- Min-Max Load Attached: 24,000~48,000 BTU/h
- Cooling Rated Capacity: 33,000 BTU/h
- Cooling SEER2 (Ductless): 21.5 BTU/W.h
- Cooling EER2 (Ductless): 12.0 BTU/W.h
- Heating Rated Capacity: 35,600 BTU/h
- Heating HSPF2 (Ductless): 9.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.6 / 2.12 W/W
- Refrigerant Type: R410a
- Suitable Area: 750~1,500 Sq.F
- Sound Level: 63.0 dB(A)
- Circuit Breaker Utilized: 25A (double-pole)
- Net Dimensions (WDH): 39"-1/4 x 15"-5/8 x 35"-1/2
- Carton Dimensions (WDH): 41" x 17"-3/8 x 39"-3/8
- Net / Gross Weight: 166.1 / 186 Lbs
$2,548.00
Pioneer® Multi (4) Circuit Diamante Ultra Series 21.5 SEER2 Quad Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V—
$2,548.00
Description
Pioneer® Multi (4) Circuit Diamante Ultra Series 21.5 SEER2 Quad Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Communication Protocol: Current Loop
- Min-Max Load Attached: 24,000~48,000 BTU/h
- Cooling Rated Capacity: 33,000 BTU/h
- Cooling SEER2 (Ductless): 21.5 BTU/W.h
- Cooling EER2 (Ductless): 12.0 BTU/W.h
- Heating Rated Capacity: 35,600 BTU/h
- Heating HSPF2 (Ductless): 9.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.6 / 2.12 W/W
- Refrigerant Type: R410a
- Suitable Area: 750~1,500 Sq.F
- Sound Level: 63.0 dB(A)
- Circuit Breaker Utilized: 25A (double-pole)
- Net Dimensions (WDH): 39"-1/4 x 15"-5/8 x 35"-1/2
- Carton Dimensions (WDH): 41" x 17"-3/8 x 39"-3/8
- Net / Gross Weight: 166.1 / 186 Lbs
