Pioneer® Diamante Series 9,000 BTU 20 SEER Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 115V with 16 Ft. Kit
FREE GIFTS FOR A LIMITED TIME ONLY! Order today and receive the following free with your purchase:
- Free Shipping ($100 Value)
- Expedited Processing ($50 Value)
- Website Discount of $39.90 off the current discounted price (Use Code: FLASH5) ($39.90 Value)
- Free 5-year Parts Warranty ($500 Value)
- Free 5-Year Compressor Warranty ($500 Value)
- Free Lifetime Technical Support ($500 Value)
- Free Condenser Wall Mounting Bracket +10 ft. Condensate Drain Hose for Mini Split Air Conditioners ($139.98 Value)
TO CLAIM YOUR FREE GIFT CLICK ADD TO CART
Total Extra Savings With Us Today = $1,829.88
Pioneer® Diamante Series 9,000 BTU 20 SEER Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 115V with 16 Ft. Kit
Summary
- High Efficiency Diamante Series Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 20 SEER/12 EER efficiency
- Heating capacity: 9,500 BTU/H with 10.5 HSPF/3.4 COP efficiency
- Voltage: 110/120V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
-
Low Ambient Unit (-13°F)
- AHRI Estimated Annual Operating Costs:
- Cooling: $59.00
- Heating: $191.00
REFRIGERANT
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.
IMPORTANT NOTE
The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.

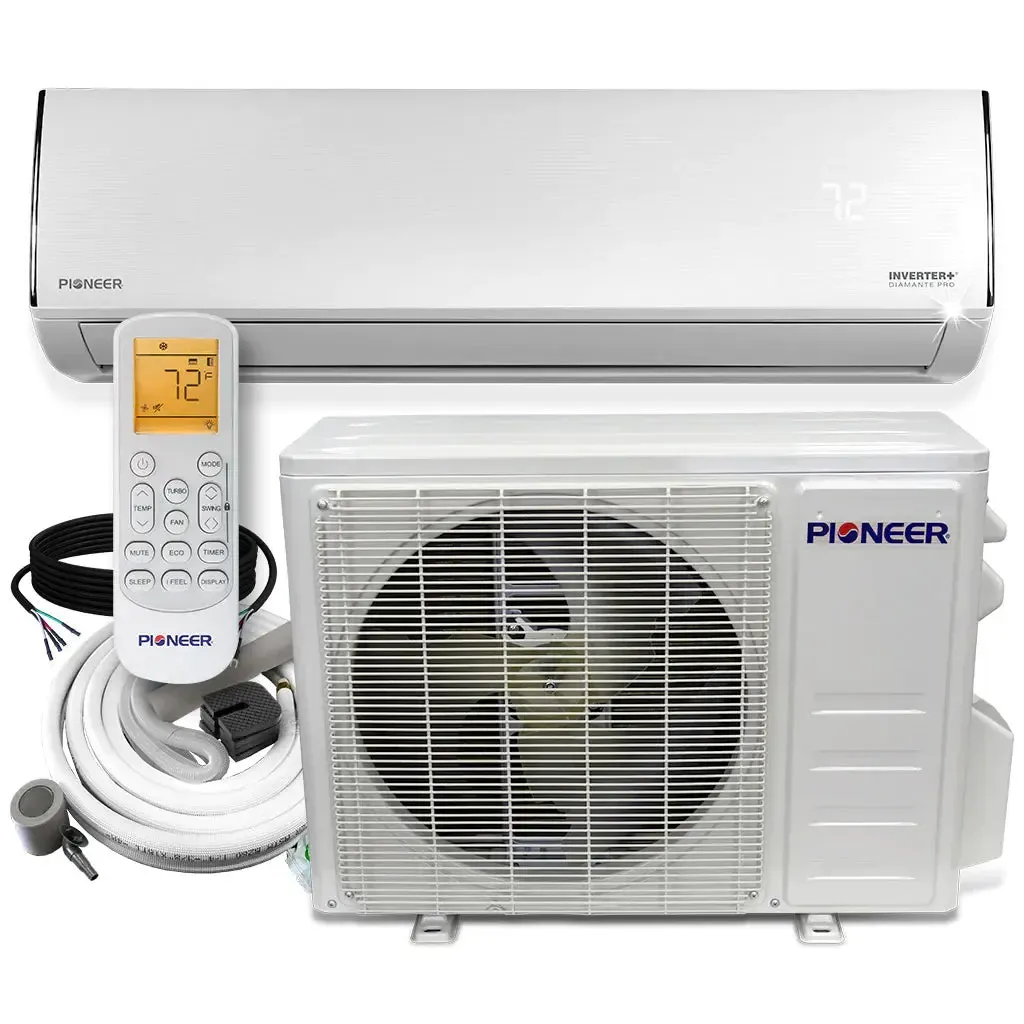

What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with wall holder and batteries)
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
- 5 years Warranty for Parts
- 5 years Warranty for Compressor
Features
- Dual Swing
- Dual Drainage
- Low Noise
- High Efficiency
Technical Information
Performance Data
- Power Supply: 115V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 5,800~10,300 BTU/h
- Cooling SEER: 20.0 BTU/w
- Cooling EER: 12.0 BTU/w
- Heating Rated Capacity: 9,500 BTU/h
- Heating Capacity Range: 5,400~10,900 BTU/h
- Heating HSPF4: 10.5 BTU/w
- Heating C.O.P.: 3.4 W/W
- Refrigerant Type: R410A/28.6 Oz.
- Suitable Area: 100~350 Sq.F
Indoor Unit Data
- Part Number: WT009ALFI19HLD
- Air Flow (Hi/Med/Lo): 353 / 288 / 250 CFM
- Sound Level (Hi/Med/Lo): 38 / 35 / 32 dB(A)
- Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
- Carton Dimensions (WDH): 34-7/8 x 11 x 14-1/2 Inches
- Net / Gross Weight: 19.8 / 24.2 lbs
Outdoor Unit Data
-
Part Number: YN009ALFI19RPD
- Breaker Needed: 20A (single-pole)
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
- Carton Dimensions (WDH): 33-1/2 x 14-1/8 x 24 Inches
- Net / Gross Weight: 60.6 / 69.5 lbs
