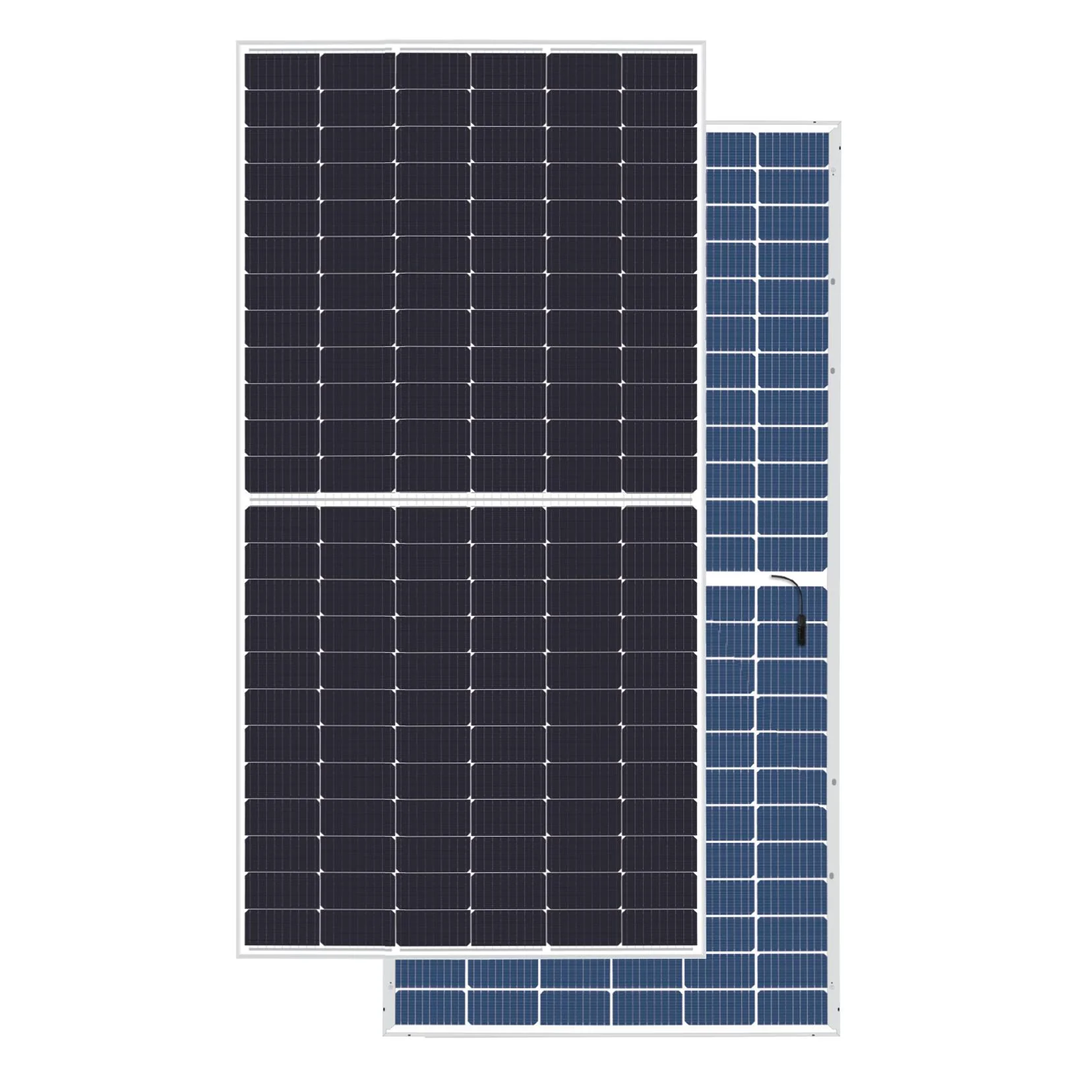

Philadelphia Solar 550W (Pallet of 31) Phenex PS-M144(HCBF)-550W Bifacial Solar Panel
Philadelphia Solar 550W Phenex PS-M144(HCBF)-550W Half Cell 10BB Bifacial 144 Cells
- These panels are California Energy Commission (CEC) Listed
- Data Sheet
Pallet Only: 31 Panels/Per Pallet
Key Specifications
- High Power Output: Delivers up to 555W with 21.5% efficiency.
- Bifacial Technology: Offers up to 65% bifacial gain for additional energy generation.
- Durability: Withstands front loads up to 5400 Pa and rear loads up to 2400 Pa.
- Performance Warranty: 25-year linear power warranty with only 0.5% annual degradation.
Technology Overview
The PS-M144(HCBF)-550W features 144 half-cut monocrystalline PERC cells with 10BB technology, reducing internal resistance and improving efficiency. The module also has excellent performance in low-light conditions and enhanced temperature coefficients..
Installation
Whether you're installing solar at home or on a larger property, this panel is designed for easy setup. With standard MC4 connectors and durable construction, it performs reliably in all kinds of weather.
Installation Tips
-
Allow for open space behind the panel to maximize rear-side bifacial performance.
-
Compatible with most common racking and mounting systems for rooftop or ground-mount installations.
-
For best results, use with a professional installer or consult our support team.
Warranty
12-year product warranty and 30-year linear power warranty with 83.0% guaranteed output at year 30.
Applications
- Home energy systems with higher output needs
- Large residential rooftops and ground mounts
- Small business and commercial installations
- Off-grid or hybrid solar setups
Product Specifications
| Specification | Details |
|---|---|
| Power | 550W |
| Module Efficiency | Up to 21.5% |
| Cell Type | Mono PERC, 10BB Half-Cell |
| Dimensions | 44.65 x 89.69 x 1.38 in |
| Weight | 66 lbs |
| Open Circuit Voltage (Voc) | 49.78V - 50.50V |
| Short Circuit Current (Isc) | 13.59A - 13.73A |
| Maximum System Voltage | 1500V DC |
| Front/Back Load | 5400 Pa / 2400 Pa |
| Warranty | 12 years product |
| Resources | Data Sheet |
About Philadelphia Solar:
Philadelphia Solar is a Tier‑1 solar PV manufacturer based in Amman, Jordan, founded in 2007. It operates a 580 MW/year production facility (expanding toward 1.2 GW/yr) and exports panels to over 52 countries via 220+ distributors. The company produces monocrystalline PERC-based modules including bifacial and N‑type Nexus, PHENEX, IRIS lines, with outputs from ~400 W to 600 W and efficiencies around 20–23%. They offer EPC services, steel mounting systems, and are Tree-listed with AVL status.
FAQs
Q: What is the power output of the Phenex 550W panel?
The Philadelphia Solar Phenex PS-M144(HCBF)-550W panel delivers 550 watts of power, offering high efficiency for residential, commercial, and utility-scale systems.
Q: Are Phenex panels suitable for areas with low sunlight?
Yes, Phenex panels use advanced PERC technology and are engineered to perform well even under low-light conditions such as cloudy skies or shaded environments.
Q: What kind of warranty does Philadelphia Solar offer for the Phenex 550W panel?
Philadelphia Solar provides a 12-year product warranty and a 30-year linear power output warranty, ensuring long-term performance and peace of mind.
Q: Are these panels compatible with different mounting systems?
Yes, the Phenex 550W panel is compatible with most standard mounting structures, suitable for both rooftop and ground-mounted installations.
Q: How durable are Phenex panels in harsh weather conditions?
Phenex panels are certified to withstand severe weather, including snow loads up to 5400 Pa and wind loads up to 2400 Pa. They feature high-transparency, anti-reflective tempered glass for added durability.
Q: Can Phenex panels help me save on energy costs?
Definitely. With high output per panel, the Phenex 550W helps maximize your solar yield, leading to greater energy savings and faster return on investment.
Q: How many panels do I need for my home?
It depends on your electricity usage. For a household consuming 10,000 kWh/year, approximately 18–20 Phenex 550W panels would suffice. A solar professional can provide a tailored recommendation.
Q: How many panels are in each pallet?
Each pallet contains 31 Philadelphia Solar 550W Phenex panels- 620 panels per Container, ideal for bulk or commercial installations.
