MRCOOL® Universal 4 - 5 Ton 18 SEER Central Heat Pump Split System - Upflow/Horizontal - MDU18048060

Elevate Your Comfort with the MRCOOL® Universal 4 - 5 Ton 18 SEER Central Heat Pump Split System - Upflow/Horizontal - MDU18048060

Discover excellence in heating and cooling with the MRCOOL® Universal 4 - 5 Ton 18 SEER Central Heat Pump Split System, a top-tier product leading the industry in performance, versatility, and simplicity. This central heat pump not only excels at cooling, surpassing the capabilities of most air conditioners, but it also outperforms virtually every other heat pump on the market. Moreover, it competes head-to-head with traditional furnaces during cold weather and reduces energy consumption, all thanks to its advanced internal controls. Embracing cutting-edge technology, it simplifies HVAC installation, making it quicker and more straightforward than ever before. In essence, the MrCool Universal offers the complete package for your heating and cooling needs.

But what does this package include, exactly? Let's start with the installation of the MRCOOL® Universal 4 - 5 Ton 18 SEER Central Heat Pump Split System. Traditional heat pump split system installation requires an HVAC technician to meticulously cut the refrigerant line set to fit, charge it with nitrogen, braze the connections, vacuum the lines, and finally charge it with an appropriate refrigerant like R-410a. While effective, this process can be time-consuming, taking many hours to complete, and it demands specialized tools.

MRCOOL UNIVERSAL HEAT PUMP: DEFYING THE COLD DOWN TO -22 DEGREES

The MRCOOL® Universal 4 - 5 Ton 18 SEER Central Heat Pump Split System is a performance powerhouse. Featuring a variable-speed DC inverter compressor inside the condenser, it achieves outstanding SEER performance and unmatched production capability. In practical terms, it delivers maximum cooling and heating efficiency at both high and low temperatures. It provides 100% cooling at 110 degrees Fahrenheit, up to 72% heating at -5 degrees, and maintains heating performance down to an impressive -22 degrees, in stark contrast to conventional heat pumps that lose efficiency below 32 degrees.

Simplify Your Installation with No-Vac Quick Connect Line Set Compatibility!

Say goodbye to the complexities of traditional installation. When paired with the MrCool Universal Pre-Charged Quick Connect Line Set, the MRCOOL® Universal 4 - 5 Ton 18 SEER Central Heat Pump Split System requires no cutting, brazing, vacuuming, or charging. This innovative No-Vac option streamlines the process, reducing installation time by hours and halving the tools needed compared to a standard installation. Enjoy significant time and cost savings with this hassle-free solution.

Plus, Rest Easy with MrCool's 10-Year Parts Limited Warranty!

As an industry leader, MrCool stands by its products, offering a 10-Year Parts Limited Warranty for the MRCOOL® Universal 4 - 5 Ton 18 SEER Central Heat Pump Split System. Ensure your investment is protected by registering within 60 days of installation. Your comfort and peace of mind are our top priorities.

What's included:

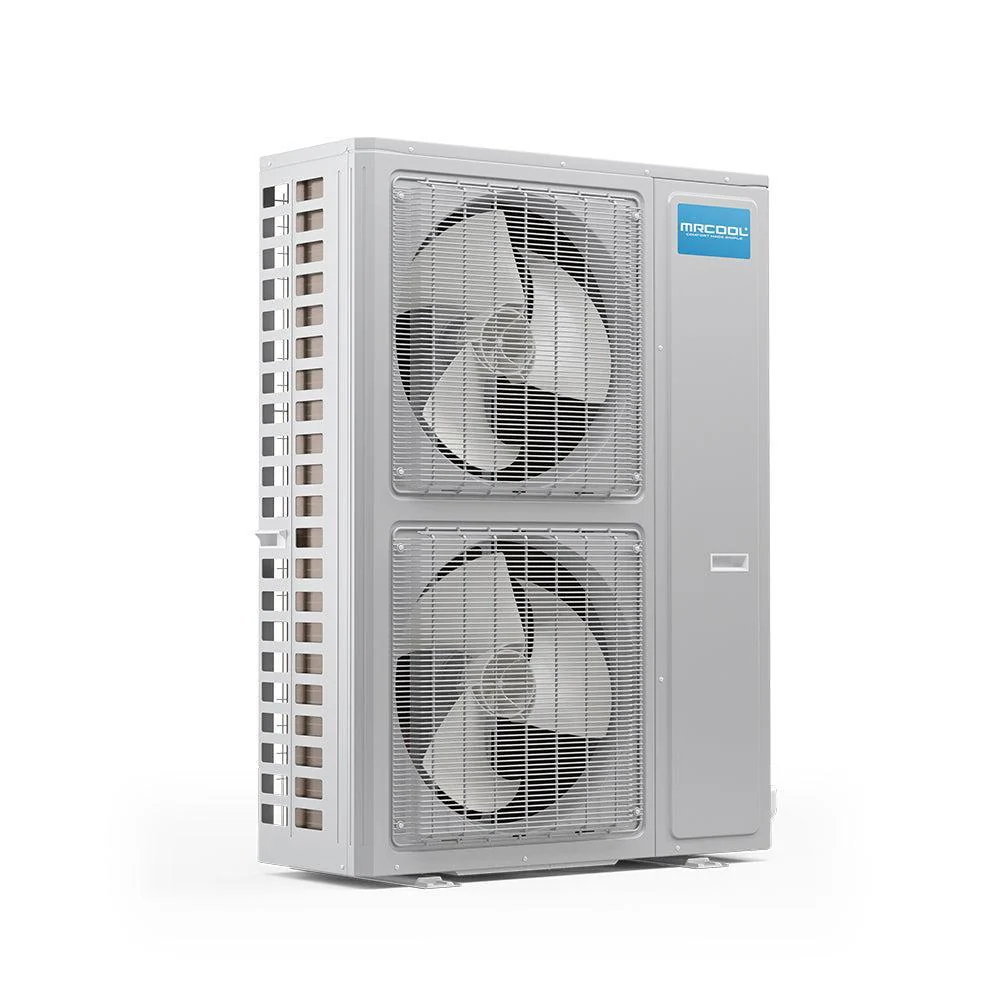

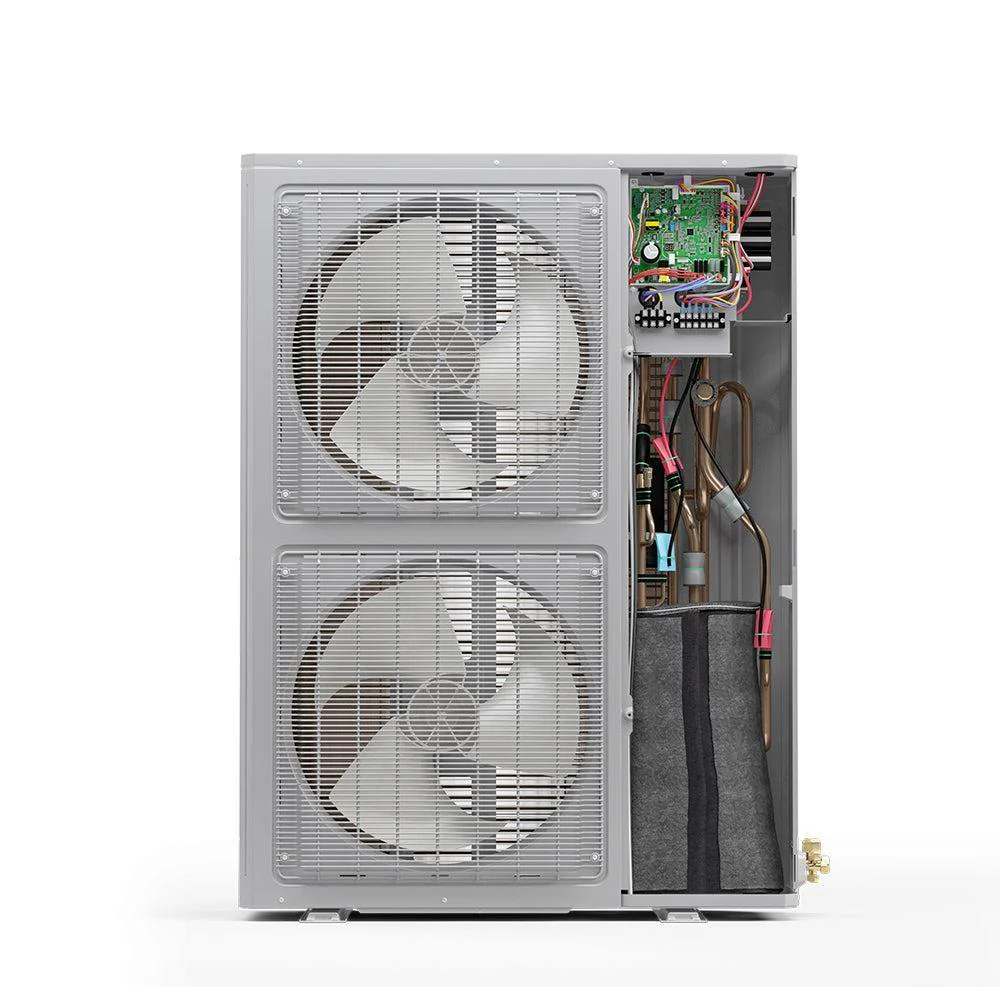

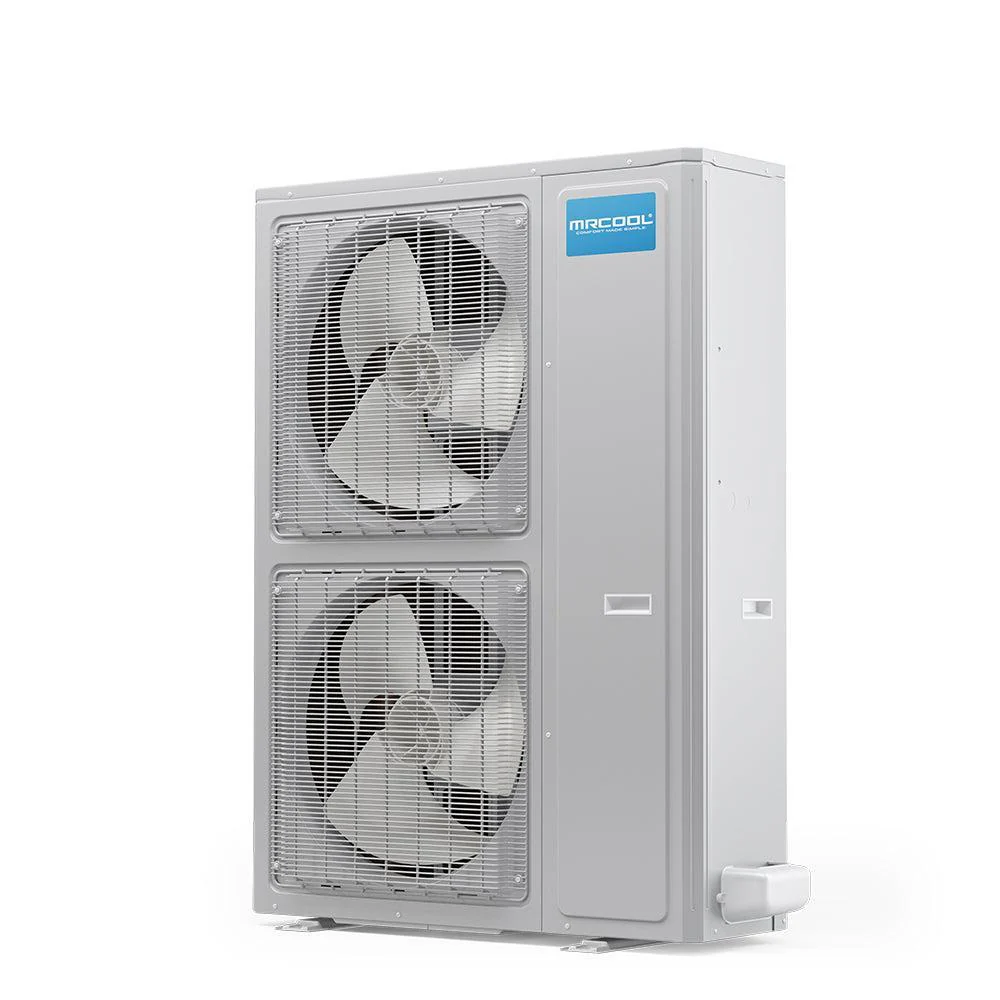

4 to 5 Ton 18 SEER MrCool Universal Central Heat Pump Condenser - MDUO18048060

Introducing the 4 to 5 Ton 18 SEER MrCool Universal Central Heat Pump Condenser, a revolutionary HVAC technology developed by a leading innovator in the industry. This advanced unit incorporates sophisticated technology to efficiently regulate your home's temperature while simultaneously controlling the compressor motor speed. By doing so, it effectively eliminates drastic fluctuations in the operating load, resulting in an extended lifespan for the unit. Experience cutting-edge performance and reliability with the MrCool Universal Central Heat Pump Condenser.

• 4 Ton Mode: 18 SEER, 5 Ton Mode: 17 SEER

• Ultra Wide Operating Temperature Range

• Gas Furnace Not Required

• Slim design allows more storage for warehouse inventory

• Compatible with any third party air handler and thermostat including WiFi/Nest

• Ideal for zero lot line homes, strict sound restriction, conventional installations, and unit replacements

• Rapid cooling and heating

• Internal Fan Blade Creates Low Noise

• Maximum savings while running

• Factory Charged

• ETL and AHRI certified


4 to 5 Ton MrCool Universal Air Handler - MDUI18048060

The 4 to 5 Ton MrCool Universal Air Handler is specifically engineered to achieve optimal compatibility with the MrCool Universal 4 to 5 Ton Condenser. When paired correctly, this air handler excels at providing exceptional home comfort performance throughout the year, including summer and winter. It serves as an ideal choice for homeowners seeking to enhance operating efficiency and reduce reliance on costly resources like heating oil. Additionally, this air handler ensures a quiet and safe solution, ensuring a comfortable and peaceful environment.

• 4 Ton Mode: 18 SEER, 5 Ton Mode: 17 SEER

• High Efficient Energy Saving DC Fan Motor

• Internal Fan Blade Creates Low Noise

• R-410A environmentally friendly refrigerant

• AHRI Certified & ETL listed

• Fire-Proof Electrical Box Design Offers Anti-Electric Shock Reserved Installation Space for the Circuit Breaker

• Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration

• Multi-Position Installation: Upflow or Horizontal

• 10 Year Registered Limited Warranty

• 2 Step Condensation Protection

Bundled System Specifications:

MODEL	MDU18048060
UPC	810035931114
AHRI NUMBER	210410119
BUNDLE COVERAGE AREA	2,000 - 2,500 Sq Ft
BUNDLE COOLING CAPACITY	4 Ton, 5 Ton
BUNDLE COOLING EFFICIENCY	4 Ton Mode: 18 SEER, 5 Ton Mode: 17 SEER
EER	11
HEAT PUMP EFFICIENCY (HSPF)	10.5
SERIES	Universal
REGION COMPATIBILITY	Nationwide
PROPOSITION 65 WARNING	Yes

Condenser Specifications:

MODEL	MDUO18048060
SERIES	Universal Series 4 / 5 Ton Condenser
SEER	4 Ton Mode: 18 SEER, 5 Ton Mode: 17 SEER
COVERAGE AREA	2,000 - 2,500 Sq Ft
HSPF	10
TONNAGE	4-5 Ton
COOLING CAPACITY	48,000 - 60,000 BTU
HEATING CAPACITY	48,000 - 60,000 BTU
VOLTAGE	208/230
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	45 A
MIN CIRCUIT AMPACITY	35 A
COLOR	Gray
COLOR FAMILY	Gray
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME	220.48 oz
DECIBEL RATING	58 dBA
INVERTER	DC
MIN AMBIENT COOL	5F - 129.2F
MIN AMBIENT HEAT	-22 F - 75.2F
LINESET INCLUDED	No
LINE SET CONNECTION TYPE	Quick Connect, Flared, or Sweat
LINE SET LENGTH	15ft, 25ft, 35ft, 50ft
MAX LINESET LENGTH	164 FT / 5
LIQUID LINE SIZE	3/8"
SUCTION LINE SIZE	3/4"
COMPRESSOR MOTOR TYPE	Inverter Rotary
CONDENSER FAN MOTOR TYPE	Direct Drive
METERING DEVICE	EEV
AUXILIARY HEATER INCLUDED	No
AUXILIARY HEATER AVAILABLE	Yes
UL RECOGNIZED	No
UL LISTED	No
ETL LISTED	Yes
ETL CERTIFIED	Yes
LEED CERTIFIED	No
ENERGY STAR COMPLIANT	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	10-Year Registered Limited Warranty
BASE WARRANTY	5-Year Limited Parts Warranty
BASE PARTS WARRANTY	5-year limited extended parts warranty
HAS BATTERIES	No
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	No
NET DEPTH	14-1/2 in
NET HEIGHT	53-3/4 in
NET WIDTH	39-3/8 in
NET WEIGHT	308.7 lbs
GROSS DEPTH	19-3/8 in
GROSS HEIGHT	59-1/4 in
GROSS WIDTH	45-3/8 in
GROSS WEIGHT	337.3 lbs
FREIGHT CLASS	92.5



Air Handler Specifications:

MODEL	MDUI18048060
SERIES	Universal Series High ESP Air Handler
AIR FLOW DIRECTION	Horizontal, Upflow
CONFIGURATION	Floor Mounted
BLOWER MOTOR	High Efficiency
SEER	4 Ton Mode: 18 SEER, 5 Ton Mode: 17 SEER
TONNAGE	4-5 Ton
COOLING CAPACITY	48,000 - 60,000 BTU
HEATING CAPACITY	48,000 - 60,000 BTU
VOLTAGE	208/230
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	15 A
MIN CIRCUIT AMPACITY	8 A
REFRIGERANT TYPE	R-410A
DECIBEL RATING	51 dBA
NUMBER OF SPEEDS	8 Speeds
INVERTER	DC
MIN AMBIENT COOL	5F - 129.2F
MIN AMBIENT HEAT	-22 F - 75.2F
LINESET INCLUDED	No
LINE SET CONNECTION TYPE	Quick Connect, Flared, or Sweat
LIQUID LINE SIZE	3/8"
SUCTION LINE SIZE	3/4"
BLOWER MOTOR HP	1
FILTER TYPE	Washable
FILTER SIZE	20-11/16 X 20-5/16 X 5/8
AUXILIARY HEATER AVAILABLE	Yes
AUXILIARY HEATER SIZES	10KW / 15 KW / 20 KW
OVERLOAD PROTECTION	Yes
ETL LISTED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	10-Year Limited Warranty
CONTAINS CHEMICALS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH	24-3/4in
NET HEIGHT	57in
NET WIDTH	21-1/4in
NET WEIGHT	203 lbs
GROSS DEPTH	26in
GROSS HEIGHT	59-3/8n
GROSS WIDTH	27-1/4in
GROSS WEIGHT	218 lbs
