MRCOOL® Universal 2 to 3 Ton 20 SEER Central Heat Pump Split System Upflow/Horizontal - MDU18024036
FREE GIFTS FOR A LIMITED TIME ONLY! Order today and receive the following free with your purchase:
- Free Shipping ($100 Value)
- Free Liftgate Delivery + Freight Insurance ($150 Value)
- Expedited Processing ($50 Value)
- Website Discount of $177.75 off the current discounted price (Use Code: FLASH5) ($177.75 Value)
- Free 10-Year Parts Warranty ($1000 Value)
- Free 10-Year Compressor Warranty ($1000 Value)
- Free Lifetime Technical Support ($500 Value)
- Free Condenser Wall Mounting Brackets ($119.99 Value)
TO CLAIM YOUR FREE GIFT CLICK ADD TO CART
Total Extra Savings With Us Today = $3,097.74

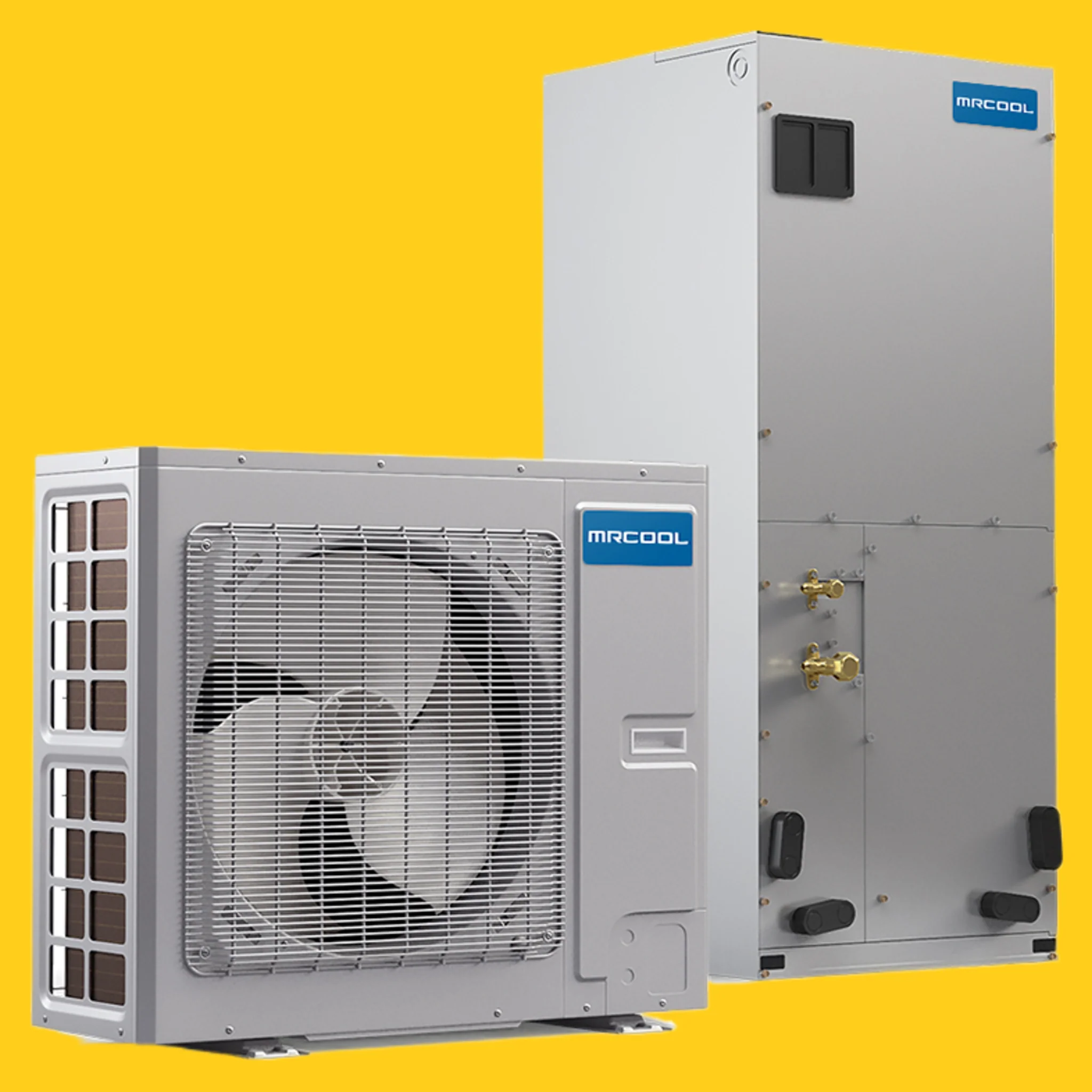

MRCOOL® Universal 2 to 3 Ton 20 SEER Central Heat Pump Split System Upflow/Horizontal - MDU18024036
Elevate your comfort and efficiency with the 2 to 3 Ton 20 SEER MrCool Universal Central Heat Pump Split System – your all-season solution for unparalleled heating and cooling performance. This innovative system utilizes cutting-edge technology, featuring a DC inverter compressor that adapts to your dynamic heating and cooling needs. Experience the perfect balance of warmth in winter, refreshing coolness in summer, and exceptional energy efficiency throughout the year.
Unlike conventional heat pump split systems, the MrCool Universal stands out with its ability to finely modulate performance based on demand fluctuations. The DC inverter compressor allows the system to seamlessly adjust capacity up or down, ensuring optimal efficiency in any weather condition. This intelligent design not only saves you valuable time and money but also provides long-term peace of mind.
Exceptional in its class, the MrCool Universal Heat Pump defies extreme temperatures, continuing to heat even in chilling conditions as low as -22 degrees. The heart of its extraordinary capabilities lies in the sophisticated DC inverter compressor and intelligent internal control system. Operating at reduced capacity for extended periods translates to significant cost savings, while the system's ability to scale up performance in response to outdoor temperature changes adds unparalleled versatility. Achieve 100% cooling capacity at scorching temperatures up to 110 degrees Fahrenheit, 100% heating performance at a frigid minus 5 degrees, and sustained heating down to an impressive minus 22.
Performance excellence is not the only hallmark of the 2 to 3 Ton 20 SEER MrCool Universal Central Heat Pump Split System. The condenser boasts an array of features, including an auto-reset internal overload protector, direct drive fan motor, inner groove copper tube-aluminum fin, gold fin corrosion protection, automatic defrost, and an electronic expansion valve. With a compact footprint and a shallow profile, the condenser is designed for efficiency without compromising space.
The air handler complements the condenser with features such as an electric box assembly, fan motor, secondary drain pan, primary drain pan, and the flexibility to accommodate an auxiliary heat kit.
Discover the convenience of the MrCool No-Vac Quick Connect Line Set, a game-changer in installation efficiency. This kink-resistant line set comes precharged with R410a refrigerant and employs Quick Connect fittings, eliminating the need for specialized tools. Installing the Universal Split System with the No-Vac Quick Connect Line Set is a breeze – no cutting, no brazing, no vacuuming, and no charging. What used to take hours can now be completed in minutes.
Invest in your comfort with confidence, as the 2 to 3 Ton 20 SEER MrCool Universal Central Heat Pump Split System is backed by a robust manufacturer's warranty. Homeowners who register their Universal within 60 days of installation enjoy a 10-Year Limited Parts Warranty. And when you choose Mini Split Systems Direct, you benefit from our knowledgeable tech support, ensuring a smooth experience from purchase to installation and beyond. Upgrade your comfort – order the MrCool Universal now!

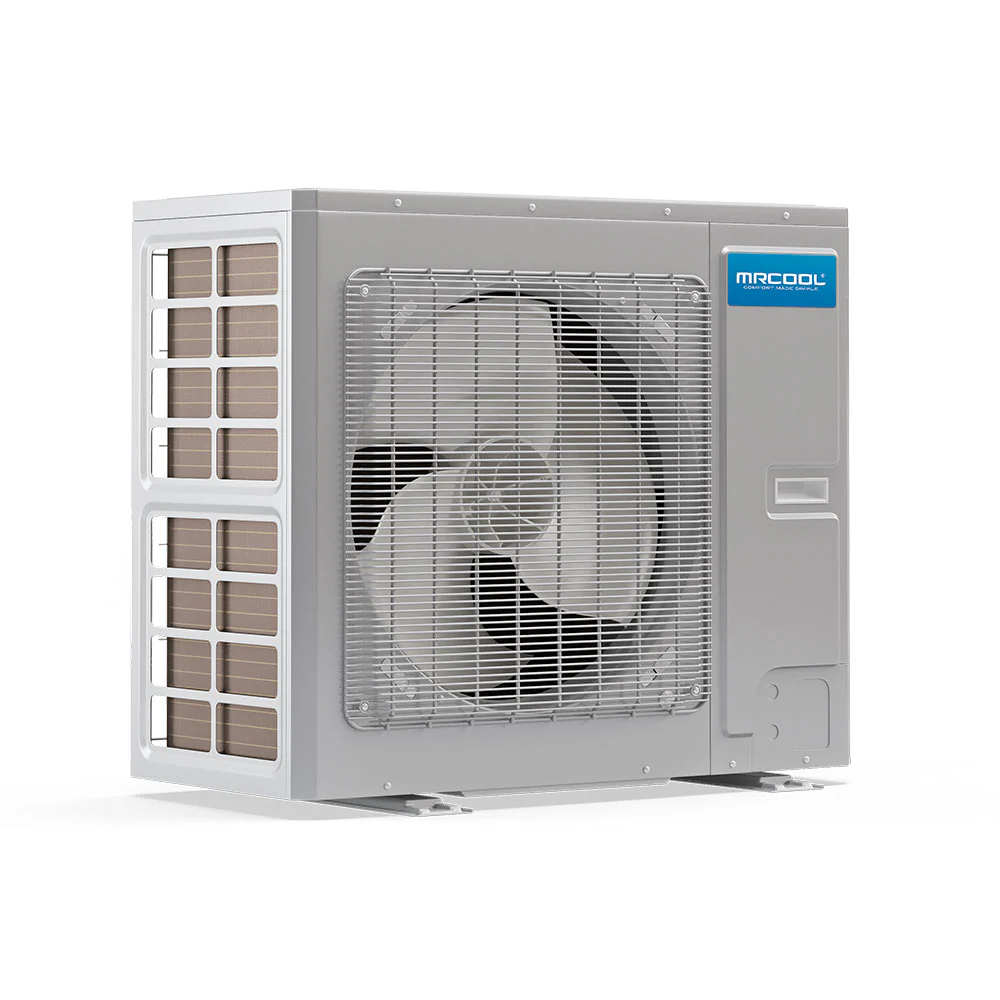

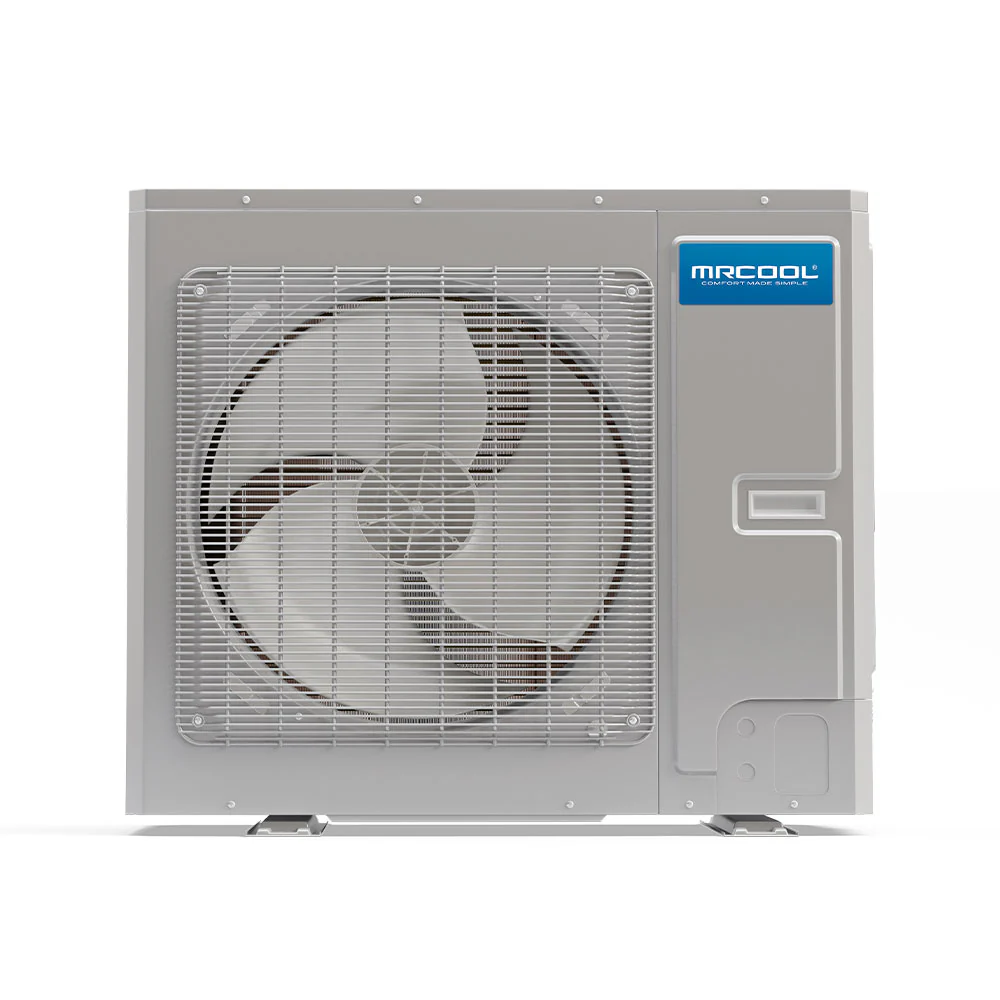

2 to 3 Ton 20 SEER MrCool Universal Central Heat Pump Condenser - MDUO18024036
- 2 Ton Mode: 20 SEER, 3 Ton Mode: 18 SEER
- Coverage Area Up to 1,500 square feet
- Ultra Wide Operating Temperature Range
- Gas Furnace Not Required
- Slim design allows more storage for warehouse inventory
- Compatible with any third party air handler and thermostat including WiFi/Nest
- Ideal for zero lot line homes, strict sound restriction, conventional installations, and unit replacements
- Rapid cooling and heating
- Internal Fan Blade Creates Low Noise
- Maximum savings while running
- Factory Charged R410A
- ETL and AHRI certified
2 to 3 Ton MrCool Universal Air Handler - MDUI18024036
- 2 Ton Mode: 20 SEER, 3 Ton Mode: 18 SEER
- Ultra Wide Operating Temperature Range
- Quick Connect, Flared, & Sweat fittings allow for universal installation
- Multi-positional installation (compatible with upflow and horizontal applications)
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Accommodates up to a 10kW Backup Heat Strip
- Factory Charged R410
- ETL and AHRI certified
Bundled System Specifications:
| Brand | MRCOOL |
| Model |
Bundled System SKU: MDU18024036 Condenser SKU: MDUO18024036 - Note the MRCOOL Universal 2 to 3 Ton Central Heat Pump Condenser has three SKU numbers: 2 Ton Mode: MDUO18024 3 Ton Mode: MDUO18036 The Combined SKU is: MDUO18024036 Air Handler SKU: MDUI18024036 - Note the MRCOOL Universal 2 to 3 Ton Air Handler has two SKU numbers: 2 Ton Mode: MDUI18024E 3 Ton Mode: MDUI18036E The combined SKU is: MDUI18024036 |
| UPC | 810035931107 |
| AHRI Number | 210410117 |
| Bundle Avg Coverage Area | 1,250 - 1,700 Sq Ft |
| Bundle Cooling and Heating Capacity | 2 Ton, 2.5 Ton, 3 Ton |
| Bundle Cooling and Heating Efficiency | 19 SEER and Above |
| EER | 12.5 (2 Ton), 11 (3 Ton) |
| Heat Pump Efficiency (HSPF) | 10.5 |
| Series | Universal |
| Region Compatibility | Nationwide |
| California Residents | Prop 65 WARNING |
Condenser Specifications:
| Model |
MDUO18024036: Note the MRCOOL Universal 2 to 3 Ton Central Heat Pump Condenser has three SKU numbers: 2 Ton Mode: MDUO18024 3 Ton Mode: MDUO18036 The Combined SKU is: MDUO18024036 |
| UPC | 810512032921 |
| Avg Coverage Area | 1,000 - 1,700 Sq Ft |
| Compressor | Inverter |
| Cooling Capacity | 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton |
| CFM | 3000 in 2 Ton Mode, 3470 in 3 Ton Mode |
| Min Ambient Cool (F) | 5 ~ 129.2 |
| Min Ambient Heat (F) | -22 ~ 75.2 |
| Electrical Phase | 1-Phase |
| Cycle | 60 |
| Heat Pump Efficiency (HSPF) | 10.5 |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Max Line Set Length (FT) | 164 / 5 |
| Liquid Line Size | 3/8 inch |
| Max Fuse Breaker (A) | 35 |
| Min Circut Ampacity (A) | 24 |
| Primary Cooling Capacity | 24,000 - 36,000 BTU |
| Primary Heating Capacity |
24,000 - 36,000 BTU |
| Product Height (in) | 32.3 |
| Product Length (in) | 18 |
| Product Width (in) | 37 |
| Product Weight (lbs) | 240.3 |
| Refrigerant | R-410a |
| Refrigerant Volume | 148.8 oz |
| Cooling Efficiency | 19 SEER and Above |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 208-230 |
| Decibel Rating |
55 dBA |
| Metering Device | EEV |
| UL Recognized |
No |
| UL Listed |
No |
| ETL Listed |
Yes |
| ETL Certified |
Yes |
| LEED Certified |
No |
| Energy Star Compliant | Yes |
| Energy Star Certified |
Yes |
| AHRI Certified |
Yes |
| Registered Warranty |
10-Year Registered Limited Warranty |
| Base Warranty |
5-Year Limited Parts Warranty |
| Base Parts Warranty |
5-year limited extended parts warranty |
| Has Batteries |
No |
| Contains Electronics | Yes |
| Contains Chemicals |
Yes |
| Contains Aersol |
Yes |
| Contains Compressed Gas |
Yes |
| Proposition 65 Warning |
Yes |
| Restricted States |
No |
Air Handler Specifications:
| Brand | MRCOOL |
| Model |
MDUI18024036 - Note the MRCOOL Universal 2 to 3 Ton Air Handler has two SKU numbers: 2 Ton Mode: MDUI18024E 3 Ton Mode: MDUI18036E The combined SKU is: MDUI18024036 |
| UPC | 810512032983 |
| Air Flow Direction | Horizontal, Upflow |
| Configuration | Floor Mounted |
| Blower Motor | High Efficiency |
| Cooling Capacity | 2 Ton, 2.5 Ton, 3 Ton |
| Electrical Phase | 1-Phase |
| Cycle | 60 |
| Heat Strip Compatibility | Up to 10 kW |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 4 |
| Product Height (in) | 48.25 |
| Product Length (in) | 21.3 |
| Product Width (in) | 21.3 |
| Product Weight (lbs) | 156.5 |
| Series | Universal |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| CFM | 960 in 2 Ton Mode, 1000 in 3 Ton Mode |
| Decibel Rating | 47 dBA |
| Number of Speeds | 8 Speeds |
| Min Ambient Cool |
5F - 129.2F |
| Min Ambient Heat |
-22 F - 75.2F |
| Blower Motor HP |
1/2 |
| Filter Type |
Washable |
| Filter Size |
19-5/16 X 20-5/16 X 5/8 |
| Overload Protection |
Yes |
| ETL LISTED |
Yes |
| AHRI CERTIFIED |
Yes |
| REGISTERED WARRANTY |
10-Year Limited Warranty |
| Contains Chemicals | Yes |
| Proposition 65 Warning |
Yes |
Product Information and Guides:
Condenser
-
BROCHURE
- INSTALL MANUAL
- SPECS
- OWNERS MANUAL
- SERVICE MANUAL
- WARRANTY DOC
- ACCESSORY MANUAL 1
- AHRI CERTS
- ENERGY GUIDE CERTS
- INTERTEK CERTS
Air Handler
