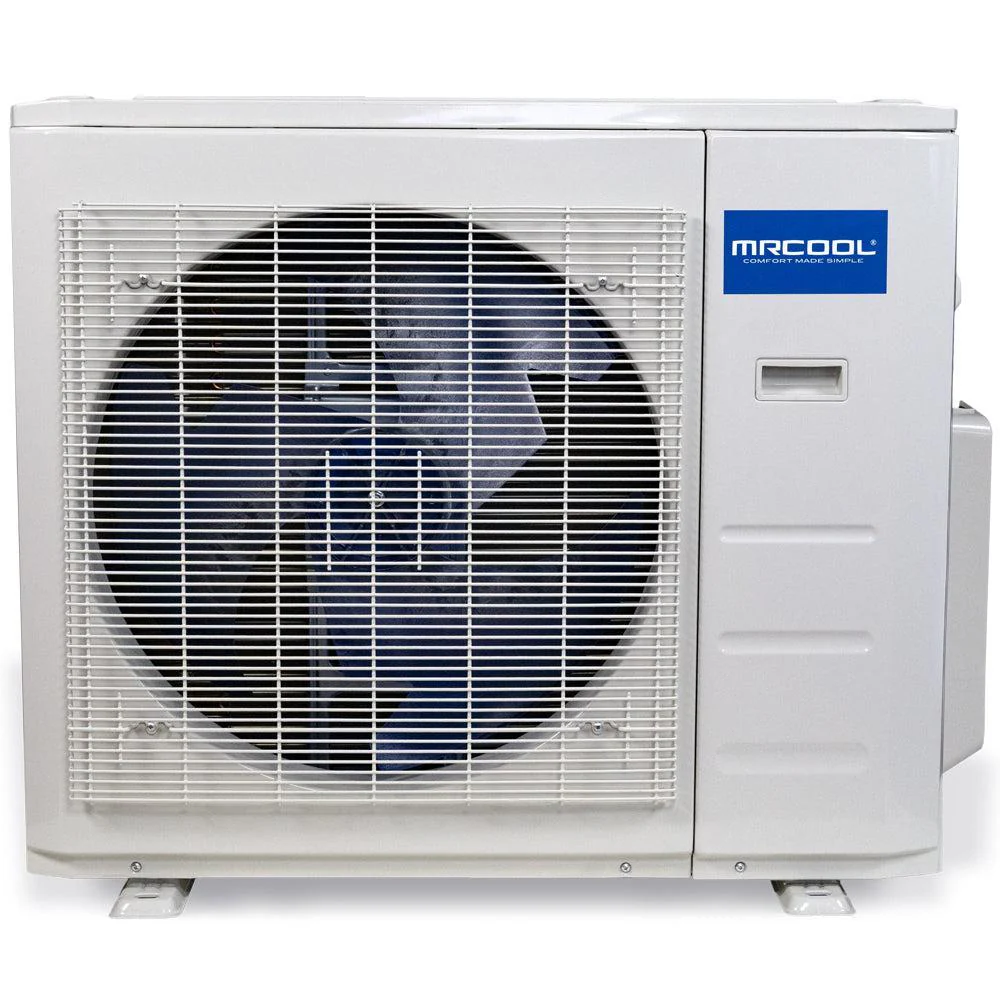

MRCOOL® Olympus Energy Star 18,000 BTU 1.5 Ton 21 SEER Ductless Mini Split Air Conditioner and Heat Pump Condenser 230V/60Hz (O-ES-18-HP-C-230)
MRCOOL® Olympus Energy Star 18,000 BTU 1.5 Ton 21 SEER Ductless Mini Split Air Conditioner and Heat Pump Condenser 230V/60Hz (O-ES-18-HP-C-230)
NOTE: This item is the Condenser only. Browse our complete Mini Split systems here.
This system is meant to be installed by a HVAC technician. The MRCOOL Olympus Energy Star Series ductless heat pump is the air comfort system you need to ensure your home stays comfortable, cool, and cost effective for as long as you desire. This high quality ductless heat pump is energy efficient, packed with great features, and priced to meet most household budgets. If you need targeted air comfort for a single zone in your home or need more general air conditioning, a MRCOOL Olympus Energy Star Series ductless heat pump should be exactly what you've been searching for. After all, shouldn't your home feel legendary. The MRCOOL Olympus Energy Star now includes the new SmartHVAC WiFi control module that features an easier setup process, improved functionality, and works with Amazon Alexa and Google Assistant.
Key Features
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
- 21 SEER energy efficient performance makes a MRCOOL Olympus both effective and affordable
- R-410A environmentally friendly refrigerant
- Energy Star certified: estimated national average annual operating cooling cost is 108 dollars based on AHRI certificate #204783913
- Inverter variable speed compressor
- The new Olympus Energy Star systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
Specifications & Dimensions
| MODEL | O-ES-18-HP-C-230 |
| SEER | 21 |
| EER | 13 |
| HSPF | hspf4/hspf5 : 10.4/9 |
| CFM | 1470.59 |
| TONNAGE |
18000 BTU |
|
COOLING CAPACITY |
18000 BTU |
|
HEATING CAPACITY |
18000 BTU |
|
VOLTAGE |
208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
|
MAX FUSE BREAKER |
20 A |
|
MIN CIRCUIT AMPACITY |
15 A |
| COLOR | White |
| COLOR FAMILY |
White |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
68.8 oz |
|
DECIBEL RATING |
58.5 dBA |
|
INVERTER |
Yes |
|
MIN AMBIENT HEAT |
-13 F Degrees |
|
MAX LINESET LENGTH |
98.42 ft |
|
LIQUID LINE FITTING |
3/8 in |
|
LIQUID LINE SIZE |
1/4 in |
| SUCTION LINE FITTING |
5/8 in |
| SUCTION LINE SIZE |
1/2 in |
| CONDENSER FAN MOTOR RPM |
850/750/700 |
| OVERLOAD PROTECTION |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
No |
| ETL LISTED |
Yes |
| ENERGY STAR COMPLIANT |
Yes |
| ENERGY STAR CERTIFIED |
Yes |
| AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
5-year Parts/7-year Compressor/1-year Remote |
| REGISTERED PARTS WARRANTY |
5-year |
|
REGISTERED COMPRESSOR WARRANTY |
7-year |
| REGISTERED REMOTE WARRANTY |
1-year |
| HAS BATTERIES |
Yes |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
No |
|
RESTRICTED STATES |
GU, PR, VI |
|
NET DEPTH |
14.29 in |
|
NET HEIGHT |
27.64 in |
|
NET WIDTH |
33.27 in |
|
NET WEIGHT |
105.16 lbs |
|
GROSS DEPTH |
15.55 in |
|
GROSS HEIGHT |
30.12 in |
|
GROSS WIDTH |
37.99 in |
|
GROSS WEIGHT |
112.43 lbs |
