MRCOOL® Olympus 9,000 BTU 3/4 Ton Ducted Mini-Split Air Handler 230V/60HZ - DUCT-09HP-230

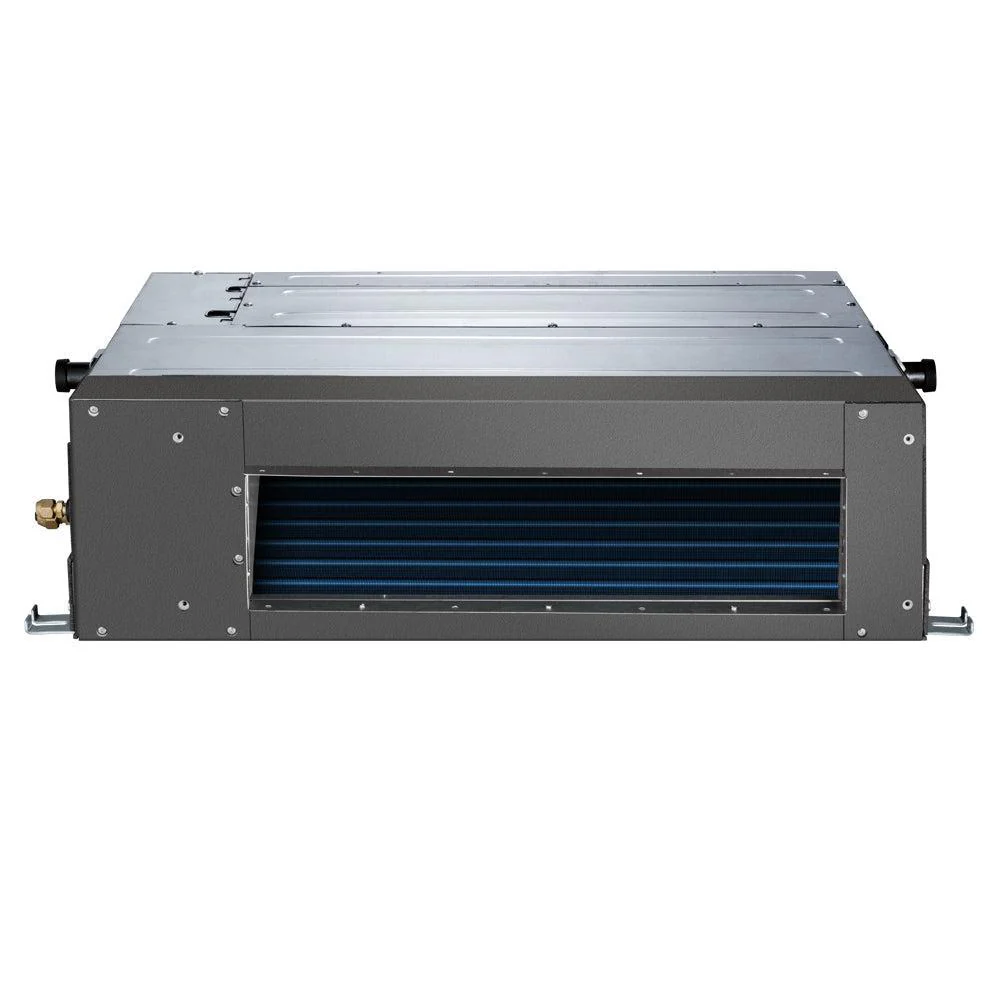

Product image 1
1 / 2

MRCOOL® Olympus 9,000 BTU 3/4 Ton Ducted Mini-Split Air Handler 230V/60HZ - DUCT-09HP-230

MRCOOL® Olympus 9,000 BTU 3/4 Ton Ducted Mini-Split Air Handler 230V/60HZ - DUCT-09HP-230

Your home or workplace is the perfect environment for the MRCOOL Olympus 9k BTU Ceiling Recessed Air Handler. Its practically invisible design maximizes your wall space so you can display your art or the family photos you love. Its high-efficiency engineering utilizes R-410A refrigerant, so your energy bill may be practically invisible too. Like all the components in the MRCOOL Olympus system, this air handler is designed to be used in a single-zone or multi-zone setup, up to five zones. Features include Auto Restart, Fan Only, Quiet Mode, Sleep Mode, and more.

Note: This unit is the Air Handler only, if you need a complete system, please click the link below:

https://minisplitsystemsdirect.com/collections/mrcool®-olympus-mini-split-systems

Features

  • Installation by a licensed professional required where applicable
  • 7 year compressor warranty and 5 year parts warranty
  • Compatible with both MRCOOL Hyper Heat and Energy Star Condensers
  • One House, One Solution. Multi-zone technology gives you flexibility and control whenever and wherever you want it.
  • R-410A environmentally friendly refrigerant

Specifications:

BRAND MRCOOL
SERIES Olympus Multi
MODEL DUCT-09HP-230
GTIN 00853962006517
UPC 853962006517
UNIT TYPE Mini Split
SHORT DESCRIPTION Olympus 9,000 BTU 3/4 Ton Ducted Mini-Split Air Handler - 230V-60HZ
CFM 176.57/282.52/353.15
TONNAGE
 0.75
COOLING CAPACITY (BTU)
 9000
HEATING CAPACITY (BTU)
 10000
VOLTAGE 208/230V
PHASE
 1
CYCLE 60
MAX FUSE BREAKER (A)
 15
MIN CIRCUIT AMPACITY (A)
 1.2
MOUNT TYPE
 Ducted
COLOR White
COLOR FAMILY
 White
MAX COVERAGE AREA
 750
REFRIGERANT TYPE
 R-410A
DECIBEL RATING (DBA)
 39/37/33
DECIBEL RATING LOW (DBA)
 33
DECIBEL RATING HIGH (DBA)
 39
AIR FLOW DIRECTION
 Ducted
NUMBER OF SPEEDS
 Variable
OSCILLATION No
INVERTER Yes
LIQUID LINE FITTING 3/8
LIQUID LINE SIZE 1/4
SUCTION LINE FITTING 1/2
SUCTION LINE SIZE 3/8
CONTROL TYPE LED
BLOWER MOTOR RPM 1010/890/780
AUXILIARY HEATER INCLUDED
 No
AUXILIARY HEATER AVAILABLE
 No
LOW VOLTAGE COMPENSATION No
OVERLOAD PROTECTION
 Yes
ADJUSTABLE THERMOSTAT Yes
FAN ONLY OPTION
 Yes
QUIET MODE
 Yes
SLEEP MODE Yes
AUTO COOL
 Yes
WIFI COMPATIBILITY
 No
APP COMPATIBILITY
 No
WORKS WITH IOS
 No
WORKS WITH ANDROID
 No
REMOTE CONTROL INCLUDED Wired
UL LISTED Yes
CSA LISTED No
ETL LISTED Yes
ENERGY STAR COMPLIANT
 Yes
ENERGY STAR CERTIFIED
 Yes
AHRI CERTIFIED
 Yes
REGISTERED WARRANTY
 5-year Parts/7-year Compressor/1-year Remote
BASE WARRANTY None
REGISTERED PARTS WARRANTY
 5-year
BASE PARTS WARRANTY None
REGISTERED COMPRESSOR WARRANTY 7-year
BASE COMPRESSOR WARRANTY None
REGISTERED REMOTE WARRANTY
 1-year
BASE REMOTE WARRANTY None
REGISTERED LABOR WARRANTY None
BASE LABOR WARRANTY None
HAS BATTERIES
 Yes
CONTAINS ELECTRONICS
 Yes
CONTAINS CHEMICALS
 Yes
CONTAINS AEROSOL
 Yes
CONTAINS COMPRESSED GAS
 Yes
PROPOSITION 65 WARNING Yes
RESTRICTED STATES
 GU, PR, VI
NET DEPTH (IN)
 19.92
NET HEIGHT (IN)
 7.87
NET WIDTH (IN)
 22.55
NET WEIGHT (LBS)
 39.02
GROSS DEPTH (IN)
 21.26
GROSS HEIGHT (IN)
 11.22
GROSS WIDTH (IN)
 33.85
GROSS WEIGHT (LBS)
 49
FREIGHT CLASS 70


Product Information & Guides
