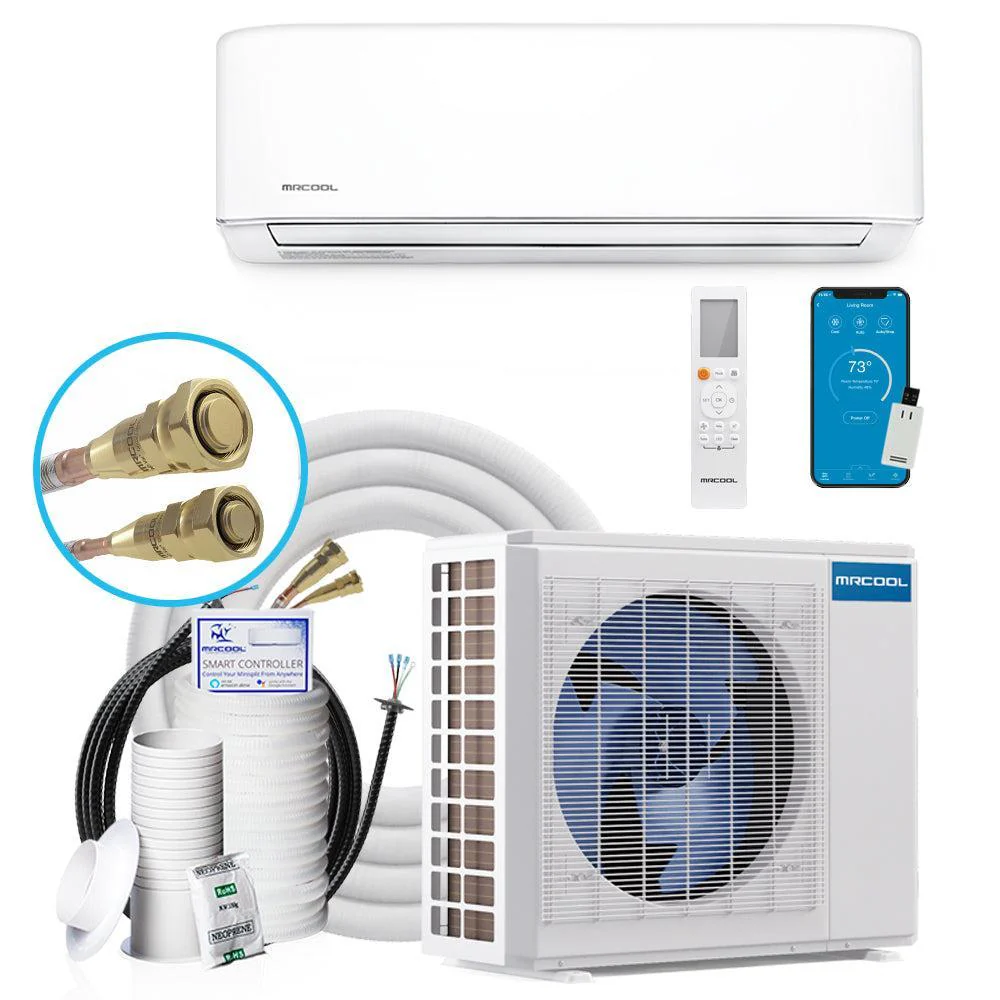

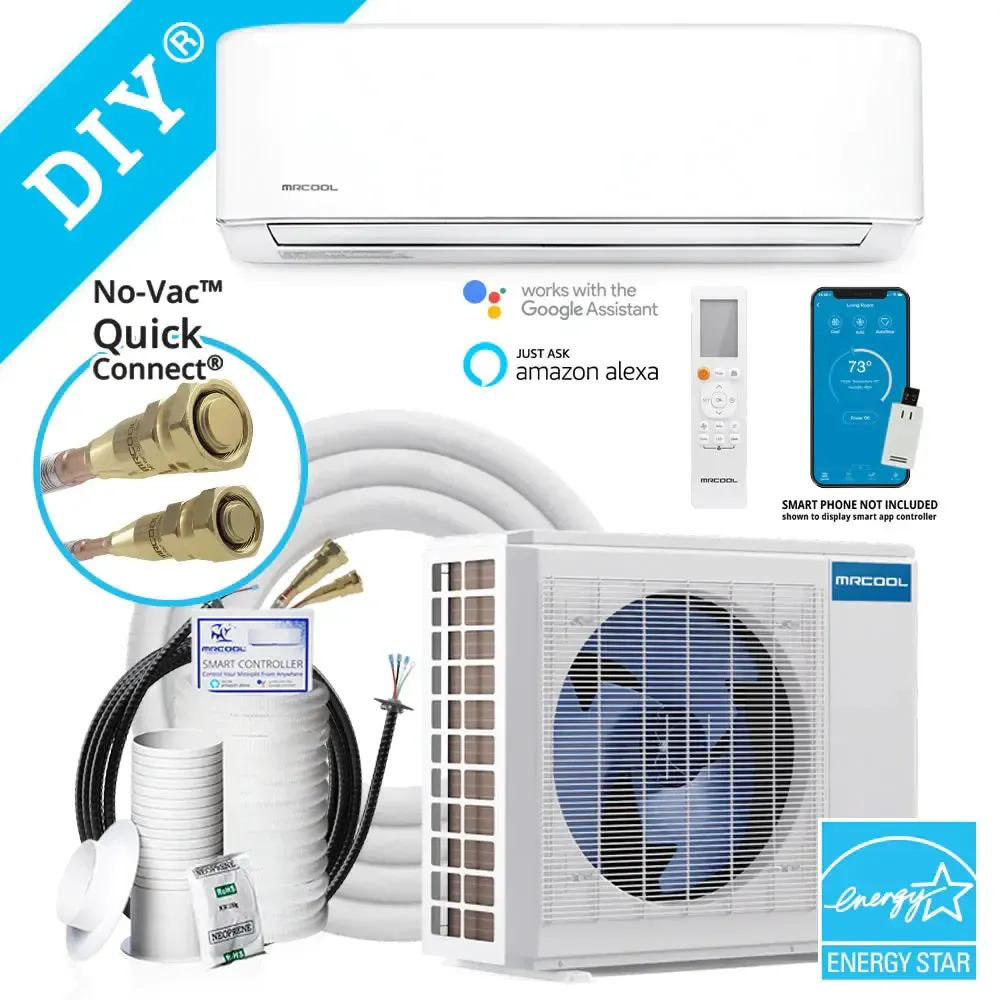

MRCOOL® DIY Mini Split 4th Gen E Star 36,000 BTU 18 Seer Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz (DIY-36-HP-WM-230C25)
FREE GIFTS FOR A LIMITED TIME ONLY! Order today and receive the following free with your purchase:
- Free Shipping ($100 Value)
- Expedited Processing ($50 Value)
- Website Discount of $144.40 off the current discounted price (Use Code: FLASH5) ($144.40 Value)
- Free 5-year Parts Warranty ($300 Value)
- Free Limited Lifetime Compressor Warranty ($500 Value)
- Free Lifetime Technical Support ($500 Value)
- Free Condenser Wall Mounting Brackets ($119.99 Value)
TO CLAIM YOUR FREE GIFT CLICK ADD TO CART
Total Extra Savings With Us Today = $1,714.39
MRCOOL® Mini Split DIY 4th Gen E Star 36,000 BTU 18 Seer Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz (DIY-36-HP-WM-230C25)
The MRCOOL® 4th Generation DIY 36K BTU, 18 SEER Ductless Heat Pump is one of the most powerful single-zone systems offered in the DIY Series. This complete system has the heating and cooling performance to cover an area up to 1500 sq. ft while still being able to achieve an 18 SEER efficiency rating. All of this performance is within a system that can be easily installed by a homeowner with a few hand tools thanks to the patented MrCool Pre-Charged Quick-Connect Line Set that makes connecting refrigerant piping as simple as turning a few wrenches. The benefits of this system are not limited to the performance and ease of installation. This system also has many operational functions and features that sets it apart. The user can select from up to six operation modes AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. This system features a Follow Me function which can constantly adjust the temperature of the room by sensing the temperature from the location of the handheld remote controller. This system can also be operated with an Apple or Android smartphone by downloading the Smart HVAC app. MrCool offers a limited lifetime compressor warranty on this system.
Key Features
- Up to 18.3 SEER2
- Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long-term corrosion
- Variable-speed DC inverter compressor technology cuts operating costs
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Specifications & Dimensions
| MODEL | DIY-36-HP-WM-230C25 |
| SEER | 18 |
| SEER2 | 18.3 |
| EER | 8.7 |
| EER2 | 8.7 |
| COP 47 |
2.81 |
| HSPF | hspf4/hspf5 : 12/9 |
| HSPF2 |
hspf2-4/hspf2-5 : 8/6.4 |
| CFM | 673.53/502.94/367.65 |
| TONNAGE | 3 |
|
COOLING CAPACITY |
36000 BTU |
|
HEATING CAPACITY |
36000 BTU |
|
VOLTAGE |
208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
|
MAX FUSE BREAKER |
35 A |
|
MIN CIRCUIT AMPACITY |
28 A |
| COLOR | White |
|
COLOR FAMILY |
White |
|
RATED LOAD |
0.50 A |
| MAX COVERAGE AREA |
Up to 1500 sqft |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
111.1 oz |
|
DECIBEL RATING |
52/45/34 |
| DECIBEL RATING LOW |
34 dBA |
| DECIBEL RATING HIGH |
52 dBA |
| OSCILLATION |
4-W |
| INVERTER | Yes |
|
MIN AMBIENT COOL |
5F - 122F |
|
MIN AMBIENT HEAT |
5F - 75F |
| LINE SET LENGTH |
25ft |
|
MAX LINESET LENGTH |
75 ft |
|
LIQUID LINE SIZE |
3/8 in |
|
SUCTION LINE SIZE |
5/8 in |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
CONDENSER FAN MOTOR RPM |
950/250 |
|
BLOWER MOTOR RPM |
1200/950/750 |
| AUXILIARY HEATER INCLUDED |
No |
| AUXILIARY HEATER AVAILABLE |
No |
| FAN ONLY OPTION |
Yes |
| QUIET MODE |
Yes |
| AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
| UL LISTED |
Yes |
| ENERGY STAR CERTIFIED |
No |
| AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-year Parts/7-year Compressor |
|
BASE PARTS WARRANTY |
5-year Parts |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7-year Compressor |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
GU;PR;VI |
|
CONDENSER DEPTH |
16.14 in |
|
CONDENSER HEIGHT |
31.89 in |
|
CONDENSER WIDTH |
37.24 in |
|
CONDENSER WEIGHT |
147.27 lbs |
|
AIR HANDLER DEPTH |
11.10 in |
|
AIR HANDLER HEIGHT |
14.25 in |
|
AIR HANDLER WIDTH |
49.57 in |
|
AIR HANDLER WEIGHT |
47.84 lbs |
