MRCOOL® DIY Mini Split 48,000 BTU 20.5 SEER 4 Zone Ductless Air Conditioner and Heat Pump 12K + 12K + 12K + 12K Full Kit

The MRCOOL® DIY Mini Split 48,000 BTU 20.5 SEER 4 Zone Ductless Air Conditioner and Heat Pump 12K + 12K + 12K + 12K offers a complete solution to your home’s heating and cooling needs. This system can heat & cool four different areas up to 600 square feet with the 12K air handlers, all while capable of an Energy Star-certified, 20.5 SEER high-efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged line sets, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MCOOL® system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MCOOL® stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.

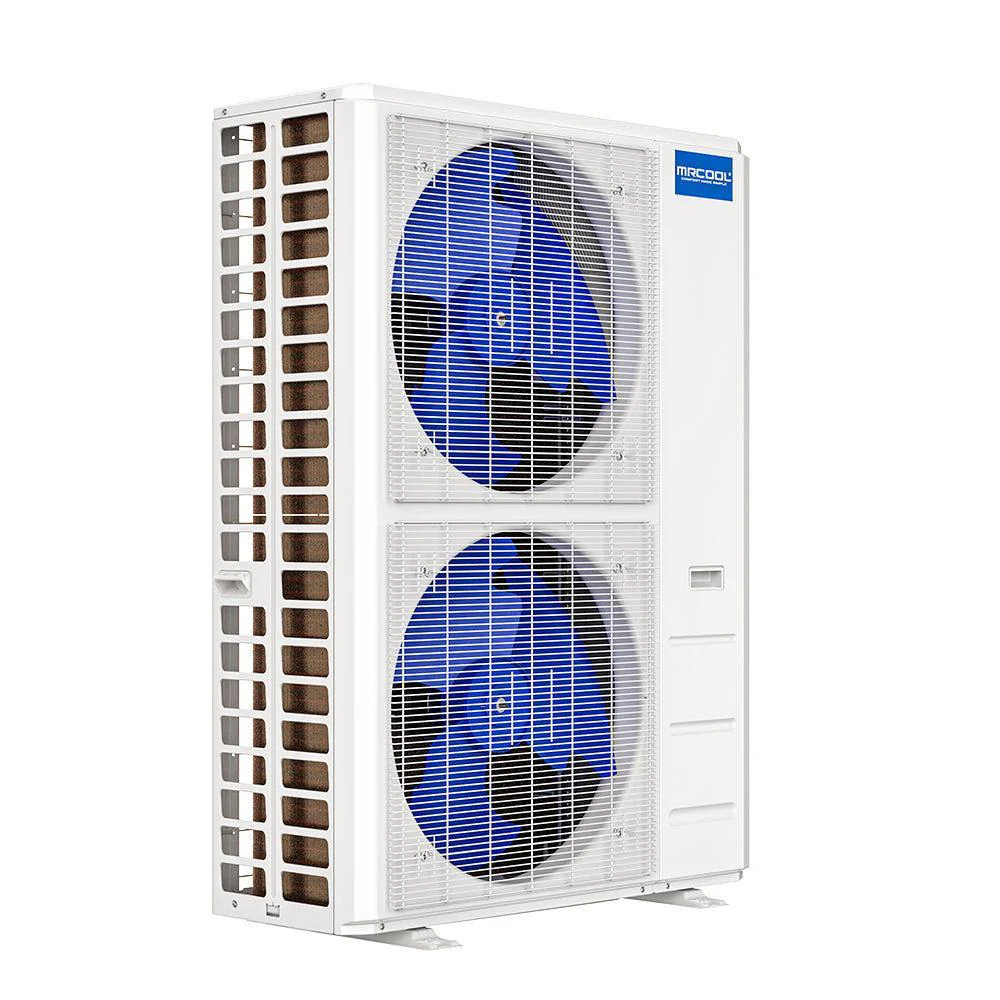

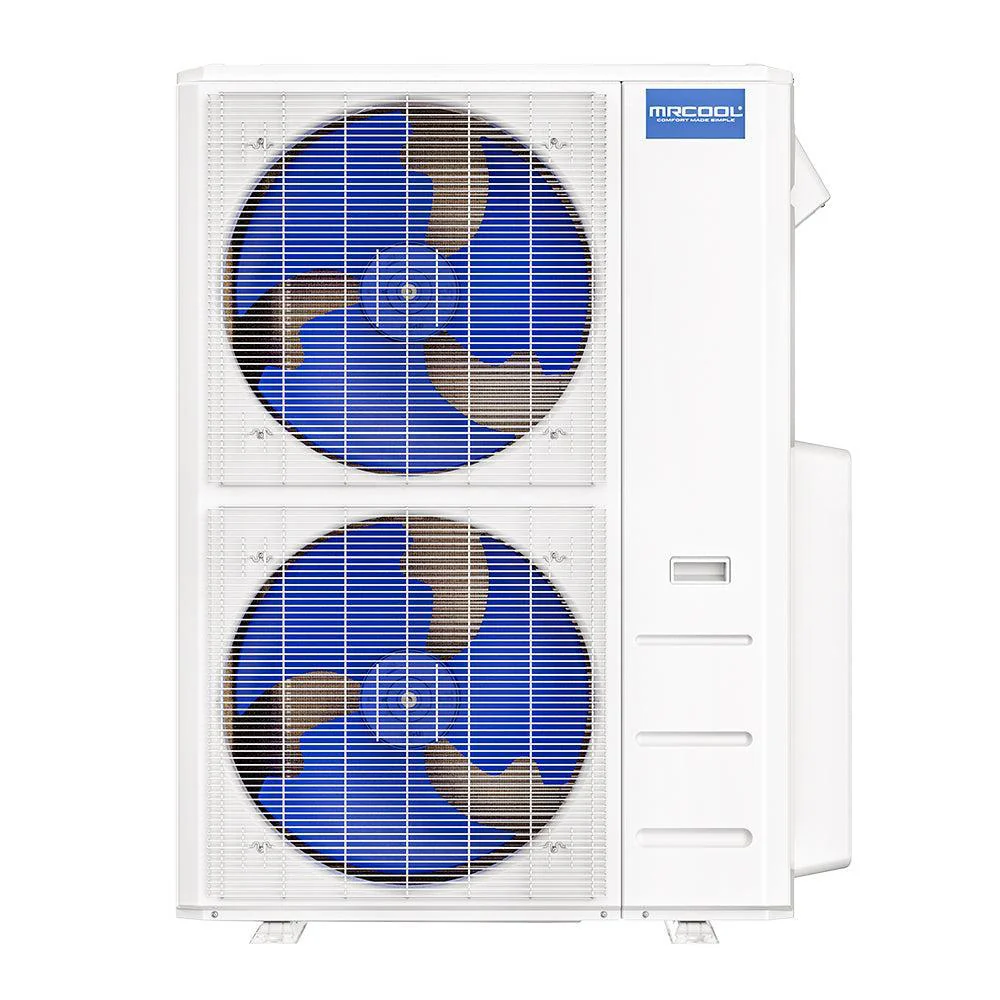

MRCOOL® DIY 4th Gen 48K BTU Multi-Zone 5-Zone Condenser 230V - DIY-MULTI5-48HP230C

Introducing the latest in home comfort solutions with the new 4th Generation MRCOOL® DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach -5°F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. MrCool also offers this condenser with a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools. So, no vacuuming of the system is required once installed. Let the MrCool 4th Generation DIY 48K BTU 5 Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.

Features:

• Up to 20.5 SEER

• Delivers maximum performance even when temperatures reach -5°F

• Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long-term corrosion

• Energy-Efficient DC Inverter

• R-410A environmentally friendly refrigerant

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

MRCOOL® DIY 4th Gen 12K BTU Wall Mount Air Handler - DIY-12-HP-WMAH-230C25

The MRCOOL® 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler is an essential component of a MRCOOL® DIY system. When paired with a MrCool Condenser, it is capable of achieving a 22 SEER efficiency rating and has the ability to heat and cool an area of up to 600 sq ft. It features multiple modes of operation such as COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP so it is sure to suit your needs. It can also be conveniently operated from anywhere using your Apple or Android smartphone with the Smart HVAC app. This air handler can be easily mounted with the included and easy-to-use wall mounting plate. It is also very compact, especially when compared to the components of a traditional ducted system, so it can be easily maneuvered into place. It was also designed to be used with MrCool’s patented Pre-Charged Quick Connect Line Set. So, installing the refrigerant piping is as simple as turning a few wrenches. Since the line set comes pre-charged with the precise amount of R-410A refrigerant, no vacuuming or charging is required once connected. Select the MrCool 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler to be your home comfort solution.

Features:

• Ideal for spaces up to 600 square feet

• SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

• Compatible with Amazon Alexa and Google Assistant

• Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

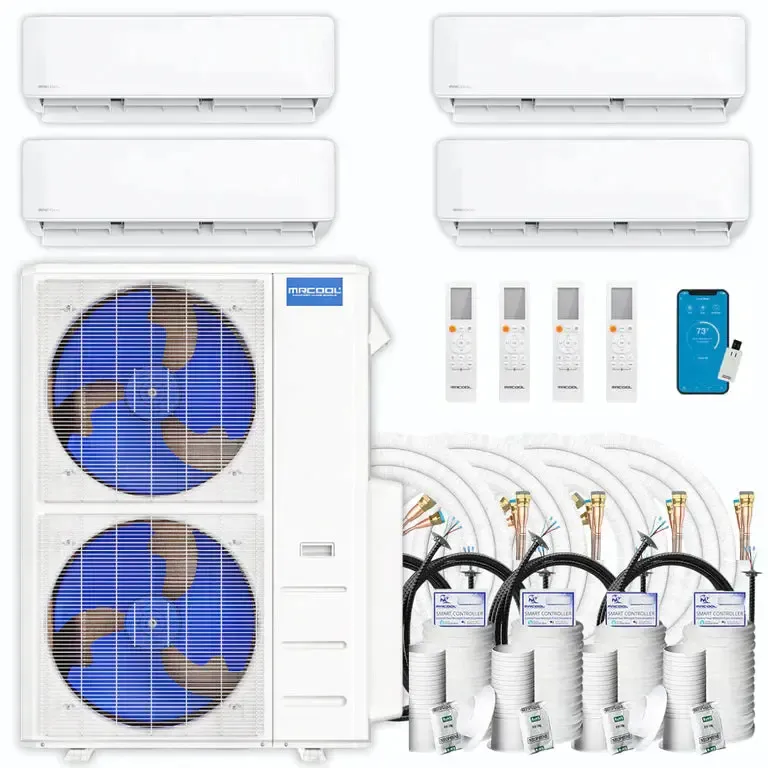

This bundle includes:

• 1x MRCOOL® DIY 4th Gen 48K BTU Multi-Zone 5-Zone Condenser 230V - DIY-MULTI5-48HP230C

• 4x MRCOOL® DIY 4th Gen 12K BTU Wall Mount Air Handlers - DIY-12-HP-WMAH-230C25


• All accessories needed for a full installation

Condenser Specifications:

MODEL	DIY-MULTI5-48HP230C
SEER	20.5
EER	11
HSPF	hspf4/hspf5 : 11/8.5
CFM	4500
COOLING CAPACITY	48000 BTU
HEATING CAPACITY	48000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	60A
MIN CIRCUIT AMPACITY	40 A
COLOR	White
COLOR FAMILY	White
ZONE CAPACITY	Up to 5
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME	162 oz
DECIBEL RATING	61.5 dBA
INVERTER	Yes
MIN AMBIENT COOL	5F ~ 122F
MIN AMBIENT HEAT	-5F ~ 75.2F
MAX LINESET LENGTH	221 ft TOTAL
LIQUID LINE SIZE	1/4in (3/8in w/ adapter)
SUCTION LINE SIZE	1/2in (5/8in w/ adapter)
COMPRESSOR MOTOR TYPE	Rotary
CONDENSER FAN MOTOR RPM	900/850/800/750
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH	16.34 in
NET HEIGHT	52.48 in
NET WIDTH	37.48 in
NET WEIGHT	222.89 lbs
GROSS DEPTH	19.49 in
GROSS HEIGHT	54.33 in
GROSS WIDTH	43.11 in
GROSS WEIGHT	254.41 lbs

12K Air Handler Specifications:

MODEL	DIY-12-HP-WMAH-230C25
COOLING CAPACITY	12000 BTU
HEATING CAPACITY	12000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	15 A
MIN CIRCUIT AMPACITY	3 A
MOUNT TYPE	Wall
COLOR	White
COLOR FAMILY	White
MAX COVERAGE AREA	Up to 600 sqft
REFRIGERANT TYPE	R-410A
DECIBEL RATING	35 dBA
DECIBEL RATING LOW	25 dBA
DECIBEL RATING HIGH	40 dBA
INVERTER	Yes
LIQUID LINE SIZE	1/4 in
SUCTION LINE SIZE	1/2 in
BLOWER MOTOR RPM	1050/850/650
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH	7.44 in
NET HEIGHT	11.69 in
NET WIDTH	31.57 in
NET WEIGHT	23.81 lbs
GROSS DEPTH	16.34 in
GROSS HEIGHT	13.98 in
GROSS WIDTH	36.02 in
GROSS WEIGHT	34.39 lbs

Product Information and Guides:

Condenser

• BROCHURE

• INSTALL MANUAL
• SPECS
• OWNERS MANUAL
• REMOTE MANUAL
• TECHNICAL MANUAL
• SERVICE MANUAL
• WARRANTY DOC
• AHRI CERTS
• ENERGY GUIDE CERTS
• MULTI-ZONE MATCHUP GUIDE

Wall Mounted Air Handlers

• BROCHURE

• INSTALL MANUAL
• SPECS
• REMOTE MANUAL
• SERVICE MANUAL
• WARRANTY DOC
