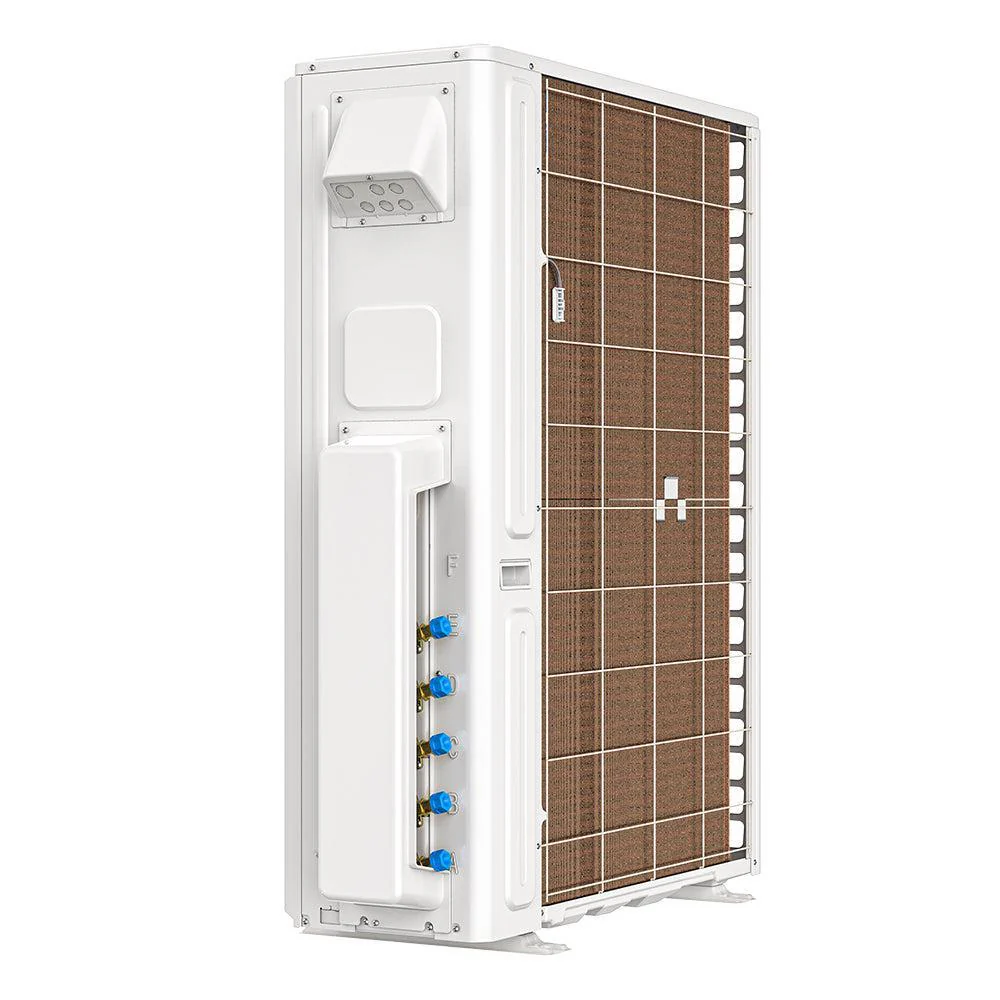

MRCOOL® DIY 4th Gen 48,000 BTU 5-Zone 20.5 SEER Ductless Heat Pump Condenser (DIY-MULTI5-48HP230C)

Introducing the latest in home comfort solutions with the new 4th Generation MRCOOL® DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. MrCool also offers this condenser with a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools. So, no vacuuming of the system is required once installed. Let the MrCool 4th Generation DIY 48K BTU 5 Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.

Key Features

• Up to 20.5 SEER
• Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

• Energy Efficient DC Inverter

• R-410A environmentally friendly refrigerant

• Line sizes 1/4”, 1/2” & 3/8”, 5/8”

• Multi-Zone Condenser includes adapter for the 24K and 36K Air Handler (3/8", 5/8" Line Size) - see liquid line and suction line size columns


Specifications & Dimensions

MODEL	DIY-MULTI5-48HP230C
SEER	20.5
EER	11
HSPF	hspf4/hspf5 : 11/8.5
CFM	4500
COOLING CAPACITY	48000 BTU
HEATING CAPACITY	48000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	60A
MIN CIRCUIT AMPACITY	40 A
COLOR	White
COLOR FAMILY	White
ZONE CAPACITY	Up to 5
REFRIGERANT TYPE	R-410A
REFRIGERANT VOLUME	162 oz
DECIBEL RATING	61.5 dBA
INVERTER	Yes
MIN AMBIENT COOL	5F ~ 122F
MIN AMBIENT HEAT	5F ~ 75.2F
MAX LINESET LENGTH	221 ft TOTAL
LIQUID LINE SIZE	1/4in (3/8in w/ adapter)
SUCTION LINE SIZE	1/2in (5/8in w/ adapter)
COMPRESSOR MOTOR TYPE	Rotary
CONDENSER FAN MOTOR RPM	900/850/800/750
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH	16.34 in
NET HEIGHT	52.48 in
NET WIDTH	37.48 in
NET WEIGHT	222.89 lbs
GROSS DEPTH	19.49 in
GROSS HEIGHT	54.33 in
GROSS WIDTH	43.11 in
GROSS WEIGHT	254.41 lbs
