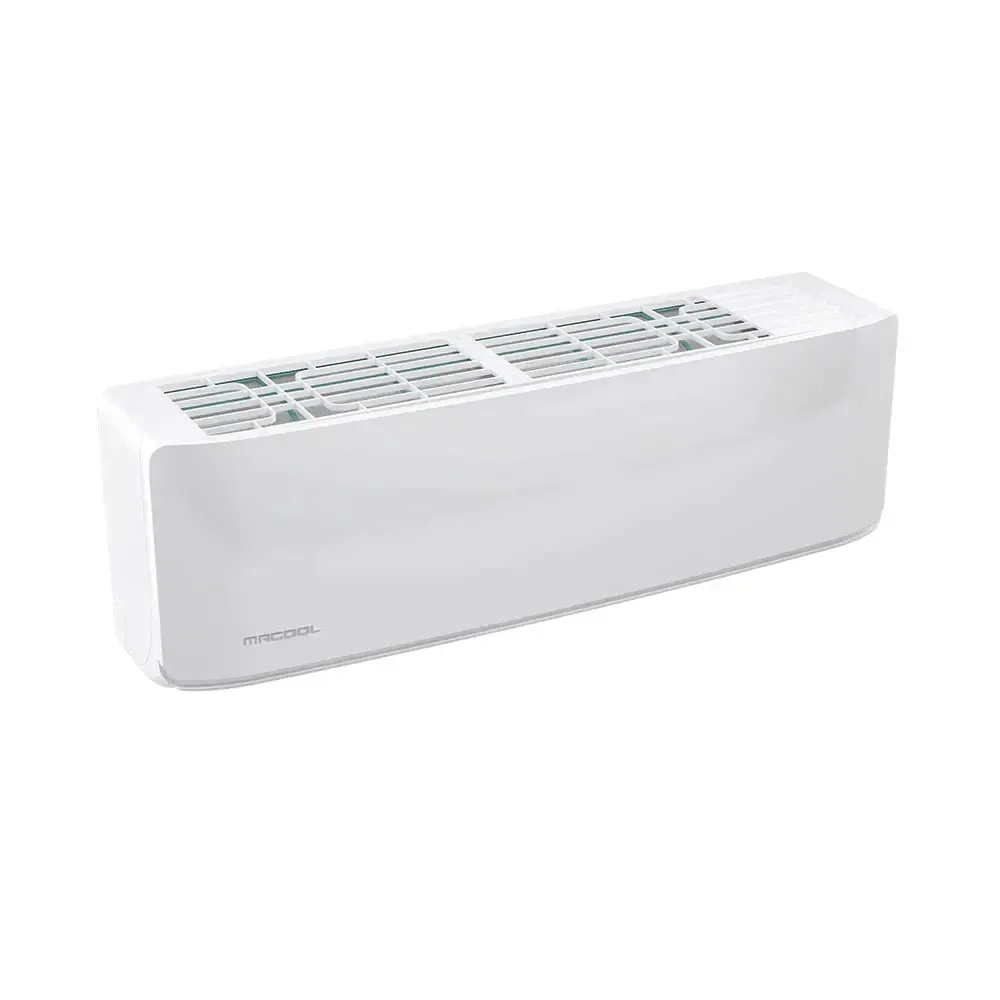

MRCOOL DIY 4th Gen 12,000 BTU 22 SEER Ductless Mini-Split Wall Mounted Air Handler (DIY-12-HP-WMAH-230C25)

The MRCOOL® 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler is an essential component of a MRCOOL® DIY system. When paired with a MrCool Condenser, it is capable of achieving a 22 SEER efficiency rating and has the ability to heat and cool an area of up to 500 sq ft. It features multiple modes of operation such as COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP so it is sure to suit your needs. It can also be conveniently operated from anywhere using your Apple or Android smartphone with the Smart HVAC app. This air handler can be easily mounted with the included and easy-to-use wall mounting plate. It is also very compact, especially when compared to the components of a traditional ducted system, so it can be easily maneuvered into place. It was also designed to be used with MrCool’s patented Pre-Charged Quick Connect Line Set. So, installing the refrigerant piping is as simple as turning a few wrenches. Since the line set comes pre-charged with the precise amount of R-410A refrigerant, no vacuuming or charging is required once connected. Select the MrCool 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler to be your home comfort solution.

Key Features

• SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection

• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

• Compatible with Amazon Alexa and Google Assistant

• Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements


Specifications & Dimensions

MODEL	DIY-12-HP-WMAH-230C25
COOLING CAPACITY	12000 BTU
HEATING CAPACITY	12000 BTU
VOLTAGE	208-230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	15 A
MIN CIRCUIT AMPACITY	3 A
MOUNT TYPE	Wall
COLOR	White
COLOR FAMILY	White
MAX COVERAGE AREA	Up to 500 sqft
REFRIGERANT TYPE	R-410A
DECIBEL RATING	35 dBA
DECIBEL RATING LOW	25 dBA
DECIBEL RATING HIGH	40 dBA
INVERTER	Yes
LIQUID LINE SIZE	1/4 in
SUCTION LINE SIZE	1/2 in
BLOWER MOTOR RPM	1050/850/650
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-year Parts/7-year Compressor
BASE PARTS WARRANTY	5-year Parts
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7-year Compressor
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH	7.44 in
NET HEIGHT	11.69 in
NET WIDTH	31.57 in
NET WEIGHT	23.81 lbs
GROSS DEPTH	16.34 in
GROSS HEIGHT	13.98 in
GROSS WIDTH	36.02 in
GROSS WEIGHT	34.39 lbs
