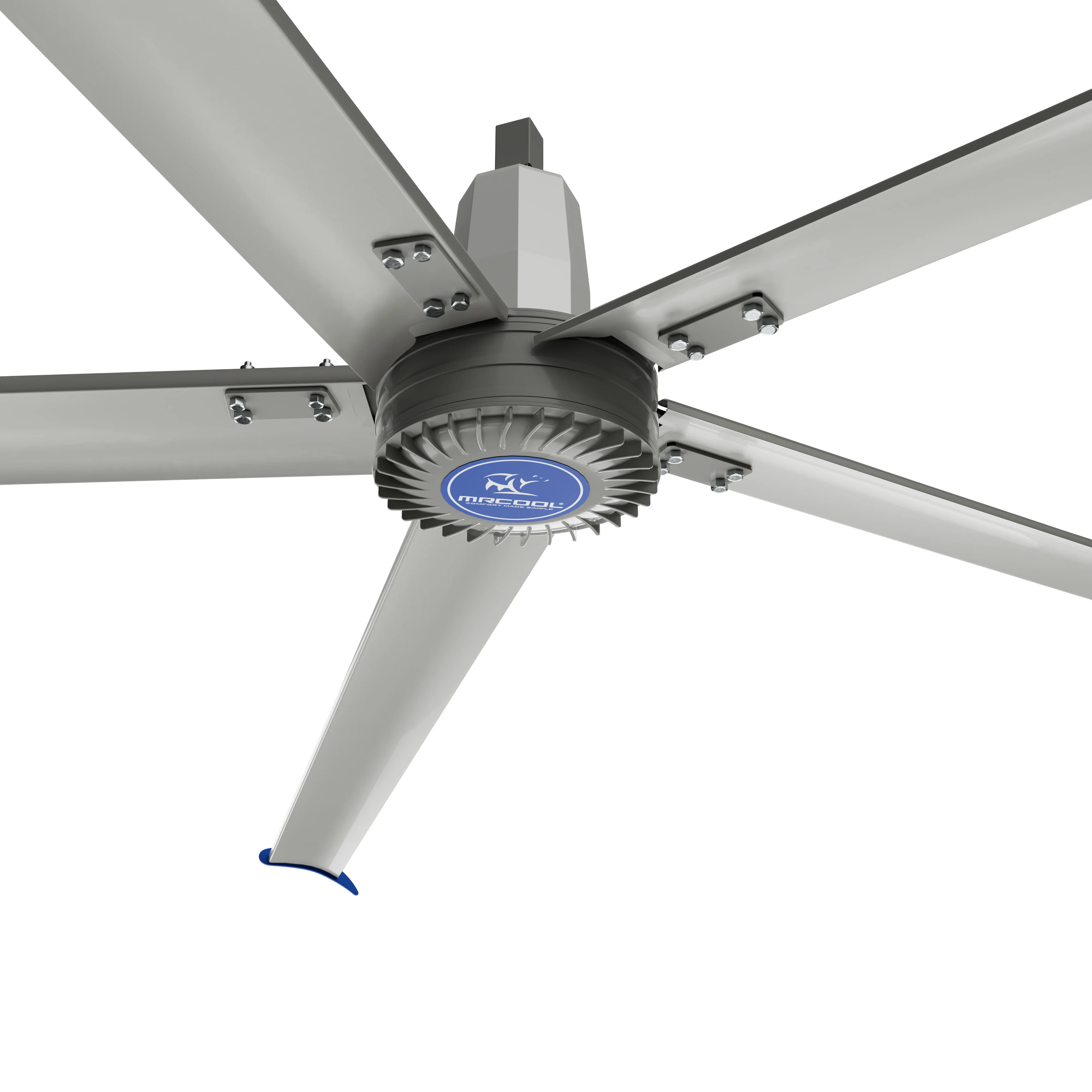

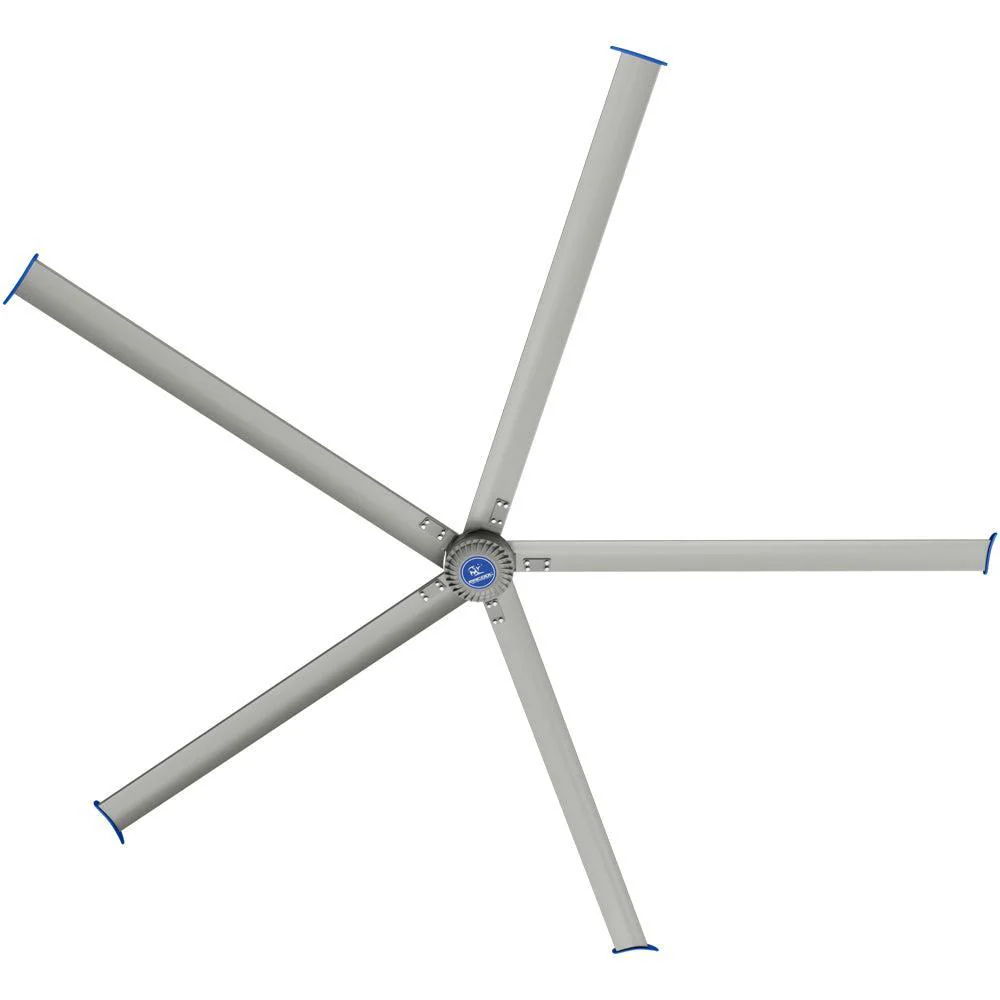

MRCOOL® Cool Blade MCFAN16PBGR Industrial HVLS Fan - 16 Foot Diameter - 5 Blades - 240V 60Hz 1 Phase - Gray

With powerful & impressive design, the MRCOOL® Cool Blade MCFAN16PBGR Industrial HVLS Fan Fan moves large volumes of air to create a comfortable environment while saving energy and money.

Safety Features:

• Reinforced Magnesium Alloy Blades
• Integrated Motor Bracket
• Anti-Falling Expansion Sleeve
• Steel Wire Safety Rope
• Electrical Overload Protection
• Locking Control Box with Emergency Stop

Control System:

• Electrical Protection
• Push-Button Speed Control
• Four-Button Operation
• Digital Display
• Ip66 Protection

Other Specs:

• Mounting Bracket: I-beam/square steel/concrete
• Number of Blades: 5
• Motor Weight (lbs): 48.5
• Fan Weight (lbs): 136.7
• Air Volume (m3/min): 10000

Warranty:

• 2 years for all parts
• See full warranty details here

What's Included:

• MRCOOL® Cool Blade MCFAN24XBGR Industrial HVLS Fan - 24 Foot Diameter - 6 Blades - 240V 60Hz 1 Phase - Gray

Installation Video:

MRCOOL® Cool Blade MCFAN16PBGR Industrial HVLS Fan - 16 Foot Diameter - 5 Blades - 240V 60Hz 1 Phase - Gray Specifications:

BRAND NAME	MRCOOL
SERIES	CoolBlade Industrial HVLS Fan
MODEL	MCFAN16PBGR
UPC	840255582735
FEATURE LIST	Safety Features -Reinforced Magnesium Alloy Blades -Integrated Motor Bracket -Anti-Falling Expansion Sleeve -Steel Wire Safety Rope -Electrical Overload Protection -Locking Control Box with Emergency Stop Control System -Electrical Protection -Push-Button Speed Control -Four-Button Operation -Digital Display -Ip66 Protection Other Specs -Mounting Bracket: I-beam/square steel/concrete -Number of Blades: 5 -Motor Weight (lbs): 48.5 -Fan Weight (lbs): 136.7 -Air Volume (m3/min): 10000
VOLTAGE (V)	220-240
PHASE	1
CYCLE	60
MAX COVERAGE AREA	1640 sqft
DECIBEL RATING (DBA)	38
BASE PARTS WARRANTY	2 Years
RESOURCES	Brochure Install Manual Warranty Doc
