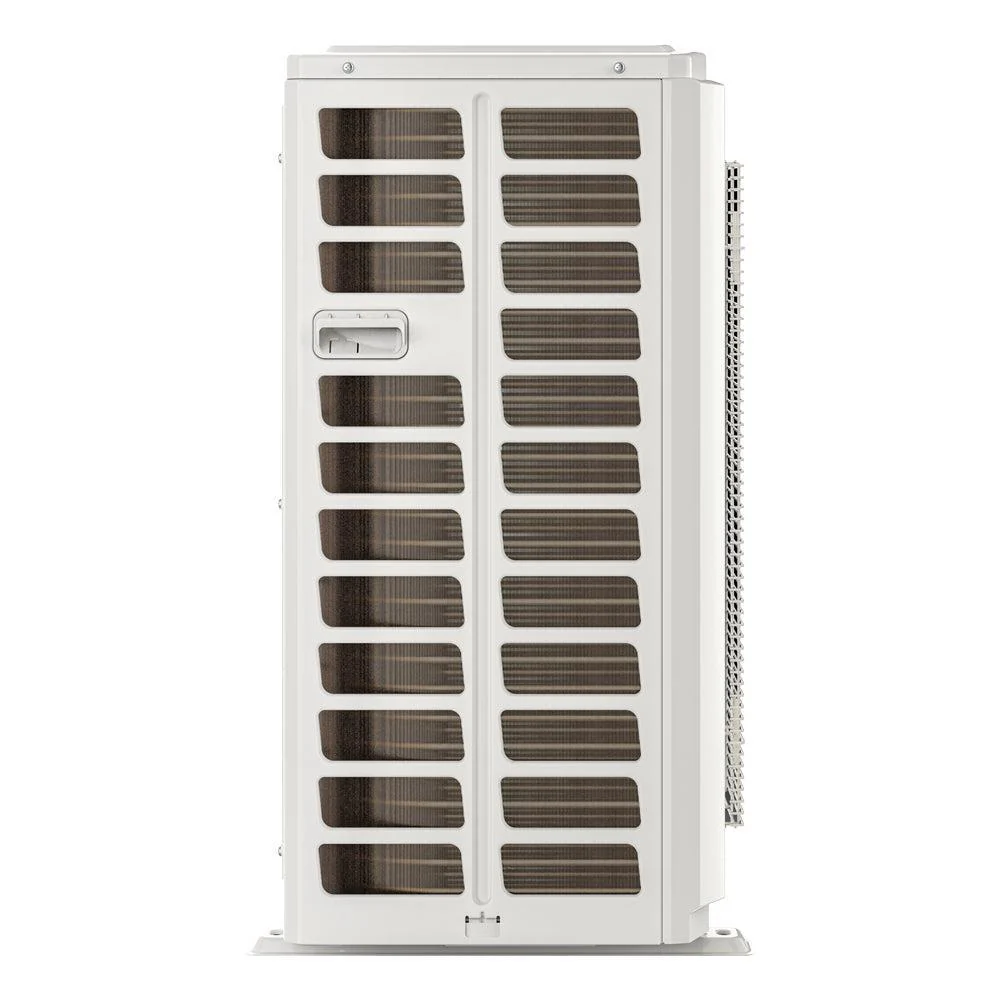

MRCOOL® Central Ducted Hyper Heat 4 Ton 16.5 SEER2 Central Ducted Heat Pump Condenser - CENTRAL-48-HP-C-230B00-O

Product image 1
1 / 4

MRCOOL® Central Ducted Hyper Heat 4 Ton 16.5 SEER2 Central Ducted Heat Pump Condenser - CENTRAL-48-HP-C-230B00-O

MRCOOL® Central Ducted Hyper Heat 4 Ton 16.5 SEER2 Central Ducted Heat Pump Condenser - CENTRAL-48-HP-C-230B00-O

The 48K MRCOOL® Hyper Heat Central Ducted Condenser is crafted to provide outstanding performance in even the most extreme climates, from icy winters to scorching summers. This Hyper Heat system utilizes DC Inverter technology and variable speed functionality to deliver consistent, high-quality operation. With a SEER2 rating of up to 16.5 and an HSPF2-4 rating of up to 9.5, it offers powerful heating and cooling while maximizing energy efficiency. A MRCOOL® Smart thermostat is included, giving you complete control over your indoor environment with ease. The 48K MRCOOL® Hyper Heat Central Ducted Condenser is compatible with the 48K MRCOOL® VersaPro® Central Ducted Air Handler. The air handler is built for flexibility, supports various installation options, and is compatible with an optional heat kit for added capability. The system features R-454B refrigerant, a sustainable choice that minimizes its impact on the environment. Durability is a hallmark of the outdoor heat pump, constructed with a painted galvanized steel exterior for long-term resilience. The air handler is thoughtfully designed with a compact form, slide-out blower, and self-diagnostic panel to streamline maintenance and troubleshooting. Enjoy peace of mind with the system’s 10-year warranty, covering the compressor, parts, and labor. The labor warranty activates automatically upon installation, so no registration is required. Enhance your home’s comfort with the efficient and reliable 48K MRCOOL® Hyper Heat Central Ducted Condenser today!

Specifications:

BRAND MRCOOL
SERIES

Central Ducted Hyper Heat 2nd Gen

MODEL

CENTRAL-48-HP-C-230B00-O

GTIN 00840255586535
UPC 840255586535

UNIT TYPE

Split System Heat Pump

EQUIPMENT TYPE

Condenser
SEER2 16.5
EER2 10.5

HSPF-4

9.5

HSPF-5

8
CFM 3037.1
TONNAGE 4

COOLING CAPACITY (BTU)

48000

HEATING CAPACITY (BTU)

50000

VOLTAGE (V)

208-230

PHASE 1
CYCLE 60

MAX FUSE BREAKER (A)

40

MIN CIRCUIT AMPACITY (A)

38
COLOR Gray

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

134.04

DECIBEL RATING (DBA)

65

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

3/4

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

ETL CERTIFIED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

BASE PARTS WARRANTY

10 Years

BASE COMPRESSOR WARRANTY

10 Years

BASE LABOR WARRANTY

10 Years

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

NET DEPTH (IN)

16.34

NET HEIGHT (IN)

38.39

NET WIDTH (IN)

38.58

NET WEIGHT (LBS)

201.06

GROSS DEPTH (IN)

19.68

GROSS HEIGHT (IN)

42.52

GROSS WIDTH (IN)

45.08

GROSS WEIGHT (LBS)

232.36
RESOURCES

MRCOOL® Central Ducted Hyper Heat 4 Ton 16.5 SEER2 Central Ducted Heat Pump Condenser - CENTRAL-48-HP-C-230B00-O

The 48K MRCOOL® Hyper Heat Central Ducted Condenser is crafted to provide outstanding performance in even the most extreme climates, from icy winters to scorching summers. This Hyper Heat system utilizes DC Inverter technology and variable speed functionality to deliver consistent, high-quality operation. With a SEER2 rating of up to 16.5 and an HSPF2-4 rating of up to 9.5, it offers powerful heating and cooling while maximizing energy efficiency. A MRCOOL® Smart thermostat is included, giving you complete control over your indoor environment with ease. The 48K MRCOOL® Hyper Heat Central Ducted Condenser is compatible with the 48K MRCOOL® VersaPro® Central Ducted Air Handler. The air handler is built for flexibility, supports various installation options, and is compatible with an optional heat kit for added capability. The system features R-454B refrigerant, a sustainable choice that minimizes its impact on the environment. Durability is a hallmark of the outdoor heat pump, constructed with a painted galvanized steel exterior for long-term resilience. The air handler is thoughtfully designed with a compact form, slide-out blower, and self-diagnostic panel to streamline maintenance and troubleshooting. Enjoy peace of mind with the system’s 10-year warranty, covering the compressor, parts, and labor. The labor warranty activates automatically upon installation, so no registration is required. Enhance your home’s comfort with the efficient and reliable 48K MRCOOL® Hyper Heat Central Ducted Condenser today!

Specifications:

BRAND MRCOOL
SERIES

Central Ducted Hyper Heat 2nd Gen

MODEL

CENTRAL-48-HP-C-230B00-O

GTIN 00840255586535
UPC 840255586535

UNIT TYPE

Split System Heat Pump

EQUIPMENT TYPE

Condenser
SEER2 16.5
EER2 10.5

HSPF-4

9.5

HSPF-5

8
CFM 3037.1
TONNAGE 4

COOLING CAPACITY (BTU)

48000

HEATING CAPACITY (BTU)

50000

VOLTAGE (V)

208-230

PHASE 1
CYCLE 60

MAX FUSE BREAKER (A)

40

MIN CIRCUIT AMPACITY (A)

38
COLOR Gray

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

134.04

DECIBEL RATING (DBA)

65

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

3/4

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

ETL CERTIFIED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

BASE PARTS WARRANTY

10 Years

BASE COMPRESSOR WARRANTY

10 Years

BASE LABOR WARRANTY

10 Years

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

NET DEPTH (IN)

16.34

NET HEIGHT (IN)

38.39

NET WIDTH (IN)

38.58

NET WEIGHT (LBS)

201.06

GROSS DEPTH (IN)

19.68

GROSS HEIGHT (IN)

42.52

GROSS WIDTH (IN)

45.08

GROSS WEIGHT (LBS)

232.36
RESOURCES
$899.70

Original: $2,999.00

-70%
MRCOOL® Central Ducted Hyper Heat 4 Ton 16.5 SEER2 Central Ducted Heat Pump Condenser - CENTRAL-48-HP-C-230B00-O

$2,999.00

$899.70
