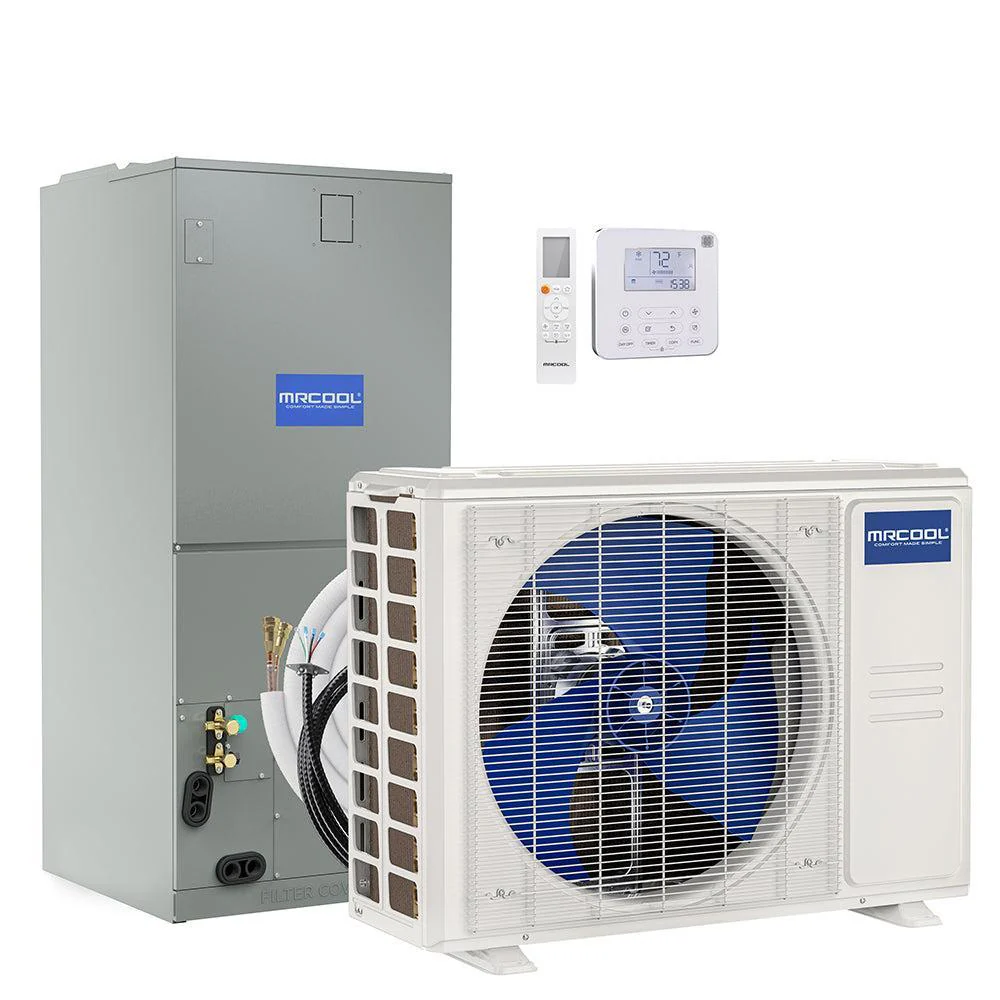

MRCOOL® 36k BTU 18 SEER Central Ducted Air Handler and Condenser

This MRCOOL 36k BTU up to 18 SEER Central Ducted DC Inverter Heat Pump System will be one of the best decisions that you could make for your comfort, as it’ll help you save money and time, all while increasing your comfort! Take your comfort to the next level as you enjoy the temperature you deserve throughout 1,500 square feet. The affordable multi-position air handler can accommodate upflow, downflow, horizontal left and horizontal right airflow configurations. This system is compatible with the MrCool® No-Vac® Quick Connect® line set. This system’s variable speed condenser is able to keep energy consumption low and comfort levels high. You can identify any error codes on the handler’s panel or on the thermostat. You’ll be breathing clean thanks to the use of filters, making for a pure and comfortable living environment. This system is protected by a 10 year parts warranty and a 10 year service warranty. Trust in this MRCOOL 36k BTU 18 SEER Central Ducted DC Inverter Heat Pump System to bring you the comfort you crave and save you money.

Features:

• Includes features such as timer mode, auto cool mode, fan only mode, and more

• Wired thermostat included (.78 in x 4.72 in x 4.72in)

• Multi position installation

• Optional heating kit avaible

• R-410A environmentally friendly refrigerant

• 10 year parts and labor warranty*


Specifications:

BRAND	MRCOOL®
MODEL	CENTRAL-36-HP-230-00
UPC	840255522106
SEER	18
EER	10.4
HSPF	hspf4/hspf5: 9.1/7.1
CFM	1082.35/970.59/864.71
COOLING CAPACITY	36000
HEATING CAPACITY	36000
VOLTAGE	208/230 V
PHASE	1
CYCLE	60 Hz
MAX FUSE BREAKER	40
MIN CIRCUIT AMPACITY	24
COLOR	Gray
RATED LOAD	1.48
ZONE CAPACITY	1
REFRIGERANT TYPE	R410A
REFRIGERANT VOLUME	130.51 oz
DECIBEL RATING	46.8/44/41.3
DECIBEL RATING LOW	41.3
DECIBEL RATING HIGH	46.8
AIR FLOW DIRECTION	Multi-position
MIN AMBIENT COOL	5~122F
MIN AMBIENT HEAT	5~75.2F
LINESET INCLUDED	No
LIQUID LINE SIZE	3/8in
SUCTION LINE SIZE	3/4in
COMPRESSOR MOTOR TYPE	Rotary
CONDENSER FAN MOTOR RPM	1150/1050/900/850
FILTER TYPE	Replaceable
AUXILIARY HEATER INCLUDED	No
AUXILIARY HEATER AVAILABLE	Yes
AUXILIARY HEATER SIZES	5kw,8kw,10kw, 15kw, 20kw
ADJUSTABLE THERMOSTAT	Yes
FAN ONLY OPTION	Yes
SLEEP MODE	Yes
AUTO COOL	Yes
APP COMPATIBILITY	No
REMOTE CONTROL INCLUDED	Yes
AHRI CERTIFIED	Yes
BASE WARRANTY	10 years parts and labor
CONDENSER DEPTH	16.14 in
CONDENSER HEIGHT	31.89 in
CONDENSER WIDTH	37.24 in
CONDENSER WEIGHT	151.68 lbs
AIR HANDLER DEPTH	21.02 in
AIR HANDLER HEIGHT	49.02 in
AIR HANDLER WIDTH	21.02 in
AIR HANDLER WEIGHT	129.63 lbs

Product Information and Guides:

• Brochure
• Install Manual
• Specs
• Remote Manual
• Service Manual
• Warranty Doc
• Accessory Manual
• AHRI Certs
