MRCOOL® 30k BTU 18.5 SEER Central Ducted Air Handler and Condenser with 25 foot MRCOOL Pre-Charged Line Set
MRCOOL® 30k BTU 18.5 SEER Central Ducted Air Handler and Condenser with 25 foot MRCOOL Pre-Charged Line Set

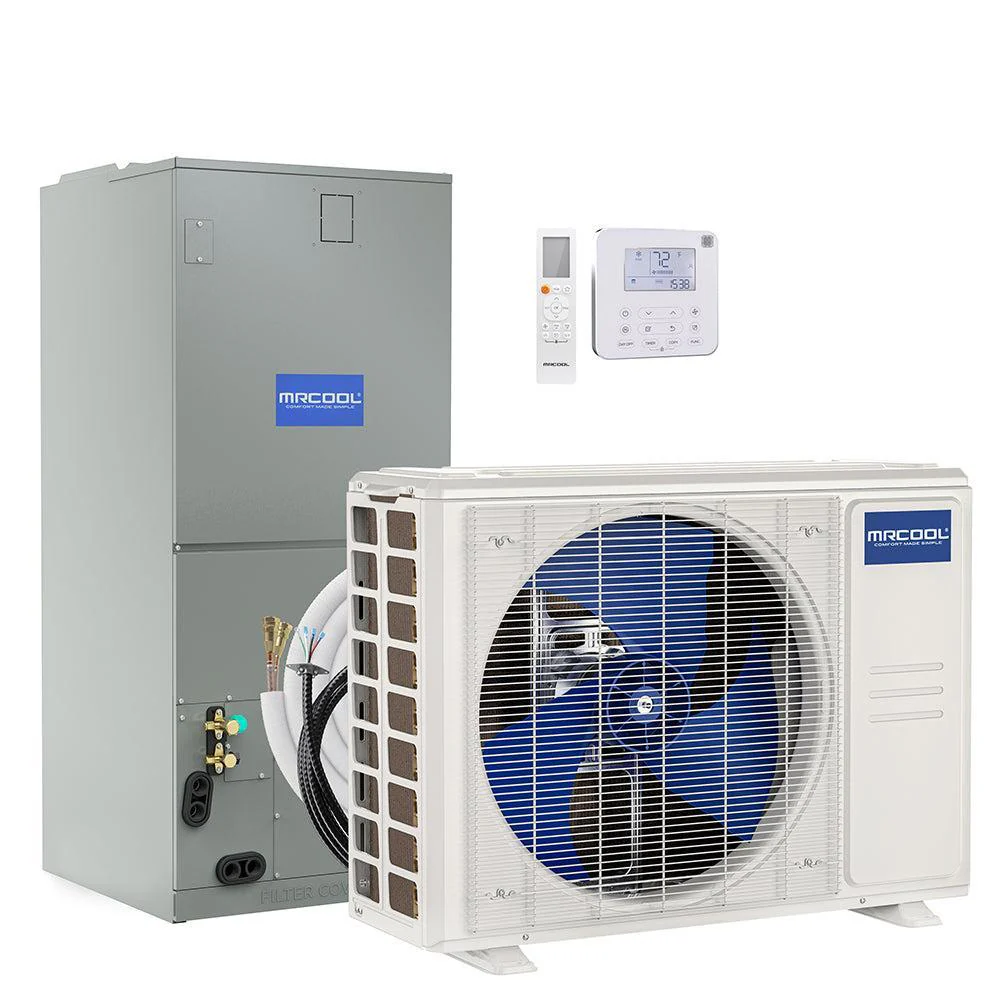

If you’ve been having to choose between comfort and savings because of an old HVAC system, why not enjoy both with the MRCOOL 30k BTU up to 18.5 SEER Central Ducted DC Inverter Heat Pump System? You’ll be able to enjoy the temperatures you want throughout 1,250 square feet. This efficient and affordable comfort solution could save money and time, because it comes with a 25 foot MRCOOL pre-charged line set, which can be easily plugged into the fittings of the air handler and the condenser. This system can be installed virtually anywhere. This multi-position air handler is able to be installed in an upflow, downflow, horizontal left or horizontal right airflow configuration. Enjoy your comfort completely guilt-free, because the variable speed condenser can help you save money as it runs. Identify error codes on the handler’s panel or on the thermostat to maintain your system. The use of filters also ensures clean, crisp air throughout your home. Enjoy total peace of mind thanks to a 10 year parts warranty, as well as a 10 year service warranty, so you don’t have to shell out lots of money in a panic in the unlikely event that something goes wrong. Choose comfort by choosing the MRCOOL 30k BTU 18.5 SEER Central Ducted DC Inverter Heat Pump System.
Features:
- Includes features such as timer mode, auto cool mode, fan only mode, and more
- Wired thermostat included (.78 in x 4.72 in x 4.72in)
- Multi position installation
- Optional heating kit avaible
- R-410A environmentally friendly refrigerant
- 10 year parts and labor warranty*
Specifications:
| BRAND | MRCOOL® |
| MODEL | CENTRAL-30-HP-230-25 |
| UPC | 840255522090 |
| SEER | 18.5 |
| EER | 10.3 |
| HSPF | hspf4/hspf5: 9.5/8 |
| CFM | 894.12/805.88/711.76 |
| COOLING CAPACITY |
30000 |
| HEATING CAPACITY |
30000 |
| VOLTAGE | 208/230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
| MAX FUSE BREAKER |
40 |
| MIN CIRCUIT AMPACITY |
25 |
| COLOR | Gray |
| RATED LOAD |
0.65 |
| ZONE CAPACITY |
1 |
| REFRIGERANT TYPE |
R410A |
| REFRIGERANT VOLUME |
111.11 oz |
| DECIBEL RATING |
46.5/43/39.5 |
| DECIBEL RATING LOW |
39.5 |
| DECIBEL RATING HIGH |
46.5 |
| AIR FLOW DIRECTION |
Multi-position |
| MIN AMBIENT COOL |
5~122F |
| MIN AMBIENT HEAT |
5~75.2F |
| LINESET INCLUDED |
Yes |
| LINE SET LENGTH |
25ft |
| LIQUID LINE SIZE |
3/8in |
| SUCTION LINE SIZE |
5/8 in |
| COMPRESSOR MOTOR TYPE |
Rotary |
| CONDENSER FAN MOTOR RPM |
1150/1050/900/850 |
| FILTER TYPE |
Replaceable |
| AUXILIARY HEATER INCLUDED |
No |
| AUXILIARY HEATER AVAILABLE |
Yes |
| AUXILIARY HEATER SIZES |
5kw, 8kw,10kw, 15kw |
| ADJUSTABLE THERMOSTAT |
Yes |
| FAN ONLY OPTION |
Yes |
| SLEEP MODE |
Yes |
| AUTO COOL |
Yes |
| APP COMPATIBILITY |
No |
| REMOTE CONTROL INCLUDED |
Yes |
| AHRI CERTIFIED |
Yes |
| BASE WARRANTY |
10 years parts and labor |
| CONDENSER DEPTH |
16.14 in |
| CONDENSER HEIGHT |
31.89 in |
| CONDENSER WIDTH |
37.24 in |
| CONDENSER WEIGHT |
146.39 lbs |
| AIR HANDLER DEPTH |
21.02 in |
| AIR HANDLER HEIGHT |
49.02 in |
| AIR HANDLER WIDTH |
21.02 in |
| AIR HANDLER WEIGHT |
128.53 lbs |
