Intermatic AG3000 HVAC Surge Protector - Reliable, UL Listed Safety

Product image 1
1 / 5

Intermatic AG3000 HVAC Surge Protector - Reliable, UL Listed Safety

Intermatic AG3000 120/240 VAC Universal HVAC Surge Protective Device - Comprehensive Surge Protection, TPMOV Technology, Watertight Enclosure - UL Listed and Reliable

Power surges are the silent killer for home appliances and HVAC equipment. Most homeowners protect their electronics, but leave more valued equipment unprotected. Surges can wipe out equipment and leave you searching for answers. Search no more. The easy-to-install AG3000 Surge Protective Device is the perfect add-on for HVAC equipment. A green LED indicator provides the status of protection. Trusted, state-of-the-art TPMOV technology eliminates potentially hazardous failure modes.

Features:

  • Comprehensive Surge Protection: Safeguard your HVAC equipment and home appliances with the Intermatic AG3000 Surge Protective Device, offering three modes of protection (L-G, L-L, L-N) to shield against power surges and prevent potential damage.
  • Advanced TPMOV Technology: Experience peace of mind with our state-of-the-art Thermally Protected Metal Oxide Varistor technology, eliminating the hazardous failure modes associated with standard MOV technology and providing reliable surge protection for your devices.
  • Built to last: The Type 4X watertight and UV resistant plastic enclosure of the AG3000 ensures durability and longevity, making it suitable for both indoor and outdoor installations. Protect your equipment against environmental elements and enjoy long-lasting surge protection.

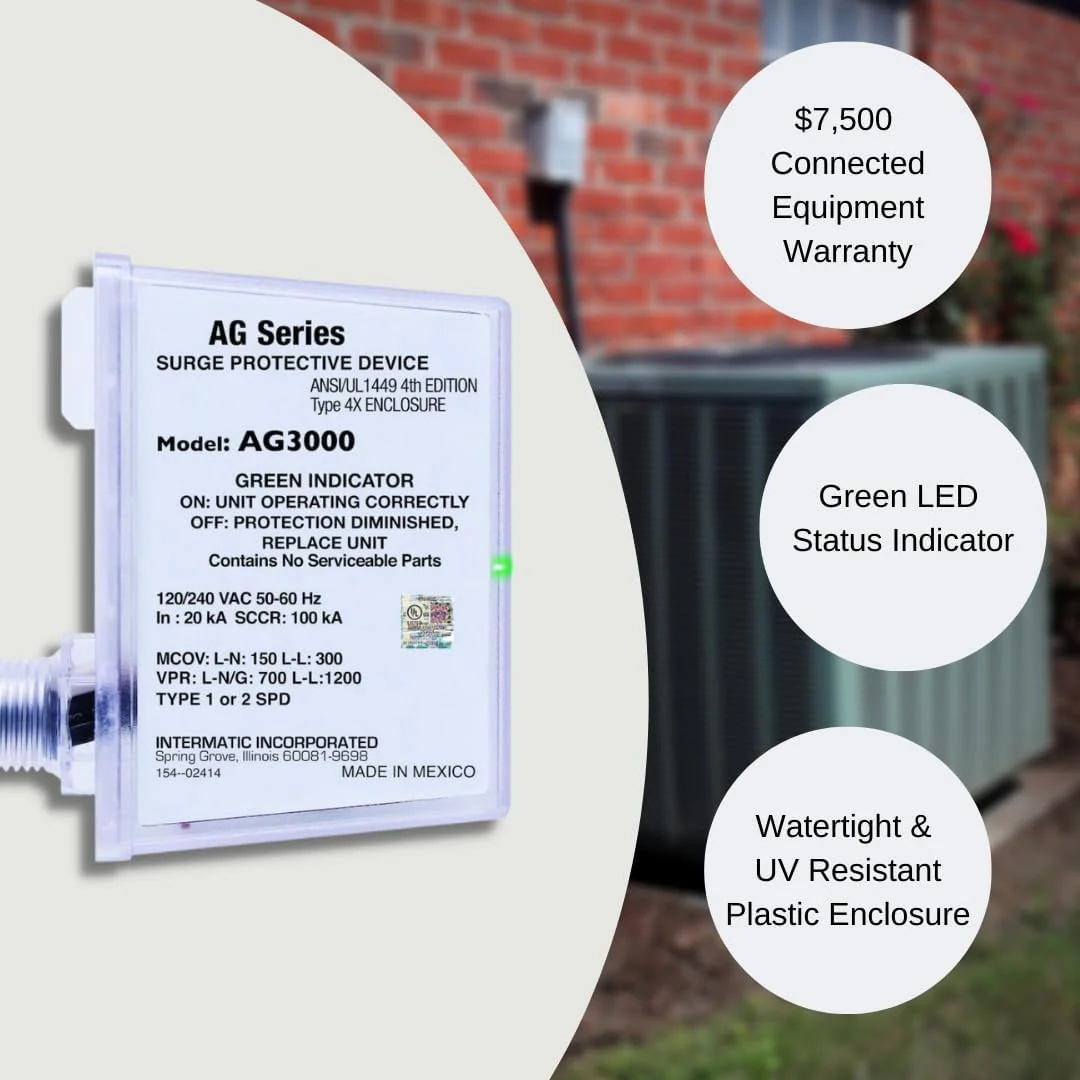

  • Easy Monitoring: The green LED indicator on the AG3000 provides a visual status of protection, allowing you to quickly verify that your equipment is shielded against power surges. Stay informed and confident in the safety of your devices.
  • Trusted and Certified: The Intermatic AG3000 is UL Listed to ANSI/UL 1449 4th Edition, meeting the highest safety standards in the industry. With a 3-year product warranty and a $7,500 connected equipment warranty for 3 years, you can trust in the quality and reliability of Intermatic's surge protection solution.

Highlights:

  • Three modes of protection: L-G, L-L, L-N
  • TPMOV surge protection technology
  • Green LED indicator provides status of protection
  • Type 4X watertight and UV resistant plastic enclosure
  • 3-year product warranty
  • $7,500 connected equipment warranty for 3 years
  • UL Listed to ANSI/UL 1449 4th edition

Applications:

  • Distribution Panel
  • HVAC Equipment Protection
  • Service Entrance

Specifications:

Brand
Intermatic
Model
AG3000
Voltage
120/240 VAC Single-Phase
Modes of Protection
3 (L1-N, L2-N, L1-L2)
Surge Protection Type
1, 2
Maximum Surge Current Rating Per Phase
50 kA
CA Prop 65 Message
Please see the Warning @ www.P65Warnings.ca.gov
Color
Clear
Connected Equipment Warranty Period
3-Year limited
Enclosure Type
Indoor/outdoor type 4X
Material
Plastic
Maximum Continuous Operating Voltage (L1-N/G)
150
Maximum Continuous Operating Voltage (L-G)
150
Maximum Continuous Operating Voltage (L-L)
300
Nominal Discharge Current
20 kA
Phase
Single
RoHS Certification
X
Short Circuit Current Rating
100 kA
Surge Protection LED Indicator
Green
Surge Protection Technology
TPMOV®
UL Standard
ANSI/UL 1449 5th Edition
Voltage Protection Rating (L1-N/G)
700
Voltage Protection Rating (L-L)
1200
Warranty Period
3-Year limited
Wire Size Max
#10 AWG, Tinned Copper
Wiring Option
Wire leads
Auto Start/Stop
False
Check Valve
False
DOE Compliant
False
Freeze protection
False
Leaf Screen
False
Operating Temperature Max (°C)
70
Operating Temperature Max (°F)
158
Operating Temperature Min (°C)
-40
Operating Temperature Min (°F)
-40
Product Depth (in)
4.188
Product Depth (mm)
106.4
Product Height (in)
3.875
Product Height (mm)
98
Product Width (in)
1.625
Product Width (mm)
41
Self Priming
False
Submersible
False
UL Certification
UL
Unit Carton Height (in)
4.5
Unit Carton Length (in)
4.25
Unit Carton Weight (lb)
0.65
Unit Carton Width (in)
2
UV Resiliant Outdoor Enclosure
False
Resources
