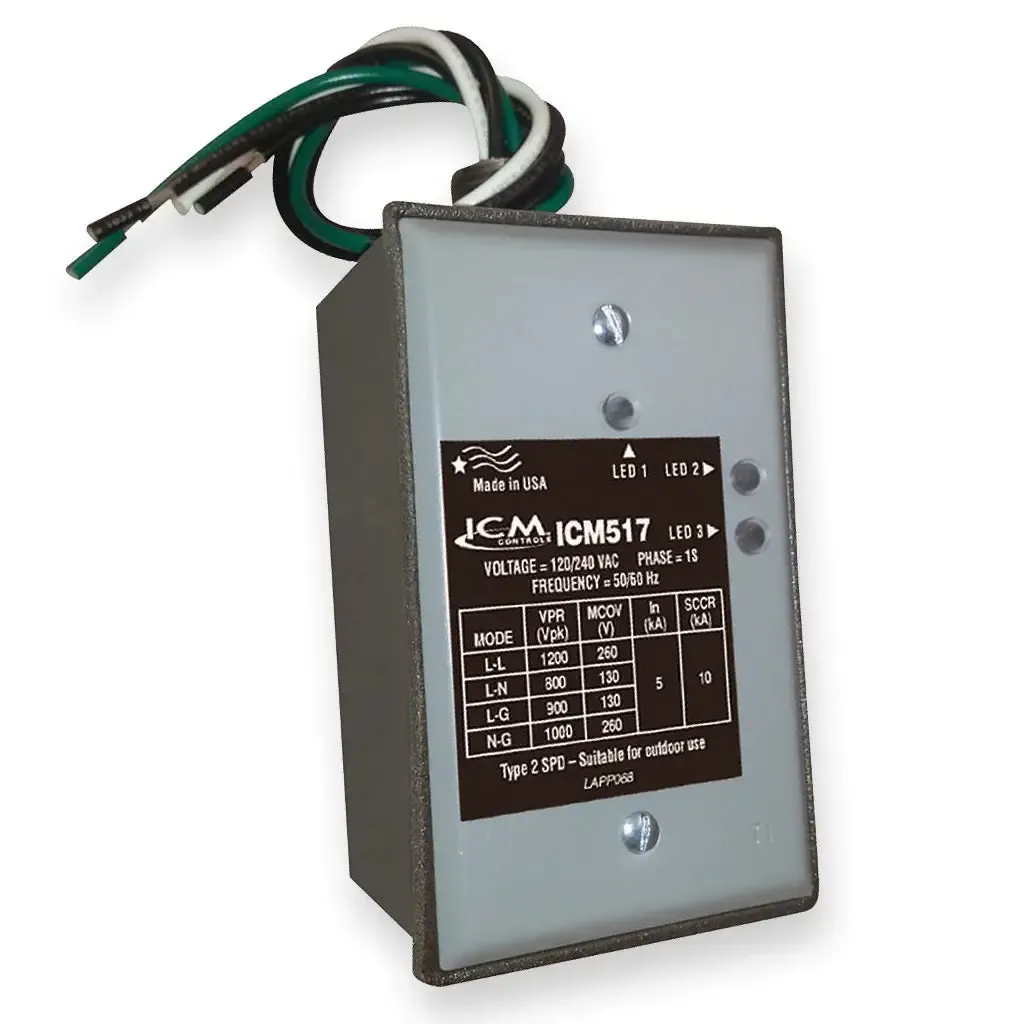

ICM Controls ICM517 Single Phase Surge Protector

Protect your investment from power surges and electrical noise. Limited LIFETIME Protection warranty from the manufacturer For 110-120 VAC and 208-230 VAC Systems. Can be installed at the main panel or the disconnect box. Energy Dissipation: 1020 Joules Max Surge Current: 100,000 Amps

• Easy installation
• Low cost, high performance
• Rugged, reliable
• UL Listed, Type 2 device
• NEMA Type 3R enclosure

Technical Information

Specifications

• Service Voltage: 120/240 volt, single phase
• Maximum Surge Current: 100,000 Amps
• Maximum Energy Dissipation: 1,020 Joules
• Installation Point: Electrical panel, electrical disconnect
• Diagnostics: Green light indicates surge suppression present
• AC Protection Modes: L-L, L-N, L-G, N-G
• Conduit Connection: 3/4”
• Dimensions: 5.0” L x 2.78” W x 2.16” D

Manuals & Downloads

• Owner's Manual
