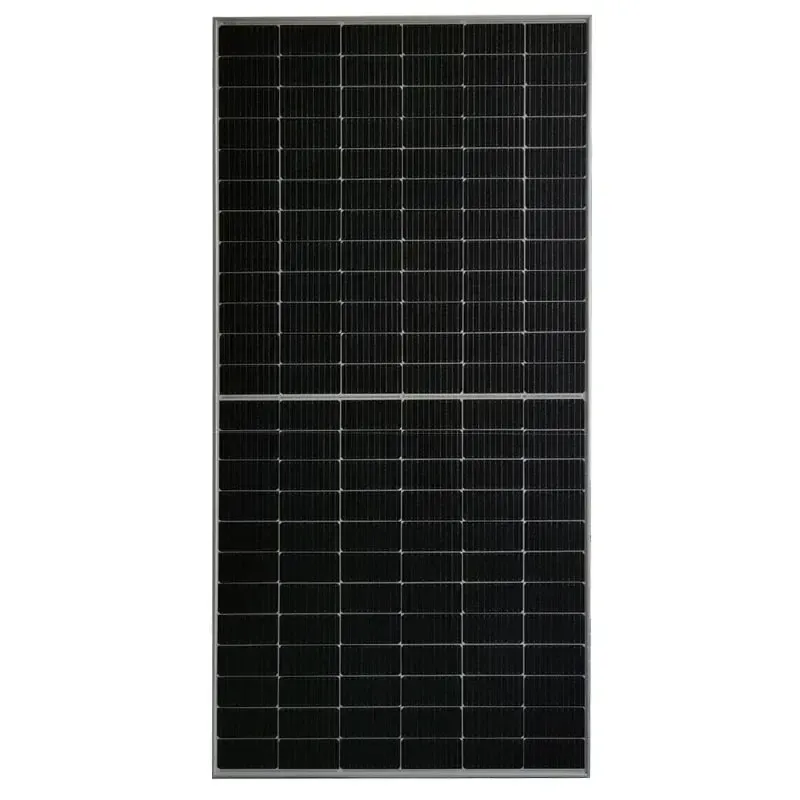

Hyperion Runergy 550W (Pallet of 31) 144 Cells Bifacial Solar Panel HY-DH144P8-550
Hyperion Runergy 550W (Pallet of 31) Solar Panel 144 Cells Bifacial HY-DH144P8-550
Key Features
- High Efficiency: Achieves up to 21.3% module efficiency through advanced cell technology and manufacturing processes.
- Bifacial Dual Glass Technology: Provides additional energy yield with backside power gains up to 25% depending on albedo.
- Superior Performance: Excels in weak light conditions, such as cloudy days, mornings, and evenings.
- Extended Durability: Certified to withstand wind loads of 2400 Pa and snow loads of 5400 Pa.
- Long-Term Reliability: Includes a 12-year product warranty and a 30-year linear power warranty with ≤0.45% annual power degradation.
Applications
- Suitable for high-performance installations in residential, commercial, and utility-scale systems.
- Ideal for installations in environments with weak light or variable weather conditions.
- Adapted for projects in harsh environments such as coastal, desert, or industrial areas.
Installation
- Mounting: Includes pre-designed mounting and grounding holes for efficient setup.
- Operating Conditions: Withstands temperatures from -40°C to +85°C, with a maximum system voltage of 1500 V DC.
- Mechanical Load: Front side supports up to 5400 Pa, and the rear side supports up to 2400 Pa.
Resources
Specifications
| Parameter | Value |
|---|---|
| Model | HY-DH144P8/550W |
| Maximum Power (Pmax) | 550 W |
| Operating Voltage (Vmpp) | 41.96 V |
| Operating Current (Impp) | 13.11 A |
| Open-Circuit Voltage (Voc) | 49.90 V |
| Short-Circuit Current (Isc) | 14.00 A |
| Module Efficiency | 21.3% |
| Cell Type | Monocrystalline PERC (P-Type) |
| Number of Cells | 144 (6×24) |
| Weight | 72.09 lbs |
| Dimensions | 89.69 × 44.65 ×1.38 in |
| Glass Type | 2.0 mm semi-tempered AR glass |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box | IP68-rated, 3 bypass diodes |
| Maximum System Voltage | 1500 V DC |
| Nominal Operating Temp. | 42°C ± 2°C |
| Temperature Coefficients | -0.35%/°C (Pmax), +0.05%/°C (Isc) |
| Packing | 31 pieces/pallet, 620 pieces/container |
| Resources | Data Sheet |
FAQs
Q: What is the power output of the Hyperion HY-DH144P8-550 panel?
The Hyperion HY-DH144P8-550 panel delivers 550 watts of power, making it an efficient solution for residential, commercial, and utility-scale solar projects.
Q: Are Hyperion HY-DH144P8-550 panels suitable for areas with low sunlight?
Yes, the HY-DH144P8-550 panels are engineered to perform well in low-light conditions, such as cloudy weather, hazy skies, and during early mornings or late afternoons.
Q: What kind of warranty does Hyperion offer for the HY-DH144P8-550 panel?
Hyperion provides a 12-year product warranty and a 30-year linear power output warranty, ensuring the panel maintains reliable performance over its lifetime.
Q: Are these panels compatible with different mounting systems?
Yes, Hyperion HY-DH144P8-550 panels are designed to work with a wide range of standard mounting systems, making installation flexible for roof-mounted and ground-mounted setups.
Q: How durable are Hyperion HY-DH144P8-550 panels in harsh weather conditions?
The HY-DH144P8-550 panels are built to withstand extreme weather, including heavy snow loads, strong winds, and high temperatures. Their bifacial design with dual-glass construction enhances both durability and energy generation.
Q: Can Hyperion HY-DH144P8-550 panels help me save on energy costs?
Absolutely! The high efficiency and bifacial technology of the HY-DH144P8-550 panels allow for increased electricity generation, reducing energy bills and accelerating the payback period for your solar investment.
Q: How many panels do I need for my home?
The number of panels required depends on your energy consumption and installation space. For a household or business using approximately 10,000 kWh/year, you would need around 18 to 19 Hyperion HY-DH144P8-550 panels. Consult a certified installer for a tailored estimate.
Q: How many panels are in each pallet?
Each pallet contains 31 high-efficiency Hyperion HY-DH144P8-550 panels, offering value and convenience for larger installations.
Q: Can I order less than a full pallet?
Contact US Solar Supplier for information on ordering smaller quantities or individual panels.
