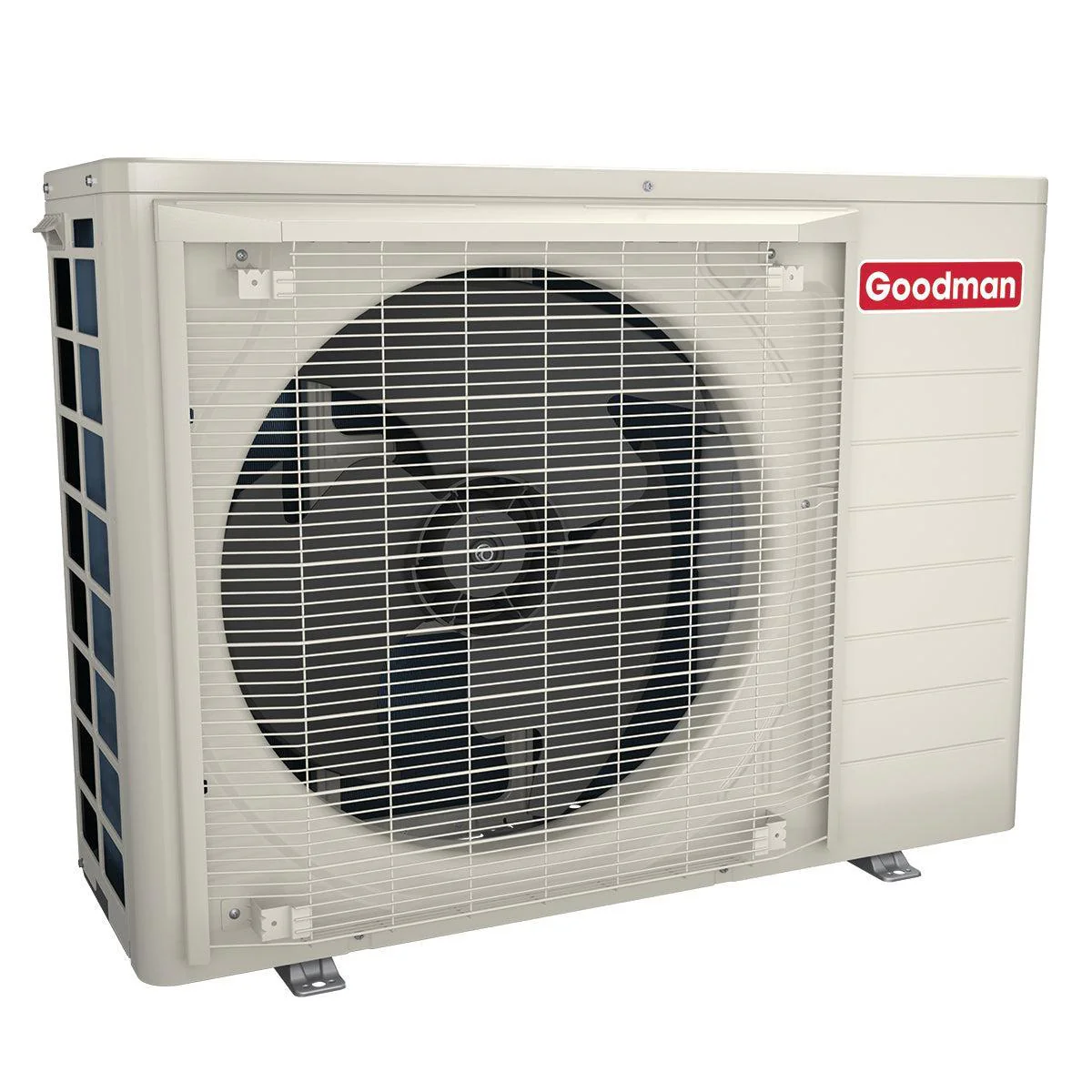

Goodman GZV7SA2410 2 Ton 17.5 SEER2 R32 High-Efficiency Variable-Speed Inverter Heat Pump Side Discharge Condenser - R-32
Goodman GZV7SA2410 2 Ton 17.5 SEER2 R32 High-Efficiency Variable-Speed Inverter Heat Pump Side Discharge Condenser - R-32
Maximize comfort and efficiency with the Goodman GZV7SA2410 2 Ton 17.5 SEER2 R32 High-Efficiency Variable-Speed Inverter Heat Pump Side Discharge Condenser - R-32. Engineered for superior performance, this split system heat pump condenser delivers up to 19 SEER2 cooling efficiency and 8.8 HSPF2 heating efficiency. Its variable-speed inverter compressor optimizes energy use, offering quieter operation (as low as 45 dB) and enhanced temperature control. Built with high-density sound insulation, a digitally commutated fan motor, and diagnostic LED display alerts, it’s also compatible with Goodman’s GTST communicating thermostat systems for simplified connectivity. Backed by a 10-year unit replacement limited warranty and 10-year parts limited warranty when registered, the GZV7S SD is ideal for homeowners seeking a dependable, high-efficiency side discharge heat pump solution.
Quick Facts:
- Goodman SD (Side Discharge) High-Efficiency
- Communicating, Variable-Speed, Inverter Driven
- R-32 Split System Heat Pump
Standard Features:
- Variable-speed swing compressors
- Strong heating capacity
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman GTST connected thermostat and other Goodman communicating equipment
- Proprietary control algorithmic logic
- In communicating mode, only two low voltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segment LED display, and fault code storage
- Proprietary Inside intelligence for diagnostics
- Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
- Field-selectable boost mode increases compressor speed during unusually high loads
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easy access to gauge ports
- AHRI Certified; ETL Listed
Cabinet Features:
- Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion (ZAM®), unpainted steel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Warranty:
- 10-Year Unit Replacement Limited Warranty
- 10-Year Parts Limited Warranty
- See Full Warranty Details here for complete warranty information
Goodman GZV7SA2410 2 Ton 17.5 SEER2 R32 High-Efficiency Variable-Speed Inverter Heat Pump Side Discharge Condenser - R-32 Specifications:
| Brand | Goodman |
| Model | GZV7SA2410 |
| Refrigerant Type | R-32 |
| Capacities (AHRI Rated) |
Max. Cooling (BTU/h)-95F: 23,200 Max. Heating (BTU/h)-47F: 23,200 Max. Heating (BTU/h)-5F: 17,000 |
| Ambient Operation Range |
Cooling (°FDB(°CDB)): 0 to 115 (-17.8 to 46.1)² Heating (°FDB(°CDB)): 10 to 70 (-23.3 to 21.1) |
| Compressor |
Type: Swing |
| Condenser Fan Motor |
Horsepower: 0.20 |
| Refrigeration System |
Refrigerant Line Size¹
Refrigerant Connection Size
Valve Connection Type: Front Sealing Refrigerant Charge (oz.): 76 Expansion Device: EEV Superheat at Service Valve: Auto-control Subcooling at Service Valve: 14±1°F |
| Electrical Data |
Voltage / Phase (60 Hz): 208-230/1 Fan / Compressor Inverter Drive Input: 17.6 Minimum Circuit Ampacity²: 22.4 Max. Overcurrent Protection³: 25 Min / Max Volts: 197/253 Electrical Conduit Size: 1/2" |
| Dimensions |
36-5/8" x 13-3/4" x 27-3/8" (W x D x H) |
| General Specs |
Equipment Weight (lbs): 132 Ship Weight (lbs): 147 Energy Star Certified: Energy Star Certified, Energy Star Certified with Cold Climate Designation Sound Level: 45 - 70 (dBA) |
| Warranty |
10-Year Unit Replacement Limited Warranty 10-Year Parts Limited Warranty See Full Warranty Details here for complete warranty information |
| Resources | |
| Proposition 65 Label | Yes |
