Goodman AWST18SU1303 1.5 Ton Wall Mount Air Handler with 3kW Electric Heat Kit (R-32) - 208/230-1-60
Goodman AWST18SU1303 1.5 Ton Wall Mount Air Handler with 3kW Electric Heat Kit (R-32) - 208/230-1-60

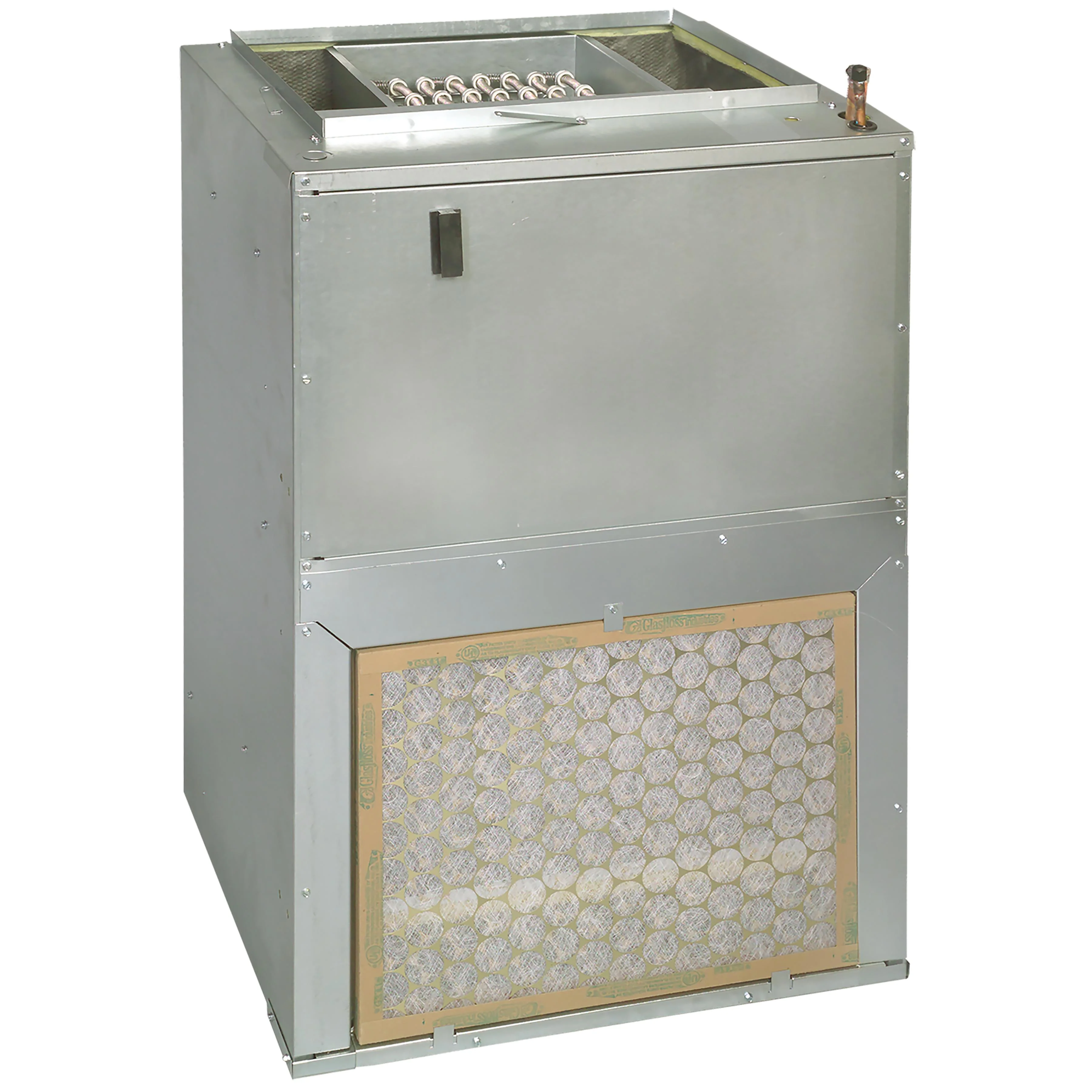

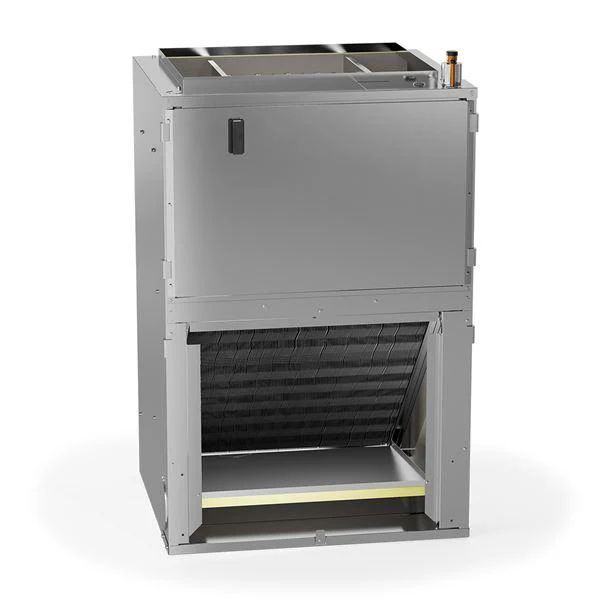

The Goodman AWST18SU1303 air handler is designed to be vertically wall- or stud-mounted. This unit is equipped with a fully adjustable TXV and direct-drive, multi-speed motor. The AWST is housed in a fully insulated, galvanized-steel cabinet. Supports 2023 DOE energy efficiency standards. This product is UL60335 2-40 Compliant.
Features:
- AWST Models: Equipped with a fully adjustable TXV
- Direct-drive, multi-speed motors allows air volume variation for heating/cooling
- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- Aluminum tubing coils on all models
- Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
- UL 60335 2-40 Compliant
- Factory installed R-32 sensor designed for the lifespan of the coil.
- Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
- Factory-installed pull-type disconnect
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack (filter included)
- Large chassis (2½- and 3-ton units) – front return only
- Small chassis (1½- and 2-ton units) – front or bottom return
- Wall-hanging bracket provided
- AHRI Certified; ETL Listed
Specifications:
| Brand | Goodman |
| Model | AWST18SU1303 |
| Warranty | 10 Years Parts Warranty |
| Refrigerant Type | R-32 |
| Nominal Ratings |
Cooling (BTU/h): 18,000 |
| Electric Heat (kW) | 3 |
| Blower |
Diameter: 10 Width: 6 |
| Coil Connections |
Liquid: 3/8" Suction: 5/8" Coil Drain Connection (FPT): 3/4" |
| Electrical Data |
Voltage, Phase, Hz: 208/230-1-60 Minimum Circuit Ampacity: 16.8/18.9 Max. Overcurrent Device (Amps): 20/20 Minimum VAC: 197 Maximum VAC: 253 |
| Blower Motor |
Full Load Amps (FLA): 2.6 Horsepower (HP): 1/3 |
| Ship Weight (LBS) | 84 |
| System Dimensions (W x D x H) | 20-3/16" x 16-1/8" x 36" |
| Filter Dimensions | 14" x 18" x 1" inches |
| Resources |
