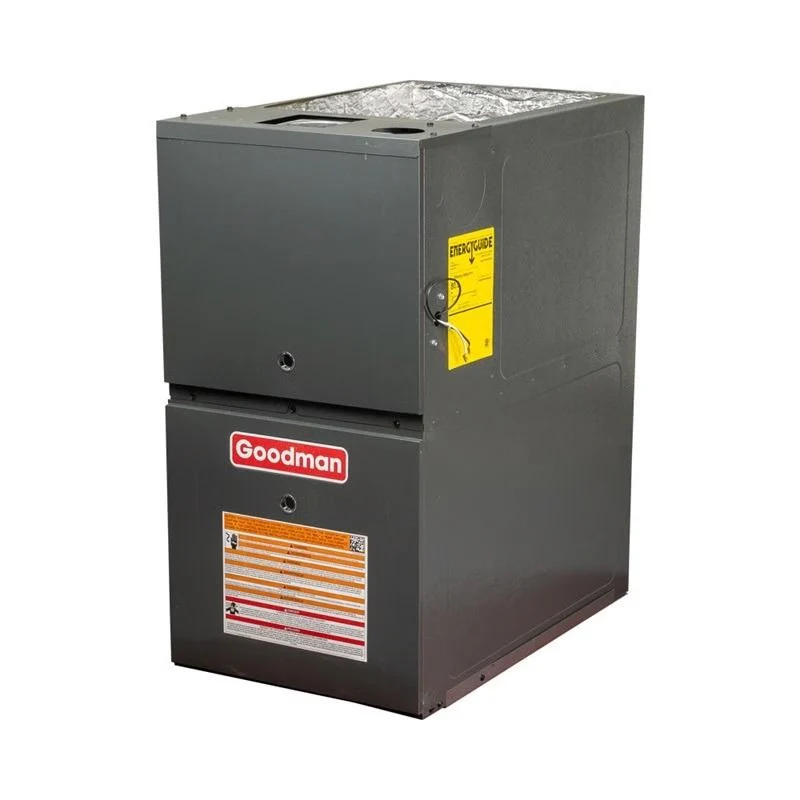

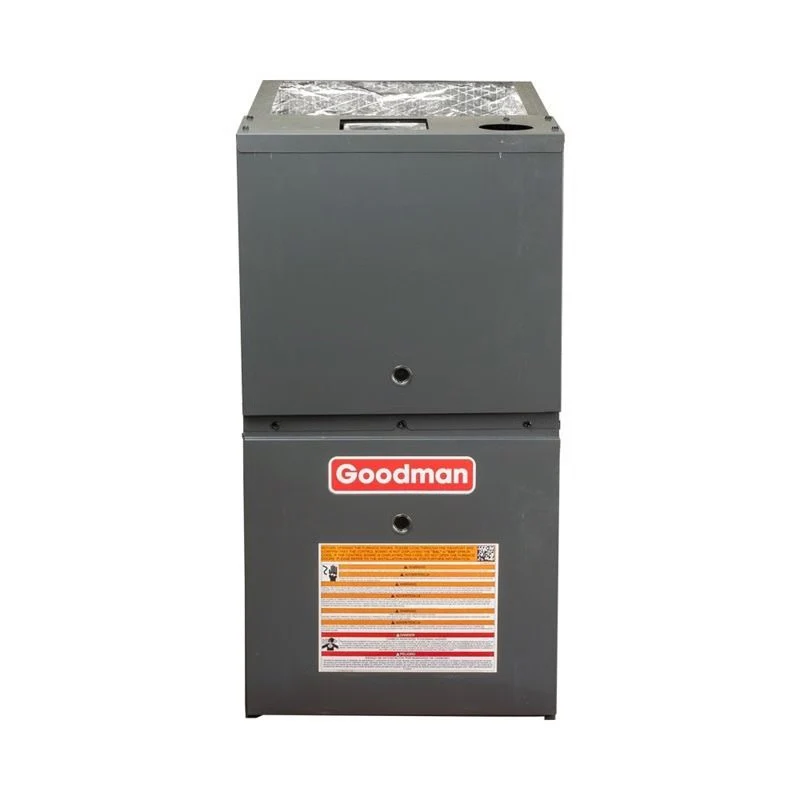

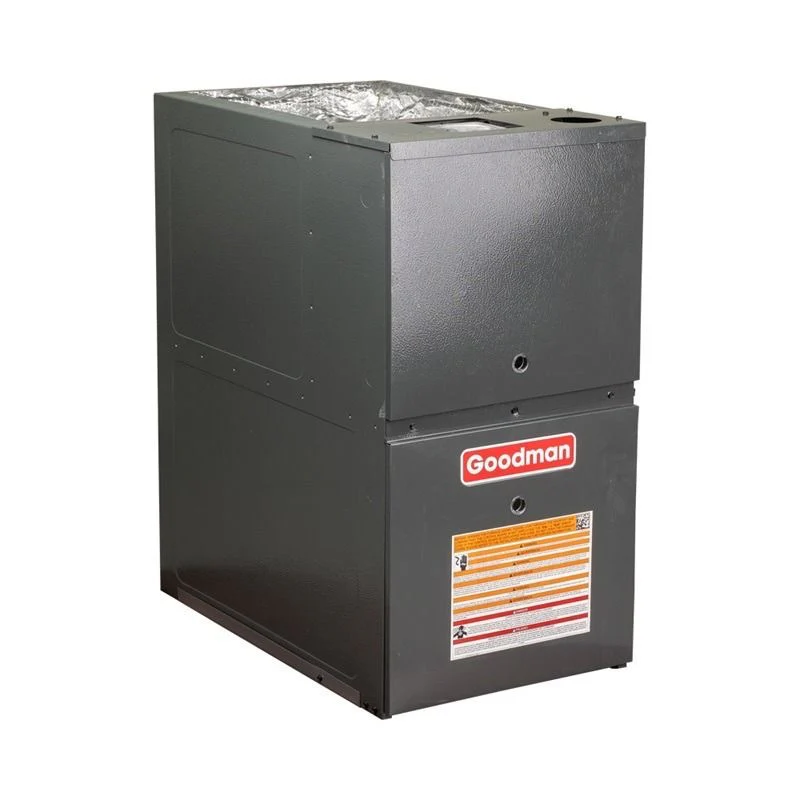

Goodman 80% 60,000 BTU Single Stage Ultra-Low NOx Gas Furnace - 17.5" Width - Upflow / Horizontal
Goodman 80% 60,000 BTU Single Stage Ultra-Low NOx Gas Furnace - 17.5" Width - Upflow / Horizontal
Product Features
- Standard Efficiency 80% AFUE Gas Furnace
- 60,000 BTU Furnace
- Compatible with A2L systems
Overview
The GR9S800604BU Goodman gas furnace features high-quality construction and efficient operation at a great value. The GR9S800604BU single-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GR9S800604BU.
Quick Facts
- This furnace is ideal to heat a smaller house (depending on climate)
- 60,000 BTU 80% efficient natural gas furnace
- Requires metal flue venting
- Can be used in the downflow or horizontal (right or left) orientation
- Ultra-Low NOx Compliant for California
- Innovative design for electrical efficiency, safety, and lower sound output
60,000 BTU
The GR9S800604BU Goodman gas furnace is 60,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 48,000 BTU’s (60,000 X 80% AFUE) per hour. In ideal climate conditions, this 60,000 BTU furnace is usually used to heat a small house.
80% Efficiency Rating
The GR9S800604BU Goodman gas furnace is 80% efficient, and the standard furnace efficiency on the market today. This means that 80% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 80% furnaces must be vented using metal flue venting, while anything higher than 90% efficient must be vented using plastic/PVC venting.
Single Stage Furnace
The GR9S800604BU Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace’s burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.
9-Speed ECM Blower Motor
Instead of the last generation PSC blower motor, the GR9S800604BU utilizes a multi-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.
Warranty
With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.
Durable Hot Surface Igniter
The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.
Self-Diagnostic Control Board
The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.
Heavy Gauge Steel Cabinet
The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.
Ease of Installation
The value of modern Goodman furnaces doesn't end at efficiency. Today’s Goodman furnaces feature many different connection options to reduce installation. The GR9S800604BU model has a more universal design, which consists of its ability to be installed in both an downflow or horizontal (right or left) configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.
Specifications:
| SKU | GR9S800604BU |
| Weight (in lbs) | 90.000000 |
| AHRI Certificate Number | 207599841 |
| Airflow Direction | Upflow/Horizontal |
| Exhaust Flue Requirement | Metal |
| Brand/Manufacturer | Goodman |
| Product Features | New Refrigerant Compliant, Ultra-Low NOx |
| Furnace Efficiency / AFUE | 80% |
| Heating BTU | 60,000 |
| Blower Motor | 9 Speed |
| Maximum CFM | 1600 |
| Horsepower | 3/4 HP |
| Configuration | Upflow/Horizontal |
| Electrical | 110 V. 1 Phase 60 Hz |
| Phase | Single Phase |
| Max Breaker Size | 20 Amps |
| Min. Breaker Size | 12.7 Amps |
| Low NOx | Ultra Low NOx |
| Burner Stages | Single |
| Fuel Type | Natural Gas |
| Height | 33 3/8" |
| Width | 17 1/2" |
| Depth | 28" |
| Warranty | 10 Years with Online Registration |
| Resources | |
| Safety Information |
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
PROPOSITION 65 WARNING |
