Goodman 5 Ton Cooling / 120,000 BTU Heating 81% AFUE 13.4 SEER2 Two-Stage Low NOx Gas/Electric Package Unit (Downflow/Horizontal) - GPGM36112041

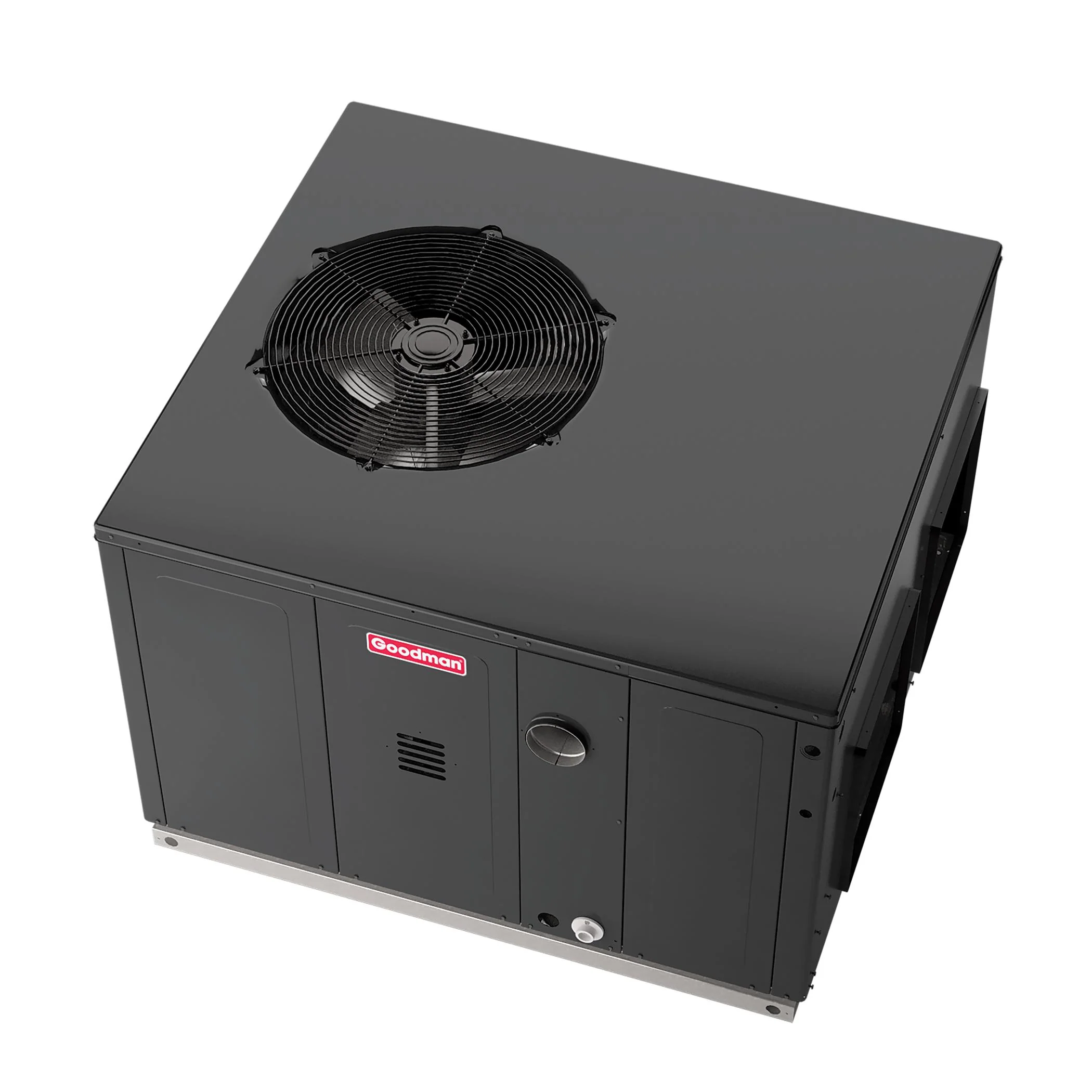

The Goodman 5 Ton Cooling / 120,000 BTU Heating 81% AFUE 13.4 SEER2 Two-Stage Low NOx Gas/Electric Package Unit (Downflow/Horizontal) - GPGM36112041 features energy-efficient cooling and heating performance in one self-contained unit. The GPGM36112041 is housed in a heavy-gauge, galvanized-steel cabinet with a high-quality, UV-resistant powder-paint finish and allows for a ground-level or rooftop mount and horizontal or downflow applications.

Standard Features:

• Energy-efficient scroll compressor

• Multi-speed ECM indoor blower motor
• Convertible airflow: horizontal or downflow application
• All-aluminum evaporator coil
• Power-assisted combustion
• Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence, all blower operation, and all safety circuits complete with self-diagnostics
• All models comply with California Low NOx standards (40ng/J NOx)
• This furnace does not comply with the SCAQMD Rule 1111 nor the SJVAPCD Rule 4905 14 ng/J NOx emission limit and therefore is not eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) nor the San Joaquin Valley Air Pollution Control District (SJVAPCD)
• AHRI Certified; ETL Listed

Cabinet Features:

• High-quality UV-resistant powder-paint finish

• Aluminum foil-facing internal insulation reinforced with fiberglass scrim
• Convenient access panels
• One roof curb fits all units
• Fully insulated cabinet
• Bottom, 2” high base rails for easier handling
• Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
• One footprint for all tonnages

Specifications:

Brand	Goodman
Model	GPGM36112041
Warranty	10 Years Parts Warranty with online registration 10 Years Compressor Warranty with online registration 20 Year Heat Exchanger Warranty with online registration
Refrigerant	R-410A
Configuration	Downflow / Horizontal
Energy Star Certified	No
Cooling Capacity	Total BTU/h: 56,000 Sensible BTU/h: 43,175 SEER2 / EER2: 13.4 / 10.6 Decibels: 79 AHRI Number: 209319550
Heating Capacity	High-Fire Input/Output: 120,000 / 97,200 Low-Fire Input/Output: 90,000 / 72,900 AFUE: 81 Temperature Rise Range: 35 - 65 No. of Burners: 6
Evaporator Motor	Type: ECM Wheel (D x W): 11” x 10” Indoor Nominal CFM: 1300 L / 1750 H No. of Speeds: 5 Horsepower: 1
Evaporator Coil	Face Area (ft²): 5.68  Rows Deep/Fins per Inch: 4/14 Piston Size (Cooling): TXV Drain Size (NPT): 3/4" Refrigerant Charge (oz.): 100
Condenser Fan/Coil	Horsepower - RPM: 1/3 - 1,120 Diameter / # of Blades: 22” / 3 Outdoor Nominal CFM: 3,000 Face Area (ft²): 8.81 Rows Deep/Fins per Inch: 2/27
Compressor	Quantity / Type: 1 / Scroll  Stage: Two Compressor RLA/LRA: 26.9 / 139.9
Electrical Data	Voltage-Phase (Frequency 60Hz): 208/230-1-60 Indoor Blower FLA: 7.0 Outdoor Fan FLA/LRA: 2.0 / 4.40 Min. Circuit Ampacity: 41.0 Max. Overcurrent Protection: 60 amps
Operating / Ship Weights (lbs)	543 / 565
Dimensions (W x D x H)	47 x 51 x 42-1/2 inches
Duct Openings Dimensions	Supply (W x H): 16 x 18 inches Return (W x H): 16 x 18 inches
Resources	Specifications Installation Manual Service Manual Parts Manual Warranty AHRI Certificate Energy Guide
