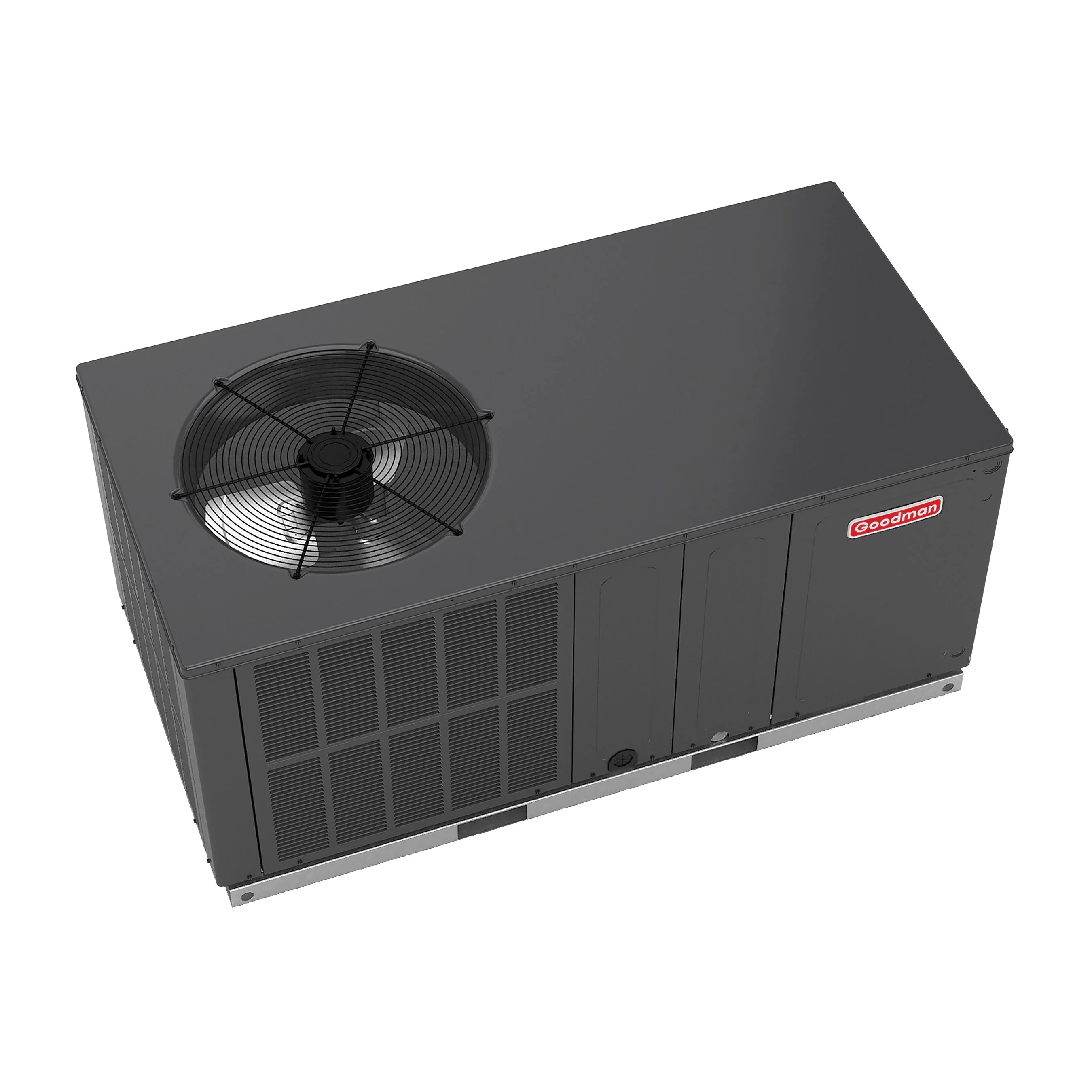

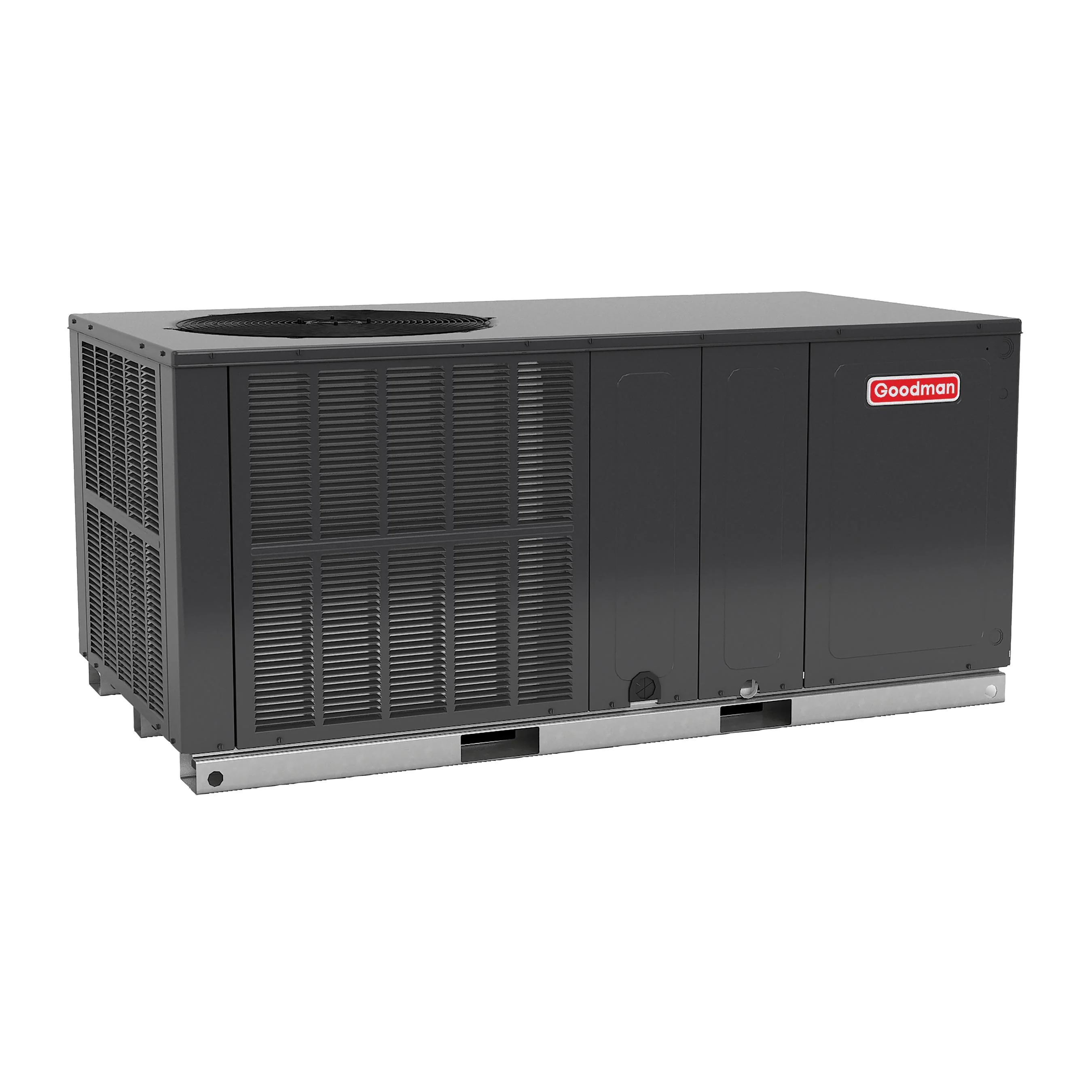

Goodman 5 Ton 15.2 SEER2 Packaged Heat Pump - GPHH56041
Goodman 5 Ton 15.2 SEER2 Packaged Heat Pump - GPHH56041
Elevate your home comfort with the Goodman 5 Ton 15.2 SEER2 Packaged Heat Pump - GPHH56041. This powerhouse unit delivers both cooling and heating with unwavering reliability, all from a single, convenient self-contained unit located outside your home.
Crafted with a heavy-gauge, galvanized-steel cabinet, the Goodman 5 Ton 15.2 SEER2 Packaged Heat Pump - GPHH56041 is built to withstand the elements, boasting a high-quality, UV-resistant powder-paint finish that ensures years of trouble-free operation.
Experience exceptional performance without the hefty energy bills. With its highly efficient design, homeowners and small businesses alike can enjoy powerful heating and cooling while cutting down on energy costs.
Installation is a breeze thanks to its versatile design, allowing for ground-level or rooftop applications. Plus, with only the supply and return ducts, line and low-voltage wiring, and drain connection needed, setup is streamlined and hassle-free.
Standard Features:
- High-efficiency scroll compressor
- Multi-speed ECM indoor blower motor
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- Quiet horizontal discharge
- Electric heat kit available as a field-installed option
- AHRI Certified; ETL Listed
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Louvered condenser coil protection
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- One footprint for all tonnages
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specifications:
| Brand | Goodman |
| Model | GPHH56041 |
| Warranty | 10 Years Parts Warranty with online registration |
| Configuration | Horizontal |
| Cooling Capacity |
Total BTU/h: 57,250 Sensible BTU/h: 41,564 SEER2 / EER2: 15.2 / 11.4 AHRI Numbers: 208842427 |
| Heating Capacity |
BTU/h (47°F): 54,500 C.O.P. (47°F): 3.60 BTU/h (17°F): 33,200 C.O.P. (17°F): 2.40 HSPF2: 7.00 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 11" x 8" Cooling CFM: 1,700 Fan-Only CFM: 1,600 No. of Speeds: 5 Horsepower - RPM: 3/4 - 1,050 |
| Evaporator Coil |
Face Area (ft²): 7.01 Rows Deep: 4 Fins per Inch: 14 Metering Device Type: TXV Drain Size (NPT): 3/4" - 14 NPT Refrigerant Charge (oz.): 175 |
| Condenser Fan |
Horsepower - RPM: 1/4 - 1075 Fan Diameter: 22 # of Fan Blades: 4 |
| Condenser Coil |
Face Area (ft²): 18.85 Rows Deep: 2 Fins per Inch: 20 Metering Device Type: TXV |
| Compressor |
Quantity: 1 Type: Scroll Stage: Two |
| Sound Power (dBA) | 80 |
| Electrical Data |
Compressor RLA/LRA: 23.7 / 151.0 Voltage/Phase (60 Hz): 208-230 / 1 Indoor Blower FLA: 5.4 Outdoor Fan FLA: 1.4 M.C.A: 38.8 M.O.P: 60 |
| Operating Weight (LBS) | 405 |
| Shipping Weight (LBS) | 415 |
| Dimensions (W x D x H) | 66 x 34 x 38-1/2 inches |
| Duct Openings Dimensions |
Supply (W x H): 14 x 14 inches Return (W x H): 14 x 24 inches |
