Goodman 5 Ton 13.8 SEER2 R-32 Central Air Conditioner Split System - Multi-Position (GLXS3BN6010 Condenser and AMST60DU1300 Air Handler)

Discover the power of the Goodman 5 Ton 13.8 SEER2 R-32 Central Air Conditioner Split System - Multi-Position (GLXS3BN6010 Condenser and AMST60DU1300 Air Handler). With a system SEER2 rating of 13.8, this bundle combines advanced features like an energy-efficient compressor, copper tube/enhanced aluminum fin coil, and internal thermal expansion valves for reliable cooling, durability, and energy savings.



Goodman 5 Ton 13.4 SEER2 Air Conditioner Condenser (R-32) - GLXS3BN6010

The Goodman 5 Ton 13.4 SEER2 Air Conditioner Condenser (R-32) - GLXS3BN6010 uses the environmentally friendly refrigerant R-32 and features the unique Goodman sound control top design for quiet operation. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.

Standard Features:

• Energy-efficient compressor

• Fully charged for 15' of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor
• High-pressure switch
• Ground lug connection
• Capacitors with extended life
• AHRI Certified
• ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40

• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

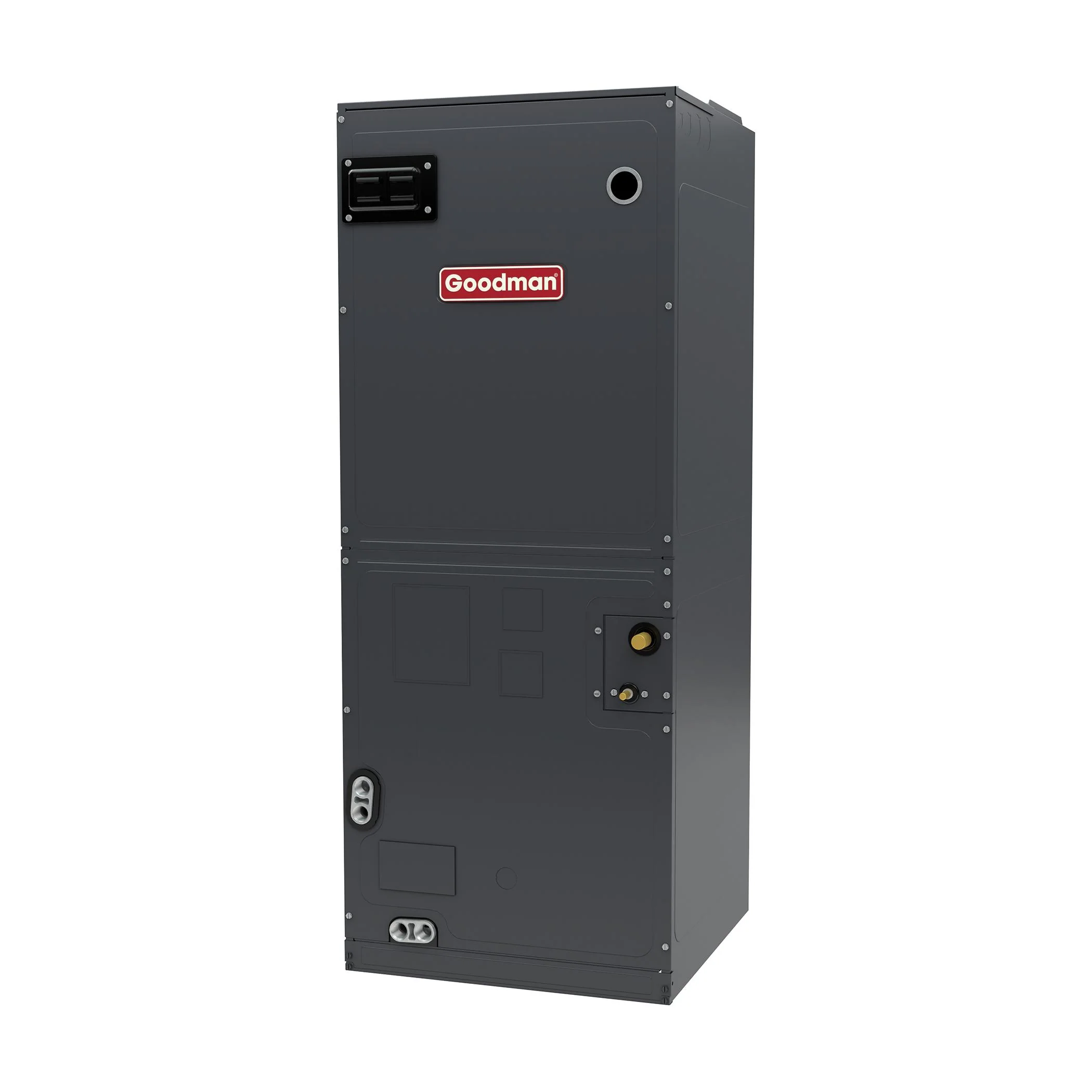

Goodman AMST60DU1300 5 Ton Multi-Position, Multi-Speed ECM-Based Air Handler with Internal TXV (R-32)

The Goodman AMST60DU1300 R-32 only air handler features internal factory-installed thermal expansion valves that optimize cooling, ensuring efficient operation. The unit is equipped with appropriately sized evaporator coil tubes, ensuring effective transfer and improved cooling performance. Featuring a direct-drive, 9-speed ECM blower motor, ensuring efficient airflow and enhanced comfort. The coil mounting track enables easy repositioning and flexible installation options

Features:

• Internal factory-installed thermal expansion valves for cooling and heat pump applications

• Direct drive, multi-speed ECM blower motor
• All-aluminum evaporator coil
• Coil mounting track for quick repositioning
• Optimized for use with R-32 refrigerant
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• AHRI certified; ETL listed
• UL 60335 2-40 Compliant
• Factory installed R32 sensor designed for lifespan of coil
• Rigid SmartFrame™ cabinet
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
• Field Installed 3 kW – 25 kW electric heater kits available

What's Included:

• 1x Goodman 5 Ton 13.4 SEER2 Air Conditioner Condenser (R-32) - GLXS3BN6010
• 1x Goodman AMST60DU1300 5 Ton Multi-Position, Multi-Speed ECM-Based Air Handler with Internal TXV (R-32)
• 1x FREE DiversiTech Condenser Mounting Pad ($139.99 Value)

Heat Pump Condenser Specifications:

Brand	Goodman
Model	GLXS3BN6010
Warranty	10 Years Parts Warranty 10 Years Compressor Warranty
SEER2	13.4
Cooling Capacity	Nominal Cooling (BTU/h): 60,000 Decibels (dBA): 74.0
Compressor	RLA: 23.9 LRA: 148.0 Stage: Single Type: Scroll
Condenser Fan Motor	Motor Type: PSC Horsepower (RPM): 1/4 FLA: 1.3
Refrigeration System	Refrigerant Line Size Liquid Line Size (“O.D.): 3/8" Suction Line Size (“O.D.): 1-1/8" Refrigerant Connection Size Liquid Valve Size (“O.D.): 3/8" Suction Valve Size (“O.D."): 7/8" Valve Connection Type: Sweat Refrigerant Type: R-32 Refrigerant Charge: 91 oz
Electrical Data	Voltage-Phase (60 Hz): 208/230-1-60 Minimum Circuit Ampacity: 31.1 Max. Overcurrent Protection: 50.0 Min / Max Volts: 197 / 253 Electrical Conduit Size: 1/2" or 3/4"
Equipment Weight (LBS)	229
Ship Weight (LBS)	244
Dimensions (W x D x H)	35-1/2 x 35-1/2 x 39-1/2 inches
Resources	Specifications Warranty Certificate

Air Handler Specifications:

Brand	Goodman
Model	AMST60DU1300
Warranty	10 Years Parts Warranty
Refrigerant Type	R-32
Nominal Ratings	Cooling (Btu/h): 60,000 Nominal Tons: 5 Ton
Configuration	Multi-Positional
Blower	Diameter: 11" Width: 10"
Cabinet Width	24.5"
Coil Connections	Liquid: 3/8" Suction: 7/8” Coil Drain Connect (FPT): 3/4”
Electrical Data	Voltage, Phase, Hz: 208/240 V, 1 Phase, 60 Hz Minimum Circuit Ampacity: 8.6 Max. Overcurrent Device (Amps): 15 Min. / Max VAC: 197 / 253
Blower Motor	Full Load Amps (FLA): 6.9 Horsepower (HP): 1
Dimensions (W x D x H)	24-5/8" x 21" x 58
Ship Weight (LBS)	167
Resources	Specifications Installation Manual Service Manual A2L Accessory / Zoning Control Kit Manual Parts Manual Warranty
