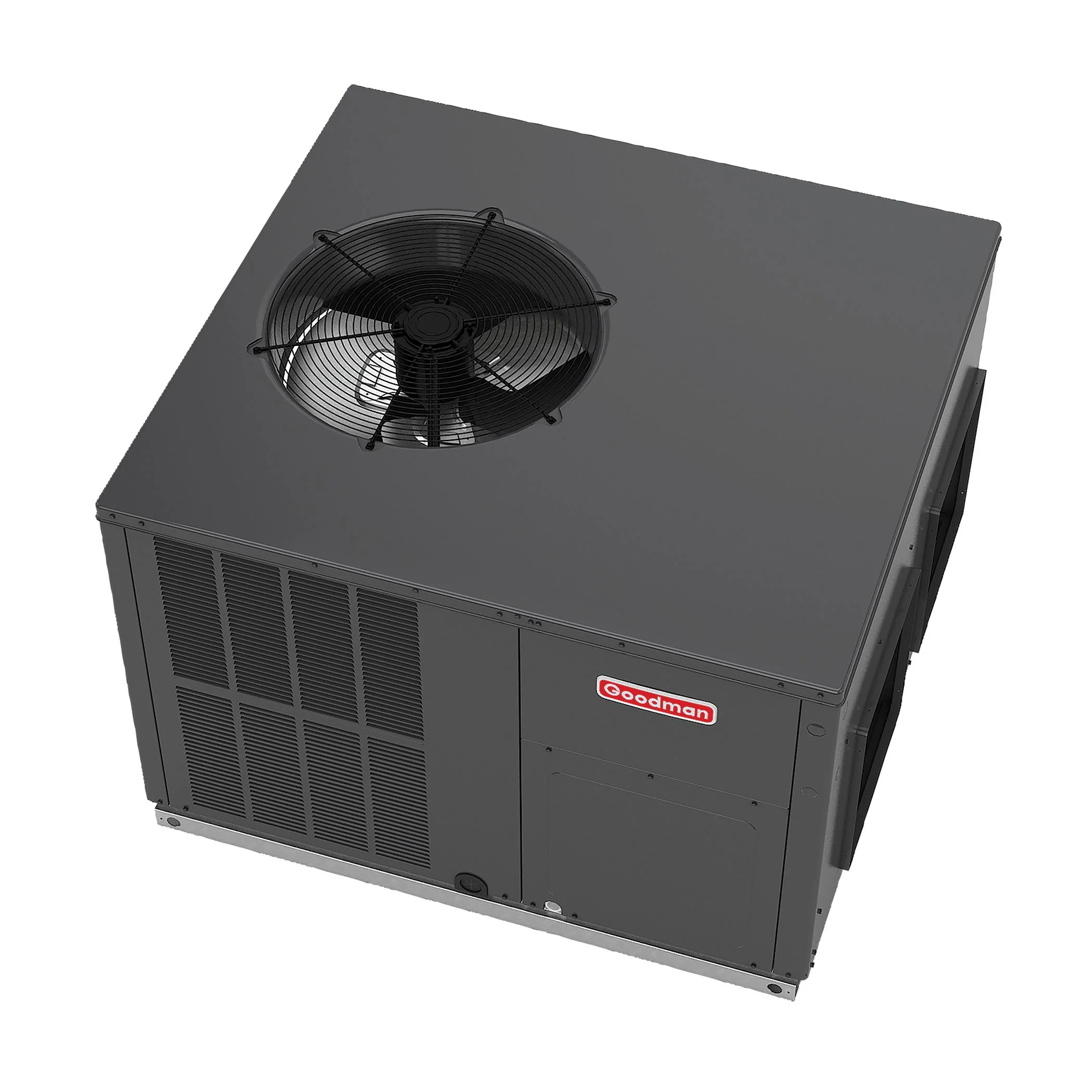

Goodman 5 Ton 13.4 SEER2 Multi-Position Packaged Air Conditioner - GPCM36041
Goodman 5 Ton 13.4 SEER2 Multi-Position Packaged Air Conditioner - GPCM36041
The Goodman 5 Ton 13.4 SEER2 Multi-Position Packaged Air Conditioner - GPCM36041 features energy-efficient cooling performance in one self-contained unit. The Goodman 5 Ton 13.4 SEER2 Multi-Position Packaged Air Conditioner - GPCM36041 is housed in a heavy-gauge, galvanized-steel cabinet protected by a high-quality, UV-resistant powder-paint finish. This unit allows for ground-level or rooftop applications, and is approved for manufactured or modular homes. THIS ITEM IS NOT A HEAT PUMP.
Standard Features:
- Energy-efficient scroll compressor
- Multi-speed ECM indoor blower motor
- Convertible airflow: horizontal or downflow application
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Electric heat kit available as a field-installed option
- AHRI Certified; ETL Listed
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- Louvered condenser coil protection
- One footprint for all tonnages
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available)
Specifications:
| Brand | Goodman |
| Model | GPCM36041 |
| Warranty | 10 Years Parts Warranty with online registration |
| Configuration | Multi-Position |
| Cooling Capacity |
Total BTU/h: 54,500 Sensible BTU/h: 39,000 SEER2 / EER2: 13.4 / 10.6 AHRI Numbers: 210286388 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 10 x 9 Cooling CFM3: 1700 No. of Speeds: 5 Horsepower - RPM: 1 - 1,050 |
| Evaporator Coil |
Face Area (ft2): 6.2 Rows Deep: 4 Fins per Inch: 14 Metering Device Type: TXV Drain Size (NPT): 3/4" Refrigerant Charge (oz.): 177 |
| Condenser Fan |
Horsepower - RPM: 1/3 - 1120 Fan Diameter: 22 # of Fan Blades: 3 |
| Condenser Coil |
Face Area (ft2): 21 Rows Deep: 2 Fins per Inch: 16 |
| Compressor |
Quantity: 1 Type: Scroll Stage: Single |
| Sound Power (dBA) | 80 |
| Electrical Data |
Compressor RLA/LRA: 25.6 / 150 Voltage/Phase (60 Hz): 208/230-1 Indoor Blower FLA: 7 Outdoor Fan FLA: 2 M.C.A.1: 41 M.O.P.2: 60 |
| Ship Weight (LBS) | 458 |
| Dimensions (W x D x H) | 47 x 51 x 42-3/4 |
| Duct Openings Dimensions |
Supply (W x H): 16 x 18 Return (W x H): 16 x 18 |
