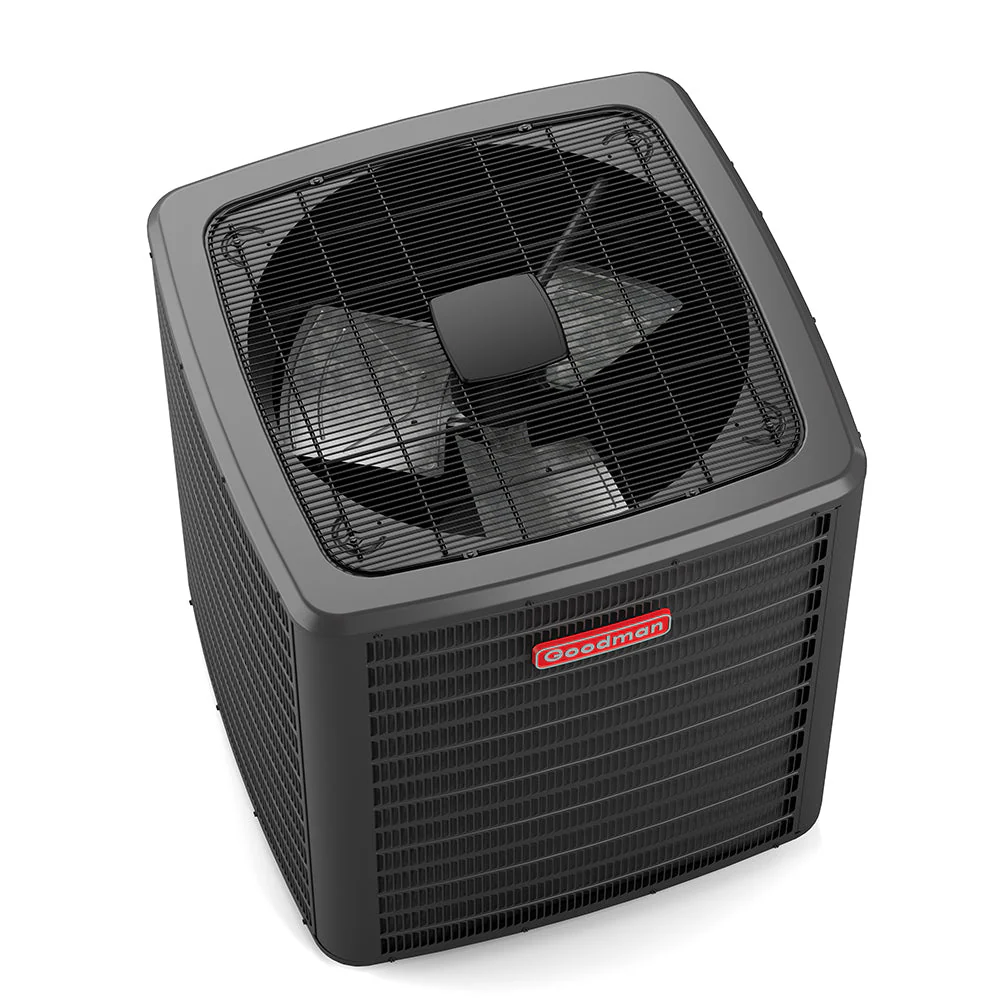

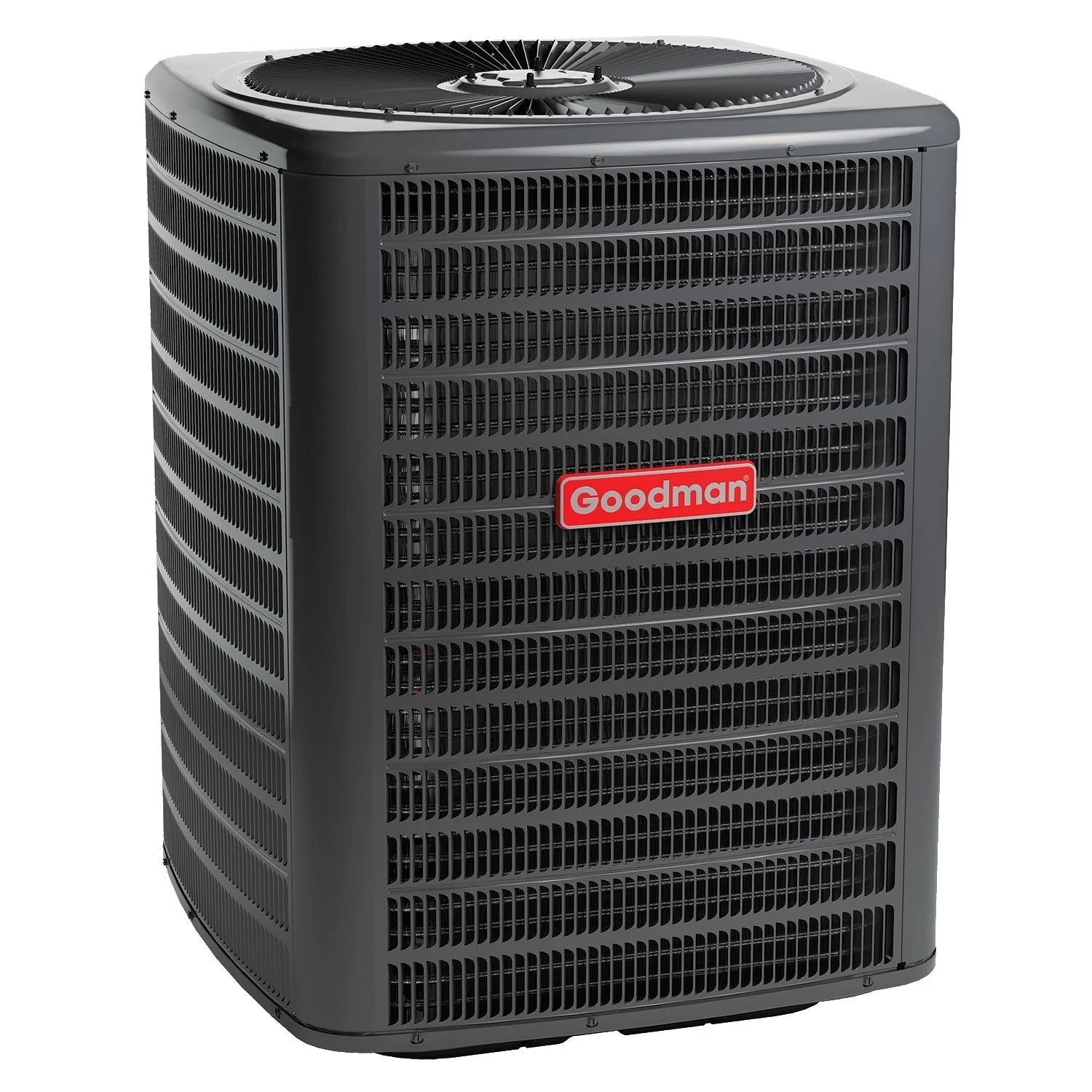

Goodman 5 Ton 13.4 SEER2 Air Conditioner Condenser (R-32) - GLXS3BN6010
Goodman 5 Ton 13.4 SEER2 Air Conditioner Condenser (R-32) - GLXS3BN6010
The Goodman 5 Ton 13.4 SEER2 Air Conditioner Condenser (R-32) - GLXS3BN6010 uses the environmentally friendly refrigerant R-32 and features the unique Goodman sound control top design for quiet operation. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.
Standard Features:
- Energy-efficient compressor
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor
- High-pressure switch
- Ground lug connection
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specifications:
| Brand | Goodman |
| Model | GLXS3BN6010 |
| Warranty |
10 Years Parts Warranty 10 Years Compressor Warranty |
| SEER2 | 13.4 |
| Cooling Capacity |
Nominal Cooling (BTU/h): 60,000 Decibels (dBA): 74.0 |
| Compressor |
RLA: 23.9 LRA: 148.0 Stage: Single Type: Scroll |
| Condenser Fan Motor |
Motor Type: PSC Horsepower (RPM): 1/4 FLA: 1.3 |
| Refrigeration System |
Refrigerant Line Size
Refrigerant Connection Size
Valve Connection Type: Sweat Refrigerant Type: R-32 Refrigerant Charge: 91 oz |
| Electrical Data |
Voltage-Phase (60 Hz): 208/230-1-60 Minimum Circuit Ampacity: 31.1 Max. Overcurrent Protection: 50.0 Min / Max Volts: 197 / 253 Electrical Conduit Size: 1/2" or 3/4" |
| Equipment Weight (LBS) | 229 |
| Ship Weight (LBS) | 244 |

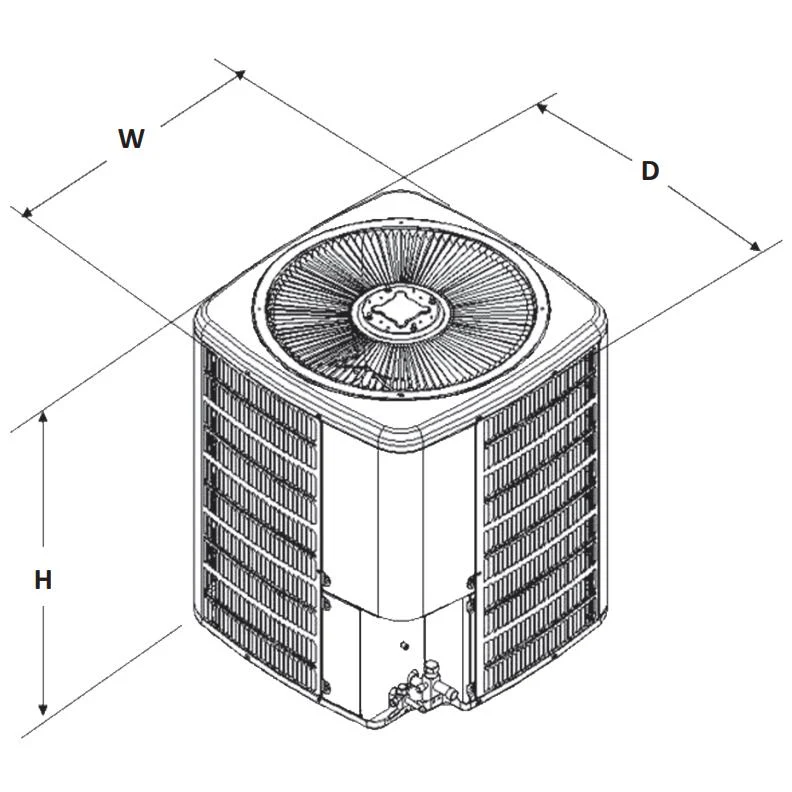

| Dimensions (W x D x H) | 35-1/2 x 35-1/2 x 39-1/2 inches |
| Resources |
