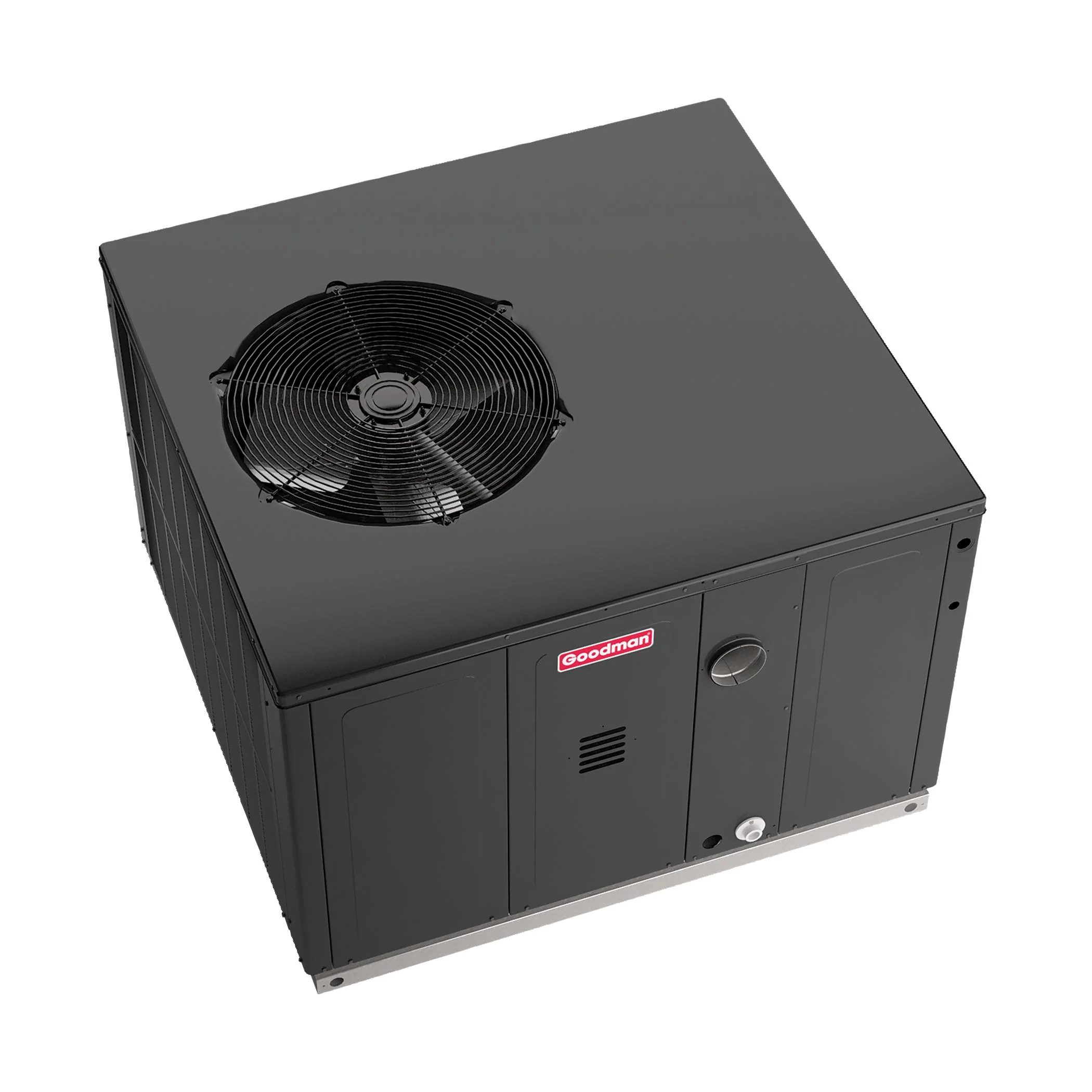

Goodman 3 Ton Cooling / 40,000 BTU Heating 81% AFUE 13.4 SEER2 Single Stage Low NOx Gas/Electric Package Unit (Downflow/Horizontal) - GPGM33604041
Goodman 3 Ton Cooling / 40,000 BTU Heating 81% AFUE 13.4 SEER2 Single Stage Low NOx Gas/Electric Package Unit (Downflow/Horizontal) - GPGM33604041
The Goodman 3 Ton Cooling / 40,000 BTU Heating 81% AFUE 13.4 SEER2 Single Stage Low NOx Gas/Electric Package Unit (Downflow/Horizontal) - GPGM33604041 features energy-efficient cooling and heating performance in one self-contained unit. The GPGM33604041 is housed in a heavy-gauge, galvanized-steel cabinet with a high-quality, UV-resistant powder-paint finish and allows for a ground-level or rooftop mount and horizontal or downflow applications.
Standard Features:
- Energy-efficient scroll compressor
- Multi-speed ECM indoor blower motor
- Convertible airflow: horizontal or downflow application
- All-aluminum evaporator coil
- Power-assisted combustion
- Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence, all blower operation, and all safety circuits complete with self-diagnostics
- All models comply with California Low NOx standards (40ng/J NOx)
- This furnace does not comply with the SCAQMD Rule 1111 nor the SJVAPCD Rule 4905 14 ng/J NOx emission limit and therefore is not eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) nor the San Joaquin Valley Air Pollution Control District (SJVAPCD)
- AHRI Certified; ETL Listed
Cabinet Features:
- High-quality UV-resistant powder-paint finish
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Convenient access panels
- One roof curb fits all units
- Fully insulated cabinet
- Bottom, 2” high base rails for easier handling
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- One footprint for all tonnages
Specifications:
| Brand | Goodman |
| Model | GPGM33604041 |
| Warranty |
10 Years Parts Warranty with online registration 10 Years Compressor Warranty with online registration 20 Year Heat Exchanger Warranty with online registration |
| Refrigerant | R-410A |
| Configuration | Downflow / Horizontal |
| Energy Star Certified | No |
| Cooling Capacity |
Total BTU/h: 34,200 Sensible BTU/h: 28,160 SEER2 / EER2: 13.4 / 10.6 Decibels: 78 AHRI Number: 209319532 |
| Heating Capacity |
Input BTU/h: 40,000 Output BTU/h: 32,400 AFUE: 81 Temperature Rise Range: 25 - 55 No. of Burners: 2 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 10” x 9” Indoor Nominal CFM: 1,200 No. of Speeds: 5 Horsepower: 1/2 |
| Evaporator Coil |
Face Area (ft²): 4.35 Rows Deep/Fins per Inch: 4/14 Piston Size (Cooling): 0.068 Drain Size (NPT): 3/4" Refrigerant Charge (oz.): 92 |
| Condenser Fan/Coil |
Horsepower - RPM: 1/4 - 1,075 Diameter / # of Blades: 22” / 3 Outdoor Nominal CFM: 2,250 Face Area (ft²): 11.13 Rows Deep/Fins per Inch: 2/27 |
| Compressor |
Quantity / Type: 1 / Scroll Stage: Single Compressor RLA/LRA: 14.1 / 77.0 |
| Electrical Data |
Voltage-Phase (Frequency 60Hz): 208/230-1-60 Indoor Blower FLA: 3.8 Outdoor Fan FLA/LRA: 1.4 / 3.2 Min. Circuit Ampacity: 22.8 Max. Overcurrent Protection: 35 amps |
| Operating / Ship Weights (lbs) | 449 / 470 |
| Dimensions (W x D x H) | 47 x 51 x 34-1/2 inches |
| Duct Openings Dimensions |
Supply (W x H): 16 x 16 inches Return (W x H): 16 x 16 inches |
| Resources |
