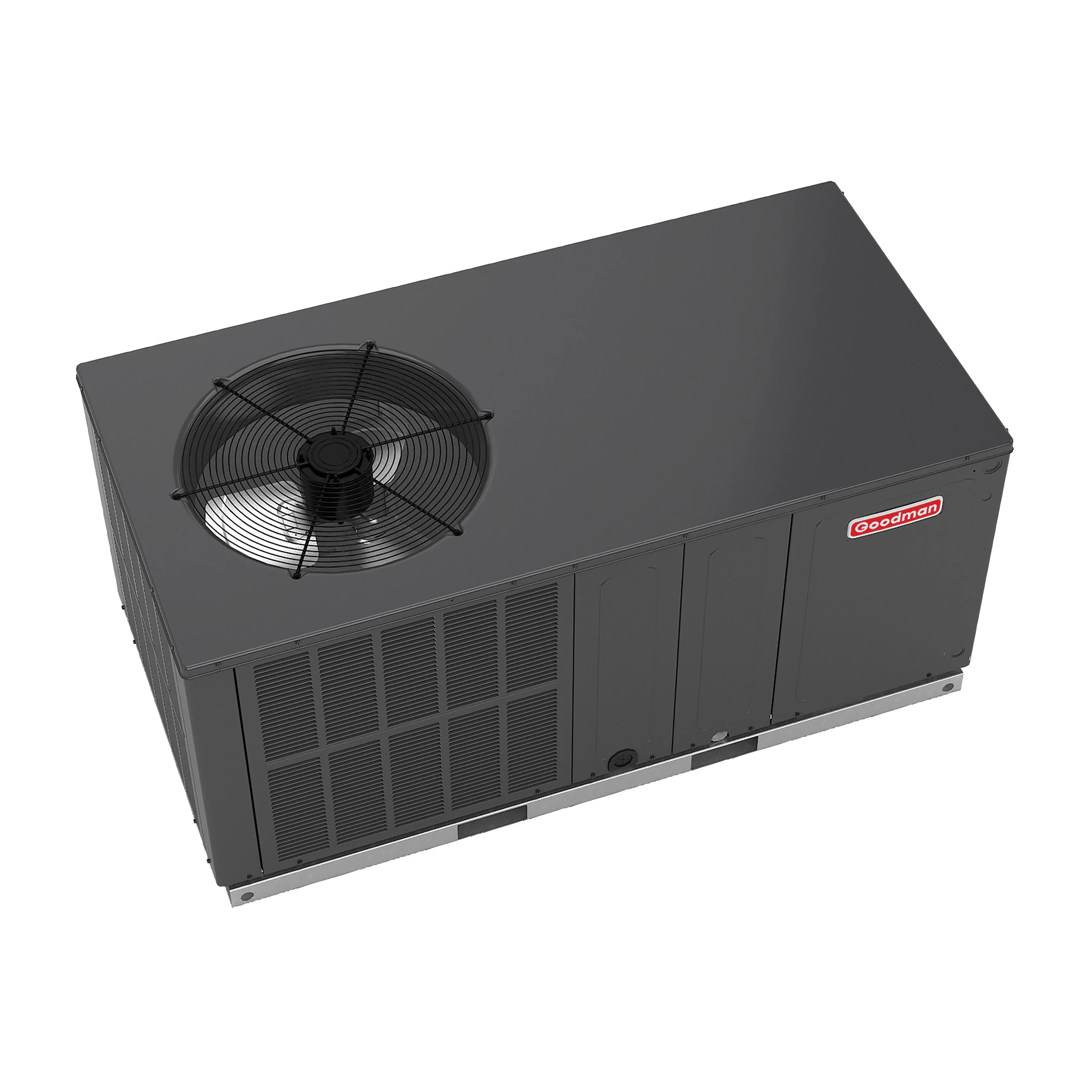

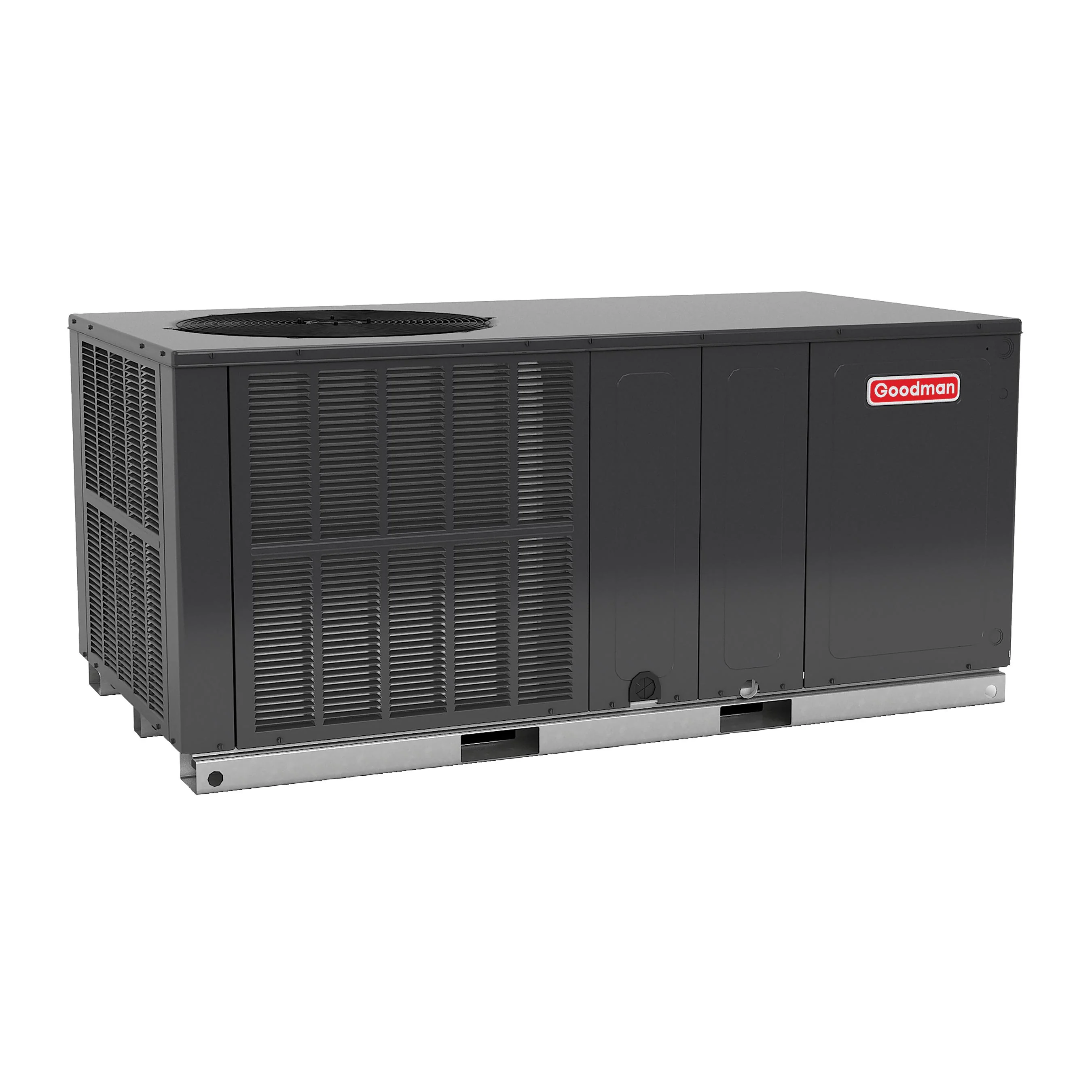

Goodman 3 Ton 15.2 SEER2 Packaged Heat Pump - GPHH53641
Goodman 3 Ton 15.2 SEER2 Packaged Heat Pump - GPHH53641
Elevate your home comfort with the Goodman 3 Ton 15.2 SEER2 Packaged Heat Pump - GPHH53641. Designed for efficiency and reliability, this unit seamlessly combines cooling and heating capabilities in one sleek, self-contained package. Crafted with a durable, heavy-gauge galvanized-steel cabinet, it's shielded by a premium UV-resistant powder-paint finish, ensuring years of dependable operation.
Experience powerful performance while enjoying reduced energy costs, thanks to its highly efficient design. Whether for homeowners or small businesses, this heat pump delivers exceptional comfort without breaking the bank.
Versatile in installation, the Goodman 3 Ton 15.2 SEER2 Packaged Heat Pump - GPHH53641 can be effortlessly set up at ground level or atop rooftops. With minimal connections required – just the supply and return ducts, line and low-voltage wiring, and drain connection – installation is hassle-free, getting you up and running in no time.
Standard Features:
- High-efficiency scroll compressor
- Multi-speed ECM indoor blower motor
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- Quiet horizontal discharge
- Electric heat kit available as a field-installed option
- AHRI Certified; ETL Listed
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Louvered condenser coil protection
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- One footprint for all tonnages
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specifications:
| Brand | Goodman |
| Model | GPHH53641 |
| Warranty | 10 Years Parts Warranty with online registration |
| Configuration | Horizontal |
| Cooling Capacity |
Total BTU/h: 34,800 Sensible BTU/h: 27,179 SEER2 / EER2: 15.2 / 11.4 AHRI Numbers: 208842424 |
| Heating Capacity |
BTU/h (47°F): 32,200 C.O.P. (47°F): 3.74 BTU/h (17°F): 18,300 C.O.P. (17°F): 2.34 HSPF2: 6.70 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 10" x 8" Cooling CFM: 1,200 Fan-Only CFM: 1,100 No. of Speeds: 5 Horsepower - RPM: 1/2 - 1,050 |
| Evaporator Coil |
Face Area (ft²): 6.23 Rows Deep: 4 Fins per Inch: 14 Metering Device Type: TXV Drain Size (NPT): 3/4" - 14 NPT Refrigerant Charge (oz.): 170 |
| Condenser Fan |
Horsepower - RPM: 1/6 - 810 Fan Diameter: 22 # of Fan Blades: 4 |
| Condenser Coil |
Face Area (ft²): 13.92 Rows Deep: 2 Fins per Inch: 16 Metering Device Type: Piston |
| Compressor |
Quantity: 1 Type: Scroll Stage: Single |
| Sound Power (dBA) | 78 |
| Electrical Data |
Compressor RLA/LRA: 14.1 / 72.2 Voltage/Phase (60 Hz): 208-230 / 1 Indoor Blower FLA: 3.8 Outdoor Fan FLA: 1.3 M.C.A: 22.7 M.O.P: 35 |
| Operating Weight (LBS) | 375 |
| Shipping Weight (LBS) | 385 |
| Dimensions (W x D x H) | 66 x 34 x 35 inches |
| Duct Openings Dimensions |
Supply (W x H): 14 x 14 inches Return (W x H): 14 x 24 inches |
