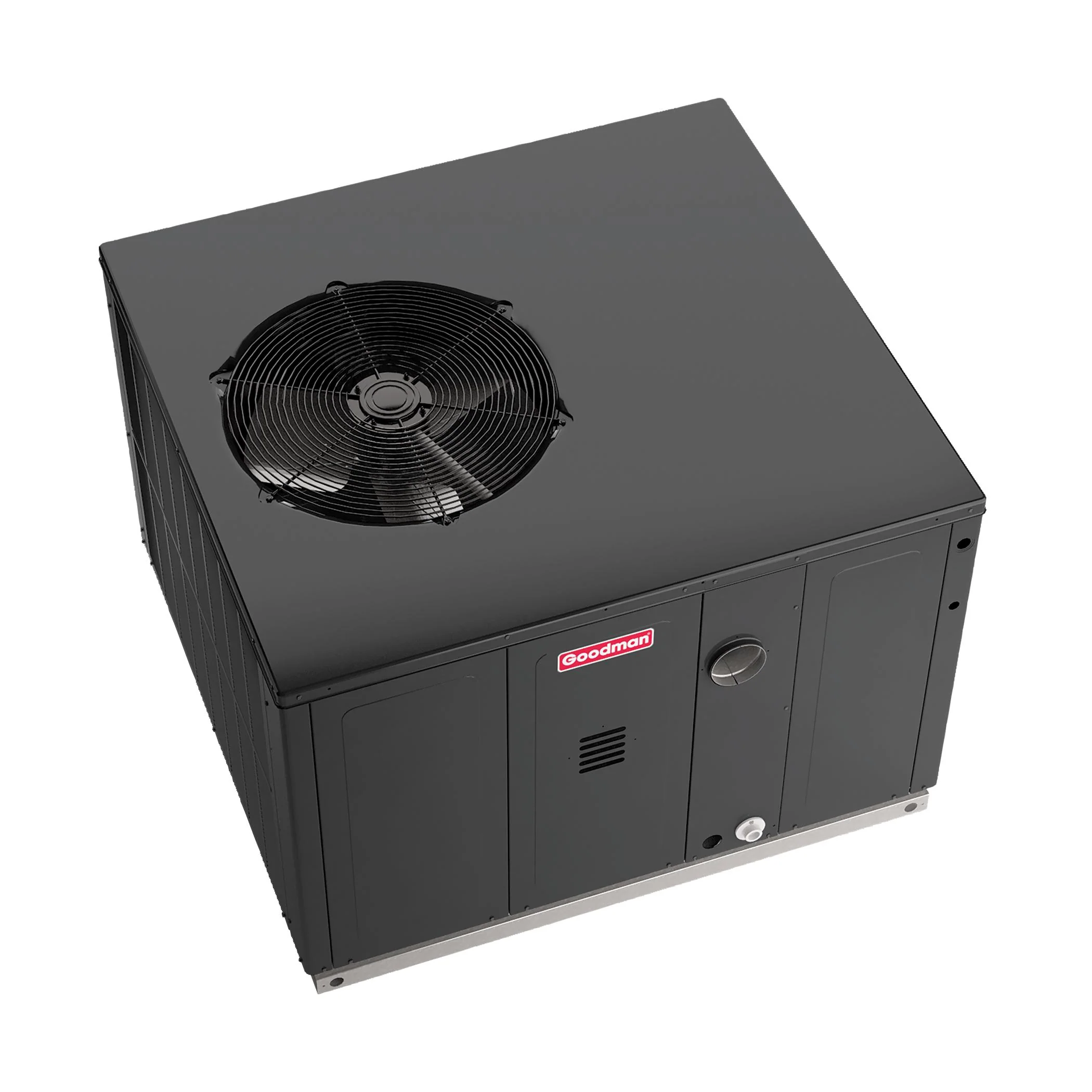

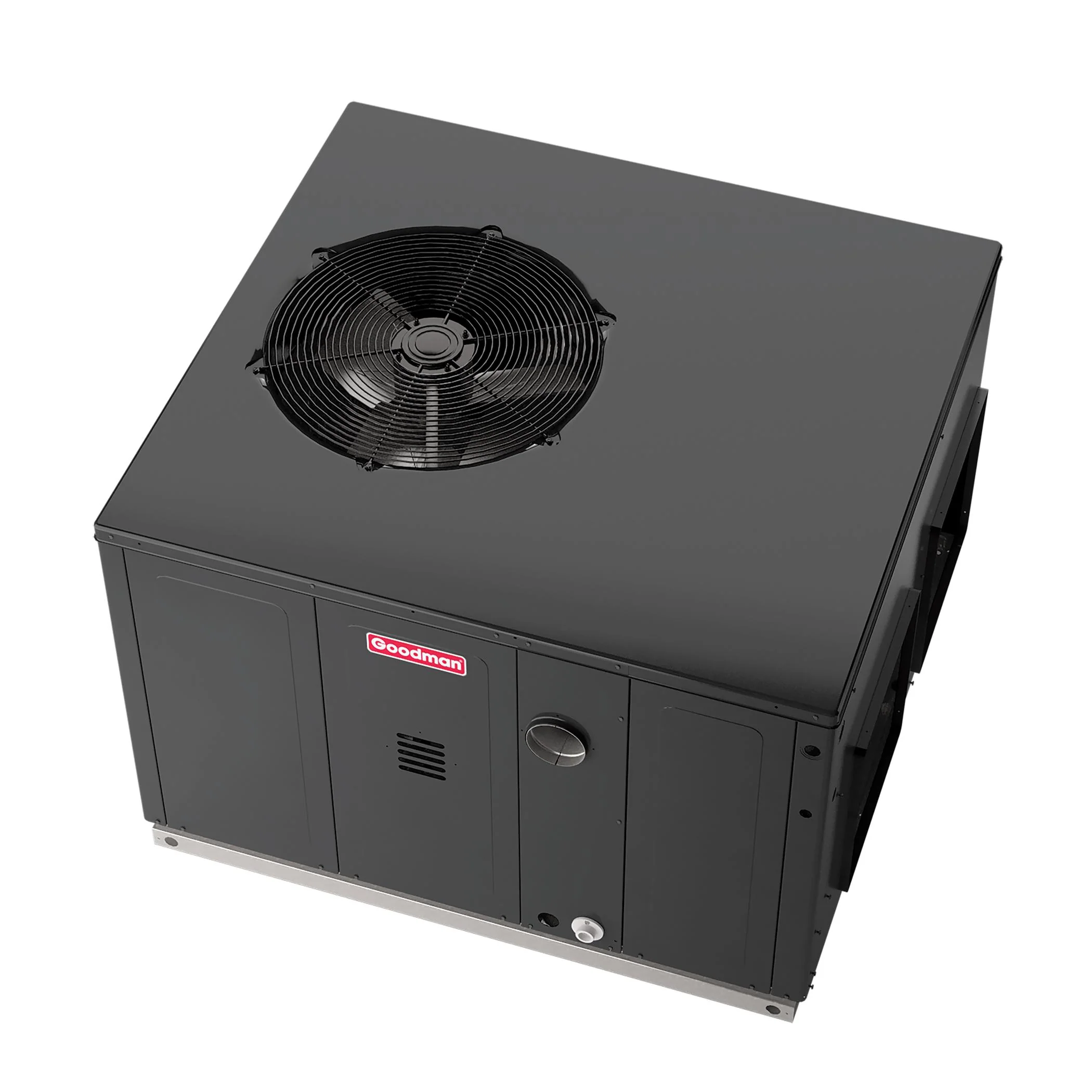

Goodman 3.5 Ton Gas/Electric Package Unit - Efficient & Reliable HVAC
Goodman 3.5 Ton Cooling / 80,000 BTU Heating 81% AFUE 13.4 SEER2 Single Stage Ultra Low NOx Gas/Electric Package Unit (Downflow/Horizontal) - GPUM34208041
The Goodman 3.5 Ton Cooling / 80,000 BTU Heating 81% AFUE 13.4 SEER2 Single Stage Ultra Low NOx Gas/Electric Package Unit (Downflow/Horizontal) - GPUM34208041 is the perfect all-in-one comfort solution for nearly any application. The GPUM34208041 combines a gas-fired furnace, air conditioning condenser, evaporator coil, and Multi-speed ECM blower into a single unit. The GPUM34208041 heat exchanger and coil feature Goodman's superior designs that ensure energy-efficient operation year after year whether your home or business needs heating or cooling. The GPUM34208041 is equipped for downflow or horizontal configurations and features access panels to expedite installation.
Standard Features:
- Heavy-duty stainless-steel heat exchanger
- Ground-level or rooftop mount and horizontal or downflow applications
- Energy-efficient scroll compressor
- Multi-speed ECM indoor blower motor
- Convertible airflow: horizontal or downflow application
- All-aluminum evaporator coil
- Power-assisted combustion
- Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence, all blower operation, and all safety circuits complete with self-diagnostics
- California Ultra-Low NOx emissions compliant
- Eligible for installation in Californiaâs South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVUAPCD). This gas packaged unit furnace complies with the 14 ng/J NOx emission limit in SCAQMD Rule 1111 and SJVUAPCD Rule 4905. This gas packaged unit furnace is eligible for the SCAQMD Clean Air Furnace Rebate Program: www.CleanAirFurnaceRebate.com
- AHRI Certified; ETL Listed
Cabinet Features:
- High-quality UV-resistant powder-paint finish
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Convenient access panels
- One roof curb fits all units
- Fully insulated cabinet
- Bottom, 2â high base rails for easier handling
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- One footprint for all tonnages
Specifications:
Brand |
Goodman |
Model |
GPUM34208041 |
Warranty |
10 Years Parts Warranty with online registration 10 Years Compressor Warranty with online registration 20 Year Heat Exchanger Warranty with online registration |
Refrigerant |
R-410A |
Configuration |
Downflow / Horizontal |
Energy Star Certified |
No |
Cooling Capacity |
Total BTU/h: 40,000 Sensible BTU/h: 30,980 SEER2 / EER2: 13.4 / 10.6 Decibels: 78 AHRI Number: 209319541 |
Heating Capacity |
Input BTU/h: 80,000 Output BTU/h: 64,800 AFUE: 81 Temperature Rise Range: 30 - 60 No. of Burners: 1 |
Evaporator Motor |
Type: ECM Wheel (D x W): 11â x 10â Indoor Nominal CFM: 1,300 No. of Speeds: 5 Horsepower: 3/4 |
Evaporator Coil |
Face Area (ft²): 5.68 Rows Deep/Fins per Inch: 4/14 Piston Size (Cooling): 0.072 Drain Size (NPT): 3/4" Refrigerant Charge (oz.): 103 |
Condenser Fan/Coil |
Horsepower - RPM: 1/4 - 1,075 Diameter / # of Blades: 22â / 3 Outdoor Nominal CFM: 3,300 Face Area (ft²): 15.36 Rows Deep/Fins per Inch: 1/24 |
Compressor |
Quantity / Type: 1 / Scroll Stage: Single Compressor RLA/LRA: 17.9 / 112 |
Electrical Data |
Voltage-Phase (Frequency 60Hz): 208/230-1-60 Indoor Blower FLA: 5.4 Outdoor Fan FLA/LRA: 1.4 / 3.2 Min. Circuit Ampacity: 29.2 Max. Overcurrent Protection: 45 amps |
Operating / Ship Weights (lbs) |
523 / 545 |
Dimensions (W x D x H) |
47 x 51 x 42-1/2 inches |
Duct Openings Dimensions |
Supply (W x H): 16 x 18 inches Return (W x H): 16 x 18 inches |
Resources |
