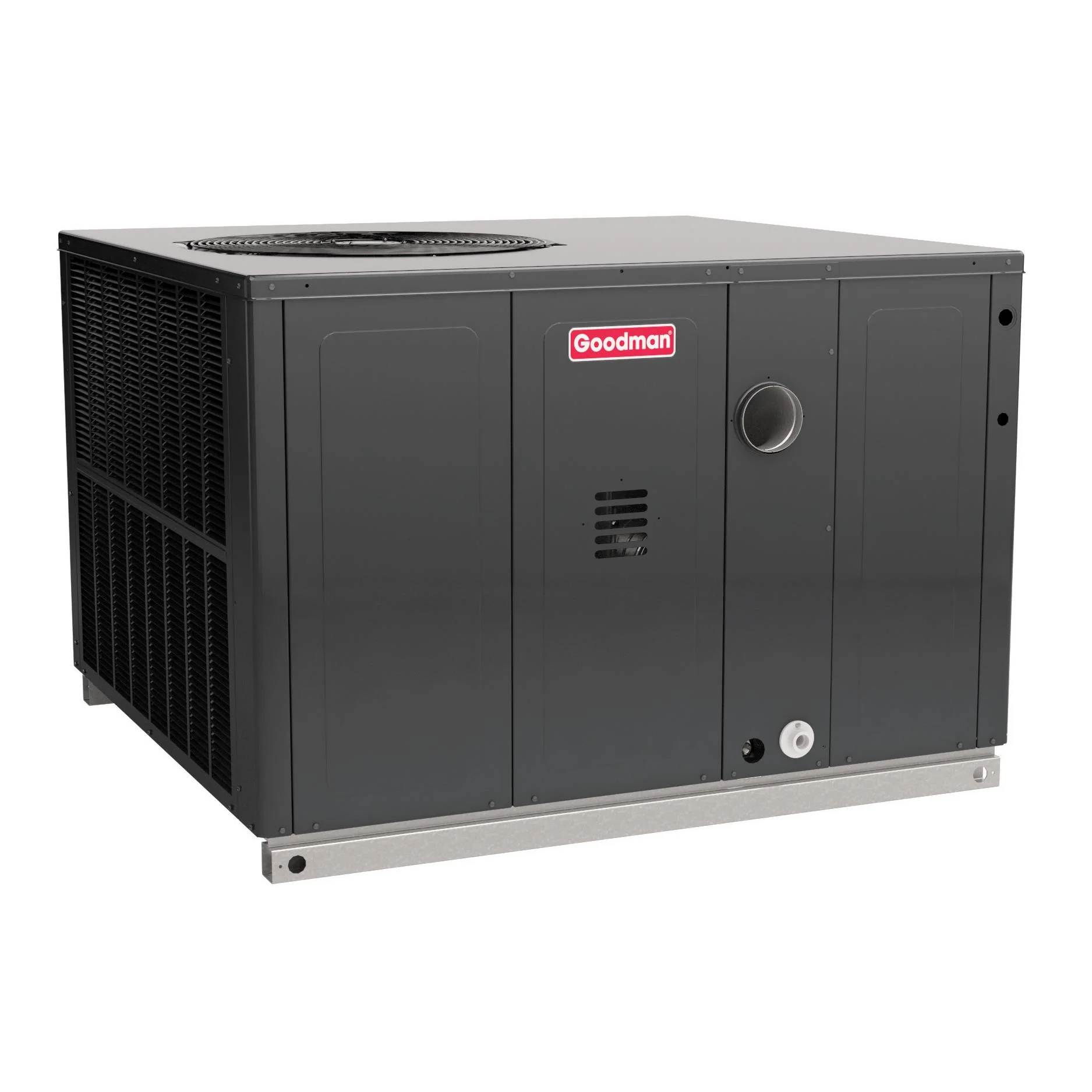

Goodman 3.5 Ton Cooling / 80,000 BTU Heating 81% AFUE 13.4 SEER2 Single Stage Low NOx Gas/Electric Package Unit (Downflow/Horizontal) - GPGM34208041
Goodman 3.5 Ton Cooling / 80,000 BTU Heating 81% AFUE 13.4 SEER2 Single Stage Low NOx Gas/Electric Package Unit (Downflow/Horizontal) - GPGM34208041
The Goodman 3.5 Ton Cooling / 80,000 BTU Heating 81% AFUE 13.4 SEER2 Single Stage Low NOx Gas/Electric Package Unit (Downflow/Horizontal) - GPGM34208041 features energy-efficient cooling and heating performance in one self-contained unit. The GPGM34208041 is housed in a heavy-gauge, galvanized-steel cabinet with a high-quality, UV-resistant powder-paint finish and allows for a ground-level or rooftop mount and horizontal or downflow applications.
Standard Features:
- Energy-efficient scroll compressor
- Multi-speed ECM indoor blower motor
- Convertible airflow: horizontal or downflow application
- All-aluminum evaporator coil
- Power-assisted combustion
- Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence, all blower operation, and all safety circuits complete with self-diagnostics
- All models comply with California Low NOx standards (40ng/J NOx)
- This furnace does not comply with the SCAQMD Rule 1111 nor the SJVAPCD Rule 4905 14 ng/J NOx emission limit and therefore is not eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) nor the San Joaquin Valley Air Pollution Control District (SJVAPCD)
- AHRI Certified; ETL Listed
Cabinet Features:
- High-quality UV-resistant powder-paint finish
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Convenient access panels
- One roof curb fits all units
- Fully insulated cabinet
- Bottom, 2” high base rails for easier handling
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- One footprint for all tonnages
Specifications:
| Brand | Goodman |
| Model | GPGM34208041 |
| Warranty |
10 Years Parts Warranty with online registration 10 Years Compressor Warranty with online registration 20 Year Heat Exchanger Warranty with online registration |
| Refrigerant | R-410A |
| Configuration | Downflow / Horizontal |
| Energy Star Certified | No |
| Cooling Capacity |
Total BTU/h: 40,000 Sensible BTU/h: 30,980 SEER2 / EER2: 13.4 / 10.6 Decibels: 78 AHRI Number: 209319538 |
| Heating Capacity |
Input BTU/h: 80,000 Output BTU/h: 64,800 AFUE: 81 Temperature Rise Range: 30 - 60 No. of Burners: 4 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 11” x 10” Indoor Nominal CFM: 1,300 No. of Speeds: 5 Horsepower: 3/4 |
| Evaporator Coil |
Face Area (ft²): 5.68 Rows Deep/Fins per Inch: 4/14 Piston Size (Cooling): 0.072 Drain Size (NPT): 3/4" Refrigerant Charge (oz.): 103 |
| Condenser Fan/Coil |
Horsepower - RPM: 1/4 - 1,075 Diameter / # of Blades: 22” / 3 Outdoor Nominal CFM: 2,850 Face Area (ft²): 15.36 Rows Deep/Fins per Inch: 1/24 |
| Compressor |
Quantity / Type: 1 / Scroll Stage: Single Compressor RLA/LRA: 17.9 / 112.0 |
| Electrical Data |
Voltage-Phase (Frequency 60Hz): 208/230-1-60 Indoor Blower FLA: 5.4 Outdoor Fan FLA/LRA: 1.4 / 3.2 Min. Circuit Ampacity: 29.2 Max. Overcurrent Protection: 45 amps |
| Operating / Ship Weights (lbs) | 496 / 520 |
| Dimensions (W x D x H) | 47 x 51 x 42-1/2 inches |
| Duct Openings Dimensions |
Supply (W x H): 16 x 18 inches Return (W x H): 16 x 18 inches |
| Resources |
