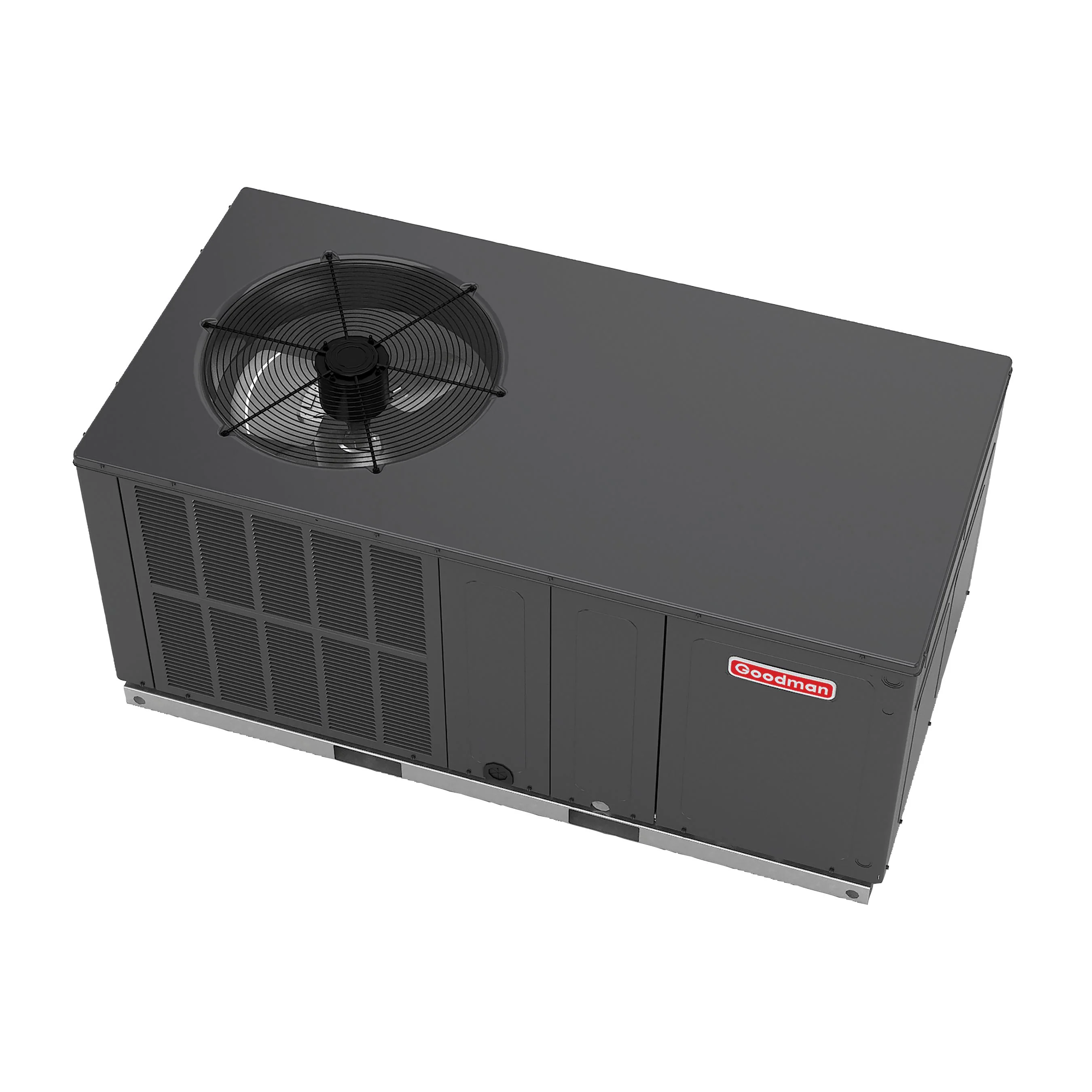

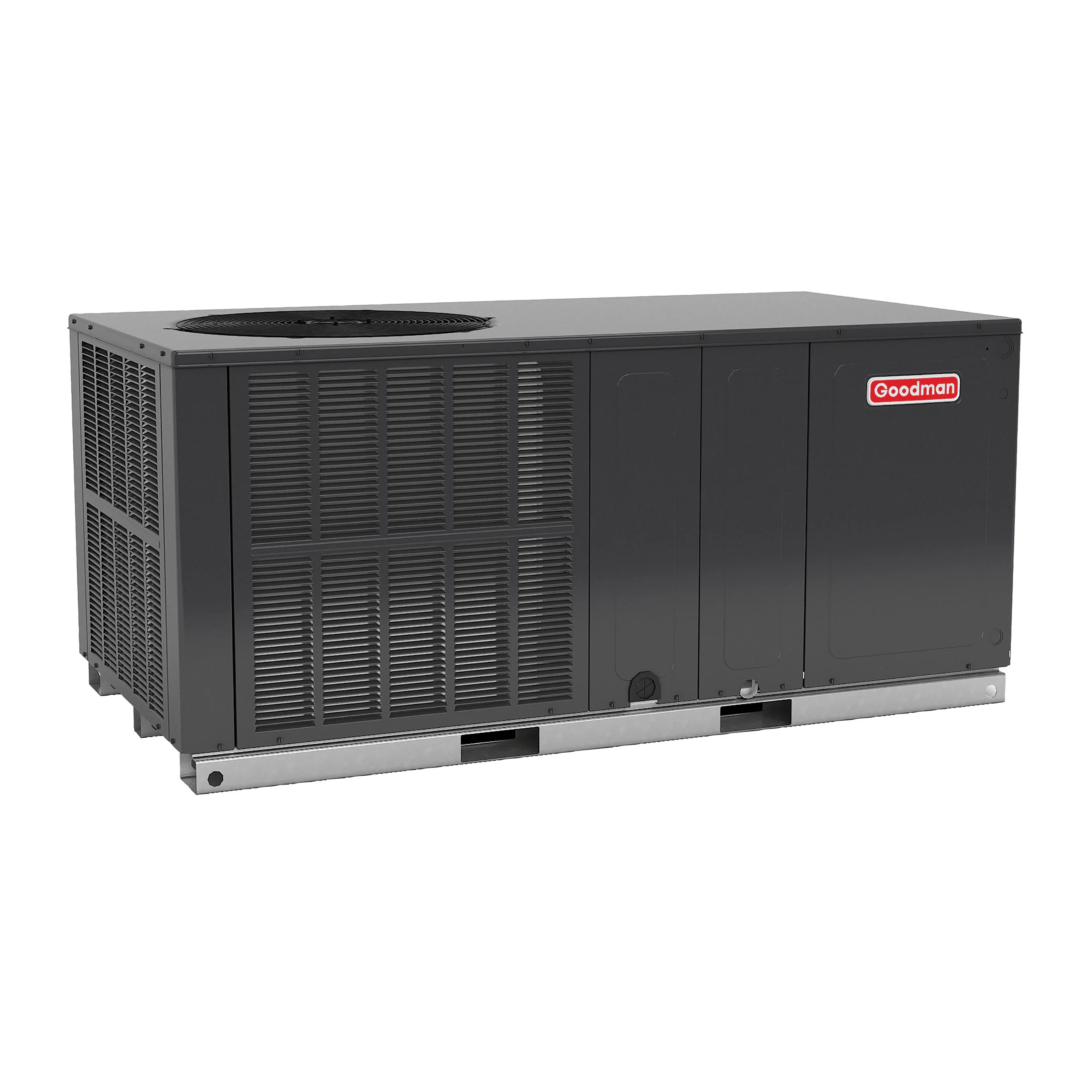

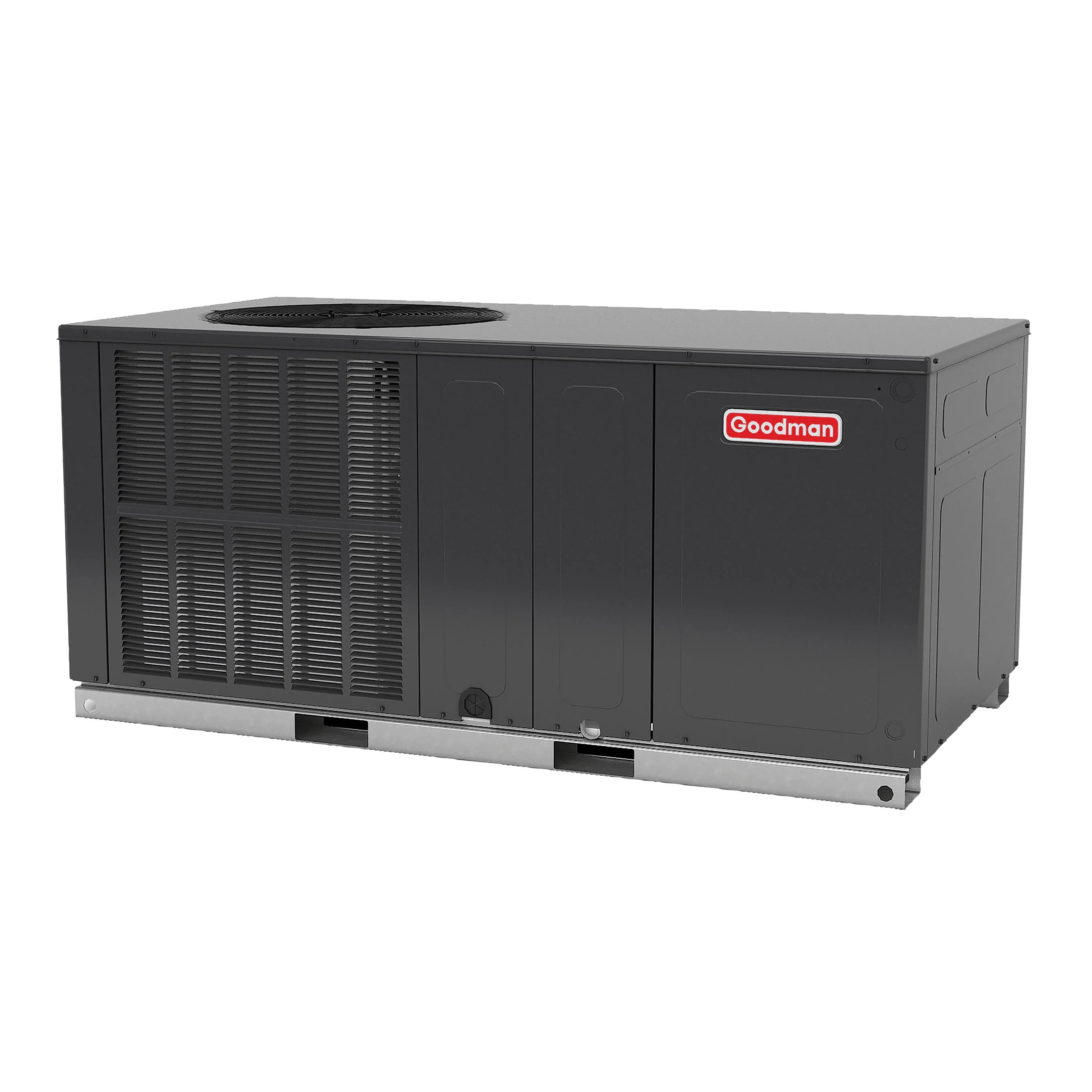

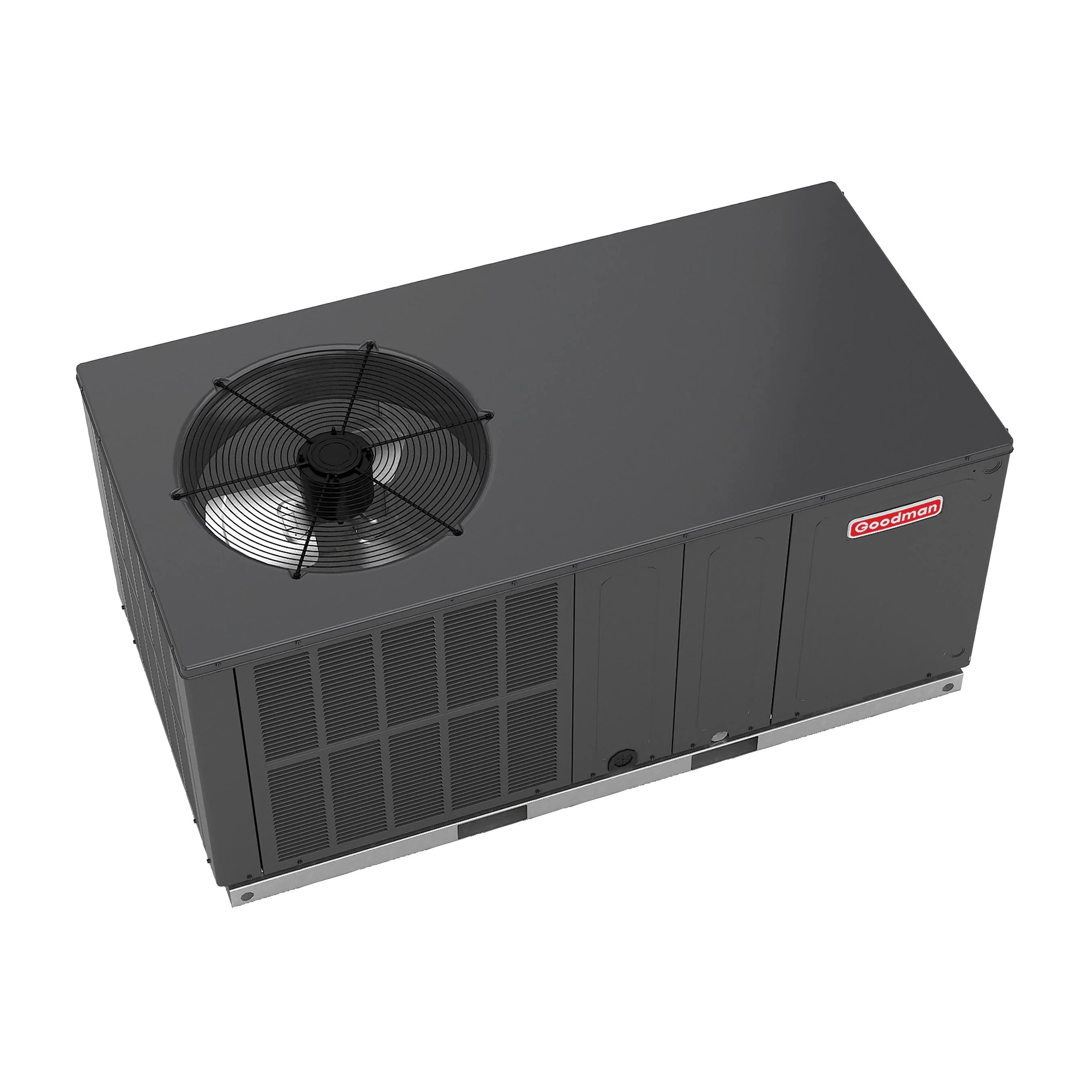

Goodman 3.5 Ton 15.2 SEER2 Packaged Heat Pump - GPHH54241
Goodman 3.5 Ton 15.2 SEER2 Packaged Heat Pump - GPHH54241
Experience year-round comfort and efficiency with the Goodman 3.5 Ton 15.2 SEER2 Packaged Heat Pump - GPHH54241. This all-in-one solution provides reliable heating and cooling for your home or small business, housed within a sturdy, heavy-gauge, galvanized-steel cabinet. Its UV-resistant powder-paint finish ensures durability and longevity, promising years of trouble-free operation.
Benefit from exceptional energy savings thanks to its highly efficient performance, helping you lower your utility bills without sacrificing comfort. Whether installed at ground level or on the rooftop, the Goodman 3.5 Ton 15.2 SEER2 Packaged Heat Pump - GPHH54241 offers versatile placement options. Plus, installation is hassle-free, requiring only connections for supply and return ducts, along with line and low-voltage wiring, and drain connection. Enjoy powerful performance and peace of mind with this reliable heat pump solution.
Standard Features:
- High-efficiency scroll compressor
- Multi-speed ECM indoor blower motor
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged system
- Quiet horizontal discharge
- Electric heat kit available as a field-installed option
- AHRI Certified; ETL Listed
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Louvered condenser coil protection
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- One footprint for all tonnages
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specifications:
| Brand | Goodman |
| Model | GPHH54241 |
| Warranty | 10 Years Parts Warranty with online registration |
| Configuration | Horizontal |
| Cooling Capacity |
Total BTU/h: 42,000 Sensible BTU/h: 31,458 SEER2 / EER2: 15.2 / 11.4 AHRI Numbers: 208842425 |
| Heating Capacity |
BTU/h (47°F): 40,000 C.O.P. (47°F): 3.54 BTU/h (17°F): 21,600 C.O.P. (17°F): 2.29 HSPF2: 6.70 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 10" x 8" Cooling CFM: 1,300 Fan-Only CFM: 1,200 No. of Speeds: 5 Horsepower - RPM: 3/4 - 1,050 |
| Evaporator Coil |
Face Area (ft²): 6.23 Rows Deep: 4 Fins per Inch: 14 Metering Device Type: TXV Drain Size (NPT): 3/4" - 14 NPT Refrigerant Charge (oz.): 170 |
| Condenser Fan |
Horsepower - RPM: 1/4 - 1075 Fan Diameter: 22 # of Fan Blades: 4 |
| Condenser Coil |
Face Area (ft²): 16.5 Rows Deep: 2 Fins per Inch: 16 Metering Device Type: TXV |
| Compressor |
Quantity: 1 Type: Scroll Stage: Two |
| Sound Power (dBA) | 79 |
| Electrical Data |
Compressor RLA/LRA: 19.9/150.7 Voltage/Phase (60 Hz): 208-230 / 1 Indoor Blower FLA: 3.8 Outdoor Fan FLA: 1.4 M.C.A: 30.1 M.O.P: 50 |
| Operating Weight (LBS) | 375 |
| Shipping Weight (LBS) | 385 |
| Dimensions (W x D x H) | 66 x 34 x 35 inches |
| Duct Openings Dimensions |
Supply (W x H): 14 x 14 inches Return (W x H): 14 x 24 inches |
