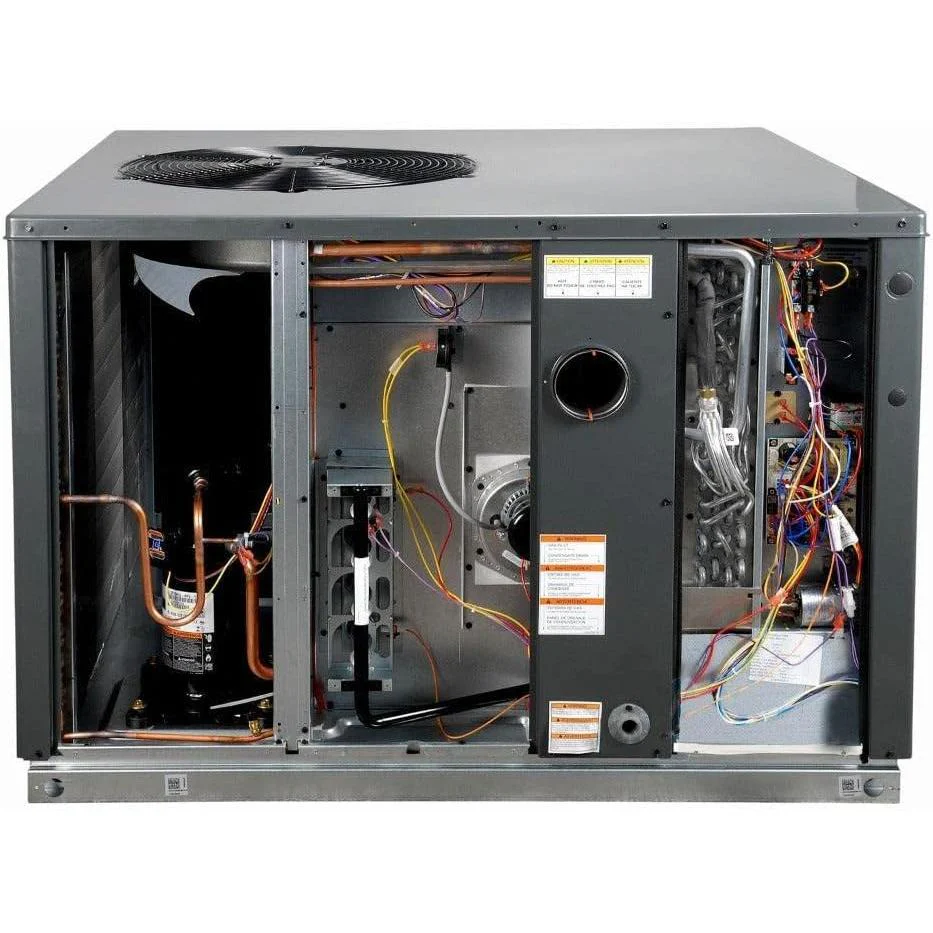

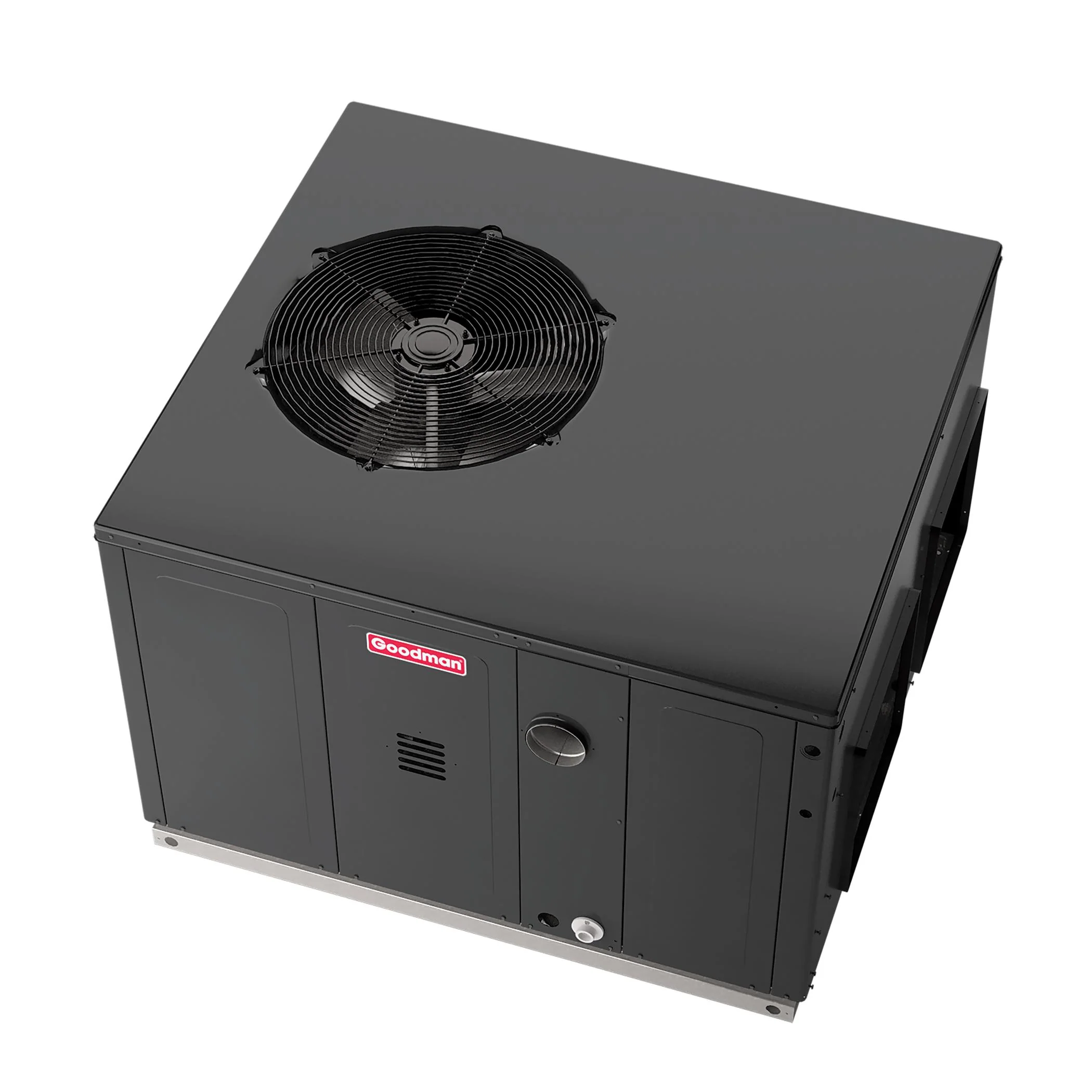

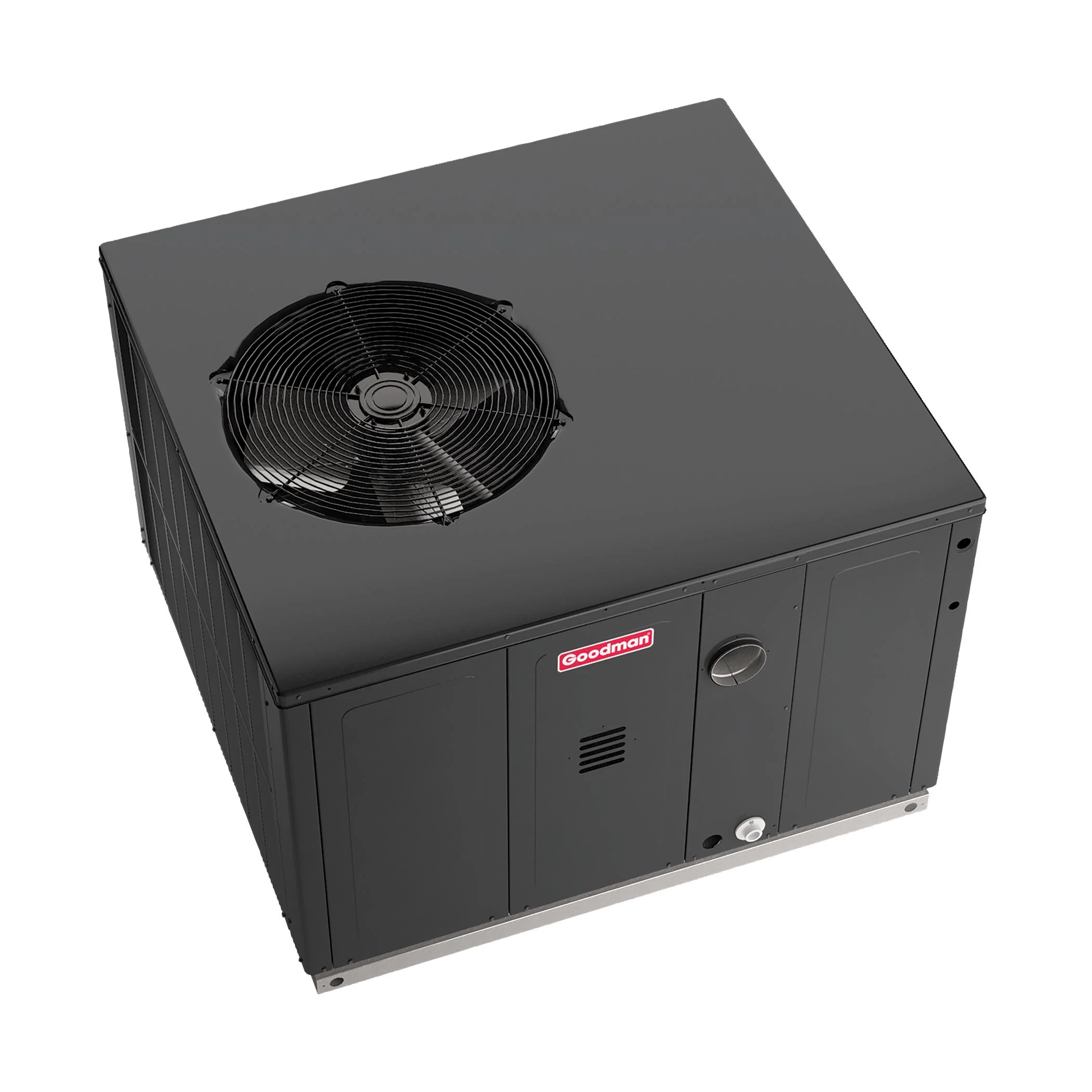

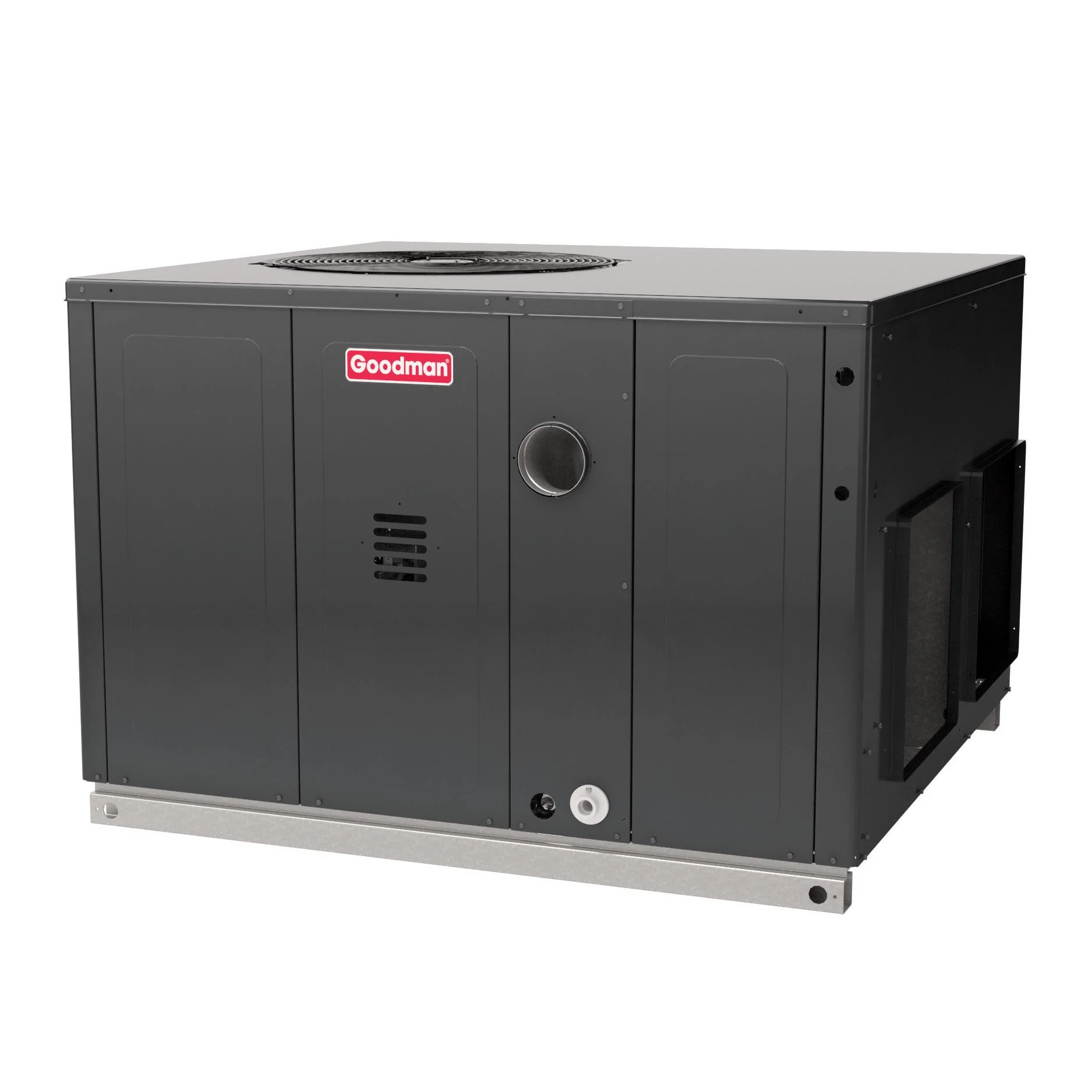

Goodman 2.5 Ton Cooling / 80,000 BTU Heating 81% AFUE 13.4 SEER2 Low NOx Dual Fuel Package Unit (Multi-Position) - GPDM33008041

The Goodman GPDM33008041 is a dual fuel package unit, designed to be part heat pump, part gas heating with AC, it is the perfect solution for nearly any application. With an impressive 13.4 SEER2 rating, this unit is designed to save you money while providing optimal performance. The GPDM33008041 is an affordable option that can be easily installed on your roof or next to your home or business, offering flexible placement to suit your needs.

Equipped with advanced technology, the Goodman 2.5 Ton Cooling / 80,000 BTU Heating 81% AFUE 13.4 SEER2 Low NOx Dual Fuel Package Unit (Multi-Position) - GPDM33008041 efficiently transfers heat between the indoors and outdoors, ensuring both heating and cooling functionalities for year-round comfort. Its straightforward installation process adds to its convenience and cost-efficiency, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.

Standard Features:

• Combines cooling with heat pump and gas heating for optimal year-long performance

• Energy-efficient scroll compressor
• Heavy-duty aluminized-steel heat exchanger
• Multi-speed ECM indoor blower motor
• All-aluminum evaporator coil
• Two-stage gas valve; natural gas with easy conversion to propane with accessory kit
• Power-assisted combustion
• High and low-pressure switch protection
• Direct spark ignition system includes a microprocessorbased control for the entire ignition sequence
• All blower operation and all safety circuits complete with self-diagnostics
• All models comply with California Low NOx emission standards
• This furnace does not comply with the SCAQMD Rule 1111 nor the SJVAPCD Rule 4905 14 ng/J NOx emission limit and therefore is not eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) nor the San Joaquin Valley Air Pollution Control District (SJVAPCD)
• AHRI Certified; ETL Listed

Cabinet Features:

• Fully insulated heavy-gauge, zinc-coated steel cabinet with UV-resistant powder-paint finish

• Louvered metal panel condenser coil protection
• Aluminum foil-facing internal insulation reinforced with fiberglass scrim
• Compressor sound blanket
• Convenient access panels
• One roof curb fits all units
• Bottom, 2” high base rails for easy handling
• All models fit a standard-size pick-up truck
• When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
• Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
• One footprint for all tonnages

Specifications:

Brand	Goodman
Model	GPDM33008041
Warranty	10 Years Parts Warranty with online registration 10 Years Compressor Warranty with online registration 20 Year Heat Exchanger Warranty with online registration
Refrigerant	R-410A
Configuration	Multi-Position
Cooling	Cooling Capacity, BTU/hr: 28,500 Sensible Capacity, BTU/hr: 24,195 SEER2 / EER2: 13.4 / 10.6 Decibels: 76 AHRI Number: 209319576
Heating	Heating Capacity, BTU/hr (47°F / 17°F): 28,500 / 16,600 C.O.P. (47°F / 17°F): 3.32 / 2.28 HSPF2: 6.7
Gas Heating	High-Fire Input/Output (BTU/hr): 80,000 / 64,800 Low-Fire Input/Output (BTU/hr): 60,000 / 48,600 AFUE (%): 81 Temperature Rise Range (°F): 35 - 65/35 - 65 # of Burners: 4 Primary/Auxiliary Limit Setting (°F): 150/150 Roll-out Limit Setting (°F): 350
Evaporator Coil	Face Area (ft²): 4.35 # Rows / Fins per Inch: 3 / 14 Expansion Device (Orifice Diameter in.): 0.065 Filter Size (ft²) / Drain Size (NPT): 4.2 / 3/4 Refrigerant Charge - R-410A (oz): 114
Evaporator Motor	Wheel (D x W): 10" x 9" Type / # of Speeds: ECM / 5 Motor Horsepower / FLA: 1/2 / 3.8 Motor Speed Tap (Cooling and Heat Pump): T4 Nominal CFM (Cooling and Heat Pump): 1,030
Condenser Coil	Face Area (ft²): 12.2 # Rows / Fins per Inch: 2 / 16 Expansion Device (Orifice Diameter in.): 0.047
Condenser Motor / Fan	Fan Diameter / # of Blades: 22.00" / 3 Outdoor Nominal CFM: 2,500 Motor Horsepower - RPM: 1/4 - 837 Motor FLA: 1.3
Compressor	Type / Stage: Scroll / Single Run Load Amps / Locked Rotor Amps: 14.1 / 73.0
Electrical Specifications	Voltage / Phase (60Hz): 208/230-1-60 Minimum Circuit Ampacity: 22.7 Maximum Overcurrent Protection: 35 Entrance Size Power Supply: 1 1/8 Entrance Size Control Voltage: 7/8
Operating / Shipping Weight (lbs)	420 / 440
Dimensions (W x D x H)	47 x 51 x 34-1/2 inches
Duct Openings Dimensions	Supply (W x H): 16 x 16 inches Return (W x H): 16 x 16 inches
Resources	Specifications Installation Manual Service Manual Parts Manual Warranty AHRI Certificate
