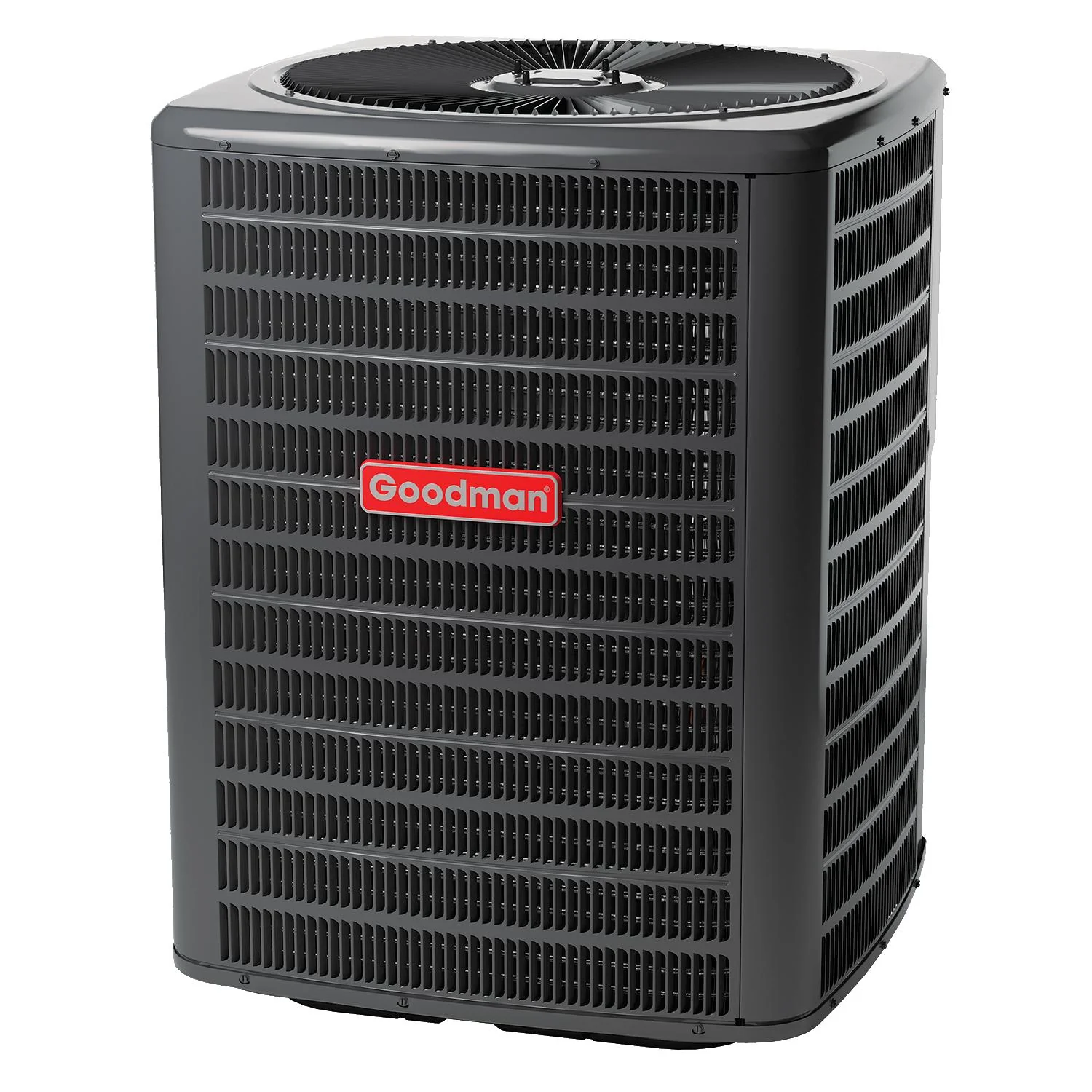

Goodman 2.5 Ton 15.2 SEER2 Air Conditioner Condenser (R-32 Refrigerant)
Goodman 2.5 Ton 15.2 SEER2 Air Conditioner Condenser (R-32 Refrigerant)
Say goodbye to hot and uncomfortable weather and hello to fresh cold air with the Goodman 2.5 Ton 15.2 SEER2 Air Conditioner Condenser (R-32 Refrigerant). Not only does this system keep you cool, but it also keeps your energy bill low thanks to its high energy efficiency rating of 15.2 SEER2. Designed for user-friendliness, it includes service valves, gauge ports, and top and side maintenance access for easy service. Pre-charged for 15’ of tubing, the Goodman 2.5 Ton 15.2 SEER2 Air Conditioner Condenser (R-32 Refrigerant) is ready to provide your home or business with the energy-efficient cooling performance you've been looking for. Couple its enduring build with the reassuring 10-year parts and compressor warranty, and you're set for reliable cooling year after year.
Standard Features:
- High-Efficiency Scroll Compressor
- Factory-installed filter drier
- Fully charged for 15' of tubing length
- 5mm diameter copper tube/ enhanced aluminum fin coil
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor
- High-pressure switch
- Ground lug connection
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features:
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.
Specifications:
| Brand | Goodman |
| Model | GLXS5BA3010 |
| Warranty |
10 Years Parts Warranty 10 Years Compressor Warranty |
| SEER2 | 15.2 |
| Energy Star Certified | Yes |
| Capacities |
Nominal Cooling (BTU/h): 30,000 Decibels (dBA): 73.0 |
| Compressor |
RLA: 11.5 LRA: 66.3 Stage: Single Type: Scroll |
| Condenser Fan Motor |
Motor Type: PSC Horsepower: 1/6 FLA: 0.95 |
| Refrigeration System |
Refrigerant Line Size
Refrigerant Connection Size
Valve Type: Sweat Refrigerant Type: R-32 Refrigerant Charge: 87 oz |
| Electrical Data |
Voltage-Phase (60 Hz): 208/230-1-60 Minimum Circuit Ampacity: 15.4 Max. Overcurrent Protection: 25 Min / Max Volts: 197 / 253 Electrical Conduit Size: 1/2" or 3/4" |
| Equipment Weight (LBS) | 192 |
| Ship Weight (LBS) | 214 |

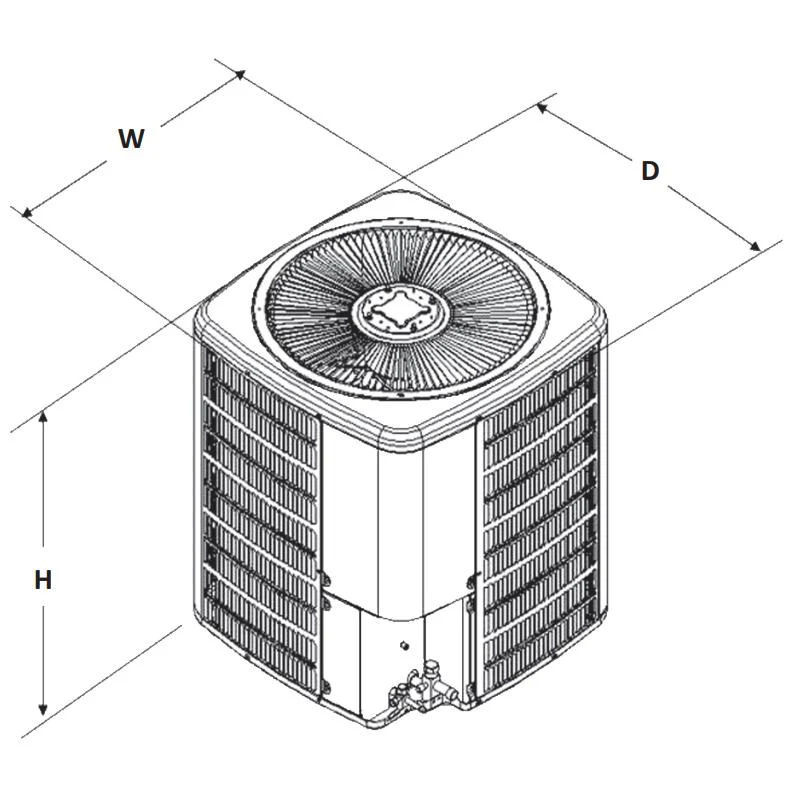

| Dimensions (W x D x H) | 35-1/2 x 35-1/2 x 39-1/2 inches |
| Resources |
